Title: Quality Assurance


1

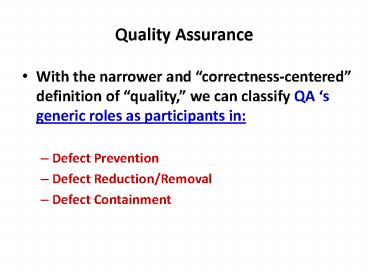

Quality Assurance
  • With the narrower and correctness-centered
    definition of quality, we can classify QA s
    generic roles as participants in
  • Defect Prevention
  • Defect Reduction/Removal
  • Defect Containment

2
QAs Roles in Prevention/Reduction/Containment of
Defects
Failures
Fl1 Fl2 Fl3 Fl4 Fl5
Errors
E1 E2 E3 E4
Faults
F1 F2 F3
2. Reduction thru Fault removal
1. Prevention thru Error blocking removal
3. Containment of failures
Preventing defect from escaping into execution
3
1. Defect Prevention
  • Root-Cause Based Defect Prevention Activities
  • Human Misconception or Lack of Knowledge - (root
    cause)
  • Education/training - (prevention)
  • Imprecise Requirements, Design and
    Implementation, and Testing
  • Improved or formal methodologies
  • Non-conformance in Process or Standards
  • Process and standard enforcements
  • Lack of Technology or Tools
  • Adoption of appropriate technology and tools

4
Education/Training
  • People are the most relevant factor in software
    development and support. Thus educating and
    training people will support the prevention of
    errors
  • Domain specific and product specific knowledge
  • Software development support knowledge
  • Software process knowledge
  • Software methodology, technology, and tool
    knowledge

same
5
Improved and Formal Methods
  • Specifications of requirements and of design are
    predecessor artifacts to coding, thus preventions
    of errors in these specifications can greatly
    prevent coding errors and affect code and
    execution quality.
  • Defining pre-conditions and post-conditions
  • Proof of correctness (formal verification)
  • Specification languages such as Z, suite of UML
    notations, ERD diagrams, etc.

6
Process, Technology and Tools
  • Better defined process and enforced/managed
    process puts discipline into software development
    /support and that can prevent errors.
  • Improved technology and methods such as
    modularization, information hiding, re-use of
    patterns, etc. can help in preventing errors in
    design and development.
  • Improved software tools such as development
    platform that provides code frameworks and
    dynamic syntax checker/editor helps in preventing
    errors

7
2. Defect Reduction
  • It is not possible to have a 100 effective error
    prevention activity. Thus we need to perform
    fault removal to get defect reduction
  • Inspection/Review
  • Testing
  • Other techniques Prototyping, Simulation, Fault
    Tree Analysis, risk identification

8
Inspections (covered in
Lesson 12)
  • Less formal ones include walkthrough and reviews
  • Most successful one is the formal Fagan
    Inspection methodology which includes multiple
    steps conducted by a team of inspectors
  • Identification and assignment of moderator and
    inspectors
  • Moderator prepares for the inspection inspectors
    prepares for the inspection (different
    preparations)
  • Actual reading/inspection of the material by
    inspectors --- possibly with the author in
    attendance
  • Recording of the faults found, of severity status
    assigned, of fix target and schedule by moderator
  • Fault fixes tracked and inspection report
    completed by moderator

9
Testing
  • Testing involves
  • Development of test cases
  • Execution of the test cases
  • Observing the software behavior
  • Recording and reporting the results
  • Different phases of testing
  • Unit testing
  • Functional and component testing
  • Integration testing
  • System testing
  • User acceptance testing / beta testing

My additions
10
Testing (cont.)
  • Two major types of Testing
  • Black Box testing (external functionality and
    property testing) where we generate test
    scenarios mostly from requirements .
  • White Box (internal structure and data path
    testing) testing where we generate test cases
    from the design and code.
  • Testing Completion
  • Based on coverage of test cases test
    scenarios
  • Based on pre-set reliability or quality goals

11
Other Defect Reduction Related Techniques
  • Symbolic Execution, Simulation and Prototyping at
    the early phases of software development
  • In-Process analysis with fault-tree or
    cause-effect tree
  • Use design/code complexity, size, change
    history to focus on high potential error-prone
    areas

12
3. Defect Containment
  • In some systems such as medical, nuclear
    equipment, or aerospace industries even a
    little number of defects that escaped through
    prevention and reduction can be extremely harmful
  • We need to contain the failures by reducing the
    resulting damage

13
Fault Tolerance
  • Fault tolerance originated with hardware systems
    with spare parts and back-up capabilities.
  • Software we use the same concept
  • Recovery blocks a section of the code or
    software is re-executed after a failure occurs
    and after some parameters are re-set.
  • N-Version Programming execution of several same
    functionality programs in parallel, thus a
    program failure may be localized and possibly
    by-passed

14
Safety Critical
  • Safety is a key characteristic of medical,
    nuclear, industrial, transportation and many
    other types of systems. Thus we view it from a
    containment perspective also
  • After Hazard Prevention and Hazard Reduction of
    errors and faults, we need to be able to
    separate out or lockout the defective parts
    at containment time.
  • Hazard Control and Damage Control are post
    accident activities of preventing the damage from
    further spreading and causing more than the
    original harm.
