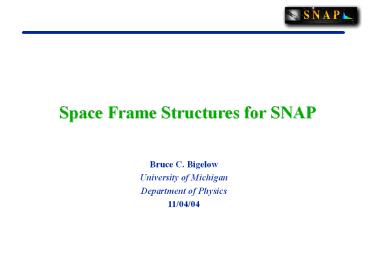

Space Frame Structures for SNAP

1
Space Frame Structures for SNAP

• Bruce C. Bigelow
• University of Michigan
• Department of Physics
• 11/04/04

2
Space Frames for SNAP

• SNAP already has baseline primary and secondary
  structures. Why look at others?
• Minimizing structure mass mission flexibility
• Higher resonant frequencies are (almost) always
  better
• Minimizing carbon fiber mass reduces H2O dry-out
  issues
• Open structures provide maximum access to
  payloads
• Space frame structures are prevalent in space
  (heritage)

3
Space Frames

• Features
• Loads carried axially (ideally)
• Joints/nodes carry some moments (not space
  truss)
• Deflections scale linearly with length
• d PL/AE loads carried in tension/comp. (SF)
• Versus
• d PL/nAG loads carried in shear (monocoque)
• d PL3/nEI loads carried in bending
• Fast and easy to model with FEA
• Facilitate test and integration
• Space frames are ideal for supporting discrete
  loads
• Space frames make poor fuel tanks and fuselages

4
Space Frames for SNAP

• Status of space frames for SNAP
• (PPT presentations in BSCW PS1300/Weekly)
• Space frame spectrograph mount 05/14/04
• Athermal (constant length) strut
  designs 06/04/04
• Det. space frame designs for TMA-63 07/29/04
• Indet. Space frame designs for TMA-65 08/26/04
• Node/joint design concepts 09/02/04
• Survey of space heritage structures 09/02/04
• Minimum obscuration SMA structure 09/16/04
• TMA 65, fold mirror, and lower baffle 10/28/04

5
Spectrograph mount

• Design features
• Hexapod space frame to carry 10Kg spectrograph
• 21 hexapod geometry gt horizontal deflections,
  no tilts
• Attaches to common focal plane mounting points
• Essentially no loads carried by focal plane
  assembly
• Simple interface to spectrograph
• 3 discrete support points, or round flange
• Supports spectrograph load near center of mass
• Minimizes moment loads
• Simple interface to FP (mount points,
  cylindrical volumes)
• Spectrograph and mount easily separate from FPA
• Invar, CF, or athermal struts
• Simple control of spectrograph thermal defocus

6
FEA Model

• SNAP Baseline design
• Moly, Invar, Ti flexures
• Attaches to FPA baseplate
• Loads carried near detect.
• Natural frequencies for spectrograph, mount, and
  flexures 116, 121, 164 Hz.
• Mass ?

7
Spectrograph mounting structure
Ease of access to detector connections
FP assembly with spectrograph included (note
redundant str.)
8
Dynamic FEA

• First 6 freq
• 413 Hz
• 415 Hz
• 416 Hz
• 470 Hz
• 478 Hz
• 490 Hz

f1 413 Hz, transverse mode, 25 x 2 mm Invar
struts, 2.5 Kg, f1 675 Hz for carbon fiber
(MJ55), 25 x 2 mm struts, 0.5Kg
9
Athermal Struts

• Design features
• Thermally compensated or controlled length
  struts
• 3 materials to provide varying
  expansion/contraction
• Avoid high stresses due to CTE mismatches
• Provide integral flexures for kinematic
  constraints
• Provide features for length adjustments
  (alignment)
• Application details required for FEA

10
Athermal Struts
Blue Ti CP Grade 1 --- 17 PPM/K Light Grey
Invar --- 1.26 PPM/K Dark Grey Ti 6Al 4V ---
6.7 PPM/K
L1 156mm, L2 78mm, L3 222mm(x2), 600mm long
strut
11
Athermal Struts
21 truss geometry on focal plane assy, 600mm
long struts
EDM cross-flexure
12
OTA Space Frames

• Motivations
• Minimize telescope structure deflections under
  gravity
• Maximize resonant frequencies on ground and in
  orbit
• Minimize structure mass, CF outgassing, etc.
• Maximum access to optical elements (assembly,
  test)
• Explore parameter space for SNAP structure

13
OTA Space Frames TMA 63

• Design objectives
• Maintain symmetry to extent possible
• Locate nodes for access to primary loads
• 3 nodes above secondary mirror for hexapod mount
• 3 nodes above primary for secondary support
• 3 nodes behind primary for mirror, attach to SC
• 3 nodes below tertiary axis to stabilize
  secondary supp.
• Locate nodes and struts to avoid optical path
• Size struts to minimize mass and deflections
• Round struts used for constant stiffness vs.
  orientation
• Non-tapered struts used easy for first cut
  designs
• COI M55J carbon fiber composite used for all
  struts
• CF can be optimized for cross section, thermal
  expansion

14
OTA Space Frames TMA 63
15
TMA-63 structure FEA
Elements
16
Dynamic FEA

• Dynamic analyses
• Telescope mass 360kg payload, 96kg structures
• Modal analysis for ground, launch
• f1 72 Hz
• f2 74 Hz
• f3 107 Hz
• f4 114 Hz
• f5 131 Hz
• Modal analysis for on-orbit (unconstrained)
• f7 106 Hz
• f8 107 Hz

17
Static FEA
First ground mode, 72 Hz
18
Nodes for space frames

• Design features
• Nodes connect the struts in a space frame
• Accommodate diameters of struts (constant
  diameter, wall)
• Minimize mass (often a large fraction of the
  mass in a SF)
• Maximize ease of fabrication and assembly
• Provide attachment points for secondary
  structures

19
Nodes for space frames

• Molded node, 22mm x 2mm tubes, V 13103 mm3
• Invar 0.1 Kg, Ti 0.06 Kg, CC 0.02 Kg

20
Nodes for space frames

• Machined node, 22mm OD tubes, V 58561 mm3
• Invar .47 Kg, Ti 0.26 Kg, CC 0.09 Kg

21
Secondary Mirror Structure

• Design features
• Minimize pupil obscuration by SMA structures
• Minimize structure mass
• Maintain high first resonance
• Secondary support vanes
• 25 mm diameter x 2 mm wall
• Requires revisions to current outer baffle
  design

22
Secondary Structure
Blue/green hexapod struts are outside of CA
23
Secondary Structure
Trial 9, ring at 2.85m elev.
24
Space frame developments

• Latest work
• TMA 65 structure with nodes
• Fold mirror sub-frame
• Lower baffle structure (Al) and close-outs
• Rings have 50 x 50 x 3 mm sections
• Struts have 50 x 50 x 6mm sections
• Upper baffle mass 190 Kg
• Baffle structure (38 Kg) close-outs (27 Kg)
  65 Kg
• f1 33 Hz
• CF baffle structure 20Kg, 40Hz

25
TMA-65 structure with nodes
26
Fold mirror sub-structure
27
Lower baffle structure
28
Lower baffle, structure clearance
29
Deformation in 1g held by GSE(baffle
displacement2.6mm)
Baseline mass 79 Kg
30
Lower baffle structure
mass 65 Kg
31
Baffle/OTA Assembly Mode 1, 20Hz
32
Lower baffle structure
33
Space frames for SNAP

• Conclusions
• Space frames are applicable to most SNAP
  structures
• Space frame structures offer significant mass
  reductions over current baseline designs
• Space frame structures provide higher
  frequencies/mass compared to baseline designs
• Space craft structure heritage is well
  established
• Space frame structures will readily scale to
  larger apertures
• Space frames for SNAP Ready for prime time!
