Title: Normal and Exponential Probability Distributions


1

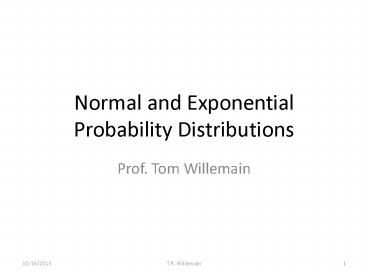

Normal and Exponential Probability Distributions
  • Prof. Tom Willemain

2
Normal Distribution
  • Also called Gaussian distribution

3
(No Transcript)
4
Normal density curves
5
The standard normal distribution
6
Nonstandard normal distribution
7
Percentiles of normal distributions
8
Normal Probabilities and Percentiles in Minitab
9
In-Class Exercise
  • X N(15, 22).
  • Calculate the following
  • P(X lt 16) P(X 16) ?
  • 78th percentile of X ?

10
(No Transcript)
11
Special Properties of Normal pdf
  • If X1 and X2 are normal RVs, then X1X2 also has
    a normal distribution.
  • If X1 N(µ1, s12) and X2 N(µ2, s22) AND if
    X1 and X2 are independent, then
  • X1X2 N(µ1µ2, s12s22)
  • i.e., means always add, and variances add if the
    components are independent

12
Normal probability plot
This is an informal, graphical test. If the data
plot close to a straight line, we are safe in
assuming normality.
13
(No Transcript)
14
(No Transcript)
15
Random Normal Data in Minitab
16
plot confirms that Minitab generated Normal data
17
Exponential Distribution
18
The exponential distribution
19
Exponential density curves
20
Memoryless Property of Exponential
  • Ex P X gt 100 X gt 90 PX gt 10, so its as
    if time restarted at 90.
  • This property is unique to the exponential and
    makes certain analyses easy.
  • We know that PX gt x exp(-?x) for all x 0
  • So what is PX gt x X gt c (for any x gt c)?
  • PX gt x AND X gt c/PX gt c
  • PX gt x/PX gt c
  • exp(-?x)/ exp(-?c) exp(-?x-c) QED

21
Exponential Distribution in Minitab
22
Exponential Probability Plot
23
In-Class Exercise
  • The time before failure of an electronic black
    box has an exponential distribution with mean
    150 hours.
  • Compute
  • Plifetime lt 500 hours
  • Plifetime is between 100 and 200 hours

24
In-Class Exercise
P100ltlifelt200 0.74-0.49 0.25
25
Demonstration of the Use ofRandom Numbers
toAnswer a More Complex Question
  • A black box has a mean lifetime of 150 hours.
    When it fails, it is replaced by another,
    identical unit.
  • There is a supply of 5 spare units on hand.
  • Estimate the pdf of the time until all the units
    are dead.

26
(No Transcript)
