Title: Digital Circuit Design on FPGA


1

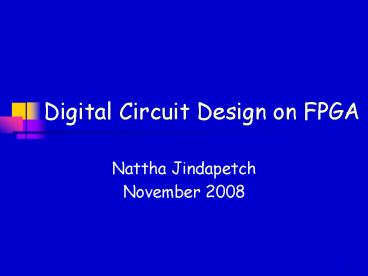

Digital Circuit Design on FPGA
  • Nattha Jindapetch
  • November 2008

2
Agenda
  • Design trends
  • IC technology revolution
  • Design styles
  • System integration
  • Programmable logic
  • FPGA design flow Tools
  • LABs

3
IC Technology Revolution
4
Invention of the Transistor
  • 1947 first point contact transistor at Bell Labs

5
The First Integrated Circuit
  • 1966 ECL 3-Input gate at Motorola

6
MOS Integrated Circuits
  • 1970s processes usually had only nMOS
    transistors
  • Inexpensive, but consume power while idle

Intel 1101 256-bit SRAM
Intel 4004 4-bit ?Proc 1000 Trs, 1 MHz operation
7
High Performance Processors
  • 2001 Intel Pentium Microprocessor
  • 42 M transistors,
  • 1.5 GHz operation
  • CMOS, Low power

8
Moores Law
  • Transistor counts have doubled every 2 years

Integration Levels SSI 10 gates MSI 1000
gates LSI 10,000 gates VLSI gt 10k gates
9
Corollaries
  • Many other factors grow exponentially
  • Ex clock frequency, processor performance

10
Evolution of a Revolution
  • www.intel.com

11
Design Styles
12
Design Styles
  • Full-custom ASIC
  • Cell-based ASIC
  • Gate array
  • Programmable logic
  • Field programmable gate array (FPGA)
  • Programmable logic device (PLD)
  • Complex PLD (CPLD)

13
Full-Custom ASIC
  • layout-based
  • the designer draws each polygon by hand
  • More compact design but longer design time
  • only for analogue and high(est) volumes

14
Cell-Based ASIC
  • used predefined building blocks (cells)
  • designer creates a schematic that interconnects
    these cells
  • layout placement interconnection of cells
  • for functionality or time-to market driven
    design

15
Gate Array
  • Each chip is prefabricated with an array of
    identical gates or cells.
  • The chip is customized by fabricating routing
    layers on top.
  • Time to market, cost

16
Field programmable gate array
  • Chips are prefabricated with logic blocks and
    interconnects.
  • Logic and interconnects can be programmed (erased
    and reprogrammed) by users.
  • No fabrication is needed.
  • Cost efficient for medium complexity (lt 1M gates)
    designs

17
PLD and CPLD
  • Programmable Logic Device (PLD, PLA, PAL, ...)
  • AND-OR combinatorial logic, plus FF
  • designer writes Boolean equations
  • Small complexity only
  • Complex PLD (CPLD)
  • several PLD blocks
  • programmable interconnection matrix

18
Trends in Design styles
  • More complex system
  • Digital and Analog IC (Mixed Signal)
  • Hardware and Software Co-design
  • SoC, SoPC
  • Resulting in
  • Higher abstract design level
  • Advanced design tools to automate complex designs
  • Short design time to compete market share

19
Why HW/SW Co-design?
  • Hardware (ASIC, FPGA)
  • Fast
  • But very expensive
  • Software (Processor)
  • Flexible
  • But slow
  • Hardware Software Good solution?
  • Requirements?

20
Example of Digital Camera
21
System Integration
22
System Integration
23
Benefits
  • Less components
  • Component costs
  • Board size and cost
  • Assembly and testing costs
  • Less inter-chip interconnects
  • Reliability
  • Power consumption
  • Board design, fabrication and assembly costs
  • Smaller system volume (in cm2) and weight
  • Higher integration rate
  • Smaller case costs
  • Smaller transport costs
  • In high volumes (in pcs), also lower circuit
    costs

24
SoP
  • System-on-Package (SoP) or System-in-Package
    (SiP) are advanced multi-chip packaging
    technology complementing SoC.

25
SoC
  • System-on-Chip one term, many definitions
  • IBM definition a single-chip system containing
    analog, digital and MEMS (micro-electro-mechanical
    system) parts
  • Lucent definition a single-chip system
    containing analog and digital parts
  • Synopsys definition a single-chip digital
    system
  • SoC, System-on-Chip is a relatively complex
    standalone system on a single semiconductor chip
    containing at least one processor, maybe some
    analog or even electro-mechanical parts, where
    the design needs to address on-chip communication

26
SoPC
  • System-on-a-Programmable Chip (SOPC) term coined
    by Synopsys
  • SoPC is a FPGA technology based user programmable
    solution
  • PR and programming done by the user
  • No delay on prototype production
  • No delay on mass production start
  • No NRE (production start) costs
  • Production tests done by the IC vendor
  • Design resource and time savings in the design
    flow
  • Quick and cheap modifications

27
SoC vs SoPC
  • SoC manufacturing is costly
  • Foundries more and more expensive
  • Mask costs for fine-grain lithography are
    increasing
  • Silicon vendors concentrate on big customers with
    big quantities
  • Very few multi-project prototype services
    available
  • Malfunction will cost a lot of money and time
  • Full-wafer prototype round may cost even 500,000
    ... 1M
  • FPGA-type solutions are also evolving
  • On-chip processor cores
  • Multi-million gate capacity
  • Some vendors also provide coarse-grain
    reconfigurability
  • FPGA-based SoC-type platforms thus have a growing
    niche

28
Programmable Logic
29
Programmable Logic
  • Programmable digital integrated circuit
  • Standard off-the-shelf parts
  • Desired functionality is implemented by
    configuring on-chip logic blocks and
    interconnections
  • Advantages (compared to an ASIC)
  • Low development costs
  • Short development cycle
  • Device can (usually) be reprogrammed
  • Types of programmable logic
  • Complex PLDs (CPLD)
  • Field programmable Gate Arrays (FPGA)

30
CPLDArchitecture and Examples
31
PLD - Sum of Products
Programmable AND array followed by fixed fan-in
OR gates
Programmable switch or fuse
32
PLD - Macrocell
  • Can implement combinational or sequential logic

33
CPLD Structure
  • Integration of several PLD blocks with a
    programmable interconnect on a single chip

34
CPLD Example Altera MAX7000
EPM7000 Series Block Diagram
35
CPLD Example Altera MAX7000
EPM7000 Series Device Macrocell
36
FPGA Architecture
37
FPGA - Generic Structure
  • FPGA building blocks
  • Programmable logic blocksImplement combinatorial
    and sequential logic
  • Programmable interconnectWires to connect inputs
    and outputs to logic blocks
  • Programmable I/O blocks Special logic blocks at
    the periphery of device for external connections

38
Other FPGA Building Blocks
  • Clock distribution
  • Embedded memory blocks
  • Special purpose blocks
  • DSP blocks
  • Hardware multipliers, adders and registers
  • Embedded microprocessors/microcontrollers
  • High-speed serial transceivers

39
FPGA Basic Logic Element
  • LUT to implement combinatorial logic
  • Register for sequential circuits
  • Additional logic (not shown)
  • Carry logic for arithmetic functions
  • Expansion logic for functions requiring more than
    4 inputs

40
Look-Up Tables (LUT)
  • Look-up table with N-inputs can be used to
    implement any combinatorial function of N inputs
  • LUT is programmed with the truth-table

41
LUT Implementation
  • Example 3-input LUT
  • Based on multiplexers (pass transistors)
  • LUT entries stored in configuration memory cells

Configuration memory cells
42
Programmable Interconnect
  • Interconnect hierarchy (not shown)
  • Fast local interconnect
  • Horizontal and vertical lines of various lengths

43
Switch Matrix Operation
After Programming
Before Programming
  • 6 pass transistors per switch matrix interconnect
    point
  • Pass transistors act as programmable switches
  • Pass transistor gates are driven by configuration
    memory cells

44
Special Features
  • Clock management
  • PLL,DLL
  • Eliminate clock skew between external clock input
    and on-chip clock
  • Low-skew global clock distribution network
  • Support for various interface standards
  • High-speed serial I/Os
  • Embedded processor cores
  • DSP blocks

45
Configuration Storage Elements
  • Static Random Access Memory (SRAM)
  • each switch is a pass transistor controlled by
    the state of an SRAM bit
  • FPGA needs to be configured at power-on
  • Flash Erasable Programmable ROM (Flash)
  • each switch is a floating-gate transistor that
    can be turned off by injecting charge onto its
    gate. FPGA itself holds the program
  • reprogrammable, even in-circuit
  • Fusible Links (Antifuse)
  • Forms a forms a low resistance path when
    electrically programmed
  • one-time programmable in special programming
    machine
  • radiation tolerant

46
FPGA Vendors Device Families
  • Xilinx
  • Virtex-II/Virtex-4 Feature-packed
    high-performance SRAM-based FPGA
  • Spartan 3 low-cost feature reduced version
  • CoolRunner CPLDs
  • Altera
  • Stratix/Stratix-II
  • High-performance SRAM-based FPGAs
  • Cyclone/Cyclone-II
  • Low-cost feature reduced version for
    cost-critical applications
  • MAX3000/7000 CPLDs
  • MAX-II Flash-based FPGA
  • Actel
  • Anti-fuse based FPGAs
  • Radiation tolerant
  • Flash-based FPGAs
  • Lattice
  • Flash-based FPGAs
  • CPLDs (EEPROM)
  • QuickLogic
  • ViaLink-based FPGAs

47
State of the Art in FPGAs
  • Xilinxs top of the line FPGA
  • 65nm process technology
  • 550MHz RAM blocks
  • 6-input LUTs
  • Serial connectivity
  • Ethernet MACs
  • Rocket I/O serial 6.5 GBps
  • PCI Express endpoint
  • Enhanced DSP blocks (25x18-bit MAC)
  • 1760 pin BGA with 1200 I/O
  • EasyPath

48
FPGA Design Flow
Xilinx Design Flow
49
LABs
  • Lab1 Introduction
  • Quick start
  • Synthesis results
  • RTL schematic
  • Technology schematic
  • Device utilization summary
  • Timing summary
  • Simulation
  • Behavioral
  • Post-Place and Route (PAR) Simulation

50
References
  • Theerayod Wiangtong, Design Trends on Digital
    System Design, Lecture note, Electronic
    Department, Mahanakorn University of Technology,
    2004
  • Fank Mayer, High-Level IC Design, Fraunhofer
    IIS, Erlangen, Germany, 2004
  • Stefan Haas, FPGAs, CERN Technical Training
    2005
  • Xilinx University Program, http//www.xilinx.com/s
    upport/education-home.htm
