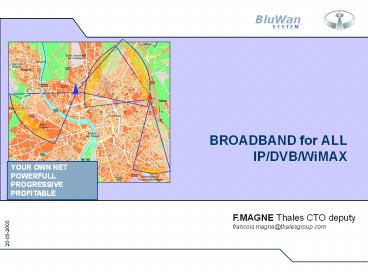

BROADBAND for ALL IP/DVB/WiMAX

1
BROADBAND for ALLIP/DVB/WiMAX
YOUR OWN NET POWERFULL PROGRESSIVE PROFITABLE
F.MAGNE Thales CTO deputy francois.magne_at_thalesgro
up.com
2
TRENDS NEEDS

• TVHD terminals available, program production now
  on HD
• _at_Applications learning, design, health care,
  conferencing, accounting, games. Need Images
• VIRTUAL OFFICE
• TRIPLE PLAY
• Increases Operator ARPU Customer base
• Decreases customers bill (number cost)
• Cable operators already It, UK, Benelux.
• Alternative Operator on DSL Fr
• OFFERING ALL SERVICES OPTIMISES ECONOMY FOR EVERY
  ACTOR FOSTER DEVELOPMENT
• NEEDS
• THROUGHPUT per user 10Mbps
• CAPACITY per elementary area 1Gbps
  typically 20Km² with
  12 000 Households offices

3
WIRELESS ACCESS SPECTRUM
Range Capacity problem Power x Bandwidth
Authorised Power
WiMAX
Down load
Up load
2W 0,2W 0,1W 0,O1
WiFi WiMax WiFi5 UWB..
BLR
WMS UE .
GHz 2.4/2.5 3.4/3.5 5.6/5.8
10.410.5 26 28
40.5 43.5
Band S Band C Band
X Band Ka Bande
Q
ACCESS NERWORKS REGULATED BANDS compulsory for
prof. PmP
LOCAL NETWORKS, LIMITED CAPACITY RANGE , NON
REGULATED BAND (interference risk) access network
termination use
4
NETWORK
6 to 40km
TV Internet VoIP
Broad multi uni cast
HOT SPOT
2 to 6km
LAN CIE
5
BluWan Architecture

• A powerful multiGbps multimedia downlink
• Low cost
• Gbps capability
• Scalable
• Multimedia capability

Multi-Gbps DVB M-41GHz TV/HDTV/VoD/Internet Down
Splitter
TV Internet VoIP
6
BluWan Network Organization (1)

• BluWan technology cooperates with an IP return
  path
• Internet
• Interactivity
• Triple play TV, IP, voice

IP cloud
7
BluWan Network Organization (2)
Station de BASE
PoP
WMS41/10 daccès

Réseau de distribution
Site dusager
Hyper_at_gate
Opale
unidirectionel

41 GHz
Em.
Transmission MDS
/11Ghz ou TCF 41Ghz
WMS41
ODU
BIBANDE
Subscriber Edge Router
Routeur de
IP Access network
bord
Modem


8
DEPLOYMENT
Example for PARIS suburbs Cable operator NOOS 85K
inhabitants 2Gbps CAPACITY
9
PRAGUE DEPLOYMENT pre Project
lt 3  Km gt
PRAGUE  1rst circle  180 000HH PoP Backhaul B
ases boosters
10
Limoges Platform
11
THALES mm µwaveTECHNOLOGY
wave guide ?strip transition
Waveguide filter gabarit
Base PA module
patch cosecant antenna
encapsulated MMIC for MSC
ODU
Lens polyure-ethane antenna
12
The MarketSolutions Comparison
Joint capabilities
13
Profit Loss (before tax)
100K inhabitants PL in K
5000
4000
3000
2000
METRO
CITY
1000
SUBURB
0
SMALLCITY
1
2
3
4
5
6
-1000
-2000
-3000
YEARS
14
Return Path client two approaches

• To fit the costs
• Isolated client
• PC
• DVB ingress PCI interface card
•  IP return path  PCI modem card
• LAN Client
• Edge router
• DVB ingress interface
• WIMAX Interface
• IP/PPPoE/Eth interface
• ADSL modem
• Cable modem

15
BluWan is IP Return Path Agnostic

• BluWan access architecture fits any existing IP
  return paths technology
• Wimax
• xDSL
• ADSL
• SDSL
• Cable networks
• 2.5G/3G mobile networks
• Pots/ISDN

16
BluWan Increase IP access performances

• BluWan technology boosts Available IP access
  networks
• No modification of subscribers IP access
• Accounts
• Protocols
• No IP connectivity constraints
• Full use of IP access return path provisioning
• Multiply downlink throughputs
• Up to 40 Mbps
• Traffic engineering capability

17
ADSL return Path

• BluWan technology is the main way to get the best
  of xDSL capabilities
• Overprovision xDSL capabilities
• From 2 Mbps downlink to up to 40 Mpbs
• No modification to introduce inside xDSL access
  architecture
• Uplink capability follows xDSL technology stage
• ADSL
• SDSL
• VDSL
