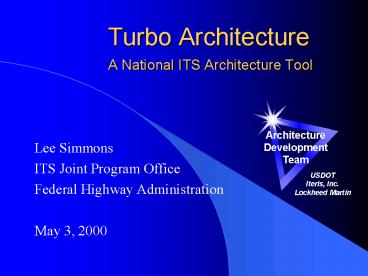

Title: Turbo Architecture A National ITS Architecture Tool


1
Turbo Architecture A National ITS Architecture
Tool
  • Lee Simmons
  • ITS Joint Program Office
  • Federal Highway Administration
  • May 3, 2000

USDOT Iteris, Inc. Lockheed Martin
2
Topics
  • Tool Purpose and Functionality
  • What You Need to Start Using Turbo
  • User Interface and Outputs

3
Turbo Architecture is...
  • An interactive software program
  • for the development of regional and project
    architecture using National ITS Architecture as a
    reference
  • for Transportation planners, System integrators,
    Public and Private sectors

4
Turbo Architecture is Not...
  • A complete end-to-end solution to fully develop
    ITS Architectures
  • Stakeholder Outreach/Involvement
  • Gather inventory
  • A design tool

5
Turbo Architecture Benefits
  • Leverages National ITS Architecture for
    structured local planning
  • Maximizes ITS integration opportunities
  • Facilitates efficient expansion of ITS
  • Saves time and money in development of ITS
    Architectures

6
Primary Turbo Architecture Functions
  • Create a Regional Architecture
  • Create a Project Architecture when no Regional
    Architecture exists
  • Create a Project Architecture from existing
    Regional Architecture
  • Add a Project Architecture to existing Regional
    Architecture

7
Turbo Architecture Process
Map systems to the National ITS Architecture
Identify and Map System Inventory
Interview Dialog Forms-Driven
Map services to the National ITS Architecture
Interview Dialog Forms-Driven
Identify and Map Transportation Services/Needs
Tailor Interconnections to reflect local
environment
Tables
Tailor Subsystem/ Terminator Interconnections
Tables
Tailor Architecture Flows to reflect local
environment
Tailor Architecture Flows
8
What You Need to Start Using Turbo Architecture
  • Recognition of need for ITS Architecture
  • Integration
  • Structured planning
  • Stakeholder commitment and participation
  • Assessment of present and future needs
  • Inventory of transportation systems and services

9
What You Need to Start Using Turbo Architecture
  • Understanding of the National ITS Architecture
  • Relationships
  • Definitions
  • Terminology

10
What You Need to Start Using Turbo Architecture
  • Minimum System Configurations
  • PC with Pentium Processor (100 MHz or better)
  • Operating Systems Windows 95, 98 Second Edition,
    NT4
  • 80MB Free on Hard Drive
  • 800X600 or Higher Monitor Resolution
  • 32MB RAM
  • A CD-ROM drive

11
Getting Started
12
Interview Questions
13
Sausage Diagram
14
Interconnect Diagram
15
Architecture Flow Diagram
16
Standards Report
17
Turbo Architecture Summary
  • Tool for developing ITS Architectures
  • Uses National ITS Architecture to create Regional
    or Project Architectures
  • Leverages National ITS Architecture for
    structured local planning
  • Maximizes ITS integration opportunities
  • Facilitates orderly, efficient expansion of ITS

18
How to order your copy
  • McTrans
  • Phone number (352) 392-0378 x242
  • Email address mctrans_at_ce.ufl.edu
  • Price 190
  • Site licenses available
