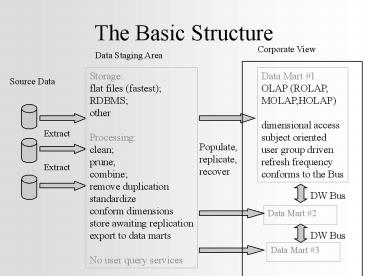

The Basic Structure

1
The Basic Structure
Corporate View
Data Staging Area
Storage flat files (fastest) RDBMS other Proc
essing clean prune combine remove
duplication standardize conform dimensions store
awaiting replication export to data marts No
user query services
Data Mart 1 OLAP (ROLAP, MOLAP,HOLAP) dimensiona
l access subject oriented user group
driven refresh frequency conforms to the Bus
Source Data
Extract
Populate, replicate, recover
Extract
DW Bus
Data Mart 2
DW Bus
Data Mart 3
2
The Basic Structure
Corporate Staging Area
User Access
Data Mart 1 OLAP (ROLAP, MOLAP,HOLAP) dimensiona
l access subject oriented user group
driven refresh frequency conforms to the Bus
Ad Hoc Query Tools
Reporting Tools and Writers
Data Feed
Customized Applications
Data Feed
Models forecasting scoring allocating data
mining scenario analysis etc.
DW Bus
Data Mart 2
Data Feed
DW Bus
Data Mart 3
3
The Business Dimensional Lifecycle

• Project Planning Early Critical Tasks
• definition
• scope
• readiness assessment
• business justification
• Remaining Tasks
• Resource requirements and identification
• Schedule construction and integrations

4
The Business Dimensional Lifecycle

• Business Requirements Definition
• Critical to success
• Designers must understand the business needs
• A plan to extract users needs and to understand
  them must be developed.

5
The Business Dimensional Lifecycle

• Three project tracks follow the business
  requirements definition process
• Data track
• Technology track
• Application track

6
The Business Dimensional Lifecycle

• Data Track
• Dimensional modeling
• Physical design
• Data staging design and development

7
The Business Dimensional Lifecycle

• Technology Track
• Technical architecture design
• Things to consider
• business requirements
• current technical environment
• planned strategic technical directions

8
The Business Dimensional Lifecycle

• Application Track
• Product identification, selection, and
  installation
• End user application development
• Configuring the metadata repository access
• Building specialized applications

9
The Business Dimensional Lifecycle

• Deployment
• The integration of all the pieces of the puzzle.
• The best warehouse will fail if deployment is not
  properly planned
• Plan required prior to deployment are
• education
• user support
• feedback
• enhancement/maintenance

10
The Business Dimensional Lifecycle

• Maintenance and Growth
• Work never stops!!!
• Critical to support and stay connected to the
  users to ensure the warehouse meets their needs.
• Watch performance and plan ahead (the backroom)
• Collect and analyze metrics regarding use and
  operation

11
The Business Dimensional Lifecycle

• Maintenance and Growth (cont)
• If you are successful, change is inevitable. Plan
  and prioritize future initiatives with user
  buy-in.
• Always plan for expansion and growth with each
  new increment or change.

12
The Business Dimensional Lifecycle

• Project Management
• Monitor project status
• Track issues
• Control change
• Project communication
• Project marketing
• Project politician
• Project visionary

13
The Business Dimensional Lifecycle
Business Requirement Definition
DimensionalModeling
PhysicalDesign
Data StagingDesign Development
ProjectPlanning
Deployment
MaintenanceandGrowth
Project Management
14
Project Planning Management

• Who Wants the Warehouse?
• A single visionary user
• desirable because the focus remains manageable
• requires political leverage to make it work
• the need must have broad and definable impacts to
  show worth
• Multiple demands
• Many organizations want a data mart or warehouse
• Focus is spread, therefore politics and planning
  play a vital role

15
Project Planning Management

• Who Wants the Warehouse? (cont)
• No identified need
• Organization wanting to get in the warehouse
  game
• More effort on the warehouse team to identify the
  need
• It is highly likely there will be one.

16
Project Planning Management

• Determine Warehouse Readiness
• Do you have a strong business sponsor?
• Vision
• Politically savvy
• Connected
• Influential
• History of success
• Respected
• Realistic
• Understands the need and the process and can
  communicate it

17
Project Planning Management

• Determine Warehouse Readiness (cont)
• Without this person you will fail
• Try to recruit multiple sponsors.
• Is there a real and identifiable business need?
• Does a strong partnership exist between IT and
  the business groups?
• What is the current analytical environment?
• How are things done now?
• What culture shock will be created?

18
Project Planning Management

• Determine Warehouse Readiness (cont)
• What is the feasibility?
• Is the data dirty beyond recovery?
• Is the target sources to dispersed and dynamic to
  achieve early and significant results?

19
Project Planning Management

• Take the Readiness Litmus Test
• The test looks at
• Sponsor
• Business Needs
• IT/Business Partnership
• Current Analytical Environment
• Feasibility
• A strong sponsor is the most important to get a
  high rating from the test
• Business needs and IT/Business Partnerships are
  secondary in importance

20
Project Planning Management

• Addressing Readiness Issues
• High-level business requirements analysis
• Identify the strategic initiatives
• Identify the business metrics
• Identify the high impact and ROI areas
• Business Requirements Prioritization
• Look for high impact, ROI, and feasibility
• Proof of Concept

21
Project Planning Management

• Develop the Initial Scope
• Keep the scope narrow and short to retain clarity
• The bigger the scope the more difficult it
  becomes to retain focus
• Always define the scope based on business
  requirements. Try to avoid deadlines or budget
  cycles from driving the scope.

22
Project Planning Management

• Develop the Initial Scope (cont)
• Scope definition involves both IT and business
  representatives
• Make the scope have significance but ensure it is
  achievable and timely
• Start with a single or few data sources and a
  single business process
• Limit your initial user base (typically 25 - 35
  people).
• Determine what management expects so success can
  be identified

23
Project Planning Management

• Develop the Initial Scope (cont)
• Document the scope definition and success
  indicators
• Acknowledge that the scope will likely change
• Develop a plan to manage the change

24
Project Planning Management

• Build the Business Justification
• Determine the costs
• Identify hardware and software costs (start-up
  and ongoing)
• Identify maintenance costs
• Internal staff needs
• External resources (consultants, etc.)
• Operational support
• Support of growth pains

25
Project Planning Management

• Build the Business Justification (cont)
• Determine the benefits (financial and other)
• Increased revenue
• Increased profit
• Increased customer satisfaction
• Expansion of a market or capability
• Increased employee productivity
• Reduction of capital investments (storage
  requirements, etc.)
• Protection against fraud and attack

26
Project Planning Management

• Build the Business Justification (cont)
• It is important to monitor and track the business
  to identify and market impacts the warehouse has
  made
• Look for the tangibles and intangibles

27
Project Planning Management

• Plan the Project
• Establish project identity
• Create a name
• Create documentation describing your project
• Make T-shirts, mugs, etc
• Market, market, market!!!

28
Project Planning Management

• Plan the Project (cont)
• Staff up

• Project Manager
• Business Lead
• Business Analyst
• Data Modeler
• DW DBA
• Data Staging System Designer
• End User Application Developer

• DW Educator
• Technical/Security Architect
• Technical Support Specialists
• Data Staging Programmers
• Data Steward
• DW QA Analyst

29
Project Planning Management

• Develop the Project Plan
• Key (frequently update your plan)
• The nature of a DW project in cyclic and
  resembles a spiral approach
• Identify key milestones
• Develop a high-level and detailed plan

30
Project Planning Management

• Manage the Project
• Matrix management is often used because of the
  numerous interlaced roles
• Data issues may lay waste to the best devised
  plans (plan for the unexpected)
• The project will likely increase in visibility
  (manage expectations)
• Iterative/sliding window development requires
  multiple teams work in sync (communication)

31
Project Planning Management

• Manage the Project (cont)
• Conduct a project kickoff meeting
• Identify the team, roles, and responsibilities
• Identify the scope
• Identify goals
• Identify the schedule
• Review the preliminary PMP
• Conduct preliminary education

32
Project Planning Management

• Monitor the Project Status
• Frequent communication
• Project status meetings
• Team meetings
• Project status reports
• Customer reporting

33
Collecting the Requirements

• The old theory was not to include the users in
  the early stages.
• Build it and they will come.
• This proved to be the demise of many early
  warehouse initiatives.
• A formal requirement (but flexible) is needed to
  document the users needs of the warehouse.

34
Collecting the Requirements

• This is a difficult process for many reasons.
• Key people may feel threatened and are not
  willing to cooperate.
• The informal decision process is typically not
  well documented and is dispersed.
• People have a difficult time thinking out of the
  box
• Terminology associated to warehousing often
  creates confusion and/or misinformation

35
Collecting the Requirements

• Talk with the business users first
• Strive to understand how they do business
• Identify how decisions are made today
• Determine how they would like to make decisions
  today and tomorrow
• Do not just ask what data do you need?

36
Collecting the Requirements

• Talk with the IT community second
• Wait until some common sources and themes are
  identified by the business users before
  approaching IT
• Look for feasibility issues
• Start identifying technical issues such as
  platforms, formats, access, and politics
• Talk DBAs, DAs, application developers, an
  designers

37
Collecting the Requirements

• Getting the requirements (Interview VS
  Facilitation)
• Interviews tend to stay focused and work well
  with small groups
• Facilitated sessions work with larger groups and
  encourage brainstorming and cross pollination
  of ideas.

38
Collecting the Requirements

• Roles of the requirements team
• Lead interviewer
• Secondary interviewers
• Scribe
• Observers
• Facilitator

39
Collecting the Requirements

• Preparation for the interview
• Look at strategic plans that relate to the
  company or group you will talk with
• Look at the annual report. Important goals and
  initiatives will be identified and taken
  seriously by the company.
• Review marketing material
• Search the Internet for information
• Identify past attempts at similar projects

40
Collecting the Requirements

• Identify who will be interviewed
• Business
• Look horizontally across the organization to see
  the big picture
• Get as much detail as possible in the current
  area of focus (vertical)
• Request that your sponsor identify who should be
  interviewed.

41
Collecting the Requirements

• Identify who will be interviewed
• Technology
• The data gurus (these people have been around a
  long time and know the details)
• Application programmers
• Pseudo technical people within a business area
• DBAs
• Data modelers
• System administrators
• IT management to identify the future

42
Collecting the Requirements

• Develop an interview questionnaire
• Build an agenda for the interview sessions
• Prepare the interviewees
• Hold a single meeting with all interviewees to
  discuss the project, intentions, etc
• Set the tone for all interviews
• Encourage questions
• Enables you to identify good and bad candidates
  early (now you can plan for each person)

43
Collecting the Requirements

• Conduct the interview
• Remain within the roles established for the
  interview team
• Validate what you have collected with the user as
  soon as possible
• Define terms with the users (profit, revenue,
  sales)
• Try to talk on their level and avoid using
  confusing technology terms (use their business
  lingo when possible)

44
Collecting the Requirements

• Conduct the interview
• Try to remain flexible during the interview
  process
• Meet with unexpected people
• Run past the allotted time
• Discuss topics somewhat out of the focus of the
  interview.
• Schedule breaks and limit the number of interview
  session per day to about five
• Continue to manage expectations

45
Collecting the Requirements

• Potential interview questions for an executive
• What are the objectives of your organization?
  What are you trying to accomplish?
• How do you measure success? How do you know you
  are doing well? How often do you measure
  yourself?
• What are the key business issues you face today?
  What could prevent you from meeting these
  objectives? What would be the impact?

46
Collecting the Requirements

• Potential interview questions for an analyst
• What are your groups objectives? How do you
  accomplish them? How do you achieve it?
• What are your success metrics? How do you know
  you are doing well? How often do you measure?
• What issues do you currently face?
• Describe your products, vendors, etc? Is there a
  natural hierarchy?

47
Collecting the Requirements

• Potential interview questions for an analyst
• What type of analysis do you perform? What data
  is used? How do you get it? What do you do with
  it?
• What analysis would you like to perform?
• What dynamic analysis needs do you have? Who
  drives these needs? How long does it take to
  perform? Are you able to conduct deeper levels of
  analysis?
• What analytical capabilities would you like?

48
Collecting the Requirements

• Potential interview questions for an analyst
• Where are the bottlenecks in obtaining
  information?
• How much historical information is needed?
• How will improved information access impact you
  and your organization? What is the financial
  impact?
• What reports do you currently use? Which data
  elements on the reports are important? How is
  this information used? Is it combined with
  anything else?

49
Collecting the Requirements

• What to discuss with IT
• Request an overview of the operational systems
• What are the current tools and technologies used
  to share information?
• What types of analyses are performed?
• How are detailed analyses supported and
  conducted?
• What are the data quality issues?
• Where do bottlenecks exist?

50
Collecting the Requirements

• What to discuss with IT
• What concerns do you have about data warehousing
  in the organization? What roadblocks do you see?
• What expectations do you have of the warehouse?
• How do you expect the warehouse to impact you?

51
Collecting the Requirements

• Types of users you will interview
• Abused User
• Involved in earlier attempts
• Unwilling to cooperate
• Overbooked User (To busy to meet)
• Comatose User
• Overzealous User
• Nonexistent User (Use technology to drive the
  needs)

52
Collecting the Requirements

• Wrap Up
• Review the interview results with the team
• Prepare and publish the results
• Establish what will be done next

53
Dimensional Modeling

• Jeffrey T. Edgell

54
The Dimensional Model

• More intuitive structure for presentation and
  reporting
• Likely predates the E/R approach
• General Mills Dartmouth University developed a
  fact and dimension structure
• Nielsen Marketing Research used this on grocery
  and drug store auditing and scanner data in the
  70s and 80s.

55
The Dimensional Model

• Dimensions are descriptive
• Facts are likely numeric and are measurement
  based
• Additive facts are vital to allow aggregation of
  many records during a retrieval
• Page 145 (A typical dimensional model)

56
The Argument for the Dimensional Model

• Tools can utilize a standardized framework
• Query tools can leverage against this for
  performance optimization
• High performance entry browsing is possible
• All queries can be initially constrained thus
  significantly increasing performance

57
The Argument for the Dimensional Model

• Easily adapts to unpredictable queries
• Extends to allow the addition of new tables or
  data elements
• will not require rebuilding the database from
  scratch
• data does not need to be reloaded
• existing reports and query tools do not need to
  be redesigned or implemented

58
The Argument for the Dimensional Model

• The model can be altered as follows without
  interruption
• The addition of new facts (consistent with the
  defined grain)
• The addition of new dimensions
• The widening of a dimension table
• Changing the detail of a dimension to a lower
  level

59
The Argument for the Dimensional Model

• The dimensional model exhibits a predefined set
  of approaches used to deal with common issues.
• Slowly changing dimensions
• Heterogeneous products (track different lines of
  business i.e. checking savings)
• Pay-in-advance data bases (look at individual
  components as well as the total)
• Event handling (no facts)

60
The Argument for the Dimensional Model

• Aggregation in a warehouse allows for query
  performance normally delegated to hardware to
  solve (greatly increasing )
• A standard set of schemas for different business
  types and applications exist

61
The Bus

• Supports the incremental approach
• The data mart approach has often lead to
  development of warehouse absent of a corporate
  framework
• Stovepipe decision structures result
• Produces a uniform global structure eliminating
  the pocket or stovepipe data marts

62
The Bus

• Look at the entire enterprise as you design and
  build the data marts
• A high level architecture must be defined that
  explains the entire structure
• A detailed architecture must be developed to
  support each data mart as they are confronted

63
Conformed Dimensions

• Dimensions used to represent concepts across the
  enterprise must be standardized and agreed upon
• customer
• product
• time
• potentially not region (sales management)

64
Conformed Dimensions

• Conformed dimensions must be carefully managed,
  maintained, and published to ensure consistency
• The conformed dimension represents the central
  source description of which everyone agrees
• If the conformed dimension approach is not
  observed, the bus will not properly function

65
Conformed Dimensions

• With conformed dimensions
• One dimension table relates to multiple facts
• Browsers are consistent with the dimension
  providing a unified view
• Rollups and meanings remain consistent across
  facts

66
Conformed Dimensions

• Design
• Lowest level of granularity possible (based on
  the lowest level defined)
• Use the sequential numeric key (surrogate key)

67
Conformed Facts

• Occurs during the definition of conformed
  dimensions
• Relates common measurements accurately
• Cost
• Profit
• Unit price
• If facts are different use different names
  (marketing profit sales profit)
• As much political as technical

68
When the Bus is not Required

• The business you are dealing with is
  intentionally segmented
• Components operated autonomously with no unified
  corporate view required
• Products or business areas are disjoint
• For example a company sells music and repairs
  train engines (no business or product synergy
  except at the very top)

69
The Components of the Dimensional Model

• Facts
• Dimensions
• Attributes
• The Bus (optional but highly suggested)

70
Operations

• Drill down and rollup
• Example on page 168

71
Snowflakes

• What is it?
• The removal of low cardinality fields from a
  dimension placed in a new table and linked back
  with keys
• Complicates design detail
• Decreases performance
• Saves some space but normally not a significant
  amount
• Bit map indexes can not be effectively utilized

72
When a Snowflake is OK

• When used as a subdimesnion
• The data in the subd is related to the dimension
  are at different levels of granularity
• The data load times for the data are different
• Examples
• County and state
• District and region
• Ship and battle group

73
Good Descriptive Dimensions

• Large dimension tables
• Highly descriptive
• Without good descriptive dimensions, the
  warehouse is not useful
• Use
• full words, no missing values (null), QA,
  metadata

74
Common Dimension Techniques

• Time
• example figure 5.7 page 176
• Address
• example page 178
• Commercial address
• example page 179

75
Slowly Changing Dimensions

• What to do
• Type 0 Ignore the change
• Type 1 Overwrite the changed attribute
• Type 2 Add a new dimension record with new value
  of the surrogate key
• Type 3 Add an old value field

76
Slowly Changing Dimensions

• Ignore the change
• Not typically a good solution to the problem, but
  is done.
• Overwrite the changed attribute
• Valid when correcting a value from the source
• Add a new dimension record with a generalized key
• Retains history of a changed product

77
Slowly Changing Dimensions

• Add an old value field
• Valid when on the previous change is needed for
  decision making

78
Slowly Changing Dimensions

• Type 2 example
• Change in product (bottle changes from platic to
  glass)

Key 001 002 Type Plastic Glass SKU 1234 1234
79
Slowly Changing Dimensions

• Type 3 example
• Regional divisions of a company changes (only one
  historical change is supported)

Region Gold Silver Platinum Bronze Old
Region North South East West
80
The Monster Dimension

• It is a compromise
• Avoids creating copies of dimension records in a
  significantly large dimension
• Done to manage space and changes efficiently

81
The Monster Dimension
Example 1
Customer_Key name address city,state birth_date da
te_first_purchase Demographics_Key income_band nu
mber_children education_level total_purchases_band
credit_group
Basically constant
Customer_Key name address city,
state birth_date date_first_purchase income number
_children education total_purchases credit_score
May change with each purchase
Bands used to minimize possibilities
82
The Monster Dimension

• Case 1 (Rapid change)
• Large dimensions can be dynamic because of the
  amount of information contained
• Certain aspects must be maintained in the
  dimension, over time, to understand impacts
• demographics
• customer data
• product lines (for companies in acquisition)

83
The Monster Dimension

• The solution to very dynamic large dimensions
• identify the dynamic areas of the dimension
• segment the hot areas into there own independent
  dimensions
• The relative static information remains in the
  original dimension

84
The Monster Dimension

• The trade off (plus)
• the warehouse can accurately retain significant
  changes in a dimension over time
• to slow the rate of change down extremely dynamic
  attributes should be banded to slow the rate of
  change
• All possible combinations in the dimension become
  finite (discrete) and are thus manageable

85
The Monster Dimension

• The trade off (minus)
• Loss of detail in the bands (no longer exact)
• Once bands are defined they must be enforced from
  that point on
• Slower browse performance required when combining
  the segmented table with the original table
• Impossible to combine the data without a single
  instance of a fact (nothing to relate the
  dimensions)

86
The Monster Dimension
Example 2
Employee Table name address date_of_birth social_
security_num Corporate Demographics position_grad
e income_band division service_years_band
Employee Table name address date_of_birth social_
security_num title years_with_company income div
ision purchase_level
87
Degenerate Dimensions/Key

• Definition - Critical data provided in the legacy
  environment that normally remains independent.
  Typically the old key from the current fact
  information you are using with no supporting data

88
Degenerate Dimensions/Key

• Likely found in the header of a file
• The other items have been absorbed in other
  dimensions
• customer, date, vendor, item
• The remaining item has no supporting attributes
  but is important
• CLIN, Requisition , Order
• Useful information and should be absorbed in the
  fact table

89
Degenerate Dimensions/Key

• Useful information and should be absorbed in the
  fact table
• If there is other supporting attributes, it
  becomes a typical dimension

90
Junk Dimensions

• Resident flags, status codes, and miscellaneous
  information persists after the dimensional design
  is near complete
• Alternatives
• Place the flags in the fact tables
• Make each attribute a dimension
• Remove the attributes completely

91
Junk Dimensions

• Leave the flags in the fact tables
• likely sparse data
• no real browse entry capability
• can significantly increase the size of the fact
  table
• Remove the attributes from the design
• potentially critical information will be lost
• if they provide no relevance, remove them

92
Junk Dimensions

• Make a flag into its own dimension
• may greatly increase the number of dimensions,
  increasing the size of the fact table
• can clutter and confuse the design
• Combine all relevant flags, etc. into a single
  dimension
• the number of possibilities remain finite
• information is retained

93
Keys, Keys, Keys

• Surrogate keys (always use)
• 4 byte integer (232 or two billion integers)
• Date keys should use surrogates as well
• dates are typically 8 bytes -- saves 4 bytes per
  fact
• Do not use smart keys with embedded meanings
• Do not use legacy or production keys

94
Just the Facts

• Attempt to make all facts additive
• simplifies calculations across dimensions
• all numbers are not additive facts
• Semi-additive facts can be used but understand
  they are there
• averages, max, min
• Non-additive facts often are avoided but may have
  value
• weather conditions (non-discrete), non-discrete
  discriptions

95
Steps to Designing a Fact Table

• Time to choose
• data mart (functional business area)
• grain of the fact table (what level of detail)
• dimensions associated to the data mart
• the facts relative to the data mart

96
Data Mart

• Single operational source data marts provide the
  least amount of risk
• Multiple operational source data marts typical
  provide more cross functional value
• Examples (remember, processes you measure)
• Marketing
• Sales
• Inventory
• Productivity

97
Fact Table Grain

• Without this, dimensions can not be accurately
  defined
• Select as low of a grain as possible
• handles unexpected queries
• adapts readily to additional facts and dimensions
• delivers the most comprehensive solution
• Consumes more space
• Performance can be an issue

98
Fact Loads

• By record
• account for every transaction or activity
  recorded (ATM)
• Snapshot
• A picture of the related facts at a specific
  point in time (monthly reporting)
• Line item
• track and reflect the status of line item
  activity (PO)

99
Dimensions

• Once the grain is defined, basic dimensions will
  be evident from the grain (customer, time, etc.)
• Addition of other dimensions and junk dimensions
• All dimensions can not be at a lower level of
  granularity than the lowest fact table grain

100
Identifying Facts

• The grain of the fact table dictates the facts
• All facts must be at the same level
• Individual transaction tables typically have 1
  fact (the numeric value of the transaction)
• Snap shot and line item fact tables will likely
  contain multiple facts in that multiple additive
  facts are captured
• Keep all three types separated

101
Fact Table Families

• Process chain (supply chain, linear)
• fact table represents each step in the process
• RFI-RFP-RFQ-Contact-Delivery
• supply chain process example page 200
• each fact is connected on the bus
• Value Circle (parallel measurement)
• health care (example page 202)
• retail

102
Fact Table Families

• Heterogeneous Product Schemas
• Service offered by the business are distinct and
  separate
• banking (checking, savings, loans, etc.)
• Insurance (life, home, auto, etc.)
• Transaction an Snapshot Schemas
• Snapshot (periodic picture) example page 210
• Transaction (activity detail) example page 207

103
Aggregate Families

• Used to improve query performance
• Typically roll ups of facts along a dimension for
  anticipated reporting and querying
• Aggregate tables can also be used to combine
  details from two fact tables of varying
  granularity

104
Factless Fact Tables

• Used for two reasons
• record an activity (student attendance page 213)
• answers what the most popular classes were
• what days are frequently missed
• Coverage (account for activity that may not have
  happened) (example page 215)
• An entry is placed in the fact table for all item
  of interest
• answers questions regarding what did and did not
  have activity
