Title: Drivers' hours' rules


1

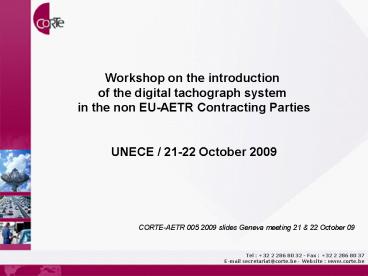

Workshop on the introduction of the digital
tachograph system in the non EU-AETR Contracting
Parties UNECE / 21-22 October 2009
CORTE-AETR 005 2009 slides Geneva meeting 21 22
October 09
Tel 32 2 286 80 32 - Fax 32 2 286 80
37 E-mail secretariat_at_corte.be - Website
www.corte.be
2
Brief presentation of CORTE




3
  • Genesis of CORTE
  • Setting up of an informal group of experts
    (called for some years
  • the EU Enforcers Group) initiated by the EC DG
    Tren in 1997 to
  • deal with enforcement of commercial vehicles
  • From 1997 to 1999 definition of control
    officers needs as far as digital tachograph was
    concerned
  • From 1999 to 2004 analysis of the different
    ways of enforcing Drivers Hours Rules throughout
    Europe and proposals for amending the existing EU
    texts

4
  • 2 Setting up of CORTE
  • In 2004, Member States enforcement authorities
    decided to transform their unofficial group of
    experts into an official one in order
  • to develop more formal activities together with
    the EC, the
  • UNECE (AETR) and national authorities
  • to enlarge their activities so that as to cover
    road safety issues as
  • well

5
  • An international association has been set up in
    April 2005
  • with statutes and rules of order
  • a Board and a General Assembly
  • based in Brussels
  • submitted to Belgian law
  • expected at mid-term to gather all AETR
    enforcement authorities
  • opened to NGOs and industry

6
  • Founding members
  • - Denmark National Police
  • Ireland Department of Transport
  • Sweden Swedish Road Administration (SRA)
  • UK Vehicle Operator Service Agency (VOSA)

7
  • The development and agreement of common
    interpretations in the field of Road Transport
    Legislation and Enforcement.
  • To develop harmonised Best Practice enforcement
    methodologies
  • 3 - Objectives

8
  • Full members national enforcement authorities
    and/or regulatory
  • bodies
  • Associate members NGOs
  • Observers Industry
  • 4 Membership 3 categories of members

9
Full members Belgium Bosnia and
Herzegovina Bulgaria Croatia Cyprus
Georgia Czech Republic Iceland Denmark
Moldova Estonia Montenegro Hungary
Norway Finland Serbia Greece
Turkey Ireland Ukraine Latvia Luxembourg M
alta Romania Slovakia Slovenia Spain Sweden
The Netherlands UK

4 ? 30 full members
10
Full members Objectives Gather all EU and
EEA Member States by the end of 2010 Extend to
the AETR countries as soon as possible (by the
end of 2011)

11
Associate members ACEA ? Vehicle
manufacturers European Transport Safety
Council (ETSC) ? Road Safety European Transport
Workers Federation (ETF) ? Drivers Hours
Enforcement Fédération Internationale Automobile
(FIA) ? Road users International Road Union
(IRU) ? Drivers Hours
Enforcement ICTCT ? Road
Safety and Research Etc


12
Associate members Objectives associate all
the major actors in the field of road traffic
enforcement

13
Observers Actia Continental Efkon Stoneridge
Electronics Semmler Gmbh PC Net
Service Tachodisc Ltd Etc

14
More than 60 members in total

15
CORTE has a consultative status in many EU
official committees dealing with road safety,
road transport enforcement, etc

16
CORTE has initiated a process at the UNO to
become an official consultative body

17
On the digital tachograph more
specifically MIDT Platform www.eu-digitaltacho
graph.org




18
Project management
European Commission
Secretariat
Dedicated web site
Dedicated Help desk
Plenary
IPC Neil BARLOW (UK) Ingrid LUTNAES
(NOR) Christina VELINOVA (BG)


CINC Birgit SÄÄV (S) Armand BIBERICH (L) Marja
VAN DER WEL (NL)
ENC Hans DRIJER (NL) Frank DAVIDSEN (DK) Joaquin
DEL MORAL (SP)
Thierry GRANTURCO
Thierry GRANTURCO
Thierry GRANTURCO
19
  • WEB SITE
  • Key elements
  • Legislation
  • Type approval
  • Activation
  • Calibration
  • Equipment life cycle
  • Tachograph cards
  • Card issuing
  • Networking between CIAs
  • How to use the digital tachograph system
  • Data download
  • Data protection
  • Security

20
  • WEB SITE
  • State of play of the implementation of the
    digital tachograph in
  • the EU Member States
  • the EEA countries
  • the non EU-EEA AETR Contracting Parties
  • Points of contact
  • in each country for each particular topic to be
    covered
  • further information available on the private part
    of the web site (contact details of national
    experts)

21
WEB SITE FAQ (most frequent asked
questions) News (on the digital tachograph
system) Links (to all main digital tachograph
stakeholders concerned) Help
desk
22
  • HELP DESK
  • From 2005 to 2009,
  • an average of 1,120 questions were answered per
    month,
  • which accounts for 56 questions per day.

23
Questions submitted by - since August 2005 to
February 2009
Countries 41,094 International Institutions
2,028 (50/month 2,5/day) Total 43,122
24
Questions submitted by - since August 2005
EU Countries 36,619 (/- 85) Non EU/AETR
Countries 6,503 (/- 15) Total 43,122
(100)
25
Questions submitted by - since August
2005 National authorities 51
Manufacturers 25 Transport
companies 10 Drivers
9 International institutions 5
26
Number of questions submitted by category
Professional category
43,122
TOTAL
22,517
National authorities
10,643
Manufacturers
4,233
Transport operators
Drivers
3,701
2,028
International institutions
27
Statistics per topic since August 2005
28
Topics Number of questions submitted by topic
TOTAL 43,122
Legislative issues 13,281
Tachograph/cards functionalities 12,013
Enforcement 7,900
Card Issuing 5,503
Workshops approval 2,161
Security 734
Data protection 642
Type approval 389
Risk management 297
Ineligible 202
29
The help desk is now restricted to
  • 1. the use of the English language
  • 2. CORTE members
  • Therefore
  • the CORTE Secretariat is no longer answering
    questions from non-members
  • the number of questions answered has considerably
    decreased in 2009

30
Brief presentation of the speakers




31
In chronological order Thierry GRANTURCO
CORTE CEO Birgit SÄÄV CORTE / Swedish
Transport Agency Neil BARLOW CORTE / VOSA
(UK) Hans DRIJER CORTE / Vehicle Inspectorates
(NL)





32
Agenda




33
We will address 1) The legal framework 2)
Implementing the digital tachograph system the
logical steps to follow 3) Which support
can the AETR countries benefit from?





34
We will address 1) The legal framework 2)
Implementing the digital tachograph system the
logical steps to follow 3) Which support
can the AETR countries benefit from?





35
  • The legal framework
  • 1-1 EU rules and their evolution
  • 1-2 AETR rules
  • 1-3 Practicalities
  • 1-4 Consequences of not meeting the AETR
    deadlines






36
  • The legal framework
  • 1-1 EU rules and their evolution
  • 1-2 AETR rules
  • 1-3 Practicalities
  • 1-4 Consequences of not meeting the AETR
    deadlines






37
  • Considering the constant increase of
  • registration of passenger cars
  • registration of commercial vehicles
  • as a consequence of this, the constant increase
    of
  • road traffic congestion
  • road traffic accidents
  • fatalities and injuries
  • the number of heavy vehicles involved in
    fatalities
  • the EU legislator has decided in 1969 to regulate
    the professional
  • drivers activities for the very first time.
  • Regulation (EEC) n 543/69, Official Journal L
    77, page 49
  • (see http//europa.eu.int/eur-lex/lex/en/index.htm
    )

38
  • This Regulation aimed mainly at
  • limiting driving time allowed by day and by
    week
  • obliging professional drivers to record their
    activities through a
  • recording equipment called tachograph or,
    alternatively, to use a
  • kind of booklet

First generation of recording equipment In the
EU
39
In the meantime, the EU signed in 1970 under the
auspices of the United Nations an agreement
called AETR extending the use of the recording
equipment to the European but non EU Members
(former Eastern countries, former Soviet
republics, Balkan countries, etc) For EU
drivers, the use of recording equipment became
mandatory including outside the EU whilst for non
EU AETR drivers, the use of recording equipment
became mandatory for international journeys
only The AETR agreement foresees that each
change of the recording equipment decided by the
EU has to be implemented at AETR level so that
each generation of recording equipment, as
presented hereinafter, has also been the one
used at AETR level
40
This Regulation changed considerably the drivers
behaviour But the recording equipment was not
yet mandatory in the sense that booklets could
be used instead Therefore, to avoid any
distortion of competition between transport
operators, the EU legislator decided to amend
the 1969 Regulation in 1985 and to introduce a
recording equipment on a mandatorily basis for
every professional driver Except for very few
exceptions Regulation (EEC) n 3821/85, Official
Journal L 370, page 8 See http//eur-lex.europa.eu
/LexUriServ/LexUriServ.do?uriCONSLEG1985R382120
070411ENPDF
41
  • This new Regulation
  • was much more demanding with drivers (in terms
    of driving, working,
  • availability and rest times)
  • increased the number of data collected by the
    tachograph through the
  • charts used to record data (speed, time,
    distances, names of drivers/
  • co-drivers, locations, vehicle registration
    numbers, etc have to be
  • recorded and stored)
  • introduced new obligations for transport
    operators (in terms of
  • breakdown or faulty operation of their
    tachograph)
  • introduced more stringent requirements for the
    repair workshops to
  • ensure a proper calibration of these recording
    equipments

42
Over the time, the recording equipment evolved
and from mechanical became electronic
First generation
Second generation
43
But both generations are anyway working with
paper discs
44
Nevertheless, it became rapidly clear that
analogue tachographs were tampered (paper discs
not used, destroyed, withdrawn during journeys,
parameters mechanically or electromagnetically
altered, etc). Whereas experience has shown
that the economic pressures and competition in
road transport have led some drivers employed by
road haulage companies to flout certain rules,
particularly those concerning the driving and
rest times laid down in Council Regulation (EEC)
n 3820/85 of 20 December 1985 on the
harmonisation of certain social legislation
relating to road transport Whereas blatant
infringements and fraud present a road safety
hazard and are unacceptable for reasons of
competition for the individual driver who does
respect the rules Whereas to put an end
to the most common abuses of the present system,
it is therefore necessary to introduce new
advanced equipment Whereas the total
security of the system and its components is
essential if recording equipment is to function
efficiently Recitals 2, 3, 6 and 7 of
Regulation (EC) n 2135/98
45
The EU legislator decided therefore to introduce
a new kind of recording equipment
Encryption of data
46
In short
Regulation (EEC) n 543/69 Regulation (EEC) n
3821/85 Regulation (EC) n 2135/98 Commissio
n Regulation .
2nd generation of digital tachograph system
2011 in the EU
47
  • The legal framework
  • 1-1 EU rules and their evolution
  • 1-2 AETR rules
  • 1-3 Practicalities
  • 1-4 Consequences of not meeting the AETR
    deadlines






48
Persons and goods are transported everywhere in
Europe To cover these situations, an
international agreement has been signed under the
auspices of the United Nations on 1 July 1970,
known under the acronym AETR. European
Agreement concerning the Work of Crews of
Vehicles engaged in International Road
Transport See http//www.unece.org/trans/main/
sc1/sc1doc_2004.html





49
Legislative texts applicable at EU and AETR
level
EU
AETR





Regulation (EC) n 561/2006 Drivers Hours
rules Regulation (EEC) n 3821/85 Tachograph
rules Annex 1B to Regulation (EEC) n
3821/85 Digital tachograph and tachograph cards
technical specifications
AETR
Annex to the AETR
Appendix 1B to the AETR
50
At AETR level
For the core of the agreement






unanimity is required for any amendment to be
adopted
51
At AETR level
The new Article 22 bis of the AETR states for the
technical specifications that Article 22 bis
- Procedure for the amendment of Appendix 1B 1.
Appendix 1B of the Annex to the present Agreement
shall be amended according to the procedure
defined in the present article. 2. Any amendment
proposal to the introductory articles of Appendix
1B shall be adopted by the Working Party on Road
Transport of the Economic Commission for Europe
by a majority of the Contracting Parties present
and voting. Any amendment thus adopted will be
transmitted by the secretariat of the Working
Party to the Secretary-General for notification
to all Contracting Parties. It shall enter into
force three months after the date of
notification to Contracting Parties.






52
At AETR level
  • 3. Appendix 1B, adapted for the present Agreement
    from Annex IB of Regulation (EEC)
  • 3821/85 as cited in article 10 of the present
    Agreement, depending directly on evolutions
  • introduced into this Annex by the European Union,
    any amendment made to this Annex
  • shall be applicable to Appendix 1B under the
    following conditions
  • the secretariat of the Working Party on Road
    Transport of the Economic Commission for
  • Europe will officially inform the competent
    authorities of all Contracting Parties of the
  • publication in the Official Journal of the
    European Communities of the amendments
  • introduced to Annex IB of the Community
    Regulation and at the same time will communicate
  • this information to the Secretary-General
    accompanied by a copy of the relevant texts.
  • these amendments shall enter directly into force
    for Appendix 1B three months after the
  • date of communication to Contracting Parties of
    the information.
  • ()







53
At AETR level
In conclusion AETR agreement Annex to the
AETR Appendix 1B Sub-appendices






Regulation (EC) n 561/2006
unanimity
Regulation (EEC) n 3821/85
unanimity
Annex 1B / 3821/85
Majority of those present and voting
Appendices / 3821/85
Automatically adopted at UNECE level once
adopted at EU level
54





When do non EU-AETR countries have to introduce
the digital tachograph system?
55
Article 13 - Transitional provisions 1. All
the new provisions of the present Agreement,
including its Annex and Appendices 1B and 2,
relating to the introduction of a digital control
device, shall become mandatory for countries
which are Contracting Parties to this Agreement
at latest four years after the date of entry
into force of the relevant amendments resulting
from the procedure specified in article 21. In
consequence, all vehicles covered by this
Agreement, put into service for the first time
after the expiry of this period, shall be
equipped with a control device conforming to
these new requirements. ()





Date of adoption of these amendments 16 June 2006
Date of entry into force in the non EU-AETR
countries 16 June 2010
56
Article 13 - Transitional provisions 2. (a)
The Contracting Parties shall take the necessary
steps to be able to issue the driver
cards referred to in the Annex to the present
Agreement, as amended, at latest three months
before the expiry of the four-year deadline
referred to in paragraph 1. This minimum
period of three months shall also be complied
with in the event of the implementation by a
Contracting Party of the provisions relating to
the digital control device in conformity with
Appendix 1B to this Annex before the expiry of
the four-year deadline. ()





Deadline for the introduction of the digital
tachograph in the non EU-AETR countries 16
June 2010
Deadline to issue tachograph cards 16 March 2010
57

What are the transitional measures foreseen
in between today and the deadlines by which non
EU-AETR countries have to introduce the digital
tachograph system on their territory?




58
Article 14 1. Pursuant to article 13, paragraph
2 (b) of the Agreement, drivers who are driving a
vehicle registered in a Contracting Party and to
whom the competent authorities have not yet been
able to issue the driver cards and who, during
the transitional period referred to in paragraph
1 of this article, drive in international traffic
with a vehicle fitted with a digital control
device in accordance with Appendix 1B to the
Annex, must be able to produce, whenever an
inspecting officer so requests, the printouts
and/or the record sheets for the current week
and, in any event, the printout and/or record
sheet for the last day on which he drove during
the previous week.





If a driver has his normal residence in a non
EU-AETR country where cards are not available
and that he has to drive a vehicle fitted with a
digital tachograph
he can lawfully do it as long as that he can
produce printouts
59
BUT printouts are of some use only if
  • the digital tachograph is activated
  • the digital tachograph is properly calibrated
  • WHILST both activation and calibration are
    operations requiring the use
  • of a workshop card
  • which in the present situation is not available
    since this Article
  • addresses cases where
  • a driver is living in a country where cards are
    not available
  • but where he has to drive a vehicle fitted with a
    digital tachograph





60
See printouts





61
  • The legal framework
  • 1-1 EU rules and their evolution
  • 1-2 AETR rules
  • 1-3 Practicalities
  • 1-4 Consequences of not meeting the AETR
    deadlines






62
Practical approach proposed (see
ECE/TRANS/SC.1/2006/8)





63
  • In practise (1)
  • vehicle manufacturers are supposed to NOT
    deliver vehicles
  • with inactivated digital tachographs






Would they comply with this requirement, digital
tachographs should at least be ready to record
(inaccurate?) drivers activities
For various reasons, they often do
They have been duly informed to do some special
efforts towards countries where cards are not
yet available
64
In practise (2)
  • Even if activated, digital tachographs need to
    be calibrated so as,
  • among others, to measure speed and distances
    accurately
  • Calibration, like activation, requires the use
    of a workshop card
  • Proposal tolerate that the first calibration
    (and activation ?) is (are)
  • undertaken during the first journey to or
    through a country where
  • approved workshops have been issued with
    workshop cards
  • - Idem in case of tachograph breakdown






65

Expected place for the (activation and)
calibration to take place
66

Unexpected place for the (activation and)
calibration to take place
67
  • The legal framework
  • 1-1 EU rules and their evolution
  • 1-2 AETR rules
  • 1-3 Practicalities
  • 1-4 Consequences of not meeting the AETR
    deadlines






68
The two main problems are as follows 1)
Transport operators would use illegal recording
equipments





Data not available for enforcement purposes
Drivers not controllable
Threat for road safety and fair competition
throughout Europe
Prohibition of their vehicles after 16 March/16
June 2010 in the EU/EEA countries?
69
2) Data inaccessible for freight and fleet
management
Data potentially stored in the tachograph
internal memory for one year





Cannot be downloaded without company cards
Printouts would produce anonymous data if any
Potential overall management problems for
transport companies
70
1) The legal framework 2) Implementing the
digital tachograph system the logical steps
to follow 3) Which support can the AETR
countries benefit from?





71
2) Implementing the digital tachograph system
the logical steps to follow 2-1 Issuing
cards 2-2 Approving and auditing
workshops 2-3 Enforcing the use of the digital
tachograph system





72
2) Implementing the digital tachograph system
the logical steps to follow 2-1 Issuing
cards 2-2 Approving and auditing
workshops 2-3 Enforcing the use of the digital
tachograph system





73
Card issuing
By Armand BIBERICH (SNCT Luxembourg)
Birgit SÄÄV (STA Sweden) Marja VAN DER
WELLE (Vehicle Inspectorates Netherlands)
74
  • Legal bases for issuing cards
  • Council Regulation (EEC) n 3821/85 of 20
    December 1985 on recording equipment in road
    transport as amended by Council Regulation (EC)
    n 2135/98 of 24 September 1998
  • Commission Regulation (EC) n 1360/2002 of 13
    June 2002
  • adapting for the seventh time to technical
    progress Council
  • Regulation (EEC) n 3821/85 on recording
    equipment in road
  • transport commonly called Annex IB
  • AETR





75




But What happens in between??
76
How may a Digital Tachograph card issuing system
be implemented?
The implementation of a Card issuing system is a
multi-step process !
  • Its caracteristics are as follows
  • 1) Some steps are unique processes
  • 2) Other steps have to be repeated occasionally
    on a regular basis
  • 3) Finally, some steps have to be repeated for
    every card issued

77
  • The aim of this presentation is threefold
  • to give an overview about the process steps
    involved to set up a
  • Digital Tachograph Card Issuing System,
  • to indicate their chronological order and their
    frequency
  • and to show the responsibility of the actors
    involved

78
1st Step Implementing Legislation
Action Responsible Frequency
Creation and introduction of international legislation. EC AETR Unique )
Transpose international legislation in national legislation including identification of the Countrys Responsible Authority for card issuing (CRA MSA in EU-MS). Countrys competent authorities Unique )
Informing the EC AETR accordingly and designating the competent persons . CRA (MSA) Unique )
) Unless political circumstances cause changes in legislation ) Unless political circumstances cause changes in legislation ) Unless political circumstances cause changes in legislation
79
1st Step Implementing Legislation
80
2nd Step Designation of Key players
Action Responsible Frequency
Appointment of competent laboratory acting as European Root Certification Authority (ERCA). EC Unique )
Appointment of the organization in charge of the practical aspects of card issuing (CIA). It is not excluded that the CRA (MSA) takes the role of the CIA. CRA (MSA) Unique )
) Eventually within the term of the contract of the two contracting parties ) Eventually within the term of the contract of the two contracting parties ) Eventually within the term of the contract of the two contracting parties
81
2nd Step Designation of Key players
82
3rd Step Implementing Card issuing structure and
defining security policy
Action Responsible Frequency
Defining ERCA Security policy. JRC/ERCA Unique )
Drafting countrys national Certificate Authority policy to be approved against the ERCA Security policy. CRA/MSA - JRC Unique )
Designates manufacturer of the raw tachograph cards. In general, this step is subject to a tendering procedure. CIA Unique )
Appoint a Card personalizer (CP) and a Country Certification Authority (CCA) within or outside the MSA (tendering procedure) MSA/CIA Unique )
Implementing the Card issuing structure in CIA, e.g. ltsee next slidegt CIA Unique )
) Eventually within the term of the contract of the two contracting parties ) Subject to a periodical revision ) Eventually within the term of the contract of the two contracting parties ) Subject to a periodical revision ) Eventually within the term of the contract of the two contracting parties ) Subject to a periodical revision
83
3rd Step Implementing Card issuing structure and
defining security policy
Action Responsible Frequency
Implementing the Card issuing structure in CIA, e.g. Setting up a frontdesk and a card distributing system, Implementing working procedures (See Best Practice Guidelines issued by MIDT), Connect to national driving licences database and create tachograph card database, Connect to the tachograph card databases of the participating countries (e.g. TACHONET). CIA Unique )
) Eventually within the term of the contract of the two contracting parties ) Eventually within the term of the contract of the two contracting parties ) Eventually within the term of the contract of the two contracting parties
84
3rd Step Implementing Card issuing structure and
defining security policy
85
4th Step Type approval of tachograph cards
Action Responsible Frequency
Arrange for functional and security testing of the card model. Card manuf. Unique )
Execute functional tests according to the legislation and issue functional certificate. Laboratory appointed Unique )
Execute security tests according to the legislation and issue security certificate. ITSEC - Body Unique )
Execute interoperability tests according to the legislation and issue interoperability certificate. JRC Unique )
Issues type approval certificate. National type approv. body Unique )
) For a given technical version of the card model ) For a given technical version of the card model ) For a given technical version of the card model
86
4th Step Type approval of tachograph cards
87
5th Step Issuing and signing countrys national
certificate
Action Responsible Frequency
Issuing of the countrys national certificate. Country Certification Authority Biennial
Signing countrys national certificate JRC/ERCA Biennial
88
5th Step Issuing and signing countrys national
certificate
89
6th Step Start issuing tachograph cards
Action Responsible Frequency
Application validation (see also Best Practice Guidelines issued by MIDT). CIA Every card
Identify the card holder CIA Every card
Ensure uniqueness of every driver card CIA Every card
Produce card certificate CCA Every card
Produce and personalize cards CIA / CP Every card
Distribute and hand over cards CIA - applicant Every card
Revok card certificate CIA Every card being invalidated )
) lost, stolen, malfunctioning, confiscated etc.
90
6th Step Start issuing tachograph cards
91
2) Implementing the digital tachograph system
the logical steps to follow 2-1 Issuing
cards 2-2 Approving and auditing
workshops 2-3 Enforcing the use of the digital
tachograph system





92
Approval of workshops
By Neil BARLOW (VOSA UK)
93
  • Content
  • Tachograph Scheme Purpose
  • Workshop Approval Procedures
  • Workshop Technician Authorisation
  • Workshop Equipment
  • Workshop Card Issuing
  • Workshop Audit
  • Workshop Discipline
  • Record of Workshop Information



94
  • Purpose of the Tachograph Scheme
  • Ensure Infrastructure in place to enable
    tachographs to be installed and accurately
    maintained in vehicles
  • Ensure correct issue and secure use of workshop
    smart cards
  • Ensure correct inspection and accurate
    calibration of tachographs in accordance with
    AETR
  • Monitor performance of workshops


95
  • Workshop Approval Procedures
  • Approval process
  • Facilities and equipment requirements
  • Security requirements
  • Technician training standards
  • Inspection/Calibration procedures
  • Disciplinary procedures
  • Funding



96
  • Workshop Approval Procedure
  • Application form
  • Site plan (safe, inspection pit, rollers..etc..)
  • Evidence of permission to modify/use the site by
    owner
  • Sound financial standing
  • References
  • Good repute declaration of non-conviction
  • Evidence to show technical support, training,
    equipment and periodic inspection of equipment.

97

  • Workshop Approval Procedure (cont.)
  • Site visit to discuss plan
  • Does it meet the requirements of the manual?
  • In order to gain approval
  • Site completed in accordance with plans
  • Trained technician
  • Quality Control system in place


98

  • Facilities and Equipment
  • Building containing
  • Reception
  • Secure safe for storage of cards
  • Calibration Bay (contains equipment for
    determining W and L. e.g. rollers)
  • Inspection pit
  • Separate and secure workshop adjacent to the
    calibration bay
  • External 20m track (as described in the ATCM)


99
  • Required Equipment
  • Roller test rig (including Roller Brake Test
    conversions)
  • Programmer / Pulse counter
  • Downloading equipment
  • Additional equipment
  • Chart reader
  • Portable drive unit
  • PC and software


100
  • Approve Training
  • Options Train internally, contract it out, or
    have 3rd party training
  • approved by and audited by government body
  • e.g.
  • Course Content agreed with VOSA
  • Examination at the end
  • VOSA Approved Training Organisation
  • Training Facilities
  • Assessments of course delivery by VOSA
  • Co-operative arrangements for regular reviews of
    training
  • VOSA notified by Training Organisation when a
    technician has been trained.


101
  • Approve Technicians
  • Nominated Technicians must
  • Be of Good Repute
  • Provide a signed declaration of suitability
  • Have appropriate skills and technical background
  • Have a current tachograph training certificate
    renewed every 3 years



102
  • Workshop Card Issue
  • Controlled issue, due to security risks
    associated with the card.
  • PIN protected
  • PIN issued to home address of the technician
  • Workshop card issued to the technicians work
    address
  • Card to be stored securely in a safe overnight
  • Slam box storage available for card during the
    day



103
  • Workshop Quality Control/Internal Audit
  • Designated quality manager
  • Routine Quality Control Checks
  • Routine Audit Checks
  • Ensuring secure use of smart cards
  • Ensuring staff remain properly trained



104
  • Workshop Annual Audit
  • Government examiner will visit the site annually
  • Check for record of plaques issued
  • Record of tampering
  • Seals, pliers, workshop card etcsecurely stored
  • Notices displayed
  • Technicians are up to date with training
  • Equipment has been calibrated



105
  • Workshop Disciplinary Procedures
  • Inability to calibrate tachographs
  • Fraud or deliberate incorrect calibration of
    tachographs
  • If bribes accepted by technicians
  • Found guilty of a violent/intimidating crime
  • Failure to keep suitable records and comply with
    the security requirements of the ATCM
  • Calibrations performed by unauthorised staff



106
  • Workshop Disciplinary Procedures
  • Options
  • Advice
  • A formal warning
  • Letter of Contemplated Withdrawal
  • Additional Training
  • Disqualification
  • Suspension



107
  • Record of Workshop Information
  • A Database Containing
  • Centre address
  • Nominated technicians
  • Designated site manager
  • Seal number for the site-provided to European
    Commission periodically
  • Workshop card numbers
  • Annual reports completed by Traffic Examiners
  • Copies of communication with the workshop



108
  • Funding
  • Funding regimes need to support scheme structure
    e.g.
  • State owned
  • Private
  • Sub-contracted


109
2) Implementing the digital tachograph system
the logical steps to follow 2-1 Issuing
cards 2-2 Approving and auditing
workshops 2-3 Enforcing the use of the digital
tachograph system





110
Enforcement
By Hans DRIJER (Vehicle Inspectorates
Netherlands)
111
Enforcement With analogue tachographs
112
Are recorded
Speed
Distance
Mode of work
Time
113
Drivers name
Start location
End location
Dates
Vehicle registration
Odometer readings
114
Manipulations can be detected (1)
Odometer Distance is insufficient to match
geographical locations
Analogue Distance Trace
115
Manipulations can be detected (2)
Distance from know highway feature e.g. peage, is
insufficient to reach check site
Analogue Distance Trace
116
Analysis software can also be used one data are
scanned (1)
Digital Distance Trace
117
Analysis software can also be used one data are
scanned (2)
Distance from know highway feature e.g. peage, is
insufficient to reach check site
Digital Distance Trace
118
Enforcement With digital tachographs
119
Data can be downloaded by control officers if
issued with control cards
Connector
Cable
Control card
120
  • Alternative for the control officers to get
    access to the recording
  • equipments and cards data printouts
  • 6 types of print-outs, which can be selected
    through the recording
  • equipment
  • 2 relate to the drivers activities one comes
    from the recording
  • equipment, the other one from the driver card
  • 2 relate to the events and faults one from the
    recording equipment,
  • the other one from the driver card
  • 1 concerns the technical data (vehicle,
    recording equipment, etc)
  • 1 concerns the over speeding.

121
Data analysis
122
  • Control officers need therefore to know with the
    digital tachograph at least as much as they know
    with the analogue tachograph
  • drivers name
  • vehicle registration number
  • start and end of the journey
  • time
  • speed
  • distance
  • odometer
  • drivers activities

123
If the digital tachograph is activated and
calibrated, control officers can at least base
their checks on print-outs Used without driver
cards, digital tachographs produce nevertheless
anonymous print-outs which can easily be used to
defeat the system Transitional measures (i.e.
use of digital tachographs without driver cards)
should therefore be implemented for a limited
period of time
124
See examples of print-outs
125
Control officers also need to check the validity
of the driver card produced by the driver is
any The driver may have flouted the rules and
be using a non-valid card (previously declared
lost or stolen for example) At EU-EEA level,
exchange of data between card issuing authorities
through TACHOnet
126
TACHOnet Business Actors
  • Clerks working for National Card Issuing
    Authorities (CIA)
  • Control officers working for National Enforcement
    Authorities

Clerk _at_ CIA
Applies for a card, asks for exchange, declare
card status modification
Issues, Checks, Modifies
Owns uses
Checks, Modifies
Truck driver
Controls during road checks
Control officer Hans DRIJER
127
  • At enforcement level, what is needed for your
    control officers is them
  • to be trained
  • to be issued with control cards
  • to be equipped
  • to have access to drivers and workshops cards
    data

128
1) The legal framework 2) Implementing the
digital tachograph system the logical steps
to follow 3) Which support can the AETR
countries benefit from?





129
3) Which support can the AETR countries benefit
from?





3-1 UNECE-AETR Secretariat and ad hoc working
group 3-2 European Commissions TAIEX
workshops 3-3 CORTE-MIDT meetings and help desks
130
3-1 UNECE-AETR Secretariat and ad hoc working
group 3-2 European Commissions TAIEX
workshops





131
3-3 CORTE-MIDT meetings and help desks





132
Project management
European Commission
Secretariat
Dedicated web site
Dedicated Help desk
Plenary
IPC Neil BARLOW (UK) Ingrid LUTNAES
(NOR) Christina VELINOVA (BG)


CINC Birgit SÄÄV (S) Armand BIBERICH (L) Marja
VAN DER WEL (NL)
ENC Hans DRIJER (NL) Frank DAVIDSEN (DK) Joaquin
DEL MORAL (SP)
Thierry GRANTURCO
Thierry GRANTURCO
Thierry GRANTURCO
133





Thank you for your attention
About PowerShow.com
