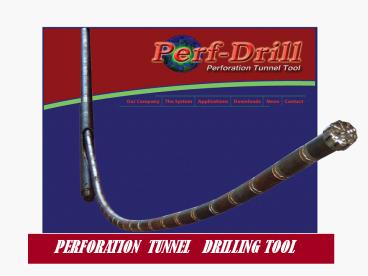

PERFORATION TUNNEL DRILLING TOOL

1
PERFORATION TUNNEL DRILLING TOOL
2

Projected 30 foot Perf-Drill lateral in skin -
damaged well
1675
2-7/8 inch production tunnel

Actual Perf-Drill 15 degree exit tunnel in
cement/API target
Tunnel at one inch from casing
3

• PERF-DRILL
• PERFORATION TUNNEL
• DRILLING TOOL
• Runs from inside of 4-1/2 or larger casing
• 2-7/8 diameter drilled production tunnel
• 30 feet out from the well bore
• Any fluid Any depth - power swivel or CT
• Through casing in 45 minutes
• 10 degree exit angle to 90 degrees in 10 feet
• Patent No. 7,810,586 October 12, 2010

4

• 2-7/8 Perf-Drill Tunnel showing 90 degrees in
  10 feet build rate (_at_ one inch from casing)

5

• PERF-DRILL TUNNEL
• A DRILLED
• PRODUCTION DRAIN HOLE
• 30 FOOT PENETRATION INTO FORMATION
• MEASUREABLE VERIFIABLE
• LEAVES CLEAN, UNDAMAGED FORMATION
• THAT IS EQUAL TO
• 57 CASING GUN PERFORATIONS

6
2-7/8 ID maintained angle Perf-Drill Tunnel
7
2-7/8 ID 45 Degree Perf Tunnels
10 FEET
90 DEGREE EXIT PERF- DRILL TUNNELS
8

• CARBIDE INSERT BIT WITH 2-7/8
  DRILLED HOLE SHOWING
  9 DEGREES PER FOOT
  BUILD RATE IN API TARGET MATERIAL

9

• TENSION LOADED WEIGHT ON BIT CONTROLLED

10
Perf-Drill Performance

• A large, clean, drilled perforation from the
  casing to TD of the perforation tunnel, provides

• ? NON-DAMAGING
• ? UNRESTRICTED,
• ? CONDUCTIVE FLOW PATH with
• ? MAXIMUM ACCESS to the pay zone
• PERFORATING with a 2-7/8 I.D. - 30 foot long
  tunnel exposes 3,245 sq. INCHES of formation
  with ONE PERFORATION TUNNEL.
• ONE JET PERFORATION ½ I.D. X 48 ASSUMED
  FORMATION EXPOSURE OF 75 sq. INCHES
• 318-222-3348
  www.perf-drill.com

11
Perf-Drill exit shoe / whipstock with 18 inch
exit face showing only tool marks after two 2.9
inch bit exits in 4-1/2 and 5-1/2 casing
The Perf-Drill 3 degree per joint flexible
drive system allows the bit to pull away
from the whipstock exit the casing in less than
18 inches.
12

13
Perf Drill tool Whipstock housing - 3.7 inch OD
Perf-Drill patented flexible drive sections
2.38 inch OD Nine Degrees per foot build rate
PERF-DRILL BHA
2.9 inch OD Perf-Drill Mill Drill insert bit
Drills through casing cement formation.
Position shown would be 50 in to the 4.5
casing wall
Whipstock
Whipstock tool anchor
14
BRING US YOUR ORPHANED WELLS, YOUR TIRED AND
YOUR OLD WELLS OR YOUR WELL THAT HAS TOO MUCH
POTENTIAL TO PLUG
