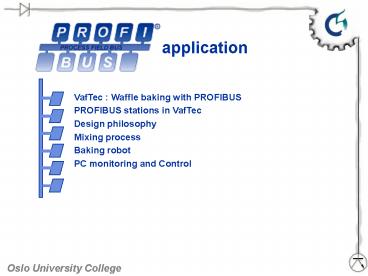

application

1
application
VafTec Waffle baking with PROFIBUS PROFIBUS
stations in VafTec Design philosophy Mixing
process Baking robot PC monitoring and Control
2
VafTec Waffle baking with PROFIBUS
3
PROFIBUS stations in VafTec
Moeller PLC
Siemens S7 PLC
CITECTSCADA
DP 500 kbit/s
DP 93.75 kbit/s
Siemens Combimaster
Murr I/O
LAUER Operator panel
Beijer Operator panel
Siemens I/O
Festo valve node
Rexroth Mecmann Valve node
PA 31.25 kbit/s
PF, SEGMENT COUPLER
Micro-Control Link
4
The VafTec Machine
5
Ordering waffles from the panel
6
The mixing process
7
Measurement devices, water and powder
8
The powder reservoir
9
The water and oil reservoirs
10
Before baking, the mixture is stored in a depot
11
The baking robot
12
Remote control of the baking robot
13
PROFIBUS slaves, baking process
14
Feeding and baking
feeding
baking
oops sometimes it fails
15
PC Monitoring and Control
