Title: Our Machining


1

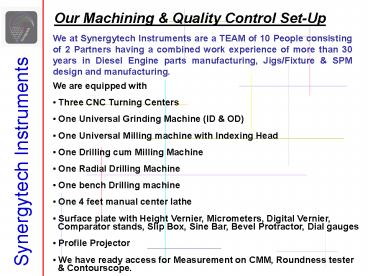

Our Machining Quality Control Set-Up
We at Synergytech Instruments are a TEAM of 10
People consisting of 2 Partners having a combined
work experience of more than 30 years in Diesel
Engine parts manufacturing, Jigs/Fixture SPM
design and manufacturing.
  • We are equipped with
  • Three CNC Turning Centers
  • One Universal Grinding Machine (ID OD)
  • One Universal Milling machine with Indexing Head
  • One Drilling cum Milling Machine
  • One Radial Drilling Machine
  • One bench Drilling machine
  • One 4 feet manual center lathe
  • Surface plate with Height Vernier, Micrometers,
    Digital Vernier,
  • Comparator stands, Slip Box, Sine Bar, Bevel
    Protractor, Dial gauges
  • Profile Projector

2
SPM Tools Make CNC Turning Center
  • Machine Features
  • Turning Length 350MM
  • Maximum Turning Diameter 200MM
  • Spindle Nose A2-5
  • Bore Through Spindle 40MM
  • Chuck Size 165MM
  • Z Axis Stroke 350MM
  • X Axis Stroke 154MM
  • No of Stations on Turret 8
  • Maximum Boring Bar diameter 40MM

3
LMW Make CNC Turning Center
  • Machine Features
  • Turning Length 262MM
  • Maximum Turning Diameter 200MM
  • Spindle Nose Flat 140MM Dia.
  • Bore Through Spindle 53MM
  • Chuck Size 169MM
  • Z Axis Stroke 320MM
  • X Axis Stroke 105MM
  • No of Stations on Turret 8
  • Maximum Boring Bar diameter 32MM

4
SPM Tools Make CNC Turning Center
  • Machine Features
  • Turning Length 200MM
  • Maximum Turning Diameter 150MM
  • Spindle Nose A2-4
  • Bore Through Spindle 36MM
  • Chuck Size 135MM
  • Z Axis Stroke 200MM
  • X Axis Stroke 90MM
  • No of Stations on Turret 8
  • Maximum Boring Bar diameter 32MM

5
Modern Make Precision Universal Grinding Machine
  • Machine Features
  • Both ID OD Grinding Capability
  • Grinding Length 400MM
  • Maximum Grinding Diameter 200MM
  • Minimum ID Diameter 6MM
  • Spindle Nose Taper MT4.
  • Swivel of Spindle 0 90 Deg
  • Swivel of Table 0 30 Deg
  • ID Spindle RPM 20000
  • Max Plunge Depth 1.7MM
  • Min Inc Feed on Dia 0.001MM
  • Accuracy 2Micron

6
Graffenstadden Make Universal Milling Machine
  • Machine Features
  • Swivel Table Index Head
  • 8 Vice, 4 Angle Vice
  • Arbor Arbor Support
  • Spindle-
  • Horizontal ISO 45
  • Vertical ISO 40
  • Speeds-
  • 32-1600 in 16 Steps
  • Feeds-
  • 16-720 in 16 Steps horizontal
  • 8-560 in 12 Steps Vertical
  • Table-
  • Size- 1225 X 280
  • X Axis Travel 600mm
  • Y Axis Travel 300mm
  • Z Axis Travel 400mm

7
Vertex Make Milling cum Drilling Machine
  • Machine Features
  • Drilling Capacity 32MM
  • Tapping Capacity 19MM
  • Spindle Taper R8
  • Spindle Travel 130MM
  • X Axis Travel 430MM
  • Y Axis Travel 190MM
  • Table Size 730 X 210MM
  • Spindle Nose to Table 460MM

8
Awanti Make Radial Drilling Machine
  • Machine Features
  • Drilling Capacity 40MM
  • Tapping Capacity 25MM
  • Spindle Taper MT3
  • Spindle Quill Travel 125MM
  • Horizontal Drill Head Travel 415MM
  • Vertical Arm Travel 485MM
  • Table Size 900 X 500MM
  • Tee Slot Details 18MM X 3

9
Citizen Make Center Lathe
  • Machine Features
  • Turning Length 1200MM
  • Maximum Turning Diameter 200MM
  • Spindle Nose MT3.
  • Bore Through Spindle 53MM
  • Chuck Size 180MM
  • Z Axis Stroke 1250MM
  • X Axis Stroke 125MM

10
Optical Profile Projector
  • Features
  • 8 Dia Screen
  • 10X , 20X 50X Magnification
  • X Y travel 0-25MM with Digital Micrometer
  • Both Projection Reflection modes are available

11
Various Components we Manufacture
