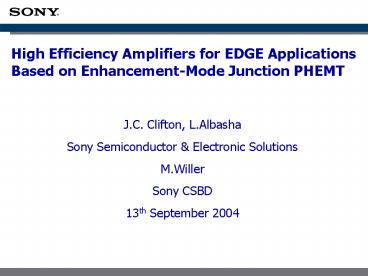

High Efficiency Amplifiers for EDGE Applications
Based on Enhancement-Mode Junction PHEMT

J.C. Clifton, L.Albasha Sony Semiconductor
Electronic Solutions M.Willer Sony CSBD 13th
September 2004
2
Technology Sony J-PHEMT
  • Higher forward voltage enables positive drive.

JPHEMT Structure
Id
Source
p-Gate
Drain
InGaAs Channel
Ig
GaAs Sub.
JPHEMT Vf 1.2 (V)
pn Junction Gate ? High Vf ? High Drain Current
3
Objectives Designing an EDGE PA
  • EDGE functionality required from iteration of
    current GSM PA Dualmode PA.
  • Interface to a Direct Modulation Transceiver to
    allow future inclusion of WCDMA for future single
    GSM/EDGE/WCDMA TX Architecture.
  • Inclusion of EDGE functionality with only a
    small impact to the size and cost of the basic
    GSM solution.
  • Meet EVM specifications over VSWR of 31 without
    isolator and avoid complex calibration/set-up.
  • Target EDGE efficiencies 25 whilst maintaining
    current GSM performance of 55-60.

4
Types of EDGE (8PSK) Power Amplifier
  • Linear/Backed-Off PA Approach
  • J-PHEMT gives respectable efficiency at several
    dB back-off whilst maintaining EVM ACPR
  • Simple and robust architecture
  • Also suited for WCDMA
  • Sometimes issues meeting EVM spec under mismatch
    conditions Isolator.
  • Efficiency suffers under back-off

Fixed Vdd3.5V Operation
GSM/EDGE PA
Pout28.5dBm
PA
Backed off Input Power, Pin
Coupler for PACL

Increased Vgg for linear operation
  • Polar Loop Approach
  • J-PHEMT gives good saturated efficiency
  • Additional efficiency comes at the expense of
    much greater complexity
  • Difficult to adopt for WCDMA and use with direct
    modulator transceiver
  • Headline efficiency impacted by consumption
    within AM-AM and AM-PM feedback loops

Log Amplifier
Amplitude
Modulator

Phase Modulator or VCO
S(t)
S(t)
PA
PA
VCO
Limiter
Limiter
Sin(wt)
Limiter
Phase detector
5
Simulation Test Bench
  • 3 Stage PA model based on Agilent Eesof model on
    ADS.
  • System simulation tool ptolemy to allow
    inclusion of AM and PM correction loops.
    Simulation of ACPR, EVM, output power and
    efficiency.
  • Used to simulate Linear/Back-off PA in addition
    to various different types of saturated PA.

6
Envelope Elimination and Restoration (EER) Power
Amplifiers for EDGE
Saturated PA Architectures
Advantage Drive Level and Power Control (eg
drain regulation) similar to GMSK (constant
Envelope) Issue Method of Envelope insertion
and correction
Corrected Envelope inserted onto drain or gate
supply
7
Control Characteristics (1mm, 900MHz)
Drain
Gate
8
EER Based on Drain Voltage
Corrected RF Output Signal
Corrected Drain Voltage (max3.5V)
Associated Drain Current
DRAIN VOLTAGE/CURRENT CHARACTERISTICS
Loop Dynamics optimised to minimise Error Voltage
whilst ensuring loop stability over range of
control and supply voltages
RF Output Signal make to track EDGE Envelope by
AM Correction Loop
PAE 40-45 using fast DC-DC converter
9
Phase Distortions
60 Phase variation over envelope
EVMgt 11. AM-PM Correction loop required to
reduce EVM to 1.5 and bring ACPR inside
specification
Log Amplifier
Amplitude
Modulator
Phase Modulator or VCO
S(t)
PA
PA
VCO
Limiter
Limiter
Sin(wt)
Limiter
  • Phase detector

10
EER Based on Gate Voltage


Phase error significantly reduced. Resulting EVM
of 3.2. Further reduced with the addition of
simple pre-distortion circuit. Simulated PAE of
44.
20 Degrees
11
Adaptive Bias Control Based on Gate Voltage
PA operated in saturated mode. Gate tracking
circuit designed to exhibit constant gain over
input envelope. Simulated efficiency of 50.
Resulting phase variation of lt10 over envelope
and EVM of 1.
Phase error due to compression is partly offset
by impact of phase variation caused by gate bias
shifts required to keep gain constant
12
Practical Measurements of Gate Correction Circuit
with Class A/B PA out of Compression
Gate AM correction circuit reduced EVM from 16
down to 3.
-36.1dBc, 400KHz offset
-54.3dBc, 400KHz offset
Implementation Issues for PA in compression AM
Correction loop design extreme sensitivity of
gate voltage to EVM and ACPR.
13
Linear PA Investigations
  • Required improvements for product
  • Elimination of output isolator meet EVM spec in
    31 Antenna VSWR
  • Elimination of output coupler/detector and
    control feedback loops Open Loop Control
  • Avoidance of 30-40dB VGA/VVA which impacts power
    consumption, size and RX Noise performance (TX
    SAW not acceptable)
  • Improve efficiency compared to conventional EDGE
    Linear Power Amps

14
Objectives Met with Modified Linear
PAModifications compared to conventional Linear
PA to Improve Efficiency at back-off and simplify
power control scheme
15
Modified Linear PA Measured Performance
RFout
34.5dBm GMSK 28.5dBm EDGE
(excluding VGA consumption required for
conventional PA)
16
Modified Linear PA
Measured Pout/Temperature Characteristics
17
Open-Loop Operation and Mismatch Measurements
Without isolator
Temperature stable, variable gain PA Power Error
Budget Frequency Variation lt /-1.0dB Temperatur
e Variation lt /-1.0dB WORST CASE
lt /-2.0dB SPEC(E2) /-4.0dB
RX Noise -82.3dBm/100KHz _at_20Mhz offset from
carrier (-10dBm input power, 28.3dBm Output)
18
Conclusions
  • Promising simulation results for JPHEMT PA in
    both Saturated (Polar Loop/EER) and Linear modes,
    proving capabilities of the device.
  • Adaptive Bias Control of Compressed PA based on
    gate envelope tracking looks promising from
    viewpoint of reduced complexity and performance.
    However, significant implementation issues exist.
  • Approach based upon modified linear PA proved
    best suited to meeting original objectives.
  • EDGE RF functionality possible with very small
    size/cost impact to GSM solution. Forward
    compatibility with WCDMA.

19
Acknowledgements
  • Colleagues at Atsugi Technology Centre H.
    Kawasaki, H. Kawamura and H. Motoyama
  • Support from Thomas LeToux, project student from
    ULP France/UCL UK.
  • Agilent ADS UK team for simulation support.
