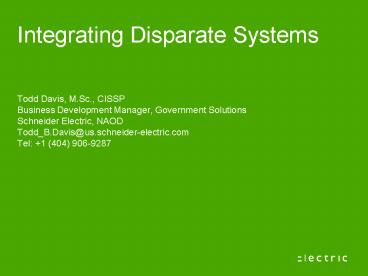

Integrating Disparate Systems

1
Integrating Disparate Systems

• Todd Davis, M.Sc., CISSP
• Business Development Manager, Government
  Solutions
• Schneider Electric, NAOD
• Todd_B.Davis_at_us.schneider-electric.com
• Tel [phone]

2
Agenda

• Integration Issues Introduction
• A Typical Building vs. An Intelligent Building
• Principles of Integrated Solutions
• Four Case Studies
• Service Support
• QA

3
A Typical Building Setup

• Systems operate in isolation
• Information not shared across platforms
• Asset data is often duplicated

4
The Intelligent Building

• Systems share information through a central,
  unifying system
• An interconnected smart building enables advanced
  control and a higher level of automation to save
  energy and improve productivity

5
Integrated Solutions for Energy Security Energy
Efficiency

• SCADA Security Interoperability
• Open Protocol Energy monitoring and utility
  control Systems
• Leveraging Existing Systems Investments

Potential Problems
Desired State
6
Campus Integration Issues Compound

• Legacy Equipment, Policies, Administration, and
  Competing approaches
• Legacy equipment is easy to integrate compared to
  multiple buildings telecommunications
  infrastructures.
• Some are open, others are proprietary and/or
  obscure.
• Differing telecommunications infrastructures
• Transaction-based middleware cant provide
  consistent performance or reliability
• Differing densities of Measurement
  Instrumentation
• Some buildings have a sufficient number of
  sensors meters to provide sufficient data for
  an energy efficiency play. Others have little to
  nothing at all.

6
7
Integration Requirements

1. Real-time Middleware Integration Platform

7
8
The Nuremberg Germany Convention Center Campus
9
Communications and Protocols

• Connectivity

9
10
Multiple Platforms Multiple Protocols

• Open Standards
• OPC
• Modbus
• LONWorks
• SNMP
• ASCII
• C-Bus
• BACNet
• EIB / Konnex
• DNP 3.0
• IEC870-5
• Profibus

• Industry Standards
• SAIA
• Siemens
• Mitsubishi
• Satt
• Moeller
• ABB
• Danfoss
• Exomatic
• Landis Staeffa
• TA9000
• M-Bus
• S-Bus
• Allen Bradley

10
11
Multiple Protocols Multiple Disciplines

• Intuitive Technologies
• Johnson Controls
• Kaye Instruments
• Keyence
• LG Industrial Systems
• Matsushita
• Mauell
• Mettler Toledo
• Mitsubishi
• Moore
• Motorola
• MOX Products
• MTL Instruments
• National Instruments
• Nematron
• NJ International
• Omnitronics
• Omron
• Optimation Optilogic

• Rockwell Automation
• Rosemount
• RTP
• SAAB
• Samsung
• Satt Control
• Schlage Electronics
• Schlaps Partner
• Schneider Electric
• Serck
• Sisco
• SIXNET
• Softing AG
• Sprecher Schuh
• Square D
• Steeplechase
• Telefrang
• Telemecanique
• Thermo Westronics

• Valmet
• Vikingegaarden
• VIPA
• Wago
• Weidmuller
• West Instruments
• Westinghouse
• Willowglen
• Woojin
• Yaskawa
• Yokogawa
• ZWorld

• Action Controls
• Advantech
• Air Liquide
• Ampcontrol
• Anybus
• April
• Aromat
• Aspen Technology
• BR Industrial
• Baker Hughes
• Barber Coleman
• Beckhoff
• Bosch
• Bristol Babcock
• Busware
• Campbell Scientific Inc.
• Cegelec
• Cimetrics
• Clipsal

• Data Electronics
• Detroit Diesel
• Eberle
• Elpro Technologies
• Elsag Bailey
• Emerson
• Engage Networks
• Enron
• Eurotherm International
• Facon
• Fischer Porter
• Fisher Rosemount
• Fluke
• Foxboro
• Fuji Electric
• Gantner
• GE
• GEC
• Harris Controls

11
12
Integration Requirements

1. Real-time Middleware Integration Platform
2. Support Multiple Protocols with Open Interfaces

12
13
ORNL WAGES Metering Integration

• Hundreds of Buildings
• A Pilot Project made more sense fiscally and
  logistically
• Only a few buildings to start
• Networking Technologies dating back to 1950s
• Questionable Conduits Quality
• Politics Consistent with any Institute of Higher
  Learning or Government Laboratory, or Department
• Competing objectives and agendas inextricably
  tied to the overarching Energy Efficiency play
• Variable Measurement Capabilities
• Everything from Manual Entry to Completely
  Automated Report Generation

13
14
Integration Requirements

• Real-time Middleware Integration Platform
• Support Multiple Protocols
• Allow competing Departments to get their Pet
  Feature without impacting other Departments,
  Project Costs, or Schedule.

14
15
Mori Towers Solution Overview

• User Support Features
• Visualizations
• Reporting
• Metrics
• Reliability / Scalability
• Integration
• Remote Access

15
16
Solution Overview

• Multi-Function Operations
• HVAC
• Lighting
• Energy management and reporting
• Fire and Security
• Equipment / Activity scheduling

16
17
Solution Synopsis

• Facility-wide Monitoring
• Role based security
• Multi-protocol support
• Open communications
• Flexible clients
• Zero administration clients
• Secure remote access
• Cloud Computing

17
18
Reliability

• Communication Redundancy
• Automatic Failover
• Automatic Recovery
• Automatic Client Switchover
• Multiple Servers
• Multiple Communication Paths

18
19
Reliability

• Scalable
• Virtually unlimited expansion
• Clustered distribution
• Installations with over 2 million devices
• Installations with over 200 locations
• Installations with over 100 CALs

19
20
Visualization
Easily identify poor tenant behaviour
20
21
Visualization
Status hot-spots to display details
21
22
Visualization
Status hot-spots to access equipment details
and controls
Manage HVAC parameters
22
23
NASAs KCCS System Architecture
Architecture for Utility System is similar, but
with 1 redundant I/O server set and end items
would be AHUs, Pumps, Chillers, etc.
24
Power System HMI
Architecture for Utility System is similar, but
with 1 redundant I/O server set and end items
would be AHUs, Pumps, Chillers, etc.
25
UPS System HMI
26
Chilled Water System HMI
27
Air Handler System HMI
28
Utility Shop Overview HMI
29
Integration Requirements

• Real-time Middleware Integration Platform
• Support Multiple Protocols
• Allow competing Departments to get their Pet
  Feature without impacting other Departments,
  Project Costs, or Schedule.
• Critical Systems Level Reliability, Scalability,
  And Client Flexibility/Consistency

29
30
Second Line of Defense (SLD)

• Mission
• Strengthen the capabilities of partner countries
  to deter, detect, and interdict illicit
  trafficking of special nuclear and other
  radioactive materials at international border
  crossings including airports, seaports, and other
  points of entry/exit.
• Strategy
• Develop cooperative efforts to mitigate the risk
  of illicit trafficking through
• Search, detection, and identification of nuclear
  and other radioactive materials
• Development of response procedures and
  capabilities
• Deterrence of future trafficking in illicit
  nuclear and nuclear-related materials
• Goal
• Deliver an effective and sustainable global
  capability to deter, detect, and interdict
  illicit trafficking in special nuclear and other
  radioactive materials

31
SLD Two Primary Programs

• Equip more than 450 points of entry airports,
  border crossings, and small feeder seaports
• Bolster detection capabilities of foreign border
  officials or affiliated agencies
• Partner with International or multilateral
  organizations (IAEA, EU)

• Equip 100 international seaports
• Bolster detection capabilities of foreign customs
  officials and port authorities
• Partner with other U.S. federal agencies
• CBP/ICE Container Security Initiative (CSI)
• CBP Secure Freight Initiative (SFI)
• DHS ASP deployment

32
Reach Impact of SLD Program

• SLD scans a variety of traffic types at borders
  seaports globally

33
SLD Monitoring In Action
Vehicle Monitors
Rail Monitors
Border crossings, seaports airports
Secondary Inspection
34
OCR Cameras
RPMs
Other Devices Sensors
Puerto Cortes, Honduras
35
Other Integrated Systems Components

• The Following Additional Components are part of
  the COMMS Solution
• TOS (Terminal Operations System)
• Software to manage the movement of containers at
  a port or border crossing
• Telecommunications systems
• Fiber, CAT5e, Wireless WAN, Wireless LAN links,
  VoIP Phone Systems
• CSI Workstation (Container Security
  Initiative)FBI Operatives, mostly
• NII (Non-Intrusive Imaging)big Container X-Ray
  Machine
• Handheld RIIDs (Radio Isotope Identification
  Devices)
• Backup Power (usually just UPSs) for most
  components listed above
• Gate Control, Traffic Light Control
• Security System Interface
• Large Traffic Management Displays

36
Sample Alarm Station Screen
37
Integration Requirements

• Real-time Middleware Integration Platform
• Support Multiple Protocols
• Allow competing Departments to get their Pet
  Feature without impacting other Departments,
  Project Costs, or Schedule.
• Critical Systems Level Reliability, Scalability,
  And Client Flexibility/Consistency
• Multiple System Interoperability

37
38
Service Support

• The Long-Term Differentiator for Successful
  Projects

39
Support as a Success Factor(See Frost
Sullivan, March 2011)

• Maximizing Return on Automation Solution
  Investments through Effective Technical Support
• People, Process, Product
• The order is important
• Average Cost of 24 hours of Downtime 6.3M
• In some industries, 6.4M is the average cost for
  1 hour of Downtime
• Key Customer Criteria for Solutions Providers in
  Order
• Quality
• Support
• Price
• Delivery Time
• Vendor Flexibility

1. Reputation Expertise
2. Product Innovation
3. Warranty

39
40
Innovative Support Models

• Comprehensive Solutions Level Support Models
  Agreements
• Without regard to the mix of vendor components
• Global Consistency with Local Availability
• One model for all locations with local resources
  familiar with site specific needs

41
Integration Requirements

• Real-time Middleware Integration Platform
• Support Multiple Protocols
• Allow competing Departments to get their Pet
  Feature without impacting other Departments,
  Project Costs, or Schedule.
• Critical Systems Level Reliability, Scalability,
  And Client Flexibility/Consistency
• Multiple System Interoperability
• Support for the Customer, not merely the Products

41
42
Summary

• What Weve Learned.

43
Integrating Disparate Systems Requires

• Hardware Agnosticism from Sale to Service
  Support
• Even Greenfield projects are best served by
  multiple providers
• Realtime Middleware as the Glue for Integration
• Transaction-based middleware cant provide
  consistent performance or reliability
• A Service Support Offering for the Real World
• Not just a support offering for a single vendors
  offerings.
• A Solutions Oriented Approach
• Making The Most of Your Energy Requires more than
  a mere Collection of Components. It Requires A
  Big-Picture Solutions Mind-set.

43
44
Conclusions

• Facility Managers need solutions that can assist
  them to keep operational costs low, Energy
  Efficiency high, and their facility in top
  working order, such as
• Building Systems that can work together to extend
  beyond their individual capabilities and enable a
  truly intelligent building
• Top tier solutions for Facilities Monitoring that
  can scale from small buildings to large scale
  commercial enterprises and close the gap between
  Building Automation and Facilities Management.
• Solutions are currently deployed in Hospitals,
  Universities, Airports, High-rise offices, and
  Exhibition Centers. All of the power used in
  these systems is available and can be applied to
  your facility today.

44
45

• Make the most of your energy

46
Questions / Discussion
