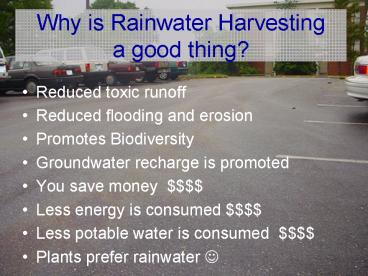

Why is Rainwater Harvesting a good thing?

1
Why is Rainwater Harvesting a good thing?

• Reduced toxic runoff
• Reduced flooding and erosion
• Promotes Biodiversity
• Groundwater recharge is promoted
• You save money
• Less energy is consumed
• Less potable water is consumed
• Plants prefer rainwater ?

2
Rain BarrelsHelping Rainwater go Slow

• Tia Gonzales
• Alabama Cooperative Extension System
• Water Quality Division
• Raincatchers

3
Two Problems

• Water shortages
• Water pollution

4
Water Shortages
5
Water Pollution

• Many of our water pollution issues are due to
  stormwater.
•

• The problem with stormwater is that it is TOO
  MUCH water, too fast.

6
What is stormwater?

• Water that runs off impervious or water
  saturated surfaces and carries toxins, sediment
  and pathogens into nearby waterways
• Toxinsherbicides, insecticides, gas, oil
• Fertilizer, especially P
• Sediment
• Pathogens such as E.coli

7
What is stormwater?

• Its too much, too fast and its nasty
• Full of oil, gas, poop, wasted fertilizer,
  herbicides, un-needed insecticides, dirt that
  lost its home
• Blows-out streams and causes flooding, erosion,
  property damage, habitat loss

8
No Storm?

• Dont leave the sprinkler on too long
• Manage automatic sprinkler systems

• Dont wash your car in the driveway
• Stormdrains lead to the creek

9
Which is it?

• Not enough water?
• Or too much water, too fast?

10
Seattle King Center

• 1600 employees
• Rainwater harvesting meets gt60 of entire
  facilitys water needs
• Saves gt1.4 million gallons of drinking water per
  year
• Keeps runoff from
• entering storm sewers

11
Why is Rainwater Harvesting a good thing?

• Reduced toxic runoff
• Reduced flooding and erosion
• Promotes Biodiversity
• Groundwater recharge is promoted
• You save money
• Less energy is consumed
• Less potable water is consumed
• Plants prefer rainwater ?

12
Hidden energy cost of water
The estimated total current U.S. water-related
energy use to be at least 360 billion kWh per
year. (EPA Estimate)
Recognize the Hidden Energy Costs of Water
Transport and Treatment
13
The Best Thing about Rainwater Harvesting

• Infiltration
• Infiltration
• Infiltration

14
Slow Water

• Water needs a slow, intimate
• relationship
• with plants, soil and soil flora.

15
Slow Water at Work

• 02. A landscape harvesting resources. Arrows
  denote water flow. See "Rainwater Harvesting for
  Drylands and Beyond, Volume 1" for more

16
Water in a Hurry
17
Slow it Down

• Dont let your Rainwater become Stormwater!
• Catch that Water
• Allow Infiltration

18
How do I get started?

• A Rain Barrel is a great place to begin.
• Look at how water moves on your site and think of
  ways to slow your water downallowing maximum
  infiltration.
• Study Water Harvesting Principles
• Keep your soil community healthy

19
How much rain can I catch?
During a one inch rainfall, you can collect .62
Gallons per Square Foot of Roof
A 1000 sq. ft. roof 620 gallons 2000 Sq. Ft.
1240 Gallons of Water Thats with just one inch
of Rain!
20
A Lot of Water
From 2000 sq. ft roof
Alabama rain 52 inches per year 2000 sq. ft.
roof 64,480 gals per year Average August rain
3.04inches 3769 gals in August
21

• Before you
• Build.
• Where will you
• put your first
• Rain Barrel?

22

• Where do you need the water?
• Water from this pot
• is used twice.

23
Where are the Downspouts?
24
Where are the Downspouts?
Dont let any rainwater get away... make every
raindrop count
25
Talk to me Baby
26
An Impervious world

• Where does the water go?
• Where are the tomatoes?

27
No Downspouts?

• Under the eaves is fine, just slower
• Roof Valleys are good sources
• AC Condensate

28
Firm Level
29

• Access for hose or watering can
• Firm and level?
• A full barrel weighs over 400 lbs.

30
Keep gravity as your friend

• Water flows downhill.
  If your garden is higher than the
  rainbarrelyoull be disappointed
• Youre barrel will likely need to be on blocks
• Water finds its own level. Barrels
  connected in series should all be at the same
  height.

31
Plan for Overflow

• You will have overflow
• Use it wisely
• Allow for maximum infiltration
• Away from your foundation

• Rain Gardens
• Planted Areas

32
Gather tools Materials
33

•
  Impervious surfaces arent all Bad
• Start with a clean and dry barrel

34
Recip saw
35

• A jigsaw works too.
• A corner can be a helper

36
Leave Rim Intact
37
Drill a hole for the spigot

• Use a 15/16
• Screw in the hose bibb

38
Screw in the hose bibb
39
Remember Clean Dry?

• Or female pvc adapter

40
(No Transcript)
41
(No Transcript)
42
The Overflow

• For under a gutter downspout or a roof valley

43
Crimp and insert the sump hose
44
Pull through from inside
45
Your New Best Friend

• A piece of screen for the topand were ready to
  catch some rain!

46
Your Barrel needs Sunscreen

• Sunlight breaks down plastic
• Use paint formulated for plastic. Or use a
  plastic primer followed by outdoor paint.
• Algae likes light
• Algae feeds the planet, but can smell bad.

47
Mosquito Dunks

• Be sure that theyre Bacillus thuringeinsis
• NOT insecticide cakes

48
Who are the Raincatchers?

• A network of organizations, academics,
  professionals, municipalities and concerned
  citizens
• Our goals are education and water quality
  protection
• Our tool is Rainwater Harvesting

49
The Network

• Auburn University DepartmentsA-Z
• Alabama Cooperative Extension Service
• Master Gardeners
• Cities of Auburn Opelika
• Alabama Clean Water Partnership
• Soil and Water Conservation
• Concerned Citizens

50
The Network

• North Carolina Cooperative Extension
• World Wildlife Fund
• Alabama Water Watch
• SWaMP
• Landscapers, Contractors, Landscape Architects,
  Artists, Plumbers, Musicians, Software Designers,
  Dancers, Mechanics, Attorneys, Candlestick
  Makers.

51
We began in Auburn
52
Rain Catcher Support

• Alabama Cooperative Extension System
• Alabama Clean Water Partnership
• World Wildlife Fund
• Coca Cola
• Legacy
• SWaMP

53
Thanks Dr. Kyung Yoo

• Raincatcher Advisor
• Catcher of Big Rain
• Shown with another SWaMP Project

54
Rain Catchers 2009

• Workshops in Auburn completed March, April, May,
  June, July
• Check our website for future dates

http//www.aces.edu/waterquality/raincatchers.htm
55
Alabama Clean Water Partnership

• Workshops in Montgomery
• Ashley Henderson
• Cleanwaterpartnership.org

56
Future Plans

• More workshops in Auburn Montgomery
• Expanded workshop topics
• A Rain Barrel Manual
• Trainer of trainer workshops Statewide

57
Time for Show Tell
58
Todays Show Tellers

• Natures Tap
• City of Auburn
• Auburn University Water Resources Center
• Alabama Clean Water Partnership
• Alabama Cooperative Extension System
• AU Agronomy Department,
• Thanks for the truck!

59
Raincatchers http//www.aces.edu/waterquality/rain
catchers.htm Alabama Clean Water
Partnership Cleanwaterpartnership.org
Tia Gonzales Gonzats_at_auburn.edu
