Sterilization

1

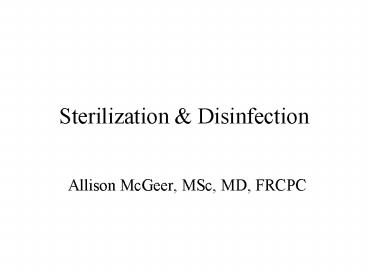

Sterilization Disinfection

• Allison McGeer, MSc, MD, FRCPC

2
How can microorganisms be killed?

• Denaturation of proteins (e.g. wet heat, ethylene
  oxide)
• Oxidation (e.g. dry heat, hydrogen peroxide)
• Filtration
• Interruption of DNA synthesis/repair (e.g.
  radiation)
• Interference with protein synthesis (e.g. bleach)
• Disruption of cell membranes (e.g. phenols)

3
Factors that influence efficacy of
disinfection/sterilization

• Contact time
• Physico-chemical environment (e.g. pH)
• 3 Presence of organic material
• 4 Temperature
• 5 Type of microorganism
• 6 Number of microorganisms
• 7 Material composition

4
Ideal sterilization/disinfection process

• Highly efficacious
• Fast
• Good penetrability
• Compatible with all materials
• Non-toxic
• Effective despite presence of organic material
• Difficult to make significant mistakes in process
• Easily monitored

5
(No Transcript)
6
Spaulding Classification
7
Types of microorganisms and levels of disinfection

• sterilization
• high level disinf
• low level disinf

• Bacterial endospores
• Mycobacteria (tuberculosis)
• Non-lipid (small) viruses (polio)
• Fungi
• Vegetative bacteria (Salmonella)
• Lipid viruses (Herpes, HepB, HIV)

8
Sterilization

• Steam
• Ethylene oxide
• Peracetic acid (.2)
• Hydrogen peroxide gas plasma
• Vapourized hydrogen peroxide
• Ozone

9
Sterilization process

• Clean items
• Package items
• Load sterilizer
• Monitor
• Physical (time/temp/pressure)
• Chemical
• Biological

10
Biological Monitors

• Steam Geobacillus stearothermophilus
• Dry heat B. atrophaeus (formerly B. subtilis)
• ETO B. atropheus
• Peracetic acid G. stearothermophilus
• Plasma (Sterrad) G. stearothermophilus
• Ontario guidelines
• Steam monitor daily, every load with
  implantables
• ETO monitor every load

11
Sterilization process

• Clean items
• Package items
• Load sterilizer
• Monitor
• Physical (time/temp/pressure)
• Chemical
• Biological
• Storage post-sterilization
• Documentation

12
(No Transcript)
13
Problems with sterility

• Lack of understanding of risk/process
• physicians introducing new products (borrowed,
  samples)
• Multidose vials
• What is sterile vs not
• Lack of understanding of components of process
• MDs, technologists have less training than nurses
  (anaesthesiology, imaging, urology)

14
Flash Sterilization

• Unwrapped objects, 132C, 3mins, 27-28lbs
  pressure in gravity
• Acceptable for processing items that cannot be
  sterilized and stored before use

15
Bryce E ICHE 199718(9)654-6
16
Reprocessing for Prions

• High risk patient
• Known/suspected CJD or other TSEs
• Rapidly progressive dementia
• Family history of CJD or other TSE
• History of dura mater transplant, cadaver-derived
  pituitary hormone injection
• High risk tissue
• Brain, spinal cord, eyes
• High risk device
• Critical or semi-critical

17
Inactivation of Prions

• Steam sterilization with NaOH
• Alkaline cleaner (pH 2.2, 1 hr 23C)
• Copper plus peracetic acid
• Vapourized hydrogen peroxide (Sterrad NX)

Yan ICHE 200425280, Fichet Lancet 2004384251,
Baier JHI 20045780, Lemmer J Gen Virol
2004853805 Roger-Kreuz, ICHE 200930(8)769-77
Lehman Hosp Infect. 200972(4)342-50
18
Semi-critical items

• Endoscopes/bronchoscopes
• Laryngoscopes
• Respiratory therapy and anaesthesia equipment
• Tonometers
• Endocavitary probes
• Vaginal specula, diaphram fitting rings

19
(No Transcript)
20
Problems with semi-critical items

• Complex and delicate pieces of equipment
• Expensive equipment used frequently
• Centralizing process difficult
• Time an important factor
• Absence of regulation/guidance for design
• Narrow margin of safety

21
(No Transcript)
22
(No Transcript)
23
(No Transcript)
24
(No Transcript)
25
(No Transcript)
26
Endocavitary probes

• Prostate vaginal ultrasounds, TEE
• Trans-rectal biopsies
• Transvaginal probes for IVF
• Infrared coagulation for hemmorhoids

27
(No Transcript)
28
(No Transcript)
29
Laryngoscopes - blades are semi-critical -
handles are non-critical (but still need to
be disinfected)
Biopsy forceps, endoscopy
Applanation tonometers
30
Disinfection of tonometers
Rutala AAC 2006501419
31
Recent Toronto problems

• Badly designed connectors (Steris)
• Inadequate manufacturers instructions
  (trans-rectal biopsies)
• Belief that a freeze thaw cycle for cryotherapy
  probe will kill microbes
• Both reservoirs in endoscopy washer/disinfector
  filled with detergent
• 2 hydrogen peroxide for high level disinfection
• Vaginal ultrasound probes
• Breast pump kits
• Sterilizer failures

32
Solutions

• Centralization of disinfection sterilization
  wherever possible
• Standards PIDAC, CSA
• Processes, monitoring, training
• New technology
• Endoscopes that can be steam sterilized
• Better sterilization technology
• Elimination of high-level disinfection

33
Outbreaks (1999-2007

• Failure to clean/disinfect/sterilize adequately
• Manual balloons for ventilation (B. cereus)
• Pasteurizer failure (x2)
• Thermometers (E. cloacae, NICU) x3
• Temperature sensors for ventilators (S.
  maltophilia) x 2
• Ophthalmology equipment (adenovirus)
• Endoscopes (TB x3, P.aeruginosa x2, pseudo
  outbreaks x5)
• OR sterilization/high-level disinfection failure
• Forceps in cystoscopy (P. aeruginosa)
• Rigid laryngoscopes in NICU (P. aeruginosa, M.
  tuberculosis)
• Transrectal prostate needle biopsies (P.
  aeruginosa x2)
• Transesophageal echocardiography probes (E.
  cloace)
• Bite blocks (P. aeruginosa, Group A streptococci)
• Laparoscopy ports (Mycobacterium chelonae)

34
Outbreaks (2)

• Contaminated disinfectants.
• Non-antimicrobial soap x2
• Benzalkonium chloride and other quaternary
  ammonium compounds
• 0.5 chlorhexidine
• Chlorhexidine without alcohol
• Improperly diluted disinfectants (disinfectant
  spray, environmental cleaning solutions)
• Open containers with soaked cotton balls
• S. marcescens, P. aeruginosa, M. abscessus, R.
  picketii, A. xylosoxidans, K. oxytoca,

35
Outbreaks (3)

• Other
• Incompetent waste drain ports on hemodialysis
  machines x2
• Inadequately maintained endoscopy
  washer/disinfector
• Incorrect hook-up for endoscopes to sterilizer
• Environmental contamination with Acinetobacter

36
Outbreaks (4)Adverse effects

• Anterior segment syndrome post cataract surgery
  due to residual glutaraldehyde
• Toxic endothelial cell destruction (TECD)
  syndrome after ophthalmologic surgery due to
  brass degradation by plasma gas sterilization

37
Non-critical items
38
(No Transcript)
39
Factors necessary for environmental transmission

• The organism must survive in the environment
• Environmental contamination must occur frequently
• The organism must maintain its virulence
• The organism must be transported from the
  environment to (new) patients

40
Epidemiology of streptococcal infectionsTransmiss
ion of epidemic and non-epidemic streptococci in
military barracks
Wannamaker, Chap 12 in McCarty, Streptococcal
Infections, 1954
41
(No Transcript)
42
(No Transcript)
43
MRSA and environmental transmission

• 20 month retrospective study in 8 ICUs where
  patients were screened weekly
• Assessed odds of acquiring MRSA among patients
  admitted to rooms just vacated by MRSA and
  patients
• MRSA acquired by
• 2.9 of those admitted to MRSA- pt room
• 3.9 of those admitted to MRSA pt room

Huang SS, Arch Int Med 20061661945
44
Effect of improved environmental cleaning on VRE
transmission
Hayden MK, Clin Infect Dis 2006421552
45
Can environmental cleaning reduce MRSA
transmission?

• Setting ward with endemic MRSA, and widespread
  environmental contamination
• Before-after study
• Cleaning time increased by 57 hours per week
• Responsibility for routine cleaning of shared
  equipment delineated
• In 6 months post-intervention, number of MRSA
  acquisitions decreased fro 30 to 3 per 6 months

Rampling A JHI 200149109
46
Contaminated Surfaces
VRE MRSA C. difficile
Bed Rails
Bed Table -
Door Knobs
Doors -
Call Button
Chair
Tray Table -
Toilet Surface -
Sink Surface
Bedpan Cleaner - -
Carling PC, et al. Am J Infect Control. 2006
Oct34(8)513-9.
47
Contamination of objects/areas exclusively
touched by staff

• Supply cabinets, ICU telephones, keyboards
• 33.3 MRSA
• 36.6 VRE

Speck et al., Abstract, (2007) SHEA 17th Annual
Scientific Meeting, Baltimore, MD
48
Problems

• How important is environmental transmission
  overall?
• What do we mean by environment?
• What is the right standard for clean?
• How do we measure adherence?

49
Improving non-critical item/environment
disinfection

• Audit and feedback

50
PROPORTION OF OBJECTS CLEANED 15 ACUTE CARE
HOSPITALS
100
80
Objects Cleaned
60
40
20
0
Sink
Tray Table
Hand hold
Side rails
Toilet door
Call box
BR light
Toilet seat
Toilet handle
Bedpan cleaner
Chair
Room door
Telephone
51
Carling Crit Care Med Jan 2010 epub
52
Improving non-critical item/environment
disinfection

• Audit and feedback
• New technology
• Hydrogen peroxide vapour/gas
• UV room decontaminaion
• ?antibacterial surface coatings?

Otter ICHE 200930(6)574-7
53

• Seymour S. Block Disinfection, sterilization and
  preservation
• Williams Wilkins (ISBN 0812113640)
• PIDAC best practices for cleaning, sterilization
  and disinfection http//www.health.gov.on.ca/engl
  ish/providers/program/infectious/diseases/best_pra
  c/bp_cds_2.pdf
• PIDAC best practices for environmental cleaning
• http//www.health.gov.on.ca/english/providers/pro
  gram/infectious/diseases/best_prac/bp_enviro_clean
  .pdf
• CDC guideline for disinfection and sterilization
  in healthcare facilities http//www.cdc.gov/hicpac
  /pdf/guidelines/Disinfection_Nov_2008.pdf
• Bryce EA et al. When the biological indicator is
  positive investigating autoclave failures Infect
  Control Hosp Epi 199718654-6
• Rutala WA, Weber DJ. How to assess risk of
  disease transmission to patients when there is a
  failure to follow recommended disinfection and
  sterilization guidelines Infect Control Hosp
  Epidemiol. 200728(2)146-55
