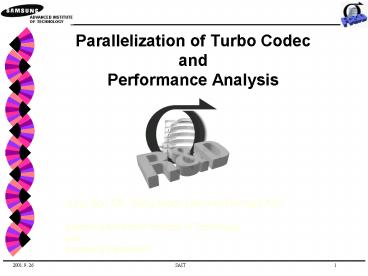

Parallelization of Turbo Codec and Performance Analysis

1
Parallelization of Turbo Codec and Performance
Analysis
Jung Soo Oh, Sang Moon Lee and Beongjo
KimSamsung Advanced Institute of
TechnologyandSamsung Electronics
2
Abstract

• Turbo Codec
• simulation methodology for the standard forward
  error correction scheme in IMT2000 system (UMTS
  and CDMA2000)
• Parallelized Turbo Codec
• Master and slave parallelization mechanism
• Uneven frame distribution
• contributed to
• obtaining reliable simulation results within a
  short period of time
• participating in IMT2000 standardization forum
  thanks to the tremendously high throughput

3
Turbo Codes

• Forward error correction scheme for data service
  over
• Forward/Reverse Supplemental Channels (F/R-SCH)
  in CDMA2000 (IMT2000)
• Uplink/Downlink Transport Channels (TrCH) in UMTS
• Need huge amount of simulation time to develop
  and implement an efficient and a cost-effective
  Turbo codec
• ? We tried to parallelize Turbo Codec program.

4
Concept
Forward
Link
Multimidea
terminal
BS
Network
2
Mbps
6
4
,
1
2
8
,
3
8
4
Kbps
8
,
6
4
Kbps
MSC
Hand
Portable
Telephone
Searcher
(
Sync)
Turbo Codec
5
Key Factors

• Evaluation factors of Performance of Turbo Codec
• BER ( Bit Error Rate )
• FER ( Frame Error Rate )
• Turbo Codec operates in frame mode, hence
  generating output codeword in frame.
• In computational simulation, a random number
  generator arbitrarily produces number of frames.
• Turbo Codec simulator corrects parameters to make
  them more appropriate by analyzing BER/FER from
  the independent frame transmissions.

6
Main computational algorithm
Set environmental variables and memory
allocation for (frame_number 0
frame_number) make_turbo_frame()
frame generation with a random number
turbo_encoder() channel()
A random number is used.
turbo_decoder() extract_turbo_frame() if
( Summation of total bit errors
gt Given maximum number of bit errors
) then break get global BER and FER
assigned before the program operation. so
the number of the transmitted frames is undefined.
7
First simple approach

• In each processor
• Even allocation of the maximum number of bit
  errors
• different seeds of random number generation
• For example
• Maximum number of bit errors 1000
• Number of processors 4
• Maximum number of bit errors / Number of
  processors 250
• seed rank of each processor
• Unbalanced Loading Problem
• can not predict the number of producing,
  transmitting and analyzing frames in each
  processor.
• More frame transmission can be assigned to
  certain processors.
• It is simple but not useful.

8
First Simple Approach( example )
Serial Program if ( Summation of total bit
errors
gt 1000 ) then terminate
The number of transmitted frames (unpredictable
before starting of simulation)
Perfect parallelization with 4 processors
parallel Program processor 0 if ( local bit
errors gt 250 ) then terminate
idling
The number of transmitted frames
parallel Program processor 1 if ( local bit
errors gt 250 ) then terminate
idling
The number of transmitted frames
Program terminating point
parallel Program processor 2 if ( local bit
errors gt 250 ) then terminate
The number of transmitted frames
idling
parallel Program processor 3 if ( local bit
errors gt 250 ) then terminate
The number of transmitted frames
9
Master-Slave1
Set environmental variables and memory
allocation for (frame_number 0
frame_number) random number generation
make_turbo_frame() frame generation with a
random number turbo_encoder()
channel() A random number
is used. turbo_decoder()
extract_turbo_frame() if ( Summation of total
bit errors gt Given
maximum number of bit errors ) then break get
global BER and FER
Master
Slave
10
Master - Slave1

• Slave nodes
• establish the transmitting channels and transmit
  frames.
• Master node
• generates the random numbers for all slave
  processors.
• summarizes all of the bit errors from slave
  nodes.
• determine the termination of frame transmission.

• Analysis of masters random number generation
• Advantage
• Getting rid of the overlapping problems in each
  procossor
• Disadvantage
• increment the message communication between
  master and slave nodes

11
Master-slave 1( message communication )
master
BER message
Random number message
12
Master-Slave1

• Intel Paragon ( 75Mflops/node, total 256 nodes ),
  rate1/4

13
Master-slave 1

• Performance Analysis
• Better performance than that of first simple
  approach
• But ...
• Not linear performance
• Uneven frame distribution to each slave
• No better remedy!
• Slave nodes idling time
• waiting for random numbers from master node
• It degrades the performance.
• Try to cut down the idling time!

14
Master-slave2

• Goal Minimization the idle time in slave nodes
• Modification
• slave nodes generate random numbers by itselves
• Analysis of slaves random number generation
• Advantage
• Decrement the message communication between
  master and slave nodes
• Minimization the idle time in slave nodes
• Disadvantage
• Random numeber redundancy problem among slave
  nodes
• Solve the redundancy problem
• a random number generator with sufficiently long
  period
• period 2256

15
Master-slave 2
master
16
Master-Slave 2

• the idling time of slave nodes can be ignored.
• This modified master-slave method is applied to
  parallelized Turbo Codec to build a core chip.
• Intel Paragon ( 75Mflops/node, total 256 nodes ),
  rate1/3

17
Experimental Result (Condition)

• Parallelized Turbo Codec
• the improved master-slave method
• 1.5dB
• maximum number of bit errors 200
• Platforms at Samsung Advanced Institute of
  Technology (SAIT).
• Intel Paragon
• HP Exemplar
• Linux Clusters
• Intel CPU
• Alpha CPU

18
Intel Paragon (1995. 10 1999. 11)

• 19.2 Gflops peak performance, 256 nodes (MPP)
• main platform to develop parallelized Turbo Codec

• Deficient CPU clock speed, but 102 order of
  parallel processing nodes.

Master-Slave 2
Master-Slave 1
19
HP Exemplar (1998. 5 2001. 6)

• 51.2 Gflops peak performance, 64 nodes (CC-NUMA)
• parallel performance
• only up to 8 nodes
• the lowest parallel performance results

2.5 times faster
20
Alpha Linux Cluster 1

• LX - Board (21164) / 533 MHz CPU
• 4 or 8 nodes CPML(Compaq Portable Math Library)
  for efficient performance.

21
Alpha Linux Cluster 2

• UP - Board (21264) / 667MHz CPU
• 8 nodes
• the fastest system

22
Intel Linux Cluster

• 4 CPUs with Intel Pentium II 450MHz.
• GNU gcc compiler proper for Intel CPU
• general PC-cluster

23
Proprietary
DB1.5, rate1/3, error_max200
1 CPU
4 CPU
8 CPU
time
7
645
6
5
335
357
4
240
254
258
3
220
212
2
123
126
143
047
043
1
0
HP Developed
EGCS
CPMLEGCS
CPMLCompaq C
EGCS
HP Exemplar
Alpha cluster (533MHz LX)
Intel cluster
24
Turbo Codec
DB1.5, rate1/3, error_max200
25
Performance Analysis

• The parallel scalability is not linear.
• Uneven and unpredicted number of frames in slave
  nodes
• It does not affect on parallel simulation.
• Through-put
• the biggest advantage for parameter study using
  several nodes with shortened computation time.
• Parallelized Turbo Codec has an invisible linear
  scalability.

26
Invisible Scalability

• Analysis more reliable parallel efficiency
• Analysis computing time per frame
• the global execution time of every processor
• Sprocessor the execution time of each
  processors
• ( the execution time of parallelized program
  )
• x ( the number of CPUs )
• Consumed time to transmit a frame
• ( the global execution time of every
  processor )
• / ( the number of total
  transmitted frames )
• By analyzing of numbers of parallelized
  simulations,
• ? the computing time per frame is equal in every
  simulation.
• ? Time ratio in total transmitted frame is
  scalable.

27
UP vs LX (computing time per frame)
DB1.5, rate1/3, error_max200
lt computing time per frame gt
533MHz
0.287 sec
0.063 sec
0.027 sec
667MHz
0.212 sec
0.05 sec
0.025 sec
28
Concluding

• Parallelized Turbo Codec simulating algorithm
• remarkable parallel efficiency and higher
  throughput.
• Most outstanding contribution of parallelized
  Turbo Codec
• reducing the computational simulation time in the
  design process of core chip.
• allowing optimization of parameters in shorter
  time
• allowing analysis with the range over 2 dB.
• Samsung Electronics participates in IMT2000
  standardization forum with large amount of
  simulation data based on this parallel Turbo
  Codec simulating algorithm.
