Title: ECE 425 VLSI Circuit Design


1

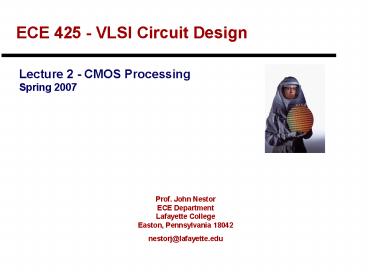

ECE 425 - VLSI Circuit Design
  • Lecture 2 - CMOS ProcessingSpring 2007

Prof. John NestorECE DepartmentLafayette
CollegeEaston, Pennsylvania 18042nestorj_at_lafayet
te.edu
2
Announcements
  • Reading
  • Wolf 1, 2.1-2.3

3
Where we are...
  • Last time
  • Course overview
  • VLSI Overview
  • Today
  • CMOS Processing
  • Discuss Labs 0, 1

4
Roadmap for the term major topics
  • VLSI Overview
  • CMOS Processing Fabrication
  • Components Transistors, Wires, Parasitics
  • Design Rules Layout
  • Combinational Circuit Design Layout
  • Sequential Circuit Design Layout
  • Standard-Cell Design with CAD Tools
  • Systems Design using Verilog HDL
  • Design Project Complete Chip

5
N Transistor Structure Review
6
P Transistor Structure Review
7
Semiconductor Review
  • Create by doping a pure silicon crystal
  • Diffuse impurity into crystal lattice
  • Changes the concentration of carriers
  • Electrons
  • Holes
  • More doping -gt more carriers available
  • n-type semiconductor (n or n)
  • Majority carrier electrons
  • Typical impurity Arsenic (Column V)
  • p-type semiconductor (p or p)
  • Majority carrier holes
  • Typical impurity Boron (Column III)

8
Other key working materials
  • Insulator - Silicon Dioxide (SiO2)
  • Used to insulate transistor gates (thin oxide)
  • Used to insulate layers of wires (field oxide)
  • Can be grown on Silicon or Chemically Deposited
  • Polysilicon - polycrystalline silicon
  • Key material for transistor gates
  • Also used for short wires
  • Added by chemical deposition
  • Metal - Aluminum (and more recently Copper)
  • Used for wires
  • Multiple layers common
  • Added by vapor deposition or sputtering

9
CMOS Processing
  • Wafer Processing
  • Photolithography
  • Oxide Growth Removal
  • Material Deposition Removal
  • Diffusion of Impurities
  • Putting it all together

10
A View of the Cleanroom
AMDs Dresden Fab - Source AMD Corporation
www.amd.com
11
Creating Wafers - Czochralski Method
  • Start with crucible of molten silicon (1425oC)
  • Insert crystal seed in melt
  • Slowly rotate / raise seed to form single crystal
    boule
  • After cooling, slice boule into wafers polish

Molten Silicon
Crucible
12
Wafer Structure
  • Current production 200mm
  • Newest technology 300mm

300mm wafer Image Source Intel Corporation
www.intel.com
13
Processing Wafers
  • All dice on wafer processed simultaneously
  • Each mask has one image for each die
  • The basic approach
  • Add selectively remove materials
  • Metal - wires
  • Polysilicon - gates
  • Oxide
  • Selectively diffuse impurities
  • Photolithography is the key

14
Photolithography
  • Coat wafer with photoresist (PR)
  • Shine UV light through mask to selectively expose
    PR
  • Use acid to dissolve exposed PR
  • Now use exposed areas for
  • Selective doping
  • Selective removal of material under exposed PR

Wafer
15
Adding Materials
  • Add materials on top of silicon
  • Polysilicon
  • Metal
  • Oxide (SiO2) - Insulator
  • Methods
  • Chemical deposition
  • Sputtering (Metal ions)
  • Oxidation

16
Oxide (Si02) - The Key Insulator
  • Thin Oxide
  • Add using chemical deposition
  • Used to form gate insulator block active areas
  • Field Oxide (FOX) - formed by oxidation
  • Wet (H20 at 900oC - 1000oC) or Dry (O2 at 1200oC)
  • Used to insulate non-active areas

17
Patterning Materials using Photolithography
  • Add material to wafer
  • Coat with photoresist
  • Selectively remove photoresist
  • Remove exposed material
  • Remove remaining PR

18
Diffusion
  • Introduce dopant via epitaxy or ion implant e.g.
    Arsenic (N), Boron (P)
  • Allow dopants to diffuse at high temperature
  • Block diffusion in selective areas using oxide or
    PR
  • Diffusion spreads both vertically, horizontally

19
CMOS Well Structures
  • Need to accommodate both N, P transistors
  • Must implement in separate regions - wellls
    (tubs)
  • N-well
  • P-well
  • Alternate approach Silicon on Insulator (SOI)

20
Detailed View - N-Well Process
  • Overall chip doped as p substrate, tied to GND
  • Selected well areas doped n, tied to VDD

Gnd
VDD
21
CMOS Processing - Creating an Inverter
  • Substrate
  • Well
  • Active Areas
  • Gates
  • Diffusion
  • Insulator
  • Contacts
  • Metal

22
CMOS Mask Layers
  • Determine placement of layout objects
  • Color coding specifies layers
  • Layout objects
  • Rectangles
  • Polygons
  • Arbitrary shapes
  • Grid types
  • Absolute (micron)
  • Scaleable (lambda)

23
Mask Generation
  • Mask Design using Layout Editor
  • user specifies layout objects on different layers
  • output layout file
  • Pattern Generator
  • Reads layout file
  • Generates enlarged master image of each mask
    layer
  • Image printed on glass reticle
  • Step repeat camera
  • Reduces copies reticle image onto mask
  • One copy for each die on wafer
  • Note importance of mask alignment

24
Advanced Fabrication
  • Advanced Transistor Fabrication
  • Strained Silicon
  • Planarization
  • Copper Interconnect
  • Low-k dielectric for interconnect
  • High-k dielectric for transistor gates
  • Optical problems (and fixes)
  • Immersion Lithography
  • Maskless Lithography

25
Advanced Transistor Fabrication
  • Shallow Trench Isolation (STI) to separate
    transistors - trenches filled with oxide by CVD
  • Lightly Doped Drain/Source followed by deeper
    doping
  • Silicon Nitride (SiN) - Spacer
  • Silicide - refractory metal (e.g. Ti, Pt, W, Ta,
    Co) to reduce resistance of polysilicion and
    diffusion

26
Strained Silicon
  • Goal Reduce resistance in transistor channel
  • Key idea slightly stretch Si crystal lattice

Graphic Source IBM
Graphic Source Intel
27
Planarization
  • Problem adding multiple layers of metal is
    difficult over uneven chip structures
  • Solution Planarization
  • Add thick oxide layer over chip
  • Use Chemical-Mechanical Polishing (CMP) to grind
    flat

28
Copper interconnect
  • Copper is a much better conductor than aluminum
  • But, it reacts chemically with silicon, oxide
  • Fabrication of copper wires damascene process
  • Etch trenches in the surface where wires will be
    placed
  • Coat with secret chemical (isolates Cu,
    silicon, oxide)
  • Coat with layer of copper
  • Polish wafer to remove copper except in trenches

29
Alternative Dielectrics
  • Dielectric constant of SiO2 3.9
  • Problem want to minimize coupling capacitance
    between wires
  • Solution low-k dielectrics (featured in 130nm
    and below)
  • Proposed materials would have approx K3
  • But, some of the new materials have been
    difficult to use
  • Problem want to maximize electric field under
    transistor gates
  • Solution high-k dielectrics (need for 90nm and
    below)
  • Proposed materials would have Kgtgt4

30
Wiring Examples - Intel Processes
31
Optical Problems
  • Most photolithography is done using UV with 248nm
    wavelength
  • BUT current geometries ltlt 248nm gt interference
    problems
  • Fixes
  • Optical proximity correction (OPC) - change
    shapes of layout objects to account for optical
    errors
  • Phase-shifting masks
  • Other light sources 193nmUV, Extreme UV,
    X-Rays(Alternative E-beam lithography)

32
Optical Proximity Correction
  • Key idea Pre-warp mask patterns to anticipate
    and correct diffraction errors

Image source Forbes Magazine www.forbes.com
Image source Synopsys Corporation
www.synopsys.com
33
Example - Phase Shifting Masks
  • Normal mask - light spreads overlaps
  • Phase shifting mask - cancels overlap
  • Drawback requires 2 masks per litho. step
    (Expensive)

Graphic source Numerical Technologies
www.numeritech.com
34
Immersion Lithography
  • Key idea immerse light source and mask in a
    liquid with a higher index of refraction than air
  • Result higher resolution (analogy to microscope
    with oil drop)

Graphic source Nikon
35
Maskless Lithography
  • Key idea instead of shining UV light through
    mask, expose photoresist directly
  • E-Beam - use one or more steerable beams of
    electrons
  • Micromirror array - steer light to expose PR
  • Imprint lithography - pattern by direct contact
  • Intended for low-volume applications

36
After Fabrication- Testing and Packaging
Figure Source D. Patterson and J. Hennessey,
Computer Organization and Design, Morgan
Kafumann, 1996
37
Coming Up
  • Transistor Operation
  • More about Wires Contacts
  • Parasitics

38
Lecture 2 Addendum - Breaking News!
  • Intel, IBM, Sematech announce 45nm design process
    (Jan 2007)
  • Key feature metal-gate transistors with high-K
    dielectric
  • 10X reduction gate oxide leakage current
  • 1.2X drive current increase or 5X S-D leakage
    reduction

Image source EE Times www.eetimes.com
39
Bottom Line Moores Law Lives!
  • Doubled transistor density compared to 65nm
  • Penryn - Dual Core, 200M Trans.
  • 4-Core, 8-Core chips planned!

Intel Penryn (Image source www.intel.com)
