Title: ECE%20353%20Introduction%20to%20Microprocessor%20Systems


1

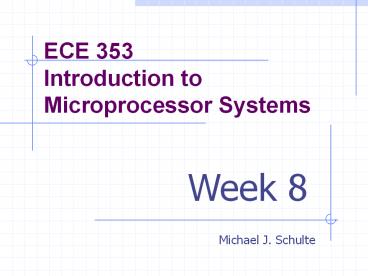

ECE 353Introduction to Microprocessor Systems
Week 8
  • Michael J. Schulte

2
Topics
  • 80C188 system design
  • Peripheral Control Block (PCB)
  • Characteristics of ROM and RAM ICs
  • Organization and operation of typical static RAM,
    EPROM and flash memory devices
  • Memory subsystem design
  • Address decoder implementation
  • 80C188EB Chip-Select Unit (CSU)

3
80C188EB System Design
  • Minimum-component system
  • PSD9XXF
  • Single and multi-board systems
  • Custom single board system
  • COTS Single Board Computer
  • Custom multi-board system
  • Multi-board standard bus system
  • SoC

4
Peripheral Control Block (PCB)
  • Configuration, control and operation of the
    80C188EBs integrated peripherals
  • Diagram
  • 128 contiguous word registers
  • All PCB transfers are 16-bits over F-bus
  • External bus cycles are still run
  • At reset, PCB base address FF00h in I/O
  • pcb.inc
  • Relocating the PCB
  • RELREG

5
Memory Subsystems
  • ROM
  • Masked
  • OTP PROM
  • EPROM
  • EEPROM
  • Flash
  • RAM
  • SRAM
  • DRAM
  • Pseudo-SRAM
  • Flash non volatile RAM

6
Memory Organization
  • Logical organization
  • Organization as seen looking at the device from
    the outside
  • Linear array of registers (memory locations)
  • Physical organization
  • Different physical organizations can be used to
    implement the same logical organization
  • Physical organization affects performance and cost

7
SRAM Interfaces
  • RAM with 3 control inputs
  • /CS, /OE, /WE
  • Read
  • Write
  • RAM with 2 control inputs
  • /CS, /WE (or R/W)

8
SRAM Organization
  • Logical Organization
  • Typically 1, 4 , 8 or 16 bit widths
  • Physical Organization
  • Rectangular bit array
  • Two-level decoding (row and column)
  • Characteristic delays and timing requirements are
    specified in memory devices datasheet (Example)
  • NV-SRAM
  • Uses an alternate power source to maintain SRAM
    when system power is off
  • Requires logic to switch power sources and
    prevent spurious writes during power-up/power-down

9
EPROM
  • Electrically programmable, non-volatile
  • Requires UV light to erase
  • Quartz window in package
  • Floating polysilicon gate avalanche injection MOS
    transistor (FAMOS)
  • Operation
  • Programmer loads device out-of-circuit
  • OTP EPROMs eliminate quartz window
  • EEPROMs are electrically erasable
  • Byte-erasable / writeable
  • Low-density
  • JEDEC Packages

10
Flash Memory
  • Actually Flash EEPROM, commonly just called flash
    memory
  • Characteristics
  • Technologies
  • Endurance
  • Blocking, programming and erasing
  • Applications
  • ROM replacement
  • GP NV-RAM
  • Solid-state disk (flash-disk) Example

11
Memory Subsystem Design
  • Memory banks
  • Increasing memory width
  • Increasing memory depth
  • Increasing memory width and depth
  • Address decoding
  • Exhaustive (full) vs. partial decoding
  • Granularity
  • Boundaries
  • If an address is a 2n boundary, then what is the
    result of (address AND (2n-1))?

12
Memory Subsystems Review
  • What is the purpose of an address decoder
    circuit, and where does its output usually get
    connected?
  • What is exhaustive decoding, and what effects
    does it have?
  • What is partial decoding, and what effects does
    it have?

13
80C186EB Memory Subsystem
  • Organization
  • Logical
  • Physical
  • Word operations
  • Aligned words
  • Unaligned words
  • Byte operations
  • 80C186EB control signals
  • Byte-wide peripherals

14
Memory Architectures
  • Wide (n-byte) buses
  • Addressing effects
  • Byte transfer support
  • Data lanes
  • Control signals
  • Bus resizing
  • Static
  • Configurable
  • Dynamic

15
80C188EB Chip Select Unit (CSU)
  • 10 programmable chip selects
  • /UCS, /LCS
  • /GCS0 - /GCS7
  • Configuration
  • Active address range
  • Memory or I/O space
  • Wait states
  • Enable / disable
  • Use or ignore READY
  • Programming
  • Chip-Select Start Register
  • Chip-Select Stop Register

16
External Address Decoders
  • SSI/MSI Decoders
  • Discrete gates
  • 1-of-n Decoders
  • 74xx138
  • Partial decoding issues
  • PLD Decoders
  • PLAs
  • PALs
  • PALCE22V10

17
(No Transcript)
18
PCB
19
pcb.inc

I80C188

Peripheral Control Block
Include File for
I/O Mapping


PCBB EQU 0FF00H PCB Base
Address Register Address INTRVEC EQU PCBB
0020H Interrupt Vector Register INTRMSK EQU
PCBB 0028H Interrupt Mask Register PRIRMSK EQU
PCBB 002AH Priority Mask
Register INSERV EQU PCBB 002CH In-Service
Register
20
RELREG
21
Chip-Select Start Reg
22
Chip-Select Stop Register-Part 1
23
Chip-Select Stop Register -Part 2
24
Memory Organization
25
Physical Organization
26
(No Transcript)
27
(No Transcript)
28
JEDEC
29
Flash Blocks
30
Flash Memory ApplicationDisk-on-Key
  • Up to 1GB nonvolatile storage
  • No battery or power supply

Specifications Size 85x28x15mm (LxWxH) Weight
17g Data retention up to 10 years Power
consumption Write 36.0mA, Read 33.0mA Erase
cycles 1,000,000 times Read speed gt 750KB /
sec. Write speed gt450 / sec. Shock resistance
1000 G (maximum)
31
(No Transcript)
32
PALCE22V10 Organization
33
PALCE22V10 Macrocell
34
RAM Read 3 control signals
35
RAM Write 3 control signals
36
Cypress PSoC
37
Increasing Memory Depth
38
Increasing Memory Width
39
Increasing Memory Depth Width
