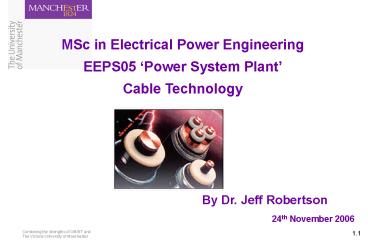

MSc in Electrical Power EngineeringEEPS05
Power System PlantCable Technology
By Dr. Jeff Robertson
24th November 2006
2
Part 1 Introduction
3
Cables Good Or Bad
4
Part 2 Power Cable Components
5
Power Cable Components
6
CONDUCTORS

• Properties of good conductors
• Current Carrying Capability
• Required Voltage Regulation
• Required Conductor Losses
• Bending Radius, Flexibilty and Weight
• Jointing
• Cost

7
DC Resistance

• Conductor resistance is important as it defines
• Heating of cable (i.e. energy losses)
• Voltage drop along cable (along with cable
  reactance)
• DC Resistance per metre of a conductor is
• Variation in conductor resistance with
  temperature must be considered

8
Resistance
9
Conductor Formations
10
Examples Of Conductors

• Solid conductor, shaped to minimise wasted area
• Low flexibility and hence not used above approx.
  16mm2 for copper and 300mm2 for aluminium

11
Examples Of Conductors

• Stranded - Good for flexibility, bad for overall
  size of cable
• Compacted stranded can maintain flexibility while
  reducing size penalty, can also reduce electric
  stresses
• Shapes of conductors are particularly determined
  by electric stresses at higher voltages

12
AC Resistance Skin Proximity Effects

• Skin Effects
• Increase AC resistance of conductor as current
  density more highly concentrated on outside of
  conductor
• Proximity Effects
• Increases AC resistance of conductor due to
  magnetic flux coupling between adjacent cores

13
Insulation Materials

• Properties of good insulation materials
• Sufficient electrical strength for a given
  insulation size
• Thin and flexible
• Free of voids
• Low dielectric losses
• Thermal, Mechanical and Electrical stability
  under cable operating conditions
• Low cost including ease of manufacture
• Ability to perform under steady state conditions,
  temporary overvoltages and transient voltages
• Long operating life

14
Insulation Materials
Permittivity Dielectric Losses in Cable
Insulation
15
Paper Insulation

• Paper, impregnated with oil/resin, has been used
  in the majority of power cables
• Paper is an old and declining technology but is
  still used at all voltage levels and so is very
  important still
• Paper is particularly used at transmission
  voltages
• The insulation on a paper cable consists of
  helically applied tapes which are laid up with an
  overlap

16
(No Transcript)
17
Paper Lay-up

• Individual papers are placed around the conductor
  with an approximate 35-65 registration

18
Impregnation

• Once the papers have been wrapped, the cable is
  placed into an oven for drying
• Drying process is carried out at temperature and
  vacuum
• Impregnant is introduced, this reduces future
  moisture absorption and fills in gaps / voids in
  insulation

19
Polymeric Power Cables

• Polymeric cables were initially introduced at low
  voltages using polyethylene (PE) and polyvinyl
  chloride (PVC), and then at medium voltages by
  EPR and XLPE
• PE subsequently replaced by XLPE in the 1980s -
  its lower loss angle and lower thermal
  resistivity has pushed out EPR
• XLPE is widely used at distribution level and is
  becoming more common at transmission level
• EPR is still deployed in Italy and Spain, but is
  now mainly used for its chemical resistance and
  flexibility (i.e. in mines)

20
XLPE Power Cables

• XLPE stands for Cross Linked Polyethylene
• The cross-linking process used to manufacture
  XLPE increases the maximum operating temperature
  to 90C. This compares to 65-70 C for paper
  cables and PE
• XLPE has a lower thermal resistivity than paper
  and EPR
• XLPE is less lossy than paper and EPR
• XLPE is cheaper to produce than paper and EPR
• XLPE cables made using an extrusion process

21
Conductor/Insulator Shields

• Also referred to as screens or semicon layers
• Sharp / non-uniform edges around the outside of
  the conductor/outside of the insulation result in
  regions of elevated electric field
• Voids between the conductor/insulation and the
  insulation/sheath must be avoided
• A semiconducting conductor shield is used to
  prevent these from happening

22
Effect Of Conductor Screen On Stress
Insulation
23
EFFECT OF INSULATION SHIELD

• The insulation shield is earthed but not meant to
  carry current
• Used to provide an equipotential layer to
  insulation
• Paper Cables
• Carbon filled paper, metalised paper, metallic
  foils
• Polymeric Cables
• Carbon filled polymers bonded to insulation
• A capacitor is formed between the conductor and
  the insulation shield
• Arrangement of shields / screens in a 3core cable
  defines Screened and Belted core arrangements

24
Cable Sheath / Screen Tapes / Wires

• Function to carry charging, fault and circulating
  currents
• Different arrangements in paper and polymeric
  cables
• Paper
• Full metallic sheath
• Lead (PILS) or Corrugated Aluminium (PICAS)
• Polymeric
• Copper wire / tape
• Other
• Full metallic sheath designed to protect against
  moisture ingress

25
Oversheath

• Used to protect sheath and armour from corrosion
• Material used is PVC, PE, MDPE, Bitumen/ Hessian
• Must be resistant to moisture ingress and
  abrasion
• Oversheath damage has led to sheath corrosion and
  failure of fluid filled cables due to the loss of
  hydraulic pressure

26
Armour

• To provide extra mechanical tensile strength,
  wire or metal tape armour can be placed around
  the sheath
• Armour can be used to increase fault level
  current rating of the cable
• Separated from sheath by bedding so must be
  bonded to it
• Commonly used materials include steel tape, steel
  wire and aluminium wire
• Steel should not be used on single core cables

27
Part 3 Power Cable Assemblies
28
Screened and Belted 3 Core Cables
Lead / Corrugated Aluminium Sheath
Belted Cable
Filler
Belt Insulation
Oversheath
Electrical Flux in a Belted Cable
Bitumen
Conductor Shield / Screen
Core Insulation
Armour
Belt Shield / Screen
Armour Bedding
Lead / Corrugated Aluminium Sheath
Filler
Oversheath
Bitumen
Core Inner Semicon Screen
Core Insulation
Screened Cable
Armour
Core Insulation Shield / Screen
Armour Bedding
29
Advantages / Disadvantages of Belted Cables
30
Low Voltage Cables
600/1000V 4-core copper conductor, PVC insulated
SWA cable with extruded bedding and SNE
600V/1000V 3-core solid sectorial aluminium
conductor, PVC insulated, copper wire screen,
unarmoured CNE waveform cable
4 core 70mm2, 600/1000V paper insulated lead
sheathed cable with steel tape armour, bitumen
impregnated hessian oversheath and SNE
31
Paper Insulated Medium Voltage Cables
3-core 11kV belted PICAS cable with a corrugated
aluminium sheath
3-core 150mm2 6.35/11kV screened paper insulated
lead sheathed (PILS) cable with a PVC oversheath
32
MV / HV Polymeric Cables
33
Medium Voltage Polymeric Cables

• Pirelli 33kV Single Core Cable
• Stranded or solid Al / Cu conductor
• Extruded inner conductor shield
• Extruded XLPE insulation
• Extruded outer insulation sheild
• 5 Copper wire screen
• 6 Bindings
• 7 MDPE sheath

34
Pirelli 11kV Three Core Cable

• 1 Conductor,
• Inner conductor shield,
• XLPE insulation
• Insulation shield,
• Fillers,
• Semiconducting paper tape,
• Collective wire sheath/ screen

35
Part 4 GIL Gas Insulated Lines
36
Gas Insulated Lines
Flexible SF6 insulated cable for 220kV
37
Some advantages/disadvantages of GIL
38
Part 5 Electrical Characteristics of Power
Cables
39
Conductor Resistance and Power Dissipation

• AC and DC resistance calculations defined earlier
• Power losses in conductors in AC systems must use
  AC resistance values
• Heat produced in conductor per meter of cable

W/m
40
Conductor Inductance

• The inductances of an arrangement of 1-core cable
  or of a 3 core cable is complex to derive
• Values for inductance are generally given in
  tables
• Inductance made from 2 parts
• Self inductance of current carrying conductor
• Mutual inductance between conductor and sheath
• For a single core cable

H/m
K 0.05 for circular conductors
41
Conductor to Sheath Capacitance

• Hard to calculate for belted cable arrangements
• Results in a charging current always flowing into
  the cable this has implications for maximum
  current carrying capability of cable / maximum
  cable length
• Capacitance largely determines no-load losses
  (I2R and dielectric losses)
• For screened and single core cables use co-axial
  geometry calculations

42
Capacitance

• No capacitor is perfect
• As current flows through the capacitance there is
  a small dielectric loss

43
Power Losses due to Capacitance

• Power Dissipated in dielectric

44
Electric Field Distribution

• The electric field at the conductor is greater
  then that at the outer insulation
• The electric field will be increased at local
  defects (sharp edges, voids etc)

Electrical Stress (kV/mm)
Distance across insulation (mm)
45
Induced Sheath Voltages and Power Dissipated in
the Sheath / Armour
N.B. Currents in the sheath / armour of a THREE
CORE cable will normally be minimal as the
induced sheath current should be approximately
zero for a balanced three phase system. As such
losses due to induced voltage and currents in
cable sheaths / armour are only a consideration
in single core cables layed up in a trefoil or a
flat formation
46
Induced Sheath Voltages and Power Dissipated in
the Sheath / Armour

• Depends on method of bonding
• Voltage induced in sheath
• Where
• So

47
Induced Sheath Voltages and Power Dissipated in
the Sheath / Armour

• Sheath losses expressed as a ratio of conductor
  losses

• Similar for Armour Losses (?2)

48
Induced Sheath Voltages and Power Dissipated in
the Sheath / Armour

• For Cables Layed in Flat Formation

• For Cables Layed in Trefoil

49
Part 6 Thermal Characteristics of Power
Cables
50
Thermal Characteristics

• Electrical characteristics determine heat
  production
• Thermal characteristics determine temperature
  rise
• Thermal resistance and resistivity are analogous
  to electrical resistance and resistivity

51
Sources Of Heat Production

• Conductor losses (I2R)
• Dielectric losses (2?f E2 C tan?)
• Sheath losses (?1)
• Armour losses (?2)

52
Thermal Resistances
A typical form for single core thermal resistance
is
Where rT thermal resistivity of the
material t1 material thickness dc source
diameter
53
Thermal Resistances
54
Temperature Rise
55
Cable Temperature Rise / Current Rating
56
Increasing Current Carrying Capability

• Reduce losses
• Reduce thermal resistances
• Place cable in an alternative location
• Increase cable spacing

57
Cable Earth Bonding

• In single core cable arrangements bonding
  arrangements of cable sheaths / screen wires can
  determine magnitude of induced voltages /
  circulating currents
• 3 Possibilities
• Single point end bonding
• Mid point bonding
• Cross Bonding

58
Cable Earth Bonding

• How not to do i!

59
Cable Earth Bonding
Single Point End Bonding
60
Cable Earth Bonding
Mid Point Bonding
61
Cable Earth Bonding

• Cross Bonding
• Earth cross bonding
• Phase cross bonding

62
Cross Bonding Of Cable Sheaths
The sheaths are cross bonded in a box such as
that above
A number of 72kV joints in a trench
63
Part 7 Cable Accessories
64
What About The Ends Of The Cables?

• Cables are made and installed in finite lengths
• Joints and terminations are generally made in
  situ
• These are the most common point of failure
• Design can easily be controlled but processes are
  more difficult
• Inspection after assembly impossible

65
Cable Accessories

• Cable accessories include joints and terminations
• Accessories must be as reliable as the cable
• Accessories are typically assembled in
  uncontrolled conditions
• Accessories are areas of high electric fields and
  therefore increased discharge levels

66
Termination Technologies
67
Electric Stresses At Terminations
68
Screened Cable Connector 24kV
1 screened body 2 Inner screen 3 Compression
fitting 4 Stress cone adaptor 5 Earthing eye and
ground lead 6 Threaded pin 7 Rear plug 8 Test
point 9 Conductive screen
69
Jointing Technologies
70
Field Management In A Joint
71
Cross-bonding break
Shear head bolts used for mechanical connection
of conductors
Stress is controlled by conductive coatings
Grounding leads
Heat-shrink tube with holt melt adhesive on its
inner surface are used for insulation and overall
sheathing
72 kV heat-shrink Joint
72
Heat Shrink

• Often has hot melt adhesive on the inside

Low voltage joint
73
Cold Shrink Joint For Up To 400kv
74
11kV Resin Filled Hybrid Joints
This joint is prepared and ready for filling with
a high permittivity material
Filling with the pre-packed encapsulating resin
75
Plumbed Oil Rosin Filled Cast Iron Jointing
Systems
76
Fluid Filled Joints

• A fluid filled joint
• The joint is pressurised so care must be taken
  for leaks

77
150kV Cable Prefabricated Joint

• Mechanical connector
• Silicone rubber adaptor including stress cones
• Main body inc faraday cage electrodes for stress
  relief
• Fixing ring
• Smooth shielding clamp
• Shield connection
• Conductive tubing
• Sealing sleeve

78
Low Voltage T Joints

• Indoor joints and components may require flame
  retardant and halogen free compounds

79
Inspection Of The Trench
80
Cable Jointing Process
81
Removal Of Sheath
82
Connector Crimping
83
Applying High Permittivity Tape
84
Placement Of Joint Casing
85
Screen Bonding
86
Fitting Protective Jacket
87
Complete Joint
