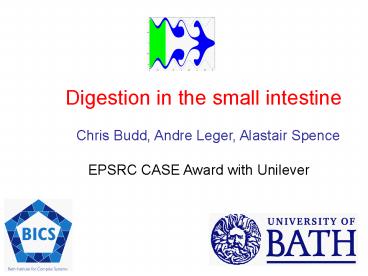

Digestion in the small intestine

1
Digestion in the small intestine
Chris Budd, Andre Leger, Alastair
Spence EPSRC CASE Award with
Unilever
2
What happens when we eat?
Stomach
Small intestine 7m x 1.25cm
Intestinal wall Villi and Microvilli
3

• Process
• Food enters stomach and leaves as Chyme
• Nutrients are absorbed through the intestinal
  wall
• Chyme passes through small intestine in 4.5hrs

Intestinal wall
Stomach
Colon, illeocecal sphincter
Peristaltic wave
Mixing process
4

• Objectives
• Model the process of food moving through the
  intestine
• Model the process of nutrient mixing and
  absorption
• Conclusions
• Peristalsis is effective at mixing the nutrients
• It also acts to retard the mean flow of
  nutrient, allowing for greater nutrient
  absorption in the first part of the gut

5

• Basic model axisymmetric flow pumped by a
  peristaltic wave and a pressure gradient
• Chyne moves at velocity u(x,r,t)
• Nutrient concentration c(x,r,t)
• Peristaltic wave r f(x,t)

r
h 1.25cm
x
rf(x,t)
Wavelength8cm
6

• Decouple the system
• Calculate the flow u of the Chyme assuming Stokes
  flow and long wavelength
• Calculate the Nutrient transport and absorption

7
Approximations to the flow I

• 7 Compartmental and Transit (CAT) Model

Degradation D1
Degradation D7
cn
Inflow
Outflow
INTESTINE
Absorption K1
Absorption K7
Stomach
Outflow
Degradation
Inflow
Absorption
8
Approximations to the flow II Macro-transport

• Stoll et al (Chem Eng Sci 2000) A Theory of
  Molecular Absorption from the Small Intestine
• Approximate flow u by 2D Poiseuille flow and
  consider a 1D equation for the average
  concentration C (Taylor,Moffatt)
• Consider peristalsis as enhanced diffusion

2D
1D
9
Good news Models are easy to use
Bad news results are poor fits to the
numerically computed concentration profiles for
complex peristaltic flow

• Better approach
• Use an asymptotic approach to give a good
  approximation to the peristaltic flow velocity u
  in the case of a small wave number
• Identify different flow regimes
• Use this in a numerical calculation of the
  concentration c

10

• Navier Stokes
• Slow viscous
• Axisymmetric flow
• Velocity Stokes Streamfunction

11
No slip on boundary
WAVE FRAME
FIXED FRAME
Change from
Impose periodicity
12

• Amplitude
• Wave Number

Small parameters
Axisymmetry
13
Flow depends on
Proportional to pressure drop
Flow rate
gives Poiseuille flow
Amplitude
Wave number
Develop asymptotic series in powers of
14
Distinct flow types

• Reflux
• Pressure Rise
• Particles undergo net retrograde motion
• Trapping
• Regions of Pressure Rise Pressure Drop
• Streamlines encompass a bolus of fluid particles
• Trapped Fluid recirculates

15
Flow regions
A Copumping, Detached Trapping B Copumping,
Centreline Trapping C Copumping, No
Trapping Illeocecal sphincter open D
Pumping, No Trapping E Pumping, Centreline
Trapping Illeocecal sphincter closed
A
B
E
C
D
F
G
Poiseuille
16
Case A Copumping, Detached Trapping
Recirculation
Particle paths
17
Case B Copumping, Centreline Trapping
Recirculation
Particle paths
x
18
Case C Copumping, No Trapping
Particle paths
Poiseuille Flow
x
19
Case D Pumping, No Trapping
Poiseuille Flow
Particle paths
x
Reflux
20
Case E Pumping, Centreline Trapping
Recirculation
Particle paths
x
Reflux
21
Calculate the concentration c(x,r,t)
1. Substitute asymptotic solution for u into
2. Solve for c(x,r,t) numerically using an upwind
scheme on a domain transformed into a
computational rectangle. 3. Calculate rate of
absorption
22
Type C flow no trapping
Poiseuille flow
Peristaltic flow
23
Type E flow trapping and reflux
Poiseuille flow
Peristaltic flow
24
Cross sectional average of nutrient
x
x
x
Nutrient absorped
Location of absorped mass at final time
Peristaltic flow
x
t
25

• Conclusions
• Peristalsis helps both pumping and mixing
• Significantly greater absorption with
  Peristaltic flow than with Poiseuille flow

• Next steps
• Improve the absorption model
• Improve the fluid model (Non-Newtonian flow)
• More accurate representation of the intestine
  geometry
• Experiments
