439 Writing Topic

1

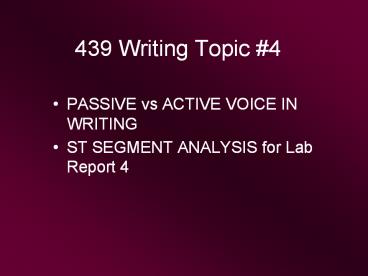

439 Writing Topic 4

• PASSIVE vs ACTIVE VOICE IN WRITING
• ST SEGMENT ANALYSIS for Lab Report 4

2
Prefer Active Voice and Replace Weak Verbs

• Examples from Brogans text.
• WORDs grammar check will find passive voice
  sentences.

3
Passive and Active Voice

• Passive voice is sometimes necessary, but active
  voice is preferred.
• Active voice requires an actor whoor
  thatperforms the action of the sentence.

4
Identify Active or Passive

• The key was turned.
• He turned the key.
• The key was turned by the manager.

• Passive, actor unknown.
• Active, actor present AND taking action.
• Passive, actor present, but, not acting. NOTE
  actor appears at the end of the sentence.

5
Simple Edit Activate the Verb

• The variable-speed motor is connects to the
  transmission through a magnetic clutch.

• The variable-speed motor is connected to the
  transmission through a magnetic clutch.
• Can the verb become active?

6
More Simple Edits for Active Sentences

• Control is focused in the operations area.
  (occurs)
• The error signal is combined with the feedback
  signal. (combines)

7
Complex Edit Put the Best Actor at the Start

• A magnetic clutch connects the variable-speed
  motor and the transmission.

• The variable-speed motor is connected to the
  transmission through a magnetic clutch.
• What does the connecting?

8
Put the Actor Up Front

• The stress/strain curve is shown in Figure 17.
• What is the actor?

• The stress/strain curve is shown in Figure 17.
• Figure 17 shows the stress/strain curve.
• The stress/strain curve appears in Figure 17.

9
One More Example

• The design establishes the reliability of a
  system.

• The reliability of a system is established by
  the design.

10
Extract an Actor from an Introductory Phrase

• In Each picture shows the models.
• For Systems such as Fe-C call for finer
  control.
• By This process keeps the project manager
  informed.

• In each picture the models are shown.
• For systems such as Fe-C, finer control is
  called for.
• By this process the project manager is kept
  informed.

11
Mixed Active and Passive Verbs? Activate the
Passive

• The electron microscope images show that two
  factors caused the failure .
• The purchase request specifies that the sample
  shall not deviate from the design.

• The electron microscope images show that the
  failure is caused by two factors.
• The purchase request specifies that the design
  shall not be deviated from in the sample.

12
Replace Weak Verbs Be, Do, Make

• More of problems
• Table 2 is a list of error rates.
• This section is an explanation of how to adjust
  the output.
• This stress is in excess of the component
  strength.

• More of problems
• Table lists
• section explains .
• stress exceeds .
• Active sentences!

• More of problems
• Table 2 lists error rates.
• This section explains how to adjust the output.
• This stress exceeds the component strength.
• Active sentences!

13
Inspect Make/Made Words

• With this device astronauts can change course in
  space.
• The leads on the wafer do not make contact the
  pins on the third layer.
• NEP was measured at zero bias.

• With this device astronauts can make course
  changes in space.
• The leads on the wafer do not make contact with
  the pins on the third layer.
• A measurement of NEP was made at zero bias.

14
Do/Done

• Our staff has examined this alloy.
• The lead writer reviews for accuracy and logical
  order.
• The module is removed by loosening the screws
  and pulling on the module.

• Our staff has done examinations on this alloy.
• The lead writer does the review for accuracy and
  logical order.
• Removal of the module is done by loosening the
  screws and pulling on the module.

15
Summary

• Whenever possible, use active instead of passive
  voice.
• Put the actor up front.
• Edit your text to minimize use of be/do/make
  constructions
  since Dr. B will check
  on this for last lab report.

16
Signs of infarct or ischemia?
THE most common indicator of ischemia you will
see during exercise stress tests ST segment
depression
17
HOW TO DETERMINE ST SEGMENTDEPRESSION (or
ELEVATION)

• Draw an accurate baseline across at least 3
  cycles
• Pick the J point (end of S, start of ST)
• Count 2 mm ( ____sec) to the right of J point,
  determine position of ST relative to baseline

18
USE OF ECGS IN EXERCISE TESTING WHAT YOURE
MONITORING FOR

• Indications on resting ECG that exercise is not
  safe today. Sample contraindications acute MI,
  frequent PVCs, major ST or at rest
• Arrhythmias during exercise get recorded on
  rhythm strip if at all possible
• ST segment changes
