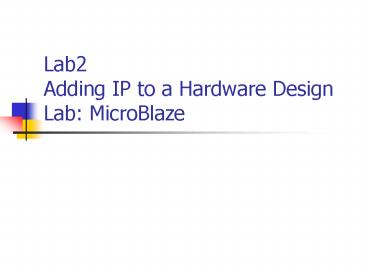

Title: Lab2 Adding IP to a Hardware Design Lab: MicroBlaze


1
Lab2Adding IP to a Hardware Design Lab
MicroBlaze
2
Objectives
  • Add additional IP to a hardware design.
  • Implement the design by utilizing ISE.

3
SetUp
  • For this lab, you will need a memec design
    V2MB1000 development board and a serial cable.
  • Connect the included programming cable to the PC
    parallel port and the V2MB1000 development board
    .
  • Connect a serial cable between the PC and the
    DB-9 connector on the board.
  • Attach the included power supply to the board.

4
Procedure
  • In this lab, you will use the system dialog mode
    of XPS and the text mode features to add the
    following IP to an existing processor system.
  • OPB timer and counter for time delay
  • OPB GPIO DIP switches

OPB Bus
MDM
UART
MicroBlaze
INTC
LMB BRAM Cntlr
LMB BRAM Cntlr
Timer
BRAM
GPIO
PSB
GPIO
LEDs
7Seg LED
GPIO
GPIO
SWs
5
Opening the Project
  • Create a lab2 folder in the X\EDKLab\ directory.
    If you wish to continue with your completed
    design from lab1 then copy the contents of the
    lab1 folder into the lab2 folder.

1.
2.
3.
4.
6
Opening the Project
  • Open XPS, click File ? Open Project and browse to
    the project which is in the directory
    X\EDKLab\lab2, then click system.xmp to open the
    project.

1.
2.
7
Add the IP by Using Add/Edit Cores(dialog)
  • Click Project ? Add/Edit Cores(dialog)

8
Add the IP by Using Add/Edit Cores(dialog)
  • Add/Edit Hardware Platform Specifications dialog,
    displaying the processor and peripherals included
    in the system thus far.

9
Add the IP by Using Add/Edit Cores(dialog)
  • In the right window of the Peripherals tab,
    select each of the following peripherals by using
    the CRTL key
  • opb_gpio
  • opb_timer

10
Add the IP by Using Add/Edit Cores(dialog)
  • Click ltltAdd to add the selected peripherals.

1.
2.
11
Add the IP by Using Add/Edit Cores(dialog)
  • Change the instance names of the opb_gpio and
    opb_timer peripherals (which you just added) to
    DIP_Switches_8Bit and delay respectively, by
    clicking once in the Instance column and typing
    the new name for each desired peripheral.

12
Add the IP by Using Add/Edit Cores(dialog)
1.
  • Select the Bus Connections tab and set the bus
    connections as listed in the following table.
    Click once in each respective column for the
    corresponding component.

2.
13
Add the IP by Using Add/Edit Cores(dialog)
  • Select the Addresses tab and change the base- and
    high-addresses of the following listed
    peripherals to the listed values.
  • Click the ?? button and the ?? button to accept
    the settings.

1.
2.
14
Add the IP by Using Add/Edit Cores(dialog)
  • Click Project ? View Block Diagram to view the
    schematic of the design built so far.
  • Close the schematic view.

Delay
DIP_Switches_8Bit
15
Use Add/Edit Cores(dialog) to Add Additional
Ports and Connect Them
1.
  • Click Project ? Add/Edit Cores (dialog) again so
    additional ports can be added.
  • Click the Ports tab and type OPB_CLK in the
    Filter substring or instance field. You will see
    instances listed some of the instances will show
    OPB_CLK as they carry the OPB_CLK port.

2.
16
Use Add/Edit Cores(dialog) to Add Additional
Ports and Connect Them
  • Using the CTRL key, select the OPB_CLK for the
    following instances and click the button.

1.
3.
2.
17
Use Add/Edit Cores(dialog) to Add Additional
Ports and Connect Them
  • Similarly, add the ports to the peripherals
    listed below. Change the filter substring to
    match the names below, or to display all ports,
    delete the text from the filter string.

1.
3.
2.
18
Use Add/Edit Cores(dialog) to Add Additional
Ports and Connect Them
  • Scroll down in the left window and make changes
    to the following nets.
  • Note These changes are necessary to ensure all
    peripherals are driven by the same clock.

Original Net Name
New Net Name
19
Use Add/Edit Cores(dialog) to Add Additional
Ports and Connect Them
  • Click the net name field of the Interrupt port of
    the delay instance and make it blank by deleting
    the default net name.
  • Note Because this is an output node, it can be
    left floating if it is not used. At this stage,
    you will keep it floating however, in a later
    lab, you will connect it.

20
Use Add/Edit Cores(dialog) to Add Additional
Ports and Connect Them
  • Right click the GPIO_in port of the
    DIP_Switches_8Bit, then select Make Signal
    External.
  • Add Range 07 to DIP_Switches_8Bit_in in the up
    window.

1.
2.
21
Use Add/Edit Cores(dialog) to Add Additional
Ports and Connect Them
1.
  • Select the Parameters tab, in the Choose IP
    Instance for a list of parameters field, click
    the drop-down box and select delay as the
    instance, which will show the available
    configuration parameters for that instance.

2.
22
Use Add/Edit Cores(dialog) to Add Additional
Ports and Connect Them
  • Select all of the following parameters related to
    the delay instance and click the Add button to
    add those parameters with the default values.
  • Change the C_ONE_TIMER_ONLY value from 0 to 1 as
    you will use only one timer.

1.
3.
2.
23
Use Add/Edit Cores(dialog) to Add Additional
Ports and Connect Them
  • In the Choose IP Instance for a list of
    parameters field, select DIP_Switches_8bit as the
    instance, which will show the available
    configuration parameters for that instance.
  • Select the following parameters and click the Add
    button to add those parameters.

2.
1.
24
Use Add/Edit Cores(dialog) to Add Additional
Ports and Connect Them
  • Change the default values of the following
    parameters to the new value provided below.
  • Click the ?? button to accept the changes.

25
Edit the MHS File
  • Double-click the MHS File system.mhs entry under
    the Project Files in the System tab.

26
Edit the MHS File
  • Rename the net connected to the DIP_Switches_8Bit
    instances DIP_Switches_8Bit_GPIO_in name to
    DIP_Switches_8Bit_GPIO_in_pin.

27
Edit the MHS File
  • Rename the net connected to the delay instances
    OPB_CLK port to sys_clk_s.
  • Save the system.mhs file and then close it.

28
Edit the MHS File
  • We perform this task here simply to demonstrate
    that the text file that represents the system can
    be hand edited if desired. The same result could
    have been achieved within Add/Edit Cores (dialog)
    ports tab.

29
Edit the MHS File
  • Click Project ? View Block Diagram to view the
    schematic of the design.
  • Close the Schematic viewer

30
Add Pin Assignments for I/O Signals
  • Select the System tab double click on the UCF
    file.

31
Add Pin Assignments for I/O Signals
  • Add the following lines to the UCF file.
  • Net DIP_Switches_8Bit_GPIO_in_pinlt0gt LOCC6
  • Net DIP_Switches_8Bit_GPIO_in_pinlt0gt PULLUP
  • Net DIP_Switches_8Bit_GPIO_in_pinlt1gt LOCD6
  • Net DIP_Switches_8Bit_GPIO_in_pinlt1gt PULLUP
  • Net DIP_Switches_8Bit_GPIO_in_pinlt2gt LOCA5
  • Net DIP_Switches_8Bit_GPIO_in_pinlt2gt PULLUP
  • Net DIP_Switches_8Bit_GPIO_in_pinlt3gt LOCB5
  • Net DIP_Switches_8Bit_GPIO_in_pinlt3gt PULLUP
  • Net DIP_Switches_8Bit_GPIO_in_pinlt4gt LOCC5
  • Net DIP_Switches_8Bit_GPIO_in_pinlt4gt PULLUP
  • Net DIP_Switches_8Bit_GPIO_in_pinlt5gt LOCC4
  • Net DIP_Switches_8Bit_GPIO_in_pinlt5gt PULLUP
  • Net DIP_Switches_8Bit_GPIO_in_pinlt6gt LOCA4
  • Net DIP_Switches_8Bit_GPIO_in_pinlt6gt PULLUP
  • Net DIP_Switches_8Bit_GPIO_in_pinlt7gt LOCB4
  • Net DIP_Switches_8Bit_GPIO_in_pinlt7gt PULLUP

32
Add Pin Assignments for I/O Signals
  • Save the system.ucf file and then close it.

33
Creating a Project Navigator Project
  • In XPS, click Options ? Project Options, this
    will open the Project Options dialog.

34
Creating a Project Navigator Project
  • Select the Hierarchy and Flow tab, Configure the
    dialog to match the options selected shown below,
    which should only involve selecting the ISE
    (ProjNav) radio button. A default ProjNav
    directory has already been chosen.
  • Click ?? to close the dialog and apply the
    settings.

1.
2.
3.
35
Creating a Project Navigator Project
  • Select Tools ? Generate Netlist or click in
    the toolbar.

36
Creating a Project Navigator Project
  • Once PlatGen has completed, click Tools ? Export
    to ProjNav. This will create the Project
    Navigator project and add the appropriate files.
  • Close the project in XPS.

37
Implement the Design in the Project Navigator
  • Double-click system.npl file in Windows Explorer
    to open the Project Navigator project located in
    the lab2\projnav directory.
  • Your project should match follow figure.

38
Implement the Design in the Project Navigator
  • Toggle the paths in the Sources in Project window
    to make the paths relative rather than absolute.
    This promotes portability of the project into a
    different directory structure. Click on one of
    the sources in the window and select Toggle
    Paths.

39
Implement the Design in the Project Navigator
  • Add the UCF file to the project. Click Project ?
    Add Source and add the system.ucf from the
    ..\data directory.

1.
2.
3.
4.
40
Implement the Design in the Project Navigator
  • In ISE, click Edit ? Preferences
  • Select the Processes Tab, select Advanced, and
    click OK.

2.
3.
1.
4.
41
Implement the Design in the Project Navigator
  • In the Sources in Project window, select system.
  • In the Processes for Source system window,
    Right-click Implement Design and select
    Properties.

1.
2.
42
Implement the Design in the Project Navigator
  • Select the Translate Properties tab and verify
    that the macro search path is set to
    ..\implementation.
  • Click OK

1.
2.
3.
4.
43
Implement the Design in the Project Navigator
  • Select system in the Module view and double-click
    Implement Design in the Process view.

44
Implement the Design in the Project Navigator
  • Once the Implement Design process is completed,
    double-click the View/Edit Routed Design(FPGA
    Editor) under Place Route to view the
    implemented design.

45
Implement the Design in the Project Navigator
  • Close the FPGA Editor after viewing the
    implemented design.
  • In the Processes for Source system window,
    Right-click Generate Programming File and select
    Properties.

46
Implement the Design in the Project Navigator
  • Select the Startup Options tab and change CCLK to
    JTAG Clock, then click ??.

1.
2.
3.
47
Implement the Design in the Project Navigator
  • Double-click Generate Programming File to create
    a BIT file.

48
Implement the Design in the Project Navigator
  • When the Generate Programming File completes, two
    critical files have been generated
  • system.bit Located in the lab2mb\projnav
    directory, this BIT file represents the
    implemented processor system.
  • system_bd.bmm Located in the lab2mb\implementati
    on directory, this BMM file contains the location
    constraints for the BRAM utilized in the
    processor system. This file is used by Data2BRAM
    to update the BRAM contents with the processor
    application code.
  • Close the Project Navigator

49
Download the Project to the V2MB1000 Development
Board
  • In XPS, click Tools ? Import from ProjNav. This
    will bring the results from Project Navigator
    into the XPS environment. For project
    portability, it is best to use relative path
    names. Make sure the path names point to the
    projnav and implementation directory for BIT file
    system.bit and the BMM file system_bd.bmm
    respectively. Select OK.

1.
2.
3.
50
Edit the C File
  • Double-click the C File TestApp.c entry under
    the Project Files in the System tab.

1.
2.
51
Edit the C File
  • Un comment the xil_printf statements in the code,
    then add DIP_Swithes_8Bit code and save it.

52
Download the Project to the V2MB1000 Development
Board
  • Open a Hyperterminal session with the baud rate
    set to 9600.
  • Open ?????????????????????? and select COM1.

53
Download the Project to the V2MB1000 Development
Board
1.
  • Set ?????, then click ??.

2.
54
Download the Project to the V2MB1000 Development
Board
  • Click Tools ? Download. This will compile the
    software, merge the HW and SW images, and
    download the merged bit file to the board.

55
Download the Project to the V2MB1000 Development
Board
  • After the board is programmed, you will see a
    message on the terminal window.

Download is completed!
1 1
0 1
Reset
10101010
11110000
56
Conclusion
  • XPS can create an MHS file representing the
    processor system. The system can be configured by
    using peripheral parameters and by controlling
    internal and external ports. Once the system has
    been defined, the processor system netlists can
    be created.
  • In future labs in this course, you will learn how
    to add user cores, add software to the system,
    simulate the design, debug the software, and
    verify the complete design functionality by using
    a hardware board.
Write a Comment
User Comments (0)
About PowerShow.com
