End-of-Term Projects

1

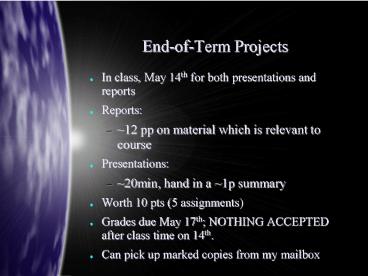

End-of-Term Projects

• In class, May 14th for both presentations and
  reports
• Reports
• 12 pp on material which is relevant to course
• Presentations
• 20min, hand in a 1p summary
• Worth 10 pts (5 assignments)
• Grades due May 17th NOTHING ACCEPTED after class
  time on 14th.
• Can pick up marked copies from my mailbox

2
Search for Life In the Universe Best Of'
Edition.

• Clip Show 1 The Science behind the Search

3
Science in a Nutshell
Observations (reality)
Consequences(predictions)
Explanation(theory)
Tests
4
Science in a Nutshell

• The universe is understandable
• Scientific knowledge is forever
• Scientific ideas are subject to change
• Science demands evidence
• Science explains and predicts

5
Careful Observation

• Careful observation is the beginnings of all
  science.
• Observations can be of the world as it is or of
  carefully set up situations to see what happens
  (experiments)
• In some sciences experimentation isn't possible
  (astronomy) or is limited (human behavior), and
  only observations are feasible
• Making careful observations isn't as easy as it
  may seem.

6
Overthrow-ability of Theories

• Theories can be disproven by finding evidence
  which contrdicts them.
• (Evidence itself must be verified data might be
  wrong)
• Any new theory must explain everything that
  previous theory did, plus the new evidence.

7
Complexity in Life

• Even the simplest life form has a lot more going
  on than even fairly complex non-alive things

8
Chemistry of Life

• Chemistry has as building blocks the elements
  around us.
• Big bang produced mainly Hydrogen, Helium
• Sun Everything's Hydrogen, Helium, Oxygen,
  Carbon, small traces of other stuff Pop I star
• Earth Richer in heavier stuff (Iron,
  Silicon,...)
• Other stars, planets likely to be similar
• Relative abundances of (Hydrogen, Helium) and
  (Carbon, Oxygen, Silicon, Iron...) may vary
• Of these building blocks, what chemicals can
  build complex chemistry?

9
Chemistry of life Carbon

• Of plentiful stuff, Carbon (alone) can build very
  complex molecules

10
Chemistry of life Water?

• Water is essential to life on earth
• Thought that life began in the water (more on
  that in later lectures)
• For chemical life, need a way to get chemicals to
  different part of the body
• Water is a very powerful solvent.
• Dissolve chemical
• Allow transport through body in liquid form
• Very few liquid solvents as powerful, or as
  common.

11
Limitations of water

• If life depends on water, then very strict limit
  on where life can be
• Can't be anywhere colder than freezing
• Can't be anywhere hotter than boiling
• Other liquid solvents have different
  freezing/boiling points, but problem remains
• Hard to see how chemicals can be efficiently
  transported through a body otherwise

12
Water On Mars

• Current Mars rover saw spherules'
  (blueberries') in many places
• Could indicate water
• Form as concretions'
• Speck of something in water
• Other sediments build up
• Same process as pearls, snowflakes, raindrops
• But other possibilities

13
Water On Mars

• Other evidence rock formations
• Suggestive of water erosion
• In particular, spherule formed inside crack in
  rock
• Evidence that spherule did form through
  concretion
• Cracks seem to be from water rivulets

14
Water On Mars

• More evidence build up of sulfates, other salts
  on surface
• Very strong evidence that water laced with
  minerals was flowing
• When evaporated, left these minerals behind

15
Water On Mars

• No evidence yet of life
• Water would seem to be a necessary ingredient
• No evidence for oceans, or that Mars was warm
  enough to have liquid water for long time

16
What sort of life are we interested in?

• In our own solar system, even bacteria fossils
  would be enormous find.
• Have some chance of looking at Mars, other nearby
  planets
• For life outside our solar system, won't be able
  to visit for foreseeable future
• Only way to recognize life is to receive signals
• Life must be intelligent enough to communicate
  with us in a way we can recognize

17
The Distance Ladder

• Four realms' of distance in exploring Universe
• Solar system
• Nearby stars
• Galactic distances
• Intergalactic distance
• So vastly different that each needs different
  techniques, units to measure distances

18
Solar System

• Can use direct observation, simple geometry to
  measure solar system distances to reasonable
  accuracy
• These were available to the ancients
• More modern techniques (radar, spacecraft..)
  allow increased accuracy

19
New length unit Astronomical Unit (AU)

• Earth-Sun distance so handy for measuring solar
  system distances that new unit created
• 1 AU mean distance between Earth and Sun
• 1 AU 92,955,807 miles
• Can use this information to work way up to next
  realm nearby stars

20
Paralaxes can be observed in stars
21
Paralaxes can be observed in stars
22
(No Transcript)
23
(No Transcript)
24
The displacement is measured as an angle on the
sky

• 0.5 degree about your thumb at arms length
• 1 arc minute 1/60th of a degree
• 1 arc second 1/60th of an arc minute
• A distance at which the parallax (from Jan to
  Mar) is 1 arc second is a parsec (PARallax
  SECond)
• Can find it from 1 AU with some trig
• 1 pc 206265 AU

25
Distances to distant clusters of stars

• Clusters also contain stars such as RR Lyrae or
  Cephieds
• Variable stars
• Pulse over days
• Pulsation period tells you their brightness
• Bright enough to be seen in quite distant clusters

26
Distances to nearby galaxies

• Cepheids can even be seen in our galactic
  neighbors, so can measure distances to galaxies
  directly!

27
Electromagnetic Radiation

• All these observations are made with light, or
  some other form of electromagnetic radiation
• Electromagnetic radiation from a source is in the
  form of waves
• Both Electric and Magnetic components
• Wave travels at speed of light

28
Inverse Square Law

• Electromagnetic (and most other kinds) of
  radiation obey the Inverse-Square Law
• Intensity of radiation (brightness) falls off
  with the square of the distance
• Doubling the distance to something makes it
  appear four times as dim (¼ as bright)
• Tripling the distance makes it appear nine times
  as dim (1/9 as bright)
• etc.

29
Electromagnetic Waves
15
9'
TV Antenna VHF 200 MHz wavelength60 UHF
575 MHz wavelength20
4.5
CB Radio Antenna 27 MHz wavelength 36 ft
Satellite TV dish 12 GHz wavelength 9
30
Electromagnetic Waves

• Light is one facet of the entire electromagnetic
  spectrum
• Our eyes have dedicated cells which are sensitive
  to electromagnetic radiation in this range
• Antenna' sensitive to light
• Eyes most sensitive to yellow light this is
  where the sun emits the peak amount of energy

31
What Generates Electromagnetic Waves?

• Thermal radiation Hot things glow.
• Heat causes atoms to rattle about in an object
• Atoms contain charged particles (electrons,
  protons)
• Accelerating charged particles emit
  electromagnetic radiation.
• Other processes
• Nuclear reactions
• Magnetic fields interacting with charged particles

32
Thermal Radiation

• If material is dense enough to be opaque, hot
  body emits radiation in a characteristic
  blackbody' spectrum

High frequency
Low frequency
Short wavelength
Long wavelength

• Hot objects emit more and at shorter wavelengths
  (higher frequencies)

33
Line Spectra

• For non-opaque materials, spectra can look quite
  different.
• Atoms/molecules can emit or absorb photons only
  of particular energies.
• If dense enough, these lines get blended out into
  blackbody spectrum
• If not (like gas in flame) the spectrum is
  composed of lines

34
Solar Spectrum

• Central region of sun fairly dense
• Emits as blackbody
• Outer layers progressively less dense
• Line effects start becoming noticeable
• We see continuum blackbody spectrum from the
  inner star with absorption features from the
  outer layers

hot core
Wispier outer layers
35
Solar Spectrum
Solar Spectrum
Calcium
Oxygen Molecules
Sodium
Hydrogen
36
The Sun throughout the spectrum
37
The Galaxy throughout the spectrum
38
Doppler Shift in Light

• Sound or light from a source moving towards you
  is shifted to higher frequencies (light is bluer)
• From a source moving away from you, shifted to
  lower frequencies (redder)

39
Doppler Shift in Light

• Effect is fairly modest, but spectra can be
  measured very accurately
• Astronomers can measure velocities towards/away
  very precisely

40
The Drake Equation

• Drake Equation structured the class until now
• Astronomy
• Number of stars in galaxy
• Number of suitable stars
• Number of stars that form planets
• Geophysics
• Number of planets suitable for life
• Biology
• Where and low life forms on those planets

41
Spiral Galaxies

• Flat, disk-shaped galaxies with spiral arms
• Rotate (our part of our galaxy rotates around the
  center every 200 million years)
• Gas clouds, dust, stars

42
Elliptical Galaxies

• Spheroidal
• Featureless
• Much brighter in core than in outer regions
• Often the brightest galaxies in clusters are
  ellipticals
• Less active in star formtion / young stars than
  spirals

43
Galaxies moving away from us!

• Once spiral nebulae were established as
  galaxies, Hubble examined their redshifts, and
  distances
• Found that galaxies were all moving away from us
  faster

44
Expanding Universe

• Either we are very special and everything is
  moving away from us, or Universe as a whole is
  expanding
• But if universe is steadily increasing in size,
  implies that at some time in the past, Universe
  was a single point.
• Start of the Universe
• Big Bang

45
The Microwave background

• Accidentally discovered by radio astronomers
  (thought it was noise)
• 1980s, COBE satellite went up to take careful
  measurements
• Blackbody temperature agrees with predictions
• Slight fluctuations hot spots which eventually
  gave rise to galaxies!

46
Big Bang Nucleosynthesis

• Can also predict what nuclei are formed at such
  temperatures
• Too cold cant form nuclei
• Too hot large nuclei are torn apart
• Prediction Universe should be mostly Hydrogen,
  Helium, some Lithium Prediction agrees with
  observation

47
Stellar Cycle
48
Gas Clouds

• Two broad types of clouds
• Gas clouds
• Warm
• Very wispy
• Molecular clouds
• Colder
• Much denser
• Gas has condensed enough that complex molecules
  have formed

49
Molecular Clouds

• Because molecular clouds are cooler and denser,
  atoms collide more often
• Can form complex molecules
• Greatly helped by presence of grains
• Provides sites for atoms to latch onto
• Region of high atom density atoms more easily
  find other atoms to interact with

50
Gas Clouds

• All of these gas clouds are turbulent
• Random motions, eddies
• Where fluid comes together, dense regions
• Fluid is moving fast enough that can compress
  very dense spots

51
Gas Clouds

• Gravity acts to try to pull these dense spots
  together
• However,
• Pressure in gas clouds
• Rotation

52
Gas Clouds

• Collapse will usually happen in many places
  throughout the cloud at the same time
• This is why stars tend to be clustered
• Amount of stars depends on size of gas cloud
  producing stars

53
Protoplanetary Disks

• These protoplanetary disks can be seen around
  very young protostars

54
Protoplanetary Disks
55
Summary
56
Failed Stars

• Stars' that are too small (8 of the mass of
  the Sun, or 80 Jupiter masses) never turn on''
• Central temperatures never get hot enough for
  nuclear burning to begin in earnest
• Nuclear burning is what powers the star through
  its life
• Star sits around as a brown dwarf too big and
  hot to be a planet, too small and cold to be a
  real star

57
Hydrostatic Equilibrium

• Once collapse has halted in a star, force inward
  (gravity) must be balanced by force outward (gas
  pressure)
• (Much of the rotation has been taken away by the
  planetary disk by this point)
• Central region is hottest because pressure from
  the entire star is pushing down on it
• Star as a whole is hot enough that no molecules
  are left everything is broken into components

58
Nuclear Reactions

• Nuclei of atoms themselves interact
• Change the elements alchemy
• The star, like the cloud it came from, is mostly
  hydrogen
• So hot the electrons are stripped off left with
  bare protons (hydrogen nuclei)
• Under extreme heat, protons can fuse together to
  produce helium and more heat!
• Higher temperatures faster reactions

59
Given that burning is stable,

• What effects how hot a star is?
• MASS
• The bigger the star that forms from the collapse
• More pressure on the central region
• More burning
• Hotter
• Brighter
• What color are more massive stars?

60
HR diagram and Main Sequence

• From previous, expect that hotter stars should be
  brighter
• Blackbody
• More massive -gt bigger
• Even more than this bigger -gt more temperature
  in core -gt more burning
• When temperature vs brightness is plotted, see
  Main Sequence'
• Other populated regions show later stages in
  stellar evolution

61
Stellar Evolution

• As burning in core progresses, Hydrogen in center
  becomes depleted (Sun 10 billion years)
• Core of Helium ash' left behind
• Shell of Hydrogen burning slowly moves outwards
• As heat source moves further out, star puffs
  out'
• Outer regions cool, redden
• Red Giant (Sun 1 billion years)

62
Stellar Evolution

• Eventually Helium core gets so hot that even it
  can burn, to Carbon
• New energy source star gets hotter and bluer,
  and shrinks back to more normal size
• Burning happens faster with heavier elements
  soon Helium becomes exhausted, a Carbon core
  forms becomes giant again

63
Low Mass stars envelope ejection

• Helium burning can be very unstable
• Outer layers begin pulsing blows most of the
  envelope off of the star
• (so called) Planetary nebula' forms
• Only the core is left behind, still glowing
  (because hot) but inert
• White dwarf

64
High Mass Stars Continue Burning

• Slightly more massive stars (4 to 8 solar
  masses)
• Everything happens faster
• Carbon can burn, as well one more stage of
  burning
• Then again leave (larger) white dwarf and
  planetary nebula behind

65
Type II Supernova

• The result is a collapse to a different form of
  matter a neutron star, or a black hole -- and a
  release of energy
• Energy release can be equal to the entire energy
  of the host galaxy
• Entire envelope is blown apart
• Heavy elements from burning blown into
  surrounding gas

66
Type Ia Supernova

• Almost as much energy can come from another kind
  of supernova
• If a star which ended up as a white dwarf has a
  companion, matter can rain in' on the inert
  white dwarf until it gets hot enough to burn
• Can burn catastrophically, exploding and
  releasing heat, heavy elements into surrounding
  gas

67
Supernova Feedback

• Originally, gas was all hydrogen and helium
• No planets, life
• Generations of stars produced all the heavy
  elements which make up planets and living things
• Supernova explosions release these heavy elements
  into the galaxy
• New stars are formed
• Can make planets, life
• Supernova energy contributes to the turbulence in
  the gas clouds, and can compress gas to start new
  cycle of star formation

68
Supermassive stars

• Newly discovered
• LBV 1806-20
• 150x as massive as Sun
• 4- to 20-million times as bright as sun

69
Supermassive stars

• Question
• If 150x as massive, 10million times as bright as
  Sun, how long will it last?

70
Supermassive stars

• Question
• If 150x as massive, 10million times as bright as
  Sun, how far away does planet need to be to have
  Earth-like conditions?

71
Abundance of Elements

• Hydrogen and Helium most abundant in Universe
  (from Big Bang)
• Not most abundant on rocky planets evaporation
• Heavy elements produced in stars, and will follow
  similar overall pattern
• Systems that have material processed by more
  stars will have overall more heavy elements
  compared to H, He.

72
Building Blocks of Life

• These machinery of life is made of polymers
• Built out of chains of simpler molecules
  (monomers)
• modular'
• Three important polymers in Earth's biology
• Proteins
• Building blocks for everything
• DNA
• Repository of genetic information
• RNA
• Takes information from DNA, builds proteins

73
Things are Very Different when you're a Molecule

• Gravity is not so important
• Electrical, molecular forces are
• WATER
• Constantly jostled by water molecules
• Some parts of molecules attracted to water
  (hydrophilic)
• Some parts repelled (hydrophobic)
• Molecules behave like little machines that are
  pushed around by electrical forces

74
Proteins

• Proteins are long strings of amino acids
• The strings fold into complex shapes as they form
• Buffeted by water
• Bonds linking one part of chain to the other

75
Proteins

• A protein's function is determined by it's shape
  or structure.
• It's structure is determined by the amino acids
  its made up of
• Enzymes are proteins which speed up certain
  reactions
• Maltase breaks maltose down into two glucose
  molecules
• Maltose fits into active site'
• Lock-and-key
• E. Coli has 1000 different proteins

76
Amino Acids

• Building blocks of proteins
• Twenty of them occur in Earth's biology
• Simple molecules 13 27 atoms
• Carbon, Hydrogen, Oxygen, Nitrogen two also have
  Sulfur
• Chemically identical mirror images of these
  compounds (right-handed versions) do not occur in
  Earth's biology
• Typical protein might be built of 100 amino
  acids

tyrosine
alanine
77
Nucleic Acids

• Proteins are encoded in a cell's DNA, and built
  on a scaffold' of RNA.
• RNA and DNA are both polymers of nucleotides
  molecules with bases as shown here
• Both DNA and RNA have an alphabet' of 4 bases

(DNA only)
(RNA only)
78
Nucleotides

• These bases attach to a sugar and phosphate to
  form nucleotides
• These nucleotides are the monomers that make up
  DNA, RNA
• Sugar, phosphate makes up the backbone of the
  structure, with the base sticking out

79
DNA

• A strand of DNA contains a long series of
  nucleotides, in a series of genes (AAGCTC...)
• Each gene is separated by a stop signal
• Contains all the information for making all the
  proteins in the cell

80
DNA

• Proteins are made when an enzyme walks long the
  DNA strand, transcribing it into an RNA strand
• The RNA strand then gets translated into a
  protein.
• Each 3 letter' sequence gets translated into a
  single amino acid
• 64 possible 3-letter sequences 20 amino acids
• Some acids have several translations

81
Reproduction

• This interwoven complementary pair' makes
  replication fairly straightforward
• Enzymes can march along the strand, separating it
  in two
• Each strand can then be matched up with the
  corresponding nucleotides, and rebuild its second
  half
• One twisted pair becomes two, containing same
  information

82
Earth's Formation

• Condensed out of solar disk
• Small pieces (planetesimals) merging together
• Very hot radioactive materials, collisions
• Ultraviolet radiation from sun (no protecting
  ozone)
• Photodissociation
• Crust takes a long time to form
• Very geothermally active

83
Atmosphere

• Probably never had an atmosphere that formed with
  the planet planetsimals too small to capture
  atmosphere
• As Earth becomes massive enough to trap gases,
  atmosphere forms as colliding objects
  (late-accreting material) are vaporized
• Volatile elements (lightest and easiest to
  vaporize) can most easily diffuse away
• Hydrogen, carbon, nitrogen, oxygen
• Free hydrogen most easily evaporated
• Photodissociation breaks up molecules

84
Evolution of Atmosphere

• As hydrogen leaves, ozone can form
• Less hydrogen to suck up free oxygen into water
• Cuts down ultraviolet light, photodissociation
• Atmosphere begins to stabilize
• Water vapor
• Carbon Dioxide
• Nitrogen
• Carbon Monoxide
• Very little Oxygen
• Even less Ozone

85
Miller-Urey Experiment

• 1953 here in Chicago
• Simulates oceans and atmosphere of a young Earth
• Ammonia, methane, hydrogen in atmosphere
• After only a few days, two amino acids and the
  nucleotide bases have formed!

86
Marks Reading Quizzes and Assignments

• Reading Quiz
• 0 NCR, 4 NCR, 7 CR, 8 CR, 0 CR
• Assignments
• 0 NCR, 0 NCR, 4 CR, 9 CR, 1 CR

87
Exponential Growth

• Such growth is said to be exponential, or
  geometric.
• Once the process is exponential, everything is
  exponential
• Number of children
• Number of reproductions
• Amount of area/resources needed
• Rate of growth
• Anything with a fixed doubling time' is
  exponential

88
Exponential Growth

• This exponential growth is the source of the
  intense competition for resources underlying
  evolutionary adaptation
• Very soon, resources begin getting scarce any
  species or mutation which has an advantge has a
  much better chance of thriving

89
Exponential Growth

• Everything starts happening faster as exponential
  growth proceeds
• Mutation rate in mammals, 1 per 100,000
  reproductions per gene
• By generation 10, 512 individuals. How long
  before significant number of mutations expected
  in a given gene?

90
Exponential Growth

• Everything is exponential
• By generation 20, already expect 20 mutations
• That too is exponentially increasing
• By generation 25, gt 600
• By generation 30, gt 20000
• Dividing by 100,000 just means it takes a little
  longer before it takes off

91
Tree of Life

• Phylogenetic tree
• Family Tree' of species
• Distance from neighbors, root indicates how
  genetically different
• Three distinct branches
• Archaea (includes extremophiles)
• Bacteria
• Eukaryotes (includes all life visible to naked
  eye)

92
Building a Phylogenetic Tree

• Difficult Only have genetic information from the
  present.
• Can take genetic informtion from present day
  species and examine differences
• Number of differences in genome genetic
  distance'
• Simplest if constant mutation rate, can work
  backwards and see how long ago two species must
  have first differed
• Can infer most recent common ancestor

Inferred ancestor
Inferred ancestor
Evolution Time
Genetic Distance
93
Virus

• Not Included
• Self-replicating DNA or RNA
• Not self sufficient
• Requires the mechanisms of a living cell to
  propagate it
• As a result, much smaller than bacteria (largest
  virus smallest bacteria)

94
Virus

• Alive?
• Inert RNA/DNA/protein until collides with target
  cell
• Incapable of independent action, growth,
  reproduction
• Not generally considered to be living.

95
Prokaryotes

• Simplest form of life
• Includes bacteria (like E. Coli) and
  archaebacteria
• No complex internal structure
• DNA lies together in a blob
• Prokaryotic DNA consists of one ring
• Processes occur throughout cell
• Many reproduce by cell division (asexual)

96
Extremophiles

• Unlike more advanced' forms of life,
  prokaryotes thrive in startling variety of
  environments
• Can live with, without, or only without oxygen
• Can live in very acidic, alkaline, hot, cold,
  dark, or salty enviroments
• Early earth would have been rich with these
  enviroments

M. Jannaschii thrives near underwater volcanic
vents in temperatures, pressures, darkness, and
lack of oxygen that would kill other life
97
Photosynthesis

• A process that uses light energy to convert
  water, carbon dioxide to sugar (a useful fuel)
  plus oxygen
• Clorophyll is the key molecule in this process
• Absorbs some light, triggers a chemical reaction

6 H2O 6 CO2 -gt C6H12O6 6 O2
98
Eukaryotes

• Has a nucleus, and other organelles
• DIVISION OF LABOUR
• Mitocondrion energy factory
• Chloroplast (plants) photosynthesis
• Nucleus protects DNA interface between DNA and
  rest of cell

99
Sexual Reproduction

• Allows greater mixing of genes
• Rather than waiting for single mutation, can have
  combination of genes randomly generated
• Greatly speeds up evolutionary process for
  complex organisms where genes interact.

100
Cambrian Explosion

• Soon after the arrival of eukaryotes on the
  scene, there was a huge explosion of species
• Cambrian Explosion
• Exponential growth -gt one expects this, but
  before sexual reproduction, evolution occurred
  much more slowly

101
Multicellular life

• So many possibilities that they never appear to
  repeat
• Trilobite, an enormously successful multicellular
  animal, thrived for tens of millions of years
  extinct with dinasaurs
• Never to reappear
• On the other hand, a successful species can
  survive indefinately (?)
• Blue-Green Algae

102
Next Week

• Reading Chapter 11, 12
• Brief History of Solar System
• Examination of Venus
• Guest lecturer Andrew Puckett, University of
  Chicago
