MSC.SuperForm in Short Overview

1

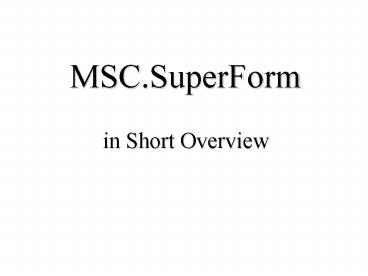

MSC.SuperFormin Short Overview
2
Simulation Of Bulk Forming Manufacturing
Processes

• Forging
• Extrusion
• Axial Rolling
• Ring Rolling
• Cogging
• Bending
• Cutting

3
Why Simulation

• Reduce Time to Market
• Reduce Cost of Tool Development
• Predict Influence of Process Parameters
• Reduce Productions Cost
• Improve Product Quality
• Better Understanding of Material Behavior
• Reduce Material Waste

4
Manufacturing Results

• Accurately predict the material flow
• Determine degree of filling of the swage or die
• Accurate assessment of net shape
• Predict if laps or other defects exist
• Determine the stresses, temperatures, and
  residual stresses in the work piece.
• Determine optimal shape of preform

5
Material Behavior

• Determine material properties such as grain size
• Determine local hardness
• Predict material damage
• Predict phase changes and composition
• Simulate the influence of material selection

6
Tool Results

• Determine the forming loads
• Determine the stresses in the tools
• Evaluate tool wear or fatigue
• Simulate the influence of lubrication
• Optimize multi-tool process

7
Simulation allows you to capture behavior that
can not be readily measured providing deeper
insight into your manufacturing processes
8
WIZARDS for Ease of Use
9
Intuitive GUI
10
Intuitive GUI
11
Powerful CAD Interfaces

• IGES
• AutoCad - DXF
• VDA-FS
• STL
• ACIS
• SDRC

12
Flexible Process Control

• Multi-Stage
• Kinematic Presses
• Crack press
• Eccentric Press
• General Press
• Hydraulic Presses
• Hammer Presses
• Rolling
• Spring Applied Tools
• Axially Segmented Tools

13
Flexible Process Control

• Axito3d
• Prestate
• Spin Forming
• Anneal
• Sequence Option
• Trimming
• Piercing and Cutting
• Structural Analysis directly based upon the
  manufactured state

14
Kinematics

• Placing the workpiece
• Closing the tools
• Forming process
• Removal of the tools
• Extraction of the workpiece
• Including spring-back
• Subsequent cool-down

15
Flexible Tool Definition

• Rigid Tools
• Deformable
• Direct CAD NURB Description

16
Material Data

• Material Data via Supplied Data Base
• Data Base may be Customized
• Material dependent upon
• True strain
• Temperature
• Strain Rate

17
Material Models

• Elastic Plastic
• Rigid Plastic
• Material Database
• Isotropic hardening
• Cowper-Symonds

• Power Laws
• Johnson-Cook
• Kumar
• Grain Size Prediction
• Phase Changes

18
Effects of Elasticity

• Elasticity of Tools
• Prestressed Dies
• Residual Stresses
• Behavior of part during ejection or removal
• Determination of tolerances

19
Damage Models

• Principal Stress
• Cockroft-Latham
• Lemaitre

20
Lubrication Model

• Shear Based
• Coulomb
• User

21
Visualization

• Tracking of Material Particles
• Flow Line Images
• Time History of Tool Forces
• Deformation of Workpiece
• Contour Plots of all Quantities

22
Some Examples2-D Lap Formation
23
Multi-Stage
24
Connecting Rod
25
Orbital Forming
26
Ring Rolling
27
Cogging
28
Cutting
29
Riveting
30
Proven Finite Element Technology

• Isothermal
• Coupled Analyses
• Elastic Plastic
• Rigid Plastic Behavior
• Planar
• Axisymmetric
• Three Dimensional

31
Element Technology

• Quadrilateral
• Triangular
• Hexahedral
• Tetrahedral

32
Contact

• Fully Automated
• Easy to Define Workpiece and Tools
• Rigid or Deformable Tools
• Multiple Friction Models
• Heat Generated due to Friction

33
Remeshing Technology

• Fully Automated
• Improves Accuracy
• Reduces Costs
• Based on Material Deformation
• Based on Die Geometries

34
Remeshing Technology

• Advancing Front ( Quadrilateral and Triangular)
• Overlay ( Quadrilateral and Hexahedral)
• Delaunay ( Triangular and Tetrahedral)

35
Solutions for Your Enterprise

• Easy to Learn
• Programming User Interface
• Procedure Language
• Individual Customization of GUI
• Available on NT , Unix, Linux
• Computationally Efficient
• Enterprise Specific Solutions
• World Wide Support

36
Users
