Mining Text Data

1

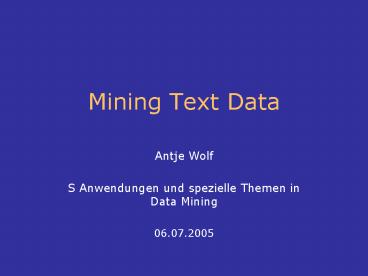

Mining Text Data

• Antje Wolf
• S Anwendungen und spezielle Themen in Data Mining
• 06.07.2005

2
Overview

• Introduction
• Architecture of Text Mining Systems
• Tagging
• Statistical Tagging
• Semantic Tagging
• Structural Tagging
• Taxonomy Construction
• Implementation Issues
• Visualizations and Analytics for Text Mining
• Summary
• Example of a Text Mining Tool in Bioinformatics
  ProMiner

3
Introduction

• 80 of digital data is nonstructured
• much information in textual form with little or
  no formatting
• growing interest in text mining
• different approaches
• use entire set of words in documents as input
• use tags associated with the documents
• information extraction
• Workflow

Input
Preprocessing
Data mining algorithms
4
Architecture of Text Mining Systems

• 3 major components
• Business intelligence suite
• Intelligent tagging
• Information feeders

5
Architecture of Text Mining SystemsIntelligent
tagging component

• Statistical Tagging categorization and term
  extraction
• Semantic Tagging information extraction
• Structural Tagging extraction from visual layout
  of documents
• each tagger separate training module based on
  annotated examples

6
Statistical TaggingText Categorization

• activity of labeling natural language texts
  with thematic categories from a predefined set
• knowledge engineering approach
• user defines manually a set of rules encoding
  expert knowledge how to classify documents under
  given categories
• typical rule of CONSTRUE (Hayes, 1992) system if
  DNF (disjunction of conjunctive clauses) formula
  then category
• example

If ((wheat farm) OR (wheat commodity) OR
(bushels export) OR (wheat tonnes) ) then
WHEAT else WHEAT
7
Statistical TaggingText Categorization

• machine learning approach
• training set of documents that are pretagged
  using the predefined set of categories

8
Statistical TaggingText Categorization

• Example-based classifiers K nearest neighbor
  (KNN)
• decision if document dj ? category ci depends on
  the k training documents most similar to dj
• best value for k?
• k 20 (Larkey Croft, 1996)
• 29 lt k lt 46 (Yang Chute, 1994)
• distance-weighted version
• categorization status value (CSV) is

9
Statistical TaggingText Categorization

• Support Vector Machines
• hyperplane that separates with maximum margin a
  set of positive examples from a set of negative
  examples

10
Statistical TaggingTerm Extraction

• labeling each document with a set of terms
  extracted from the document
• Linguistic preprocessing
• tokenization identifying text structure at
  subparagraph level, that is, word boundaries,
  sentence boundaries, dates, abbreviations, etc.
• part-of-speech tagging associating
  morpho-syntactic categories such as noun,
  adjective, verb along with case, number, person
• lemmatization assignment of lemma, i.e., the
  base form of an inflected word, to every word
  token
• Term generation
• Term filtering

11
Semantic Tagging

• allows for mining of the actual information
  present within the text
• requires trained developers, very laborious
• extracted information is specific and precise

12
Semantic Tagging

• DIAL (Declarative Information Analysis Laguage)
• basic elements
• predifined strings, e.g. merger
• word class element, e.g. a list of countries
• Part-of-speech tag, like noun, adjective
• scanner feature, e.g. Capital, HtmlTag
• constraints
• boolean checks for specific attributes
• IE rule bases
• logic program
• example

FMergerCCM(C1, C2) - Company(Compl)
OptCompanyDetails "and" skip(Company(x),
SkipFail, 10) Company(Comp2) OptCompanyDetails ski
p(WCMergerVerbs, SkipFailComp, 20) WCMergerVerbs
skip(WCMerger, SkipFail, 20) WCMerger
verify(WholeNotInPredicate(Compl, _at_PersonName))
verify(WholeNotInPredicate(Comp2, _at_PersonName))
C1 Compl C2 Comp2
13
Semantic Tagging

• rulebooks of DIAL
• Financial rulebook (11,500 rules)
• can identify more than 50 entity types such as
  company names, people names, organizations,
  products, locations
• can identify events such as mergers, joint
  ventures
• Business intelligence rulebook (7,000 rules)
• Intellectual property rulebook (100 rules)
• can identify 30 different types of entities in
  patent files
• Protein relationship rulebook (500 rules)
• can identify 30 different types of entities,
  including proteins
• can identify 10 different relationships,
  including phosphorylation

14
Structural Tagging

• ignores content of words
• focusing of superficial features, like size and
  position on the page
• GIVEN
• template document A
• set of primitives in A (annotated fields),
  denoted PA
• like "AUTHOR...TITLE..."
• query document B
• FIND
• degree of similarity between A and B
• set of primitives in B that corresponds to PA

15
Taxonomy Construction

• tree with terms as leaves
• enables construction of high-level association
  rules
• rules between groups of terms rather than between
  individual terms
• time-consuming task ? need for semiautomatic
  construction
• there exist many taxonomies for different
  domains, such as Gene Ontology which provides a
  controlled vocabulary to describe gene and gene
  product attributes in any organism

16
Implementation Issues Soft Matching

• problem matching synonyms that refer to the same
  entity
• examples punctuation variations, spelling
  mistakes, abbreviations, formal vs informal names
• solutions
• soundex algorithm can match words that have a
  similar phonetic pronunciation
• lookup table for all abbreviations and nicknames
  of a given entity
• coding name conversion rules
• example X Corporation and X Corp. are mapped to X

17
Implementation IssuesTemporal Resolution

• "time-stamp" documents for temporal analysis
  (Trend Graphs)
• problems
• large variety of possible date formats
• relative date formats ("yesterday", "last month")
• fuzzy temporal phrases ("in the very near future")

18
Implementation IssuesAnaphora Resolution

• resolve coreferences
• pronominals ("he", "she", "we")
• definite noun phrases ("the ruthless man")
• solution
• collect all accessible antecedents for each
  referring phrase
• heuristics Prefer the candidate that appears ...
• ... earlier in the current sentence.
• ... earlier in the previous sentence.
• ... later within other sentences.

19
Visualization and AnalyticsVisualizations

• Category Connection Maps
• concise visual representation of connections
  between different categories (taxonomy nodes),
  for example between companies and technologies
• user chooses number of categories from the
  taxonomy
• system finds all connection between terms in
  categories

20
Visualization and AnalyticsVisualizations

• Relationship Maps
• concise representation of the relationships
  between many terms in a given context
• taxonomy category determines nodes of circle
  graph
• optional context node determines type of
  connection

21
Visualization and AnalyticsVisualizations

• Relationship Maps
• Spring graph two-dimensional graph in which the
  distance of two elements should reflect the
  strength of their relationship

22
Visualization and AnalyticsAnalytics

• Clustering
• identify nodes that are strongly interrelated
• find dense subgraphs in a given graph
• Trend Graphs
• view changes in relationships over time
• ? identify trends and patterns

23
Summary

• due to abundance of available textual data,
  growing need for efficient text mining tools
• textual data require preprocessing
• information extraction method proven to be
  efficient for this task
• analysis techniques like clustering and trend
  graphs in combination with visualization tools
  facilitate trend and pattern detection

24
ProMiner

• aim detection of protein and gene names in
  scientific articles
• nomenclature is highly variable and ambiguous
• mostly composed entries
• phenotypical descriptions as protein names
• definition of gene aliases as convenient
  abbreviations of corresponding protein names
• parallel naming of genes and proteins
• ProMiner consists of three parts
• dictionary generation
• occurrence detection and
• filtering of matches

25
ProMinerImplementation

• Dictionary generation construction and curation
• gene names from HUGO, protein names from
  SWISSPROT and TREMBL
• definition of token classes for curation of
  dictionary and matching procedure
• curation expansion and pruning phase
• tagging each token in dictionary with
  corresponding class
• after curation
• 38,200 entries with151,700 synonyms

26
ProMinerImplementation

• Occurence detection
• processing one token at a time and keeping a set
  of candidate solutions for present position
• two scoring measures
• boundary scoreincreased on a token mismatch if
  rises above a threshold candidate pruned from the
  candidate set and checked for reporting
• acceptance scoredetermines whether the
  candidate is reported as match. linear
  combination of token class specific match- and
  mismatch termsweights for match terms set to
  small value for non-descriptive tokens and high
  one for modifier token

27
ProMinerImplementation

• Filtering of matches match disambiguation
• set of synonyms
• overlapping matches match with the higher
  acceptance score, the larger fraction of matches
  or the largest number of matched tokens is
  accepted
• ambiguous synonym only those matches for which
  most additional synonym occurrences can be found
• Parameter optimization
• computation of weights with robust linear
  programming (RLP)
• training set of positive and negative examples
• computes separating hyperplane in vector space of
  scoring contributions

28
Literature

• Giouli, V., Piperidis, S., Current trends in
  corpus processing and annotation
  http//www.larflast.bas.bg/balric/eng_files/corpor
  a7_1.php (Website from 5. Juli 2005)
• Hanisch, D., Fluck, J., Mevissen, HT., Zimmer,
  R., Playing biologys name game Identifying
  protein names in scientific text. Pacific
  Symposium on Biocomputing 2003, pages 403-414.
• Hanisch, D., Fundel, K., Mevissen, HT., Zimmer,
  R., Fluck, J., ProMiner rule-based protein and
  gene entity recognition. BMC Bioinformatics 2005,
  6(Suppl 1)S14.
• Ye, N. (ed.), The Handbook of Data Mining.
  Lawrence Erlbaum Publishers, 2003, ch. 21.
