Scenario Underway Replenishment

1

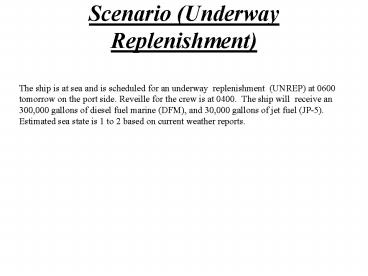

Scenario (Underway Replenishment)
The ship is at sea and is scheduled for an
underway replenishment (UNREP) at 0600 tomorrow
on the port side. Reveille for the crew is at
0400. The ship will receive an 300,000 gallons
of diesel fuel marine (DFM), and 30,000 gallons
of jet fuel (JP-5). Estimated sea state is 1 to 2
based on current weather reports.
2
1. Identify the Hazards

3
1. Identify the Hazards

• Sea state
• Man overboard
• Fuel leak
• Parting wire rope
• Collision
• Ruptured fuel hose
• Loss of propulsion
• Loss of steering

4
2. Assess the Hazards
CAT I Death, Loss of asset. CAT
II Sever, injury / degradation
of asset. CAT III Minor, injury
degradation of
asset. CAT IV Minimal, injury
degradation of asset.
5
2. Assess the Hazards
RACs 2 3 4 4 3 2
4 4
HAZARDS

• Sea state
• Man overboard
• Fuel leak
• Parting wire rope
• Collision
• Ruptured fuel hose
• Loss of propulsion
• Loss of steering

6
3. Make Risk Decisions
RACs
HAZARDS
2 2 3 3 4 4 4
4
1. Sea state 2. Ruptured fuel hose 3.
Collision 4. Man overboard 5. Fuel leak
6. Parting wire rope 7. Loss of
propulsion 8. Loss of steering
7
3. Make Risk Decisions
Risk Assessment 2-Sea state 2-Ruptured fuel
hose 3-Collision 3-Man overboard 4-Fuel
leak 4-Parting wire rope 4-Loss of
propulsion 4-Loss of steering
Discussion/Options - Select optimum
course. Station additional safety observers. -
Use engineering operating sequencing system
(EOSS). And drip pans. - Phone and distance
line. Restricted maneuvering doctrine. - Use
life jackets. Station after lookout. - Use drip
pans. At sea fire party and oil lab in
standby. - Review emergency breakaway
procedures. - Review emergency breakaway
procedures. Use EOSS. - Review emergency
breakaway procedures.
8
4. Implement controls
- SORM. - UNREP Instruction (NWP 4 -01.4). -
OPNAVINST 5100.19C - Hold safety brief. -
UNREP checklists for all applicable
departments. - Personal protective equipment
(PPE).
9
5. Supervise

• Enforce controls.
• Monitor effectiveness of controls.
• Evaluate and adjust controls as the situation
• changes.
• Ensure personnel are familiar with their
• situations.
• CHANGE is the mother of all risk.
• If there is a change, a time critical process may
  have to be done on the spot.
