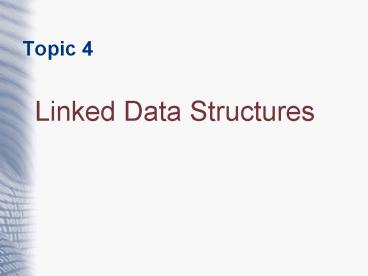

Title: Linked Data Structures


1
Topic 4
  • Linked Data Structures

2
Chapter Objectives
  • describe the use of references to create linked
    structures
  • compare linked structures to array-based
    structures
  • explore the techniques for managing a linked list
  • discuss the need for a separate node to form
    linked structures
  • implement a bag collection using a linked list

3
Array Limitations
  • what are the limitations of an array, as a data
    structure?
  • fixed size
  • physically stored in consecutive memory locations
  • to insert or delete items, need to shift data

4
Linked Data Structures
  • a linked data structure consists of items that
    are linked to other items
  • how? each item points to another item
  • singly linked list each item points to the next
    item
  • doubly linked list each item points to the next
    item and to the previous item
  • a linked structure is a dynamic data structure
    during execution, its size grows and shrinks as
    needed

5
Singly Linked List
6
Advantages of Linked Lists
  • the items do not have to be stored in consecutive
    memory locations the successor can be anywhere
    physically
  • so, can insert and delete items without shifting
    data
  • can increase the size of the data structure
    easily
  • can grow dynamically (at run time) the amount
    of memory space allocated can grow and shrink as
    needed

7
Singly Linked List
  • a linked list is an ordered sequence of items
    called nodes
  • a node is the basic unit of representation in a
    linked list
  • a node in a singly linked list consists of two
    fields
  • a data portion
  • a reference (link, pointer) to the next node in
    the structure
  • the first item is accessed via a front or head
    pointer

8
Diagram
  • Of singly linked list with nodes

9
Singly Linked List (contd)
  • note we will henceforth refer to a singly linked
    list just as a linked list
  • traversing the linked list
  • how is the second item accessed?
  • the third?
  • the last?
  • what does the last item point to?
  • we call this the null link

10
Discussion
  • How do we get to an items successor?
  • How do we get to an items predecessor?
  • How do we access the, say, 5th item in the linked
    list?
  • How does this differ from an array?

11
Linked List Operations
  • add an item to the list
  • insert a node at the front
  • insert a node in the middle
  • insert a node at the end
  • delete an item from the list
  • delete the node at the front
  • delete an interior node
  • delete the last node
  • what management issues arise when performing
    these operations on a linked list?
  • note the use of the pointers to the current and
    previous nodes

12
Inserting a Node at the Front
13
Inserting a Node in the Middle
14
Deleting the First Node
15
Deleting an Interior Node
16
References As Links
  • recall that in Java, a reference variable stores
    the address of an object, i.e. a reference is a
    pointer to an object
  • a linked structure uses reference variables to
    link one object to another

17
An object reference variable pointing to an object
18
Linked List Implementation
  • in Java, a linked list is a list of node objects,
    each of which consists of two references
  • a reference to the data object
  • a reference to the next node
  • the head pointer is the reference to the linked
    list (i.e. to the first node in the linked list)
  • the last node has the null value as the reference
    to the next node

19
Linked List of Node Objects
20
Doubly Linked Lists
  • in a doubly linked list, each node has two links
  • a reference to the next node in the list
  • a reference to the previous node in the list
  • what is the advantage of a doubly linked list?
  • what is a disadvantage?

21
Doubly Linked List
22
Another Bag Implementation
  • we will now explore a linked implementation of a
    bag collection
  • it will implement the same interface (BagADT) as
    the array-based implementation only the
    underlying structure changes

23
The LinkedBag Class
  • the elements of the bag are stored in nodes of
    the linked list
  • variables needed
  • count a count of the current number of elements
    in the bag
  • contents a reference to the linked list (i.e. to
    its first node)
  • the nodes of the linked list are defined by the
    LinearNode class (why is this a good idea?)

24
The LinearNode Class
  • note that it is called LinearNode to avoid
    confusion with a different class that will define
    nodes for non-linear structures
  • see LinearNode.java
  • what are the attributes?
  • what do the constructors do?
  • what will the methods be used for?
  • can this class be used other than for the linked
    implementation of the Bag collection?

25
Linked Implementation of Bag Collection
26
The LinkedBag Class
  • note that it is called LinkedBag.java only to
    differentiate it for us from the array
    implementation, ArrayBag.java
  • how do we know what methods need to be in the
    LinkedBag class?

27
UML description of the LinkedBag class
28
LinkedBag Constructor
//------------------------------------------------
----------------- // Creates an empty
bag. //-------------------------------------------
---------------------- public LinkedBag()
count 0 contents null
29
The add Operation
//------------------------------------------------
----------------- // Adds the specified element
to the bag. //------------------------------------
----------------------------- public void add
(Object element) LinearNode node new
LinearNode (element) node.setNext(contents)
contents node count
30
The removeRandom Operation
//------------------------------------------------
----------------- // Removes a random element
from the bag and returns it. Throws // an
EmptyBagException if the bag is
empty. //-----------------------------------------
------------------------ public Object
removeRandom() throws EmptyBagException
LinearNode previous, current Object result
null if (isEmpty()) throw new
EmptyBagException() int choice
rand.nextInt(count) 1 if (choice 1)
result contents.getElement()
contents contents.getNext()
31
removeRandom contd
else previous contents for
(int skip2 skip lt choice skip)
previous previous.getNext() current
previous.getNext() result
current.getElement() previous.setNext(curre
nt.getNext()) count-- return
result
32
The remove Operation
//------------------------------------------------
----------------- // Removes one occurrence of
the specified element from the bag // and
returns it. Throws an EmptyBagException if the
bag is // empty and a NoSuchElemetnException if
the target is not in // the bag. //--------------
--------------------------------------------------
- public Object remove (Object target) throws
EmptyBagException,
NoSuchElementException boolean
found false LinearNode previous, current
Object result null if (isEmpty())
throw new EmptyBagException() if
(contents.getElement().equals(target))
result contents.getElement() contents
contents.getNext()
33
remove contd
else previous contents
current contents.getNext() for (int
look0 look lt count !found look)
if (current.getElement().equals(target)
found true else
previous current current
current.getNext() if (!found)
throw new NoSuchElementException()
result current.getElement()
previous.setNext(current.getNext())
count-- return result
34
The iterator Operation
//------------------------------------------------
----------------- // Returns an iterator for the
elements currently in this bag. //----------------
-------------------------------------------------
public Iterator iterator() return new
LinkedIterator (contents, count)
See LinkedIterator.java
35
Exercise
  • write the code for the operations
  • size
  • isEmpty
  • addAll
  • union
  • contains
  • equals
  • toString

36
Analysis of Linked Operations
  • adding an element to the bag
  • why were we able to always add a new element at
    the front of the linked list?
  • are the steps involved in adding a new element
    dependent on the number of elements in the bag?
  • so, the time complexity for adding an element is
    O(1)
  • removing a particular element is O(n) why?
  • removing a random element is O(n) why?

37
Array vs Linked List
  • have seen advantages of a linked list
  • any disadvantages?
