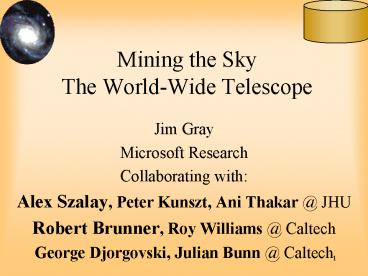

Mining the Sky The World-Wide Telescope

1
Mining the SkyThe World-Wide Telescope

• Jim Gray
• Microsoft Research
• Collaborating with
• Alex Szalay, Peter Kunszt, Ani Thakar _at_ JHU
• Robert Brunner, Roy Williams _at_ Caltech
• George Djorgovski, Julian Bunn _at_ Caltech

2
Outline

• The revolution in Computational Science
• The Virtual Observatory Concept
• World-Wide Telescope
• The Sloan Digital Sky Survey DB technology

3
Computational Science The Third Science Branch
is Evolving

• In the beginning science was empirical.
• Then theoretical branches evolved.
• Now, we have computational branches.
• Has primarily been simulation
• Growth area data analysis/visualizationof
  peta-scale instrument data.
• Analysis Visualization tools
• Help both simulation and instruments.
• Are primitive today.

4
Computational Science

• Traditional Empirical Science
• Scientist gathers data by direct observation
• Scientist analyzes data
• Computational Science
• Data captured by instrumentsOr data generated by
  simulator
• Processed by software
• Placed in a database / files
• Scientist analyzes database / files

5
Exploring Parameter SpaceManual or Automatic
Data Mining

• There is LOTS of data
• people cannot examine most of it.
• Need computers to do analysis.
• Manual or Automatic Exploration
• Manual person suggests hypothesis, computer
  checks hypothesis
• Automatic Computer suggests hypothesis person
  evaluates significance
• Given an arbitrary parameter space
• Data Clusters
• Points between Data Clusters
• Isolated Data Clusters
• Isolated Data Groups
• Holes in Data Clusters
• Isolated Points

Nichol et al. 2001 Slide courtesy of and adapted
fromRobert Brunner _at_ CalTech.
6
Challenge to Data Miners Rediscover Astronomy

• Astronomy needs deep understanding of physics.
• But, some was discovered as variable correlation
  then explained with physics.
• Famous example Hertzsprung-Russell Diagramstar
  luminosity vs color (temperature)
• Challenge 1 (the student test) How much of
  astronomy can data mining discover?
• Challenge 2 (the Turing test)Can data mining
  discover NEW correlations?

7
Whats needed?(not drawn to scale)
8
Data MiningScience vs Commerce

• Data in files FTP a local copy /subset.ASCII or
  Binary.
• Each scientist builds own analysis toolkit
• Analysis is tcl script of toolkit on local data.
• Some simple visualization tools x vs y

• Data in a database
• Standard reports for standard things.
• Report writers for non-standard things
• GUI tools to explore data.
• Decision trees
• Clustering
• Anomaly finders

9
Butsome science is hitting a wallFTP and GREP
are not adequate

• You can GREP 1 MB in a second
• You can GREP 1 GB in a minute
• You can GREP 1 TB in 2 days
• You can GREP 1 PB in 3 years.
• Oh!, and 1PB 10,000 disks
• At some point you need indices to limit
  search parallel data search and analysis
• This is where databases can help

• You can FTP 1 MB in 1 sec
• You can FTP 1 GB / min ( 1 /GB)
• 2 days and 1K
• 3 years and 1M

10
Why is Science Behind?

• Inertia
• Science started earlier (Fortran,)
• Science culture works (no big incentive to
  change)
• Energy
• Commerce is about profit better answers
  translate to better profits
• So companies to build tools.
• Impedance Mismatch
• Databases dont accommodate analysis packages
• Scientists analysis needs to be inside the dbms.

11
Goal Easy Data Publication Access

• Augment FTP with data query Return
  intelligent data subsets
• Make it easy to
• Publish Record structured data
• Find
• Find data anywhere in the network
• Get the subset you need
• Explore datasets interactively
• Realistic goal
• Make it as easy as publishing/reading web sites
  today.

12
Web Services The Key?
Your program
Web Server

• Web SERVER
• Given a url parameters
• Returns a web page (often dynamic)
• Web SERVICE
• Given a XML document (soap msg)
• Returns an XML document
• Tools make this look like an RPC.
• F(x,y,z) returns (u, v, w)
• Distributed objects for the web.
• naming, discovery, security,..
• Internet-scale distributed computing

http
Web page
Your program
Web Service
soap
Data In your address space
objectin xml
13
Data Federations of Web Services

• Massive datasets live near their owners
• Near the instruments software pipeline
• Near the applications
• Near data knowledge and curation
• Super Computer centers become Super Data Centers
• Each Archive publishes a web service
• Schema documents the data
• Methods on objects (queries)
• Scientists get personalized extracts
• Uniform access to multiple Archives
• A common global schema

Federation
14
Grid and Web Services Synergy

• I believe the Grid will have many web services
• IETF standards Provide
• Naming
• Authorization / Security / Privacy
• Distributed Objects
• Discovery, Definition, Invocation, Object Model
• Higher level services workflow, transactions,
  DB,..
• Synergy commercial Internet Grid tools

15
Outline

• The revolution in Computational Science
• The Virtual Observatory Concept
• World-Wide Telescope
• The Sloan Digital Sky Survey DB technology

16
Why Astronomy Data?

• It has no commercial value
• No privacy concerns
• Can freely share results with others
• Great for experimenting with algorithms
• It is real and well documented
• High-dimensional data (with confidence intervals)
• Spatial data
• Temporal data
• Many different instruments from many different
  places and many different times
• Federation is a goal
• The questions are interesting
• How did the universe form?
• There is a lot of it (petabytes)

17
Time and Spectral DimensionsThe Multiwavelength
Crab Nebulae
Crab star 1053 AD
X-ray, optical, infrared, and radio views of
the nearby Crab Nebula, which is now in a state
of chaotic expansion after a supernova explosion
first sighted in 1054 A.D. by Chinese Astronomers.
Slide courtesy of Robert Brunner _at_ CalTech.
18
Even in optical images are very different
Optical Near-Infrared Galaxy Image Mosaics
BJ RF IN J H K
One object in 6 different color bands
Slide courtesy of Robert Brunner _at_ CalTech.
19
Astronomy Data Growth

• In the old days astronomers took photos.
• Starting in the 1960s they began to digitize.
• New instruments are digital (100s of GB/nite)
• Detectors are following Moores law.
• Data avalanche double every 2 years

Total area of 3m telescopes in the world in m2,
total number of CCD pixels in megapixel, as a
function of time. Growth over 25 years is a
factor of 30 in glass, 3000 in pixels.
3 M telescopes area m2
Courtesy of Alex Szalay
CCD area mpixels
20
Universal Access to Astronomy Data

• Astronomers have a few Petabytes now.
• 1 pixel (byte) / sq arc second 4TB
• Multi-spectral, temporal, ? 1PB
• They mine it looking for new (kinds of) objects
  or more of interesting ones (quasars),
  density variations in 400-D space correlations
  in 400-D space
• Data doubles every 2 years.
• Data is public after 2 years.
• So, 50 of the data is public.
• Some have private access to 5 more data.
• So 50 vs 55 access for everyone

21
The Age of Mega-Surveys

• Large number of new surveys
• multi-TB in size, 100 million objects or more
• Data publication an integral part of the survey
• Software bill a major cost in the survey
• The next generation mega-surveys are different
• top-down design
• large sky coverage
• sound statistical plans
• well controlled/documented data processing
• Each survey has a publication plan
• Federating these archives
• ? Virtual Observatory

MACHO 2MASS DENIS SDSS PRIME DPOSS GSC-II COBE
MAP NVSS FIRST GALEX ROSAT OGLE ...
Slide courtesy of Alex Szalay, modified by Jim
22
Data Publishing and Access

• But..
• How do I get at that 50 of the data?
• Astronomers have culture of publishing.
• FITS files and many tools.http//fits.gsfc.nasa.g
  ov/fits_home.html
• Encouraged by NASA.
• FTP what you need.
• But, data details are hard to document.
  Astronomers want to do it but it is VERY
  hard.(What programs where used? What were the
  processing steps? How were errors treated?)
• And by the way, few astronomers have a spare
  petabyte of storage in their pocket.
• THESIS Challenging problems are publishing
  data providing good query visualization tools

23
Virtual Observatoryhttp//www.astro.caltech.edu/n
voconf/http//www.voforum.org/

• Premise Most data is (or could be online)
• So, the Internet is the worlds best telescope
• It has data on every part of the sky
• In every measured spectral band optical, x-ray,
  radio..
• As deep as the best instruments (2 years ago).
• It is up when you are up.The seeing is always
  great (no working at night, no clouds no moons
  no..).
• Its a smart telescope links objects and
  data to literature on them.

24
Demo of VirtualSky

• Roy Williams _at_ CaltechPalomar Data with links to
  NED.
• Shows multiple themes, shows link to other sites
  (NED, VizeR, Sinbad, )
• http//virtualsky.org/servlet/Page?T3S21P1X
  0Y0W4F1
• And
• NED _at_ http//nedwww.ipac.caltech.edu/index.html

25
Demo of Sky Server

• Alex Szalay of Johns Hopkins built SkyServer
  (based on TerraServer design).
• http//skyserver.sdss.org/

26
Virtual Observatory Challenges

• Size multi-Petabyte
• 40,000 square degrees is 2 Trillion pixels
• One band (at 1 sq arcsec) 4 Terabytes
• Multi-wavelength 10-100
  Terabytes
• Time dimension gtgt 10 Petabytes
• Need auto parallelism tools
• Unsolved MetaData problem
• Hard to publish data programs
• How to federate Archives
• Hard to find/understand data programs
• Current tools inadequate
• new analysis visualization tools
• Data Federation is problematic
• Transition to the new astronomy
• Sociological issues

27
Steps to Virtual Observatory Prototype

• Get SDSS and Palomar data online
• Alex Szalay, Jan Vandenberg, Ani Thacker.
• Roy Williams, Robert Brunner, Julian Bunn,
• Do local queries and crossID matches to expose
• Schema, Units,
• Dataset problems
• Typical use scenarios.
• Define a set of Astronomy Objects and methods.
• Based on UDDI, WSDL, SOAP.
• Started this with TerraService http//TerraService
  .net/ ideas.
• Working with Caltech (Brunner, Williams,
  Djorgovski, Bunn) and JHU (Szalay et al) on this
• Each archive is a web service
• Move crossID app to web-service base

28
Virtual Observatory and Education

• The Virtual Observatory can be used to
• Teach astronomy make it interactive,
  demonstrate ideas and phenomena
• Teach computational science skills

29
Outline

• The revolution in Computational Science
• The Virtual Observatory Concept
• World-Wide Telescope
• The Sloan Digital Sky Survey DB technology

30
Sloan Digital Sky Survey http//www.sdss.org/

• For the last 12 years a group of astronomers has
  been building a telescope (with funding from
  Sloan Foundation, NSF, and a dozen
  universities). 90M.
• Y2000 engineer, calibrate, commission now
  public data.
• 5 of the survey, 600 sq degrees, 15 M objects
  60GB, ½ TB raw.
• This data includes most of the known high z
  quasars.
• It has a lot of science left in it but.
• New the data is arriving
• 250GB/nite (20 nights per year) 5TB/y.
• 100 M stars, 100 M galaxies, 1 M spectra.
• http//www.sdss.org/ and http//www.sdss.jhu.edu/

31
Two kinds of SDSS data in an SQL DB(objects and
images all in DB)

• 15M Photo Objects 400 attributes

50K Spectra with 30 lines/ spectrum
32
Spatial Data Access SQL extension(Szalay,
Kunszt, Brunner) http//www.sdss.jhu.edu/htm

• Added Hierarchical Triangular Mesh (HTM)
  table-valued function for spatial joins.
• Every object has a 20-deep Mesh ID.
• Given a spatial definitionRoutine returns up to
  10 covering triangles.
• Spatial query is then up to 10 range queries.
• Very fast 10,000 triangles / second / cpu.

33
Data Loading

• JavaScript of DB loader (DTS)
• Web ops interface workflow system
• Data ingest and scrubbing is major effort
• Test data quality
• Chase down bugs / inconsistencies
• Other major task is data documentation
• Explain the data
• Explain the schema and functions.
• If we supported users,

34
Scenario Design

• Astronomers proposed 20 questions
• Typical of things they want to do
• Each would require a week of programming in tcl /
  C/ FTP
• Goal, make it easy to answer questions
• DB and tools design motivated by this goal
• Implementd utility prodecures
• JHU Built GUI for Linux clients

35
The 20 Queries

• Q11 Find all elliptical galaxies with spectra
  that have an anomalous emission line.
• Q12 Create a grided count of galaxies with u-ggt1
  and rlt21.5 over 60ltdeclinationlt70, and 200ltright
  ascensionlt210, on a grid of 2, and create a map
  of masks over the same grid.
• Q13 Create a count of galaxies for each of the
  HTM triangles which satisfy a certain color cut,
  like 0.7u-0.5g-0.2ilt1.25 rlt21.75, output it in
  a form adequate for visualization.
• Q14 Find stars with multiple measurements and
  have magnitude variations gt0.1. Scan for stars
  that have a secondary object (observed at a
  different time) and compare their magnitudes.
• Q15 Provide a list of moving objects consistent
  with an asteroid.
• Q16 Find all objects similar to the colors of a
  quasar at 5.5ltredshiftlt6.5.
• Q17 Find binary stars where at least one of them
  has the colors of a white dwarf.
• Q18 Find all objects within 30 arcseconds of one
  another that have very similar colors that is
  where the color ratios u-g, g-r, r-I are less
  than 0.05m.
• Q19 Find quasars with a broad absorption line in
  their spectra and at least one galaxy within 10
  arcseconds. Return both the quasars and the
  galaxies.
• Q20 For each galaxy in the BCG data set
  (brightest color galaxy), in 160ltright
  ascensionlt170, -25ltdeclinationlt35 count of
  galaxies within 30"of it that have a photoz
  within 0.05 of that galaxy.

• Q1 Find all galaxies without unsaturated pixels
  within 1' of a given point of ra75.327,
  dec21.023
• Q2 Find all galaxies with blue surface
  brightness between and 23 and 25 mag per square
  arcseconds, and -10ltsuper galactic latitude (sgb)
  lt10, and declination less than zero.
• Q3 Find all galaxies brighter than magnitude 22,
  where the local extinction is gt0.75.
• Q4 Find galaxies with an isophotal surface
  brightness (SB) larger than 24 in the red band,
  with an ellipticitygt0.5, and with the major axis
  of the ellipse having a declination of between
  30 and 60arc seconds.
• Q5 Find all galaxies with a deVaucouleours
  profile (r¼ falloff of intensity on disk) and the
  photometric colors consistent with an elliptical
  galaxy. The deVaucouleours profile
• Q6 Find galaxies that are blended with a star,
  output the deblended galaxy magnitudes.
• Q7 Provide a list of star-like objects that are
  1 rare.
• Q8 Find all objects with unclassified spectra.
• Q9 Find quasars with a line width gt2000 km/s and
  2.5ltredshiftlt2.7.
• Q10 Find galaxies with spectra that have an
  equivalent width in Ha gt40Å (Ha is the main
  hydrogen spectral line.)

Also some good queries at http//www.sdss.jhu.edu
/ScienceArchive/sxqt/sxQT/Example_Queries.html
36
An easy oneQ7 Provide a list of star-like
objects that are 1 rare.

• Found 14,681 buckets, first 140 buckets have
  99 time 62 seconds
• CPU bound 226 k records/second (2 cpu)
  250 KB/s.

Select cast((u-g) as int) as ug, cast((g-r) as
int) as gr, cast((r-i) as int) as ri,
cast((i-z) as int) as iz, count()
as Population from stars group by cast((u-g) as
int), cast((g-r) as int), cast((r-i) as int),
cast((i-z) as int) order by count()
37
An Easy OneQ15 Provide a list of moving objects
consistent with an asteroid.

• Sounds hard but there are 5 pictures of the
  object at 5 different times (color filters) and
  so can see velocity.
• Image pipeline computes velocity.
• Computing it from the 5 color x,y would also be
  fast
• Finds 1,303 objects in 3 minutes,
  140MBps. (could go 2x faster with more disks)

select objId, dbo.fGetUrlEq(ra,dec) as url
--return object ID url sqrt(power(rowv,2)powe
r(colv,2)) as velocity from photoObj --
check each object. where (power(rowv,2)
power(colv, 2)) -- square of velocity
between 50 and 1000 -- huge values error
38
Q15 Fast Moving Objects

• Find near earth asteroids

SELECT r.objID as rId, g.objId as gId,
dbo.fGetUrlEq(g.ra, g.dec) as url FROM PhotoObj
r, PhotoObj g WHERE r.run g.run and
r.camcolg.camcol and abs(g.field-r.field)lt2
-- nearby -- the red selection criteria and
((power(r.q_r,2) power(r.u_r,2)) gt 0.111111
) and r.fiberMag_r between 6 and 22 and
r.fiberMag_r lt r.fiberMag_g and r.fiberMag_r lt
r.fiberMag_i and r.parentID0 and r.fiberMag_r lt
r.fiberMag_u and r.fiberMag_r lt
r.fiberMag_z and r.isoA_r/r.isoB_r gt 1.5 and
r.isoA_rgt2.0 -- the green selection
criteria and ((power(g.q_g,2) power(g.u_g,2))
gt 0.111111 ) and g.fiberMag_g between 6 and 22
and g.fiberMag_g lt g.fiberMag_r and
g.fiberMag_g lt g.fiberMag_i and g.fiberMag_g lt
g.fiberMag_u and g.fiberMag_g lt g.fiberMag_z and
g.parentID0 and g.isoA_g/g.isoB_g gt 1.5 and
g.isoA_g gt 2.0 -- the matchup of the pair and
sqrt(power(r.cx -g.cx,2) power(r.cy-g.cy,2)power
(r.cz-g.cz,2))(10800/PI())lt 4.0 and
abs(r.fiberMag_r-g.fiberMag_g)lt 2.0
39
(No Transcript)
40
(No Transcript)
41
(No Transcript)
42
Performance (on current SDSS data)

• Run times on 15k COMPAQ Server (2 cpu, 1 GB ,
  8 disk)
• Some take 10 minutes
• Some take 1 minute
• Median 22 sec.
• Ghz processors are fast!
• (10 mips/IO, 200 ins/byte)
• 2.5 m rec/s/cpu

1000 IO/cpu sec 70 MB IO/cpu sec
43
Summary of Queries

• All have fairly short SQL programs -- a
  substantial advance over (tcl, C)
• Many are sequential one-pass and two-pass over
  data
• Covering indices make scans run fast
• Table valued functions are wonderful but
  limitations are painful.
• Counting, Binning, Histograms VERY common
• Spatial indices helpful,
• Materialized view (Neighbors) helpful.

44
Call to Action

• If you do data visualization we need you(and we
  know it).
• If you do databaseshere is some data you can
  practice on.
• If you do distributed systemshere is a
  federation you can practice on.
• If you do data mininghere are datasets to test
  your algorithms.
• If you do astronomy educational outreachhere is
  a tool for you.
• The astronomers are very good, and very smart,
  and a pleasure to work with, and the questions
  are cosmic, so

45

46
HTM and SQL

• Spatial spec in http//www.sdss.jhu.edu/htm/
• List of triangles out (about 10-20 range queries)
• Table valued function, then geometry rejects
  false positives

Use SkyServerV3 GO -- show an HTM
ID select dbo.fHTM_To_String(dbo.fHTM_Lookup('J200
0 20 185 0')) Go -- show triangles covering a
circle select dbo.fHTM_To_String(HTMIDstart) as
start, dbo.fHTM_To_String(HTMIDend) as stop from
dbo.fHTM_Cover('CIRCLE J2000 12 185 0 5 ')
GO -- Show the spatial join declare _at_shift
real set _at_shift CONVERT(int,POWER(4.,20-12))
-- 4 22 and 2 bits per htm level select
ObjID from PhotoObj as P, dbo.fHTM_Cover('CIR
CLE J2000 12 185 0 1 ') as C where P.htmID
between C.HTMIDstart_at_shift and
C.HTMIDend_at_shift GO -- show a user-level
function. select ObjID from dbo.fGetNearbyObjEq(18
5,0,1)
47
A Hard One Q14 Find stars with multiple
measurements that have magnitude variations
gt0.1.

• This should work, but SQL Server does not allow
  table values to be piped to table-valued
  functions.

• This should work, but SQL Server does not allow
  table values to be piped to table-valued
  functions.

48
A Hard one Second TryQ14 Find stars with
multiple measurements that have magnitude
variations gt0.1.

• Write a program with a cursor, ran for 2 days

--------------------------------------------------
----------------------------- -- Table-valued
function that returns the binary stars within a
certain radius -- of another (in arc-minutes)
(typically 5 arc seconds). -- Returns the ID
pairs and the distance between them (in
arcseconds). create function BinaryStars(_at_MaxDista
nceArcMins float) returns _at_BinaryCandidatesTable
table( S1_object_ID bigint not null, -- Star
1 S2_object_ID bigint not null, -- Star
2 distance_arcSec float) -- distance between
them as begin declare _at_star_ID bigint,
_at_binary_ID bigint-- Star's ID and binary ID
declare _at_ra float, _at_dec float -- Star's
position declare _at_u float, _at_g float, _at_r float,
_at_i float,_at_z float -- Star's colors
----------------Open a cursor over stars and get
position and colors declare star_cursor cursor
for select object_ID, ra, dec, u, g, r, i,
z from Stars open star_cursor   while
(11) -- for each star begin -- get its
attribues fetch next from star_cursor into
_at_star_ID, _at_ra, _at_dec, _at_u, _at_g, _at_r, _at_i, _at_z if
(_at__at_fetch_status -1) break -- end if no more
stars insert into _at_BinaryCandidatesTable --
insert its binaries select _at_star_ID,
S1.object_ID, -- return stars pairs
sqrt(N.DotProd)/PI()10800 -- and distance in
arc-seconds from getNearbyObjEq(_at_ra, _at_dec,
-- Find objects nearby S. _at_MaxDistanceArcMins)
as N, -- call them N. Stars as S1 --
S1 gets N's color values where _at_star_ID lt
N.Object_ID -- S1 different from S and
N.objType dbo.PhotoType('Star') -- S1 is a
star and N.object_ID S1.object_ID -- join
stars to get colors of S1N and
(abs(_at_u-S1.u) gt 0.1 -- one of the colors is
different. or abs(_at_g-S1.g) gt 0.1 or
abs(_at_r-S1.r) gt 0.1 or abs(_at_i-S1.i) gt 0.1
or abs(_at_z-S1.z) gt 0.1 ) end -- end
of loop over all stars -------------- Looped
over all stars, close cursor and exit. close
star_cursor -- deallocate star_cursor
return -- return table end -- end of
BinaryStars GO select from dbo.BinaryStars(.05)
49
A Hard one Third TryQ14 Find stars with
multiple measurements that have magnitude
variations gt0.1.

• Use pre-computed neighbors table.
• Ran in 2 minutes, found 48k pairs.

-- Plan 2 Use
the precomputed neighbors table select top 100
S.object_ID, S1.object_ID, -- return star pairs
and distance str(N.Distance_mins 60,6,1) as
DistArcSec from Star S, -- S is a
star Neighbors N, -- N within 3 arcsec (10
pixels) of S. Star S1 -- S1 N has the
color attibutes where S.Object_ID
N.Object_ID -- connect S and N. and
S.Object_ID lt N.Neighbor_Object_ID -- S1
different from S and N.Neighbor_objType
dbo.fPhotoType('Star')-- S1 is a star (an
optimization) and N.Distance_mins lt .05 --
the 3 arcsecond test and N.Neighbor_object_ID
S1.Object_ID -- N S1 and (
abs(S.u-S1.u) gt 0.1 -- one of the colors is
different. or abs(S.g-S1.g) gt 0.1 or
abs(S.r-S1.r) gt 0.1 or abs(S.i-S1.i) gt 0.1 or
abs(S.z-S1.z) gt 0.1 ) -- Found 48,425 pairs
(out of 4.4 m stars) in 121 sec.
50
The Pain of Going Outside SQL(its fortunate that
all the queries are single statements)

• Use a cursor
• No cpu parallelism
• CPU bound
• 6 MBps, 2.7 k rps
• 5,450 seconds (10x slower)

• Count parent objects
• 503 seconds for 14.7 M objects in 33.3 GB
• 66 MBps
• IO bound (30 of one cpu)
• 100 k records/cpu sec

declare _at_count int declare _at_sum int set _at_sum
0 declare PhotoCursor cursor for select nChild
from sxPhotoObj open PhotoCursor while (11)
begin fetch next from PhotoCursor into
_at_count if (_at__at_fetch_status -1) break set
_at_sum _at_sum _at_count end close
PhotoCursor deallocate PhotoCursor print 'Sum
is 'cast(_at_sum as varchar(12))
select count() from sxPhotoObj where nChild
gt 0
51
Reflections on the 20 Queries

• Data loading/scrubbing is labor intensive
  tedious
• AUTOMATE!!!
• This is 5 of the data, and some queries take 10
  minutes.
• But this is not tuned (disk bound).
• All queries benefit from parallelism (both disk
  and cpu)(if you can state the query inside SQL).
• Parallel database machines will do well on this
• Hash machines
• Data pumps
• See paper in word or pdf on my web site.
• Conclusion SQL answered the questions.Once you
  get the answers, you need visualization

52
Astronomy Data Characteristics

• Lots of it (petabytes)
• Hundreds of dimensions per object
• Cross-correlation is challenging because
• Multi-resolution
• Time varying
• Data is dirty (cosmic rays, airplanes)

53
SkyServer as a WebServerWSDLSOAPjust add
details ?

• Archive ss new VOService(SkyServer)
• Attributes A ss.GetObjects(ra,dec,radius)
• ?? What are the objects (attributes)?
• ?? What are the methods (GetObjects()...)?
• ?? Is the query language SQL or Xquery or what?

54
SDSS what I have been doing

• Work with Alex Szalay, Don Slutz, and others to
  define 20 canonical queries and 10 visualization
  tasks.
• Working with Alex Szalay on building Sky Server
  and making data it public (send out 80GB
  SQL DBs)

55
What Next?(after the data online, after the web
servers)

• How to federate the Archives to make a VO?
• Send XML a non-answer equivalent to send
  Unicode
• Bytes is the wrong abstractionPublish Methods
  on Objects.

56
Survey Cross-Identification

• Billions of Sources
• High Source Densities
• Multi-Wavelength Radio to g-Ray
• All Sky - Thousands of Sq. Degrees
• Computational Challenge
• Probabilistic Associations
• Optimized Likelihood Ratios
• A Priori Astrophysical Knowledge Important
• Secondary Parameters
• Temporal Variability
• Dynamic Static Associations
• User-Defined Cross-Identification Algorithms

Optical-Infrared-Radio Quasar-Environment Survey
Radio Survey Cross-Identification Steep Spectrum
Sources
Optical-Infrared-X-Ray Serendipitous Chandra
Identification
Slide courtesy of Robert Brunner _at_ CalTech.
57
Data Federation A Computational Challenge

• 2MASS vs. DPOSS Cross-identification
• 2MASS J lt 15
• DPOSS IN lt 18
