Transport Layer

1

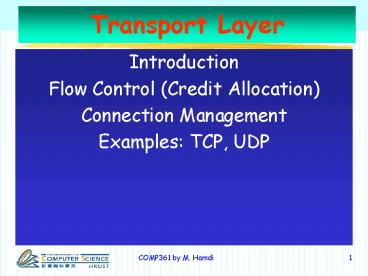

Transport Layer

• Introduction
• Flow Control (Credit Allocation)
• Connection Management
• Examples TCP, UDP

2
Orientation

• Transport layer protocols are end-to-end
  protocols
• Transport layer is only implemented at the hosts

3
Transport Layer Is ETE
4
Transport Layer Overview

• Provides a collection of services
• Reliable/ unreliable, connection-oriented/connecti
  onless service
• Multiplexing and Demultiplexing
• Flow control and congestion control
• There can be more than one Transport Layer
  Protocol in a network (eg TCP , UDP , others on
  the Internet) not so for Network Layer protocols

5
Transport Layer Overview (Cont.)

• TCP provides connection-oriented reliable
  transport, multiplexing and Demultiplexing, flow
  and congestion control
• UDP provides connectionless unreliable (datagram)
  service, and multiplexing and Demultiplexing
• TCP provide Byte Stream service

6
Transport services and protocols

• provide logical communication between app
  processes running on different hosts
• transport protocols run in end systems
• transport vs network layer services
• network layer data transfer between end systems
• transport layer data transfer between processes
• relies on, enhances, network layer services

7
Transport-layer protocols

• Internet transport services
• reliable, in-order unicast delivery (TCP)
• congestion
• flow control
• connection setup
• unreliable (best-effort), unordered unicast or
  multicast delivery UDP
• services not available
• real-time
• bandwidth guarantees
• reliable multicast

8
Protocol Mechanisms

• Addressing
• Multiplexing
• Flow Control
• Error Control
• Connection Management
• Note The mechanisms needed to implement a
  transport service are largely dependent on the
  existing network layer service

9
Addressing

• An address at the transport layer is typically a
  tuple (Station, Port) where
• Station is the network address of the host, and
• Port identifies the application
• Recall The ltIP address, port numbergt tuples that
  you use in the COMP361 LAB are in fact transport
  layer addresses

10
TCP Connections

• A transport connection is identified by 4
  quantities
• Client and server processes Port numbers
• Client and server machines IP addresses
• Port numbers space is divided into two subspaces

• Well Known Port numbers 0 - 1023 (restricted)
• Other numbers to be assigned locally by a host
  1024 - 65535 (unrestricted)
• Server processes for popular applications are
  permanently assigned well known Port numbers
  Other processes (client, and unknown server
  applications) are assigned numbers on-demand from
  the unrestricted pool of Port numbers

11
IP Address
Every computer on the Internet must have a unique
address Each IP address is associated with a
specific network for routing purposes
12
Subnets
132.170.120.xxx
132.170.xxx.xxx
132.170.108.xxx
132.170.240.xxx
13
Socket
Both the sender and receiver are given unique
endpoint identifiers called sockets (combination
of IP address and port) A socket of a node
represents an endpoint of a TCP connection at
that node.
14
Facts about Ethernet
Ethernet does not know how to route a packet Each
computer has an Ethernet address (i.e., the NIC
serial number) - 00-15-A4-B9-1D-AB ARP (Address
Resolution Protocol) to convert from an IP
address to Ethernet address No centralized node
maintaining the list of Ethernet addresses
15
How to know who is the receiver?
Want to send an IP packet to 132.170.108.5
16
How to get an IP address from an Ethernet address
17
TCP segment format
18
Application Multiplexing
19
Multiplexing/demultiplexing

• Recall segment - unit of data exchanged between
  transport layer entities
• aka TPDU transport protocol data unit

Demultiplexing delivering received segments
(TPDUs)to correct app layer processes
receiver
P3
P4
application-layer data
segment header
P1
P2
segment
H
t
M
segment
20
Multiplexing/demultiplexing
gathering data from multiple app processes,
enveloping data with header (later used for
demultiplexing)
32 bits
source port
dest port

• multiplexing/demultiplexing
• based on sender, receiver port numbers, IP
  addresses
• source, dest port s in each segment
• recall well-known port numbers for specific
  applications

other header fields
application data (message)
TCP/UDP segment format
21
Multiplexing/demultiplexing examples
WWW client host C
server B
host A
port use simple telnet app
WWW server B
WWW client host A
port use WWW server
22
Flow Control

• Why do we need flow control at the transport
  layer?
• The user of receiving transport entity cannot
  keep up with the data flow.
• Receiving transport entity itself cannot keep up
  with flow of incoming packet.
• Result Buffer overflows in the receiving
  transport entity.

23
Need for Flow Control
24
Flow Control at the Transport Layer

• Flow Control at the transport layer is more
  complex than flow control at the data link layer
• Delays are variable and are longer difficult to
  use timeouts effectively
• Flow control involves the transport users, the
  transport entities, and the network service

25
Approaches to Flow Control

• Do Nothing
• TPDUs that overflow the buffer are discarded
• Refuse to accept TPDUs from the network layer
• Requires a backpressure mechanism that pushes
  flow control to the network layer
• (Fixed) Sliding-window Protocol
• Our well known sliding window scheme
• But
• Withholding acknowledgments in an unreliable
  network results in retransmission
• Sliding window flow control not effective
• Works well on reliable network
• Failure to receive ACK is taken as flow control
  indication

26
Credit Allocation Flow Control

• Credit Allocation Flow Control is an extension of
  the sliding window flow control.
• Main Idea
• Enhance the sliding window protocol by a
  mechanism that decouples acknowledgments from
  flow control.
• Then
• Packets can be acknowledged without granting
  permission for new transmissions
• Used in many existing transport protocols,
  including TCP

27
Credit Allocation Flow Control

• Initialization during connection setup
• Set initial window size of receiver
• Receiver both acknowledges TPDUs and grants
  credit by sending a message (ACK N, CREDIT M)
• ACK N Acknowledges all sequence numbers through
  N-1
• CREDIT M Sets the number of credits to M
• Credit is the maximum window size (buffer space
  at the receiver)

28
Example

• Initial Setting Credit 7

29
Example
30
TCP/UPD Protocols
31
TCP Feature Summary
Provides a completely reliable (no data
duplication or loss), connection-oriented,
full-duplex stream transport service that allows
two application programs to form a connection,
send data in either direction and then terminate
the connection.
32
Relationship Between TCP and Other Protocols

• TCP on one computer uses IP to communicate with
  TCP on another computer

33
TCP Overview

• full duplex data
• bi-directional data flow in same connection
• MSS maximum segment size
• connection-oriented
• handshaking (exchange of control msgs) inits
  sender, receiver state before data exchange
• flow controlled
• sender will not overwhelm receiver

• point-to-point
• one sender, one receiver
• reliable, in-order byte steam
• no message boundaries
• pipelined
• TCP congestion and flow control set window size
• send receive buffers

34
Achieving Reliability

• Reliable connection setup
• Reliable data transmission
• Reliable connection shutdown

35
Reliable Data Transmission

• Positive Acknowledgement
• Receiver returns short message when data arrives
• Called an acknowledgement
• Retransmission
• Sender starts timer whenever message is
  transmitted
• If timer expires before acknowledgement arrives,
  sender retransmits message
• Weve seen this before!

36
Retransmission Illustrated
37
Error Control at the Transport Layer

• Basic techniques for error recovery are the same
  as at the Data Link Layer
• Lost or damaged TPDUs are recovered with one of
  the ARQ retransmission schemes
• Mostly Go-back-N, Selective Repeat.
• Problem The end-to-end delay of TPDUs is
  variable. This makes it difficult to set the
  timeout values.
• Small timeout value unnecessary retransmissions.
• Large timeout value low throughput.
• Most transport protocols have adaptive timers

38
How Long Should TCP Wait Before Retransmitting?

• Time for ACK to arrive depends on
• Distance to destination
• Current traffic conditions
• Multiple connections can be open simultaneously
• Traffic conditions change rapidly

39
Important Point
The delay required for data to reach a
destination and an acknowledgement to return
depends on traffic in the Internet as well as the
distance to the destination. Since it allows
multiple application programs to communicate with
multiple destinations concurrently, TCP must
handle a variety of delays that can change
rapidly.
40
Solving the Retransmission Problem

• Keep estimate of round trip time on each
  connection
• Use current estimate to set retransmission timer
• Known as adaptive retransmission
• Key to TCPs success

41
Adaptive Retransmission

• Timeout depends on current round-trip estimate

42
Round-Trip Time Measurements

• The retransmission mechanism of TCP is adaptive
• The retransmission timers are set based on
  round-trip time (RTT) measurements that TCP
  performs

• The RTT is based on time difference between
  segment transmission and receipt of ACK
• But
• TCP does not ACK each segment
• Each connection has only one timer

43
Round-Trip Time Measurements

• Retransmission timer is set to a Retransmission
  Timeout (RTO) value
• RTO is calculated based on the RTT measurements
• The RTT measurements are smoothed by the
  following estimators srtt and rttvar
• srtt_n1 a RTT (1-a)srtt_n
• rttvar_n1 b( RTT - srtt_n1 )
  (1-b)rttvar_n
• RTO_n1 srtt_n1 4rttvar_n1
• Typical values a 1/4 and b 1/8

44
Karn's Algorithm (used in most current TCP
implementations)

• If an ACK for a retransmitted segment is
  received, the sender cannot tell if the ACK
  belongs to the original or the retransmission.

• Karn' Algorithm
• Don't update srtt on any segments that have been
  retransmitted.
• Each time when TCP retransmits, it sets
• RTO_n1 max ( 2RTO_n, 64) (exponential backoff)

45
RTO Calculation Example

• t1 RTO srtt 2rttvar 6 sec
• t2 RTO 2 (srtt 4rttvar) 24 sec
  (exponential backoff)
• t4 RTO is not updated (Due to Karn's algorithm)
