US CM EMU - FNAL Site

1

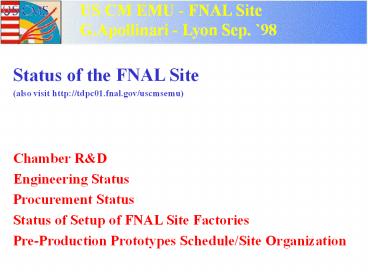

US CM EMU - FNAL Site G.Apollinari - Lyon Sep.
98
Status of the FNAL Site (also visit
http//tdpc01.fnal.gov/uscmsemu) Chamber RD
Engineering Status Procurement Status Status of
Setup of FNAL Site Factories Pre-Production
Prototypes Schedule/Site Organization
2
Chambers RD

• Chamber Assembly
• Need
• Evaluation of flatness
• Plane Gap Uniformity (/- 12 mils)
• Dry Assembly of M234/2 Pro-production Prototype
• Test of Assembly Table
• Chamber Deflection in Horizontal Vertical
  Position
• Effects on Plascore Specifications
• Wire Quality
• Luma vs. Sylvania just started, presentation on
  D0 gold flaking problem
• Panel Cleaning
• Machine Needs in progress

3
Chambers RD

• Panels Measurements
• Panels flat of a 5x10 granite table under their
  own weight
• Measured bowing in the y (acceptable) and x
  (un-acceptable) directions

4
Chambers RD

• Chamber Sagging
• Final Assembly
• bottom panel straight (5 mils)
• top panel sags (70 mils)

5
Chambers RD

• Chamber Sagging
• Buttons-Gap Bars difference

374 mils
Still 30 mils unexplained
6
Chambers RD

• Panels Deformation
• We believe the PLASCORE panels we are working
  with have a 1/32 (20-30 mils) bow in the 5
  direction
• String Measurements on free standing panels.
• Laser Tracker measurements on granite table (see
  slide)
• Under gravity, for a single panel sitting on the
  gap bars
• Q Which kind of force is a sagging panel
  exerting on the next lower panel through the
  button ?

Sag (0 mils)
Sag (40 mils)
7
Chambers RD

• Panels Deformation
• Measured the displacement vs. force for a panel
  surface by pulling or pushing close to the button
  hole location (for both orientations of a panel).

• For small displacements 1 lb./1 mil
  elastically
• Q Which kind of deformation do we have close to
  a button hole for forces of the order of
  10-20 lb. ?
• Instron Measurements at TD Material Lab

8
Chambers RD

• Grooves Depth
• Issue
• Avoid skips during the machining of the panels
• Grooves of different depths are exposing
  approximately the same amount of G10 fibers
• Panels with grooves of different depths have the
  same mechanical strength.

9
Engineering Status

• Work in Progress
• Tooling
• Finalization of Carts Drawings and Assembly Tools
• Gerber and Axxion transport cart
• In-process Panel Trans. Solder
• Chamber assembly Table
• Chamber Transport and RTV Gas Sealing Cart
• Tooling Design for Plascore QA/QC
• PLASCORE had no in-process QA capability
• Release for Procurement of the Cosmic Test Stand
• FNAL FAST Sites

10
Engineering Status

• Work in Progress
• Chambers
• M234/2 Drawings Check
• Completed by V. Razmyslovich
• Check and finalize Engineering Drawings
  generate Bills of Material
• Started Activity on IHEP. PNPI drawings expected
  by mid Oct. 98

11
Engineering Status

• Goal
• Engineering Drawings completed and released for
  ME234/2 by Dec. 98
• Plan
• Receive Wisconsin frames drawings by end Sep. 98
• Integrate Chamber Frames in Oct. 98
• Ready to proceed for the release pending approval
  by L2.
• Estimate 2-3 weeks for implementation of
  engineering changes
• November EDR
• Presentation of the current status, including all
  the information provided to FNAL

12
Procurement Status

• Major/Critical Procurements
• PLASCORE Panels
• Requirements and Specifications Understood..
• Available Panels
• Fail our specs in a single panel measurements
  on a granite table.
• Sagging problems in gap bars constrained
  configuration prevented us from measuring a 10
  mils bowing over 2 feet.
• the Receive Wisconsin frames drawings by end Sep.
  98
• Visit to PLASCORE (Aug. 98)
• PLASCORE has no tooling for QC. FNAL will provide
  it ( Sep. 98)
• PLASCORE identified 3 areas of possible
  improvements
• Core Cutting on 5 feet wide table
• Core Thickness measurement
• Control of the area of pressure on the Gluing
  Press
• Will order 14 panels with the above-mentioned
  improvements

13
Procurement Status

• Major/Critical Procurements
• Wire
• Specification writing based on D0 experience.
• RD on 1-2 Gold-Tg SYLVANIA wires.
• RD of flaking gold ? Which QC/QA does LUMA apply
  ?
• Good QA Plane needed.
• Panel Cleaning Machine
• Impossible to do RD on final chamber
• Will make systematic measurements on interstrip
  resistance and water retention on sample panels.

14
Pre-Production Schedule

• Pre-production Milestones
• ME234/2 pre-production chamber ready Nov. 16
  98
• ME2/1 pre-production chamber ready Dec. 8
  98
• All pre-production chambers produced at MP9, with
  the final tooling and training the final assembly
  crew.

15
Pre-Production Schedule
Example of List of Tasks (from schedule) for the
Winder Setup

• Thursday September 3, 1998
• Curtis Donner reassembles the electrical control
  of the winding machine.
• Friday September 4, 1998
• John Korienek Jon Blomquist setup the winding
  machine.
• 50 (bad) mm wire in Jons possession
• Oleg Prokofiev/Evgueni Borissov mount a panel for
  the test
• Karen Kephart sets up the N2 pressure needed for
  the winding machine
• Monday September 7, 1998
• Jon Blomquist winds a test panel
• Oleg Prokofiev/Glenn Smith eye-witness the
  procedure
• Week September 7-11, 1998
• Glenn Smith transfers all the panels the to MP9
• Glenn Smith transfers the Winding Machine to MP9
• Week September 14-16, 1998
• Glenn Smith, Evgeni Borissov, Kurtis Donner and
  Jon Blomquist setup the winding machine in MP9.
• Sherry Harrold and Oleg Prokofiev wind a panel
  with bad wire, for a tension measurement by the
  Purdue people.

16
Site Organization

• Team Organization
• TD/PPD Agreement
• essential for
• tooling support
• tooling engineering for foreign sites
• Lab8, Lab 7 (PPD) and MP9(TD) interactions
• Organization Structure

17
Setup of FNAL Site Factories
Production Flow

• FNAL Sub-sites
• Lab 8
• Gerber and Axxion Cutting
• MP9
• Chamber Assembly
• Kit Preparation
• Lab 7
• Cosmic Testing
• Chamber Repair
• Storage
• Need to be worked out

18
Setup of FNAL Site Factories

• Lab 8
• Axxion Machine
• Head Alignment problems (PPD)
• Gerber Machine
• Floor Plan Available
• No Panel Cleaning Machine in Lab 8 (for now !)
• Panel Handling Tooling(Deering)
• Purpose
• Great Lakes (FNAL demo)
• Anver ( being contacted)
• Plans and Discussions
• Vendor and scheme choice by end-September
• PPD-TD Cost Sharing (i.e. Tooling vs. Building
  Modifications)

19
Setup of FNAL Site Factories

• MP9
• 20 of the building available to CMS-EMU
• All major mfg. tooling delivered to MP9 (winder
  excluded).
• Tooling setup in progress
• Clamping Table Oct. 98
• Gluing Table
• to be assembled fixed
• Solder Machine ready
• Wire Gluing Machine ready
• Ionized Cleaner ready
• Tension Measurement ready
• Clean Area ready

20
Setup of FNAL Site Factories

• MP9

Wire Tension and Position Measurement
Soldering Machine
21

• MP9

Clamping and Gluing Tables
Clean Area
22
Setup of FNAL Site Factories

• MP9
• Pictures actually taken in Lab 6

Winding Machine operational and ready to be
moved
23
Setup of FNAL Site Factories

• Lab 7
• Setup of Cosmic Test Stand
• space clearing
• floor modification
• space allocation
• Drawings Ready
• procurement for FNAL
• cost estimate for FAST sites
• Assembly by end-Oct.

24
Setup of FNAL Site Factories
Cosmic Stand Setup (FAST Sites)
25
Lyon Issues

• Chamber Production
• Start Chamber production after electronics
  finalization.
• P4 ready for Summer 99, chamber production
  starting on Fall 99.
• Engineering - FNAL Responsibilities
• Project Engineering definition of
  responsibilities between FNAL (production) and
  Wisconsin (Integration).
• FNAL responsibilities for Foreign Sites.
• EDR
• Formal Reviewing ending with green light for
  production.
• Wisconsin (Integration) organize preparation for
  EDR.
