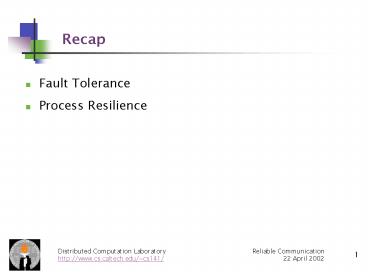

Recap

1
Recap

• Fault Tolerance
• Process Resilience

2
Today

• Reliable Client-Server Communication
• Reliable Group Communication

3
Reliable Communication

• There are multiple types of communication
  failure
• Crashes - the communication channel breaks in
  some way
• Omission - messages are dropped
• Timing - messages arrive too slowly (or too
  quickly)
• Arbitrary - messages are duplicated, corrupted,
  etc.
• Two primary types of communication
• Point-to-Point
• RPC

4
Point-to-Point Communication

• Reliable point-to-point communication is
  typically in the form of TCP sockets
• Omission failures are masked using a system of
  acknowledgements and retransmissions
• Arbitrary failures are masked using packet
  numbering and the reliability of the underlying
  Internet Protocol
• Crash failures and timing failures cannot always
  be masked - the way to get reliability in the
  face of crash failures is to have the system
  automatically re-establish broken connections

5
Remote Procedure Calls

• The goal of RPC is to hide communication, by
  making remote calls look local
• As long as the client and server are functioning
  perfectly, and the network is reasonably speedy,
  it does a good job
• When errors occur in communication, the
  differences between local and remote calls arent
  always easy to mask

6
Remote Procedure Calls

• Five main classes of failure can occur in RPC
  systems
• The client is unable to locate the server
• The request message from the client to the server
  is lost
• The server crashes after receiving a request
• The reply message from the server to the client
  is lost
• The client crashes after sending a request
• Each of these has its own set of problems

7
Remote Procedure CallsClient Cannot Locate the
Server

• This can happen if the server is down, or if the
  server has been changed since the client was
  built (so the interface isnt compatible anymore)
• One solution is to raise an exception on the
  client side that must be dealt with by an
  exception handler
• Drawbacks not every language has exceptions, and
  this destroys the transparency
• We pretty much cant maintain transparency in
  this case

8
Remote Procedure CallsLost Request Messages

• This can happen for many reasons, and is the
  easiest failure to deal with
• We have the client (or OS) start a timer when
  sending the request, and if theres no reply
  before the timer runs out, we send the request
  again
• If the message was really lost, everythings OK
  because the server never saw the first one
• If the message wasnt lost, as long as the server
  can detect that its a duplicate everything is
  still OK
• Its possible for the client to incorrectly
  conclude that the server is down, which isnt
  good, but cant be avoided

9
Remote Procedure CallsServer Crashes

• There are multiple places where the server can
  crash, all of which look the same to the client
  (it doesnt get a reply)

10
Remote Procedure CallsServer Crashes

• There are three schools of thought on what the
  RPC system should do in these scenarios
• Keep trying until a reply has been received (on
  the assumption that the server will restart
  eventually), then return that reply to the client
  - at least once semantics, guarantees the call
  was executed one or more times
• Give up immediately and report the failure - at
  most once semantics, guarantees the call was
  executed one time or not at all
• Dont guarantee anything (very easy to implement)

11
Remote Procedure CallsServer Crashes

• None of those options are what we really want -
  we really want exactly once semantics, but
  unfortunately, we cant have it
• No matter what strategy is used by the client to
  reissue unanswered requests, or by the server to
  send completion messages, duplicate executions
  (or no execution) can result

12
Remote Procedure CallsLost Reply Messages

• One solution to lost reply messages is to just
  rely on a timer again, just like lost request
  messages
• The problem is, this may cause problems if the
  request is not idempotent (executing it more than
  once has the same effect as executing it once)
• We can structure many calls idempotently, but
  with some it simply isnt possible

13
Remote Procedure CallsLost Reply Messages

• One solution is to use sequence numbering, or
  some other scheme, to let the server detect
  duplicates
• However, it still has to respond to the requests
  and track the sequence numbers, and this might
  substantially increase the processing overhead on
  the server
• Another solution is to have a bit in the message
  header that distinguishes originals from
  duplicates - originals can always be processed
  safely (this doesnt help too much though)

14
Remote Procedure CallsClient Crashes

• A client can send a request to a server, but then
  crash before it receives the response - this
  leaves an orphan computation running on the
  server
• Orphans can cause problems such as wasting CPU
  cycles, locking files, or otherwise using
  resources - also, if the client resends the
  request and receives a response from the orphan,
  chaos can ensue
• Nelson (1981) proposed four solutions to the
  problem of orphans

15
Remote Procedure CallsClient Crashes

• Extermination
• The client stub logs all RPC transmissions to
  disk, and explicitly cancels any that were in
  progress before a crash when the machine comes
  back up
• Disadvantages of this approach
• Its expensive to keep a log
• The orphans themselves may make RPC calls that
  are difficult to cancel
• Its possible that the network will be
  partitioned in a way such that the cancellation
  doesnt make it to the server

16
Remote Procedure CallsClient Crashes

• Reincarnation
• Time is divided into sequentially-numbered
  epochs, and the epoch number is incremented on
  every reboot
• When a client boots, it broadcasts its epoch
  number to all machines, and they cancel any RPCs
  that have an old epoch number
• Disadvantages of this approach
• It requires a broadcast to the entire network
• If the network is partitioned, some orphans may
  survive (though they can be detected once they
  communicate)

17
Remote Procedure CallsClient Crashes

• Gentle Reincarnation
• Like reincarnation, but less draconian
• When an epoch broadcast comes in, each machine
  kills only those computations for which it cannot
  locate the owner on the network
• This mainly addresses the possible situation
  where a false epoch message is received from some
  faulty (or malicious) process on the network

18
Remote Procedure CallsClient Crashes

• Expiration
• Each RPC is given a quantum of time T to run to
  completion, and must explicitly ask for another
  quantum if it cant finish
• After a crash a client has to wait for at least
  one quantum to pass before going back online, and
  all its orphans will have disappeared
• The main problem with this method is deciding
  what a reasonable value for T is, balancing the
  need to clean up orphans quickly with the
  communication overhead that can result

19
Remote Procedure CallsClient Crashes

• In practice, none of these solutions are
  particularly desirable
• Killing an orphan may also have unforeseen
  consequences, such as database corruption or
  files staying locked forever
• An orphan may have taken various actions, such as
  setting timers to start other processes at future
  times, which make removing all traces of it from
  the system impossible

20
Reliable Group Communication

• Because process resilience by replication is so
  important, reliable multicast services are
  important as well
• It turns out to be rather difficult to multicast
  reliably - some of the difficulty lies in
  defining exactly what reliably means in terms
  of multicast communication
• We distinguish between reliable multicast in the
  presence of faulty processes and reliable
  multicast when processes are assumed to operate
  correctly

21
Reliable Multicast

• If there are faulty processes, multicasting is
  considered reliable if it is guaranteed that all
  non-faulty group members receive the messages
• However, agreement needs to be reached on what
  the group looks like before messages can be
  delivered
• If there are no faulty processes, and the group
  membership doesnt change during communication,
  multicasting is considered reliable if every
  message is delivered to every group member - we
  get agreement for free

22
Reliable Multicast Implementations

• Its (relatively) easy to implement reliable
  multicast with non-faulty processes, if we dont
  require messages to be delivered in the same
  order to all group members
• Unfortunately, the easy solution isnt scalable
  to large groups
• There are harder solutions that are scalable to
  large groups, of which we will discuss two
  categories

23
The Easy Reliable MulticastImplementation
24
Scalability of the Easy Reliable Multicast
Implementation

• If there are N receivers, the sender has to
  accept at least N acknowledgements - feedback
  implosion
• One solution is to only have receivers send
  negative acknowledgements - when they receive a
  message and detect theyve missed one, they ask
  for the one they missed
• In theory, sender has to keep all messages
  forever
• This still isnt guaranteed to prevent feedback
  implosions
• We need more sophisticated solutions

25
Nonhierarchical Feedback Control

• The goal is to reduce the number of feedback
  messages - we use a technique called feedback
  suppression
• This technique underlies the Scalable Reliable
  Multicasting (SRM) protocol, Floyd et al. 1997
• Receivers never acknowledge the successful
  delivery of a message
• Negative acknowledgements are multicast, not sent
  just to the message sender

26
Nonhierarchical Feedback Control

• This allows other receivers that missed the same
  message to suppress their feedback, because the
  replacement message will be multicast when the
  original sender gets one negative acknowledgement
• The negative acknowledgements are scheduled with
  random delays, to prevent feedback implosions

27
Nonhierarchical Feedback Control

• Drawbacks
• Feedback messages must be scheduled accurately to
  prevent feedback implosion
• Receivers that received a message are forced to
  receive it again if other receivers missed it

28
Nonhierarchical Feedback Control

• One workaround is to let receivers that didnt
  get a particular message m join a separate
  multicast group for m - but this requires very
  efficient group management
• Receivers can assist in recovery to increase
  scalability - if a receiver has successfully
  received m and then gets a negative
  acknowledgement for m, it can multicast m before
  the negative acknowledgement gets to the original
  sender

29
Hierarchical Feedback Control

• To scale to very large groups, we need some sort
  of hierarchical organization
• Assume we have one sender that needs to multicast
  to a very large group of receivers
• We can partition the receivers into subgroups,
  within which any multicast method that scales to
  small groups can be used, and elect a local
  coordinator for each subgroup

30
Hierarchical Feedback Control

• Within each subgroup, the coordinator handles the
  negative acknowledgements of subgroup members by
  retransmitting to the subgroup
• If the coordinator misses a message, it can
  request it from the coordinator of its parent
  group
• If we base the implementation on acknowledgements
  rather than negative acknowledgements, the
  coordinator doesnt need to keep too large a
  buffer

31
Hierarchical Feedback Control
32
Hierarchical Feedback Control

• The main problem with this scheme is the
  construction of the tree
• This often has to be done dynamically
• One way is to make use of the multicast tree in
  the underlying network, if such exists, by adding
  extra software to multicast routers - but its
  not easy to make that kind of change to the
  routers that are already deployed on existing
  networks

33
Atomic Multicast

• Often, we need to guarantee that, in the presence
  of process failures, a message is delivered
  either to all processes in a group or to none at
  all - this is the atomic multicast problem
• We can define reliable multicast in the presence
  of process failures in terms of process groups
  and changes to group membership

34
Atomic MulticastCommunication Model

• We distinguish between message receipt and
  message delivery, for the purpose of modeling
  communication in such a system

35
Atomic Multicast

• Each multicast message m is associated with a
  list of processes to which it should be delivered
  - this list corresponds to the group view that
  the sender had at the time m was sent
• This group view is shared by the rest of the
  processes on the list - so each process on the
  list believes that m should be delivered to all
  processes on the list, and to no other processes

36
Atomic Multicast

• Suppose m is multicast when its sender has group
  view G
• Another process joins or leaves the group while
  the multicast of m is taking place - this causes
  a view change (which is communicated with a
  multicast message vc)
• There are now two messages in transit (m, vc) -
  we need to guarantee either that m is delivered
  before vc to all processes, or that m is not
  delivered at all

37
Virtual Synchrony

• In principle, the only case where m should not be
  delivered at all is when the group membership
  change is caused by the sender of m crashing -
  either all members of G should hear that the
  sender crashed before m was sent, or none should
• A reliable multicast that satisfies the
  requirement that a message multicast to group
  view G is delivered to each nonfaulty process in
  G is called virtually synchronous

38
Virtual Synchrony
39
Virtual Synchrony andMessage Ordering

• Virtual synchrony is much like using a
  synchronization variable in a data store - view
  changes are barriers that messages cannot cross
• There are four different possible message
  orderings for virtually synchronous multicast
• Unordered
• FIFO-ordered
• Causally-ordered
• Totally-ordered

40
Virtual Synchrony and Message Ordering

• In reliable, unordered multicast, no guarantees
  are given about the order in which received
  messages are delivered by different processes
• In reliable, FIFO-ordered multicast, all messages
  from each individual process are delivered to all
  other processes in the same order, but no
  guarantees are made about the relative delivery
  orders of messages from different processes

41
Virtual Synchrony and Message Ordering

• In reliable, causally-ordered multicast, messages
  are delivered so that potential causality among
  messages is preserved (this can be done with
  vector timestamps)
• In reliable, totally-ordered multicast, all
  messages are delivered in the same order to all
  group members (this is generally combined with a
  requirement of causal or FIFO ordering)

42
Next Class

• Distributed commit, a general distributed systems
  problem of which atomic multicast is an example
• Recovery
