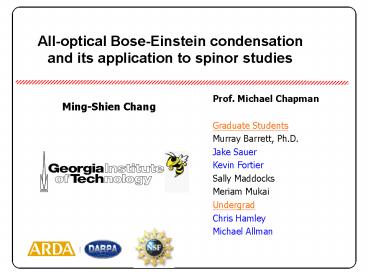

Alloptical BoseEinstein condensation and its application to spinor studies

1
All-optical Bose-Einstein condensationand its
application to spinor studies
Prof. Michael Chapman Graduate Students Murray
Barrett, Ph.D. Jake Sauer Kevin Fortier Sally
Maddocks Meriam Mukai Undergrad Chris
Hamley Michael Allman

• Ming-Shien Chang

2
Quantum Computing LabPostdoc position opening

3
Chapman Lab

• All-Optical BEC
• Todays talk
• Magnetic guiding
• Storage ring
• Cavity QED with neutral trapped atoms
• Quantum information

4
Storage Ring for Neutral Atoms

• Magnetic Guiding - Atom fiber optics
• delivery of ultracold atoms
• coherent state transport
• atom interferometry

1 cm
5
Neutral Atom Storage Ring
Magnetic guiding and neutral atom storage ring
Limits vacuum, bumpy ring
J. A. Sauer et al, PRL 87, 270401(2001)
6
Comparison
TeVatronFermiLabs
NeVatronChapmanLabs
1.6 km
10 mm
1 cm
1012 eV confinement 4 km Circumference Over 2500
Employees gt5 Billion building cost
10-9 eV confinement 6 cm Circumference Over 1
Employee lt5 Billion building cost
7
Cavity QED with Trapped Atoms
Delivery of atoms to optical cavity
MOT
8
Suspension system
Cavity QED with Trapped Atoms
w1
w2
9
Suspension system
Cavity QED with Trapped Atoms
w1
w2
10
All Optical Bose-Einstein Condensation a simple,
fast technique
11
Quantum degeneracy in dilute gases

• Dilute gas
• Binary interactions
• Avoid molecule, liquid, or solid formation.

Classical regime
Quantum regime
12
What is condensed in BEC?

• Simplest picture non-interacting bosons in a box
• quantized energy levels of motional degrees of
  freedom
• BEC macroscopic number of atoms in the ground
  state
• Condensed in momentum space
• Composite boson 7Li, 23Na, 85Rb, 87Rb, 133Cs,
  etc.
• BEC energy scale lt 10-10 eV
• electron ionization energy scale eV
• Real BEC experiments
• Harmonic potential well
• also condensed in real space
• Interaction between atoms
• Finite number of atoms

13
Route to quantum degeneracy

• Pre-cooling and trapping schemes
• spontaneous scattering of photons is used to cool
  atoms to near the Doppler limit (100mK).
• sub-Doppler cooling
• magneto Optical Trap (MOT)
• Further cooling and trapping schemes
• Evaporative cooling
• Trapping schemes
• Optical trap
• Magnetic trap

14
Evaporative cooling

• Remove hot atoms through collisions of particles
• Trade-off lose atoms during the cooling
• Requirements
• Elastic collisions dominate inelastic collisions
• thermalization time lt lifetime of the sample
• Simple
• Works for a wide range of temperatures and
  densities

15
Optical Trap

• Far detuned lasers work as static field
• Focused laser beam form a 3D trap
• Importance of optical trap
• State-Independent Potential
• Trapping of Multiple Spin States
• Evaporative Cooling of Fermions

16
If its so simple, why is it so hard?

• Evaporative cooling in an optical dipole trap
  first observed in 1994 (same year as in alkali
  magnetic traps)

17
If its so simple, why is it so hard?

• Inefficient loading from MOT
• Capture small fraction of atoms
• Poor starting conditions for evaporative cooling

• Atoms prone to heating induced by spontaneous
  scattering and laser jitter

18
Optical Dipole Trap
E- field maximum
Focused CO2 laser beam l 10.6 mm
trapped atoms
For power P 11 Watt, and beam focus, w0 70
mm,
Photon scattering rate couple/hour
U0100mK
Evaporation is too slow for our trap lifetime
(10 s)
19
Cross trap

• Two intersecting traveling waves
• Large loading volume provided by the wings
• Tight confinement provided at the intersection
• Provided atoms are cold enough

600ms later
Loading from MOT
n gt 1014 cm-3 psd gt 0.001
106 atoms loaded
MOTn 1010cm-3 Psd 10-6
tight confinement ? high density ? fast
evaporation
20
All Optical BEC2001
First cover illustration in 100 yr history of the
Physical Review

• We solved the loading problem
• gt 1014 atoms/cm3 spatial density
• gt 10-3 initial phase space density
• 106 atoms loaded
• All optical BEC is fast (and simple)
• Load CO2 laser trap from simple vapor cell MOT of
  87Rb
• ramp down CO2 laser trap beams in 2 sec
• BEC

21
All Optical BEC
All Optical BEC
10 ms TOF images as temperature is lowered
through BEC 400 micron field of view
22
All-optical atomic BEC in a (large period) lattice
23
All-optical atomic BEC in a (large period) lattice
CO2 laser standing wave
With P 4 W, and w0 70 mm
4000 atoms / site loaded, not enough to make BEC
24
Filling a few lattice sites

• To load large number of atoms into lattice site
• Add traveling wave to funnel atoms into a few
  sites
• 106 atoms over a few sites

25
Pancake condensate
BEC in a lattice
Image after 10 ms expansion
10 ms TOF images as temperature is lowered
through BEC 400 micron field of view
26
Pancake condensate
Image after 10 ms expansion as final temperature
is lowered
Fast expansion
27
How many lattice sites are occupied?
Transfer to traveling wave for variable time and
releaseposition converted to momentum
Cool in lattice
28
Measure the sites occupied

• visually measure
• number of sites occupied
• (transverse) trap frequencies

29
Controlling the site loading
Vary funnel powers and lattice position during
transfer
30
Interference of condensates
If two condensates overlap during expansion,
they will interfere
Analogous to interference of two coherent
independent lasers
31
Macroscopic quantum interference
Relative velocity
Fringe spacing
Quantum interference of 30,000 atoms
32
Studies of F1 and F2 Spinor BEC in an optical
trap
33
F 1 Spinor
Weak magnetic field gradient applied during
TOF Population mF -1,0,1 3 1 1 (assuming
equal coupling to probe)
Much theoretical work on spinor condensates Ho,
Machida et al., Bigelow et al., Meystre et al.,
You et al. (anti)ferromagnetism, spin mixture,
spin squeezing
34
We can control the spin population by applying
B-field gradients during evaporation
mf 1 0 -1
mf 1 0 -1
35
Hamiltonian -- Spin 1
Short-range interaction, transforms as scalar
under spin rotations generically of form
Spin interaction
Density interaction
87Rb -- c2ltltc0, c2lt0
23Na -- c2ltltc0,c2gt0
Tin-Lun Ho, PRL 81, 742 (1998)
36
Spinor condensates in optical traps
Multi-species BEC with rotational symmetry
Ho, PRL98 Machida, JPS98
Spin relaxation
37
Spin mixing - theory

• Spin mixing (relaxation)
• Initial state m0 (lt100mG)
• Ferromagnetic convert to m1,0 You et al.
• Anti-ferromagnetic ( ideal gas) remain
  m0 Ketterle (1998)
• Normalization
• Magnization is conserved

38
m0 spinor condensates
System is characterized by two parameters Normal
ization Magnetization
Initial condition m0 BEC simplifies the spinor
studies
39
Spinors In the B field
quadratic Zeeman effect favors m0
40
Ground state of spinor condensates

• Ground state is obtained by minimizing the energy
  functional

23Na F 1, c gt 0, is anti-ferromagnetic
Studied by MIT group
87Rb F 1, c lt 0, is ferromagnetic
experimentally unexplored
41
Spinor phase diagram
(Ketterle et al, 1998)
Anti-ferromagnetic
Ideal gas
Ferromagnetic
23Na, Ketterle
87Rb, our work
42
Spin mixing - experiment
Initial spinor mF0
For no interactions, m0 is lowest energy (2nd
order Zeeman shift)
B
2m0 ?? m-1 m1
At 2 sec
As a check initial mF -1 spinor remains pure
mF -1
43
Ferromagnetic behavior
Anti-ferromagnetic spinor
Ferromagnetic spinor
You et al, 2003.
Chang, et al, PRL, 2004
44
Suppressed noise of magnetization
45
Spinor phase

• Single-mode approximation
• Definite phase relationship between components
• Ferromagnetic ?(?1, ?0, ?-1)(0, 0, 0)
• Antiferromagnetic (?1, ?0, ?-1)(??/2, 0, -?/2)
• For B? 0, Larmor precession is important
• How to measure phase
• Two-site interference

46
Phases and dephasing of spinor BEC
SMA, ferromagnetic? f1 f0 f-1
Machida et al., PRA99
occassionally
mostly
Gradient is important 10mG/cm causes
(2p3.7/sec) phase change between components
47
Pure M -1 interference
1 sec in a B 1.4G/cm
Fringe contrast much higher compared to mixed
spinor
fringe is clearly seen
48
Manipulating Spinors

• Microwave spectroscopy
• Measure B field
• Pump spinor BEC F1?F2
• Create mixture of spinor BECs

0
49
F2 spin-mixing
F2 spinor lifetime
50ms in the optical trap
mF -2 -1 0 1 2
50
Summary

• Spinor condensates in optical traps
• F1 spinor
• Magnetization control
• Spin-mixing vs. B field
• Spin population oscillation, reduced number
  fluctuation
• Ferromagnetism study
• Spinor interference
• F2 spinor
• Spin-mixing
