Title: Intro to DirectX Part 2


1

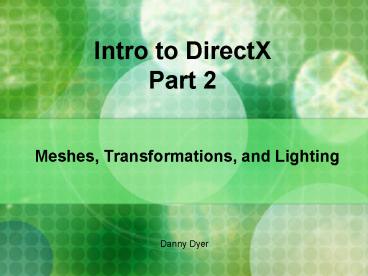

Intro to DirectX Part 2
  • Meshes, Transformations, and Lighting

Danny Dyer
2
Information about these slides
  • Companion to the more detailed slides available
    on the TAGD resources page.
  • http//www.gettagd.com/resources.php
  • You can find the page numbers that reference the
    other slides at the bottom right of these slides.

3
Meshes Revisited
  • Just a few reminders
  • What was a mesh?
  • Collection of vertices.
  • Vertices store information such as position,
    normal, and texture coordinates.
  • Stores other properties such as materials.
  • What it looked like in code
  • ID3DXMesh g_pMesh //declare our type... in
    device_reset()
  • D3DXCreateBox( pd3dDevice, width, length, height,
    g_pMesh, NULL)
  • g_pMesh-gtDrawSubset(0) //in render()
  • g_pMesh-gtRelease() // in device_lost()

5
4
Polygons
  • A polygon is a closed 3-D figure defined by at
    least 3 vertices.
  • A polygon can have any number of vertices, but
    the most useful to us is the triangle.
  • The three vertices that make up a triangle are
    guaranteed to be coplanar which makes rendering
    MUCH more efficient.
  • You can compose any mesh from a set of triangles,
    even smooth objects.
  • Triangles are the (current) standard way of
    rendering objects, for the most part.
  • Each vertex stores several pieces of information.
    Among the most important are
  • Position in our 3-dimensional world.
  • Normal
  • Color
  • Texture Coordinates

5
Normals
  • Represents the outward direction of the mesh at
    that point.
  • Used for lighting (among other things).

We want a box similar to this. Here red is the
normal to the face.
The vertices to represent this object would be
defined like this.
6
Loading Meshes From a File
  • DirectX uses a standard .X file format for
    loading in mesh data. This is not the only way,
    just the easiest.
  • D3DXLoadMeshFromX( boxmesh.x, D3DX_SYSTEMMEM,
    pd3dDevice,
  • NULL, NULL, NULL, NULL, g_pMesh )
  • Once we have our mesh loaded we can use it the
    same as before.

7
Matrix Transformations
  • Transformations are used to convert geometry from
    one coordinate space to another. A coordinate
    space basically defines what our origin and three
    axes are.
  • You can transform any vector (x, y, z) into
    another vector (x', y', z') using a 4 by 4
    matrix.
  • These can be multiplied together in sequence to
    convert the vector through several coordinate
    spaces.
  • This is one of the most powerful things in
    computer graphics, as everything is based off
    these principles.
  • Note ORDER MATTERS!
  • What this tells us is matrix multiplication is
    NOT commutative.

8
World Transformation
  • The positions and normals that are stored inside
    of a mesh are considered to be in model space
    where each vertex is defined relative to the
    models local origin.
  • A world transformation converts coordinates from
    model space to world space, where vertices are
    defined relative to an origin common to all the
    objects in a scene.
  • So basically a world transformation puts a model
    into the world.
  • The world transformation can include any
    combination of translations, rotations, and
    scalings.
  • You can combine the matrices that produce these
    effects into a single matrix to calculate several
    transformations all at once.
  • Since the order of multiplication matters,
    generally you will do
  • world scale rotation translation

9
World Transformations
  • Translation
  • D3DXMatrixTranslation(D3DXMATRIX matrix, float
    x, float y, float z)
  • Scaling
  • D3DXMatrixScaling(D3DXMATRIX matrix, float sx,
    float sy, float sz)
  • Rotation
  • D3DXMatrixRotationX(D3DXMATRIX matrix, float
    angle)
  • D3DXMatrixRotationY(D3DXMATRIX matrix, float
    angle)
  • D3DXMatrixRotationZ(D3DXMATRIX matrix, float
    angle)
  • D3DXMatrixRotationAxis(D3DXMATRIX matrix,
    D3DXVECTOR3 vector, float angle)
  • An Example
  • //rotate everything we render around the X axis
    by Pi/2
  • D3DXMATRIX rot

10
Lighting
  • Obviously, lighting is used to illuminate objects
    in a scene.
  • When lighting is enabled in DirectX, the color of
    each vertex is calculated for you based on a
    combination of
  • The diffuse and specular colors at the vertex.
  • The current material color and the texture, if
    one is set.
  • The light sources color and intensity and the
    scene's ambient light level.
  • Materials
  • How the light reflects off a surface.
  • Direct light and ambient light levels define the
    light that is reflected.
  • Required if lighting is enabled.
  • More advanced ways of doing it later

11
Turning on Lighting in DirectX
This is just for diffuse light but would be
similar for ambient and specular.
//Define our light and enable it D3DLIGHT9
d3dLight // Initialize the structure. ZeroMemory
(d3dLight, sizeof(d3dLight)) // Set up a white
point light. d3dLight.Type D3DLIGHT_POINT d3dLi
ght.Diffuse.r 1.0f d3dLight.Diffuse.g
1.0f d3dLight.Diffuse.b 1.0f //Position the
Light d3dLight.Position.x 0.0f d3dLight.Positio
n.y 100.0f d3dLight.Position.z -100.0f //
Don't attenuate. d3dLight.Attenuation0 1.0f
d3dLight.Range 150.0f // Set the
property information for the first
light. pd3dDevice-gtSetLight(0, d3dLight) //actu
ally enable the light now pd3dDevice-gtLightEnable(
0, true)
  • //Define our material
  • D3DMATERIAL9 mat
  • // Set diffuse to a light blue
  • mat.Diffuse.r 0.0f
  • mat.Diffuse.g 0.5f
  • mat.Diffuse.b 1.0f
  • mat.Diffuse.a 1.0f
  • //set ambient and specular
  • //
  • //set the material to the device
  • //(stays until changed)
  • pd3dDevice-gtSetMaterial(mat)

12
Lighting Some More
  • There are also different types of lights
  • Point (the one we used)
  • Spot
  • Directional
  • This is a very simple lighting model, but it will
    suffice for now.
  • Eventually we will want a better way to
    illuminate our scenes

13
Up Next
  • Texturing
  • Alpha Blending
  • bovicide_at_gmail.com
