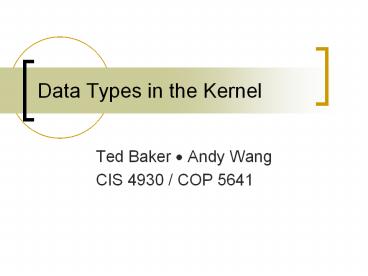

Data Types in the Kernel

1
Data Types in the Kernel

• Ted Baker ? Andy Wang
• CIS 4930 / COP 5641

2
Kernel Data Types

• For portability
• Should compile with Wall Wstrict-prototypes
  flags
• Three main classes
• Standard C types (e.g., int)
• Explicitly sized types (e.g., u32)
• Types for specific kernel objects (e.g., pid_t)

3
Use of Standard C Types

• Normal C types are not the same size on all
  architectures
• Try misc-progs/database
• misc-progs/datasize
• arch Size char short int long ptr long-long u8
  u16 u32 u64
• i686 1 2 4 4 4 8 1 2
  4 8

4
Use of Standard C Types

• 64-bit platforms have different data type
  representations
• arch Size char short int long ptr long-long u8
  u16 u32 u64
• i386 1 2 4 4 4 8 1
  2 4 8
• alpha 1 2 4 8 8 8 1
  2 4 8
• armv4l 1 2 4 4 4 8 1
  2 4 8
• ia64 1 2 4 8 8 8 1
  2 4 8
• m68k 1 2 4 4 4 8 1
  2 4 8
• mips 1 2 4 4 4 8 1
  2 4 8
• ppc 1 2 4 4 4 8 1
  2 4 8
• sparc 1 2 4 4 4 8 1
  2 4 8
• sparc64 1 2 4 4 4 8 1
  2 4 8
• x86_64 1 2 4 8 8 8 1
  2 4 8

5
Use of Standard C Types

• Knowing that pointers and long integers have the
  same size
• Using unsigned long for kernel addresses prevents
  unintended pointer dereferencing

6
Assigning an Explicit Size to Data Items

• See ltasm/types.hgt
• u8 / unsigned byte (8-bits) /
• u16 / unsigned word (16-bits) /
• u32 / unsigned 32-bit value /
• u64 / unsigned 64-bit value /
• If a user-space program needs to use these types,
  use __ prefix (e.g., __u8)

7
Assigning an Explicit Size to Data Items

• Kernel also uses conventional types, such as
  unsigned int
• Usually done for backward compatibility

8
Interface-Specific Types

• Interface-specific type defined by a library to
  provide an interface to specific data structure
  (e.g., pid_t)

9
Interface-Specific Types

• Many _t types are defined in ltlinux/types.hgt
• Problematic in printk statements
• One solution is to cast the value to the biggest
  possible type (e.g., unsigned long)
• Avoids warning messages
• Will not lose data bits

10
Other Portability Issues

• Be suspicious of explicit constant values
• Most values are parameterized

11
Timer Intervals

• Do not assume 1000 jiffies per second
• Scale times using HZ (number of interrupts per
  second)
• For example, check against a timeout of half a
  second, compare the elapsed time against HZ/2
• Number of jiffies corresponding to msec second is
  always msecHZ/1000

12
Page Size

• Memory page is PAGE_SIZE bytes, not 4KB
• Can vary from 4KB to 64KB
• PAGE_SHIFT contains the number of bits to shift
  an address to get its page number
• See ltasm/page.hgt
• User-space program can use getpagesize library
  function

13
Page Size

• Example
• To allocate 16KB
• Should not specify an order of 2 to
  get_free_pages
• Use get_order
• include ltasm/page.hgt
• int order get_order(161024)
• buf get_free_pages(GFP_KERNEL, order)

14
Byte Order

• PC stores multibyte values low-byte first
  (little-endian)
• Some platforms use big-endian
• Use predefined macros
• ltlinux/byteorder/big_endian.hgt
• ltlinux/byteorder/little_endian.hgt

15
Byte Order

• Examples
• u32 cpu_to_le32(u32)
• cpu internal CPU representation
• le little endian
• u64 be64_to_cpu(u64)
• be big endian
• U16 cpu_to_le16p(u16)
• p pointer

16
Data Alignment

• How to read a 4-byte value stored at an address
  that is not a multiple of 4 bytes?
• i386 permits this kind of access
• Not all architectures permit it
• Can raise exceptions

17
Data Alignment

• Use the following typeless macros
• include ltasm/unaligned.hgt
• get_unaligned(ptr)
• put_unaligned(val, ptr)

18
Data Alignment

• Another issue is the portability of data
  structures
• Compiler rearranges structure fields to be
  aligned according to platform-specific
  conventions
• Automatically add padding to make things aligned
• May no longer match the intended format

19
Data Alignment

• Use natural alignment
• 8-byte items go in an address multiple of 8
• Use filler fields that avoid leaving holes in the
  data structure
• Not all platforms align 64-bit values on 64-bit
  boundaries
• Might waste memory

20
Data Alignment

• Tell the compiler to pack the data structure with
  no fillers added
• Example ltlinux/edd.hgt
• struct
• u16 id
• u64 lun
• u16 reserved1
• u32 reserved2
• __attribute__ ((packed)) scsi

Without __attribute__ ((packed)), lun would be
preceded by 2-6 bytes of fillers
21
Data Alignment

• No compiler optimizations
• Some compiler optimizations

• __attribute__ ((packed))

22
Pointers and Error Values

• Functions that return pointers cannot report
  negative error values
• Return NULL on failure
• Some kernel interfaces encode error code in a
  pointer value
• Cannot be compared against NULL
• To use this feature, include ltlinux/err.hgt

23
Pointers and Error Values

• To return an error, use
• void ERR_PTR(long error)
• To test whether a returned pointer is an error
  code, use
• long IS_ERR(const void ptr)
• To access the error code, use
• long PTR_ERR(const void ptr)

24
Linked Lists

• Linux provides a standard implementation of
  circular, doubly linked lists
• List functions perform no locking
• To use the list mechanism, include
  ltlinux/list.hgt, which contains
• struct list_head
• struct list_head next, prev

25
Linked Lists

• To use the Linux list facility
• Need to embed a list_head in the structures that
  make up the list
• struct todo_struct
• struct list_head list
• int priority / driver specific /
• / ... add other driver-specific fields /

26
Linked Lists
27
More Fun with Linked Lists
Can allocate list elements as an array
list_head sorted_by_char
list_head sorted_by_num
What if a structure owns its own list?
28
Linked Lists

• The head of the list is usually a standalone
  structure
• To declare and initialize a list head, call
• struct list_head todo_list
• INIT_LIST_HEAD(todo_list)
• To initialize at compile time, call
• LIST_HEAD(todo_list)

29
Linked Lists

• See ltlinux/list.hgt for a list of list functions
• / add the new entry after the list head /
• / use it to build stacks /
• list_add(struct list_head new, struct list_head
  head)
• / add the new entry before the list head (tail)
  /
• / use it to build FIFO queues /
• list_add_tail(struct list_head new, struct
  list_head head)

30
Linked Lists

• / the given entry is removed from the list /
• / if the entry might be reinserted into another
  list, call list_del_init /
• list_del(struct list_head entry)
• list_del_init(struct list_head entry)
• / remove the entry from one list and insert into
  another list /
• list_move(struct list_head entry, struct
  list_head head)
• list_move_tail(struct list_head entry,
• struct list_head head)
• / return a nonzero value if the given list is
  empty /
• list_empty(struct list_head head)

31
Linked Lists

• / insert a list immediately after head /
• list_splice(struct list_head list, struct
  list_head head)
• To access the data structure itself, use
• list_entry(struct list_head ptr, type_of_struct,

• field_name)
• Same as container_of()
• ptr is a pointer to a struct list_head entry

32
Linked Lists

• type_of_struct is the type of the structure
  containing the ptr
• field_name is the name of the list field within
  the structure
• Example
• struct todo_struct todo_ptr
• list_entry(listptr, struct todo_struct,
  list)
• define container_of(ptr, type, member) (
• const typeof(((type )0-gtmember) __mptr
  (ptr)
• (type ) ((char )__mptr offsetof(type,
  member)) )

Type checking
33
Linked Lists

• To traverse the linked list, one can follow the
  prev and next pointers
• void todo_add_entry(struct todo_struct new)
• struct list_head ptr
• struct todo_struct entry
• for (ptr todo_list.next ptr ! todo_list
• ptr ptr-gtnext)
• entry list_entry(ptr, struct todo_struct,
  list)
• if (entry-gtpriority lt new-gtpriority)
• list_add_tail(new-gtlist, ptr)
• return
• list_add_tail(new-gtlist, todo_struct)

34
Linked Lists

• One can also use predefined macros
• void todo_add_entry(struct todo_struct new)
• struct list_head ptr
• struct todo_struct entry
• list_for_each(ptr, todo_list)
• entry list_entry(ptr, struct todo_struct,
  list)
• if (entry-gtpriority lt new-gtpriority)
• list_add_tail(new-gtlist, ptr)
• return
• list_add_tail(new-gtlist, todo_struct)

35
Linked Lists

• Predefined macros avoid simple programming errors

• See ltlinux/list.hgt
• / creates a loop that executes once with cursor
  pointing at each successive entry /
• / be careful about changing the list while
  iterating /
• list_for_each(struct list_head cursor,
• struct list_head list)
• / iterates backward /
• list_for_each_prev(struct list_head cursor,
• struct list_head list)

36
Linked Lists

• / for deleting entries in the list /
• / stores the next entry in next at the beginning
  of the loop /
• list_for_each_safe(struct list_head cursor,
• struct list_head next,
• struct list_head list)
• / ease the process of dealing with a list
  containing a given type /
• / no need to call list_entry inside the loop /
• list_for_each_entry(type cursor, struct
  list_head list,
• member)
• list_for_each_entry_safe(type cursor, type
  next,
• struct list_head list,
  member)
