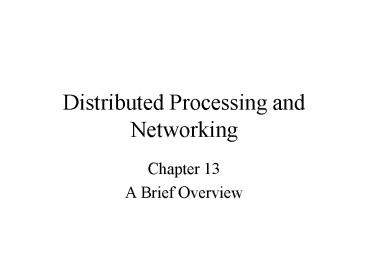

Distributed Processing and Networking

1
Distributed Processing and Networking

• Chapter 13
• A Brief Overview

2
Centralized Systems v. Distributed Systems

• Centralized system (uniprocessor, SMP)
• shared memory, tightly coupled hardware, single
  clock
• user applications run on the central computer
  data storage is centralized as well
• users may have a terminal or low-end PC for
  communication with central computing facility
• some processes run locally, others on the large
  centralized system.
• processes communicate using the shared memory
  model

3
Centralized Systems v. Distributed Systems

• Distributed Systems
• multiple separate or whole computers each has
  its own memory, clock
• individual computers (nodes) are connected by
  some kind of communications network
• nodes share resources disk storage, I/O
  facilities, etc.
• processes at separate nodes communicate using the
  message passing model
• some process run locally, some could benefit from
  being distributed across several processors.

4
Software for Distributed Systems

• Distributed systems can be connected by software
  in a number of different ways.
• A variety of connective techniques exist, as the
  following examples show
• communications architecture
• network operating system (NOS)
• distributed operating system (DOS)

5
Communications Architecture

• Software to connect computers that are primarily
  stand-alone.
• The connection is designed to support
  applications such as email, file transfer, etc.
• Computers on the network may be heterogeneous and
  have different operating systems.
• TCP/IP is the most common example

6
Network Operating System (NOS)

• The distributed system consists of a network of
  machines, including servers
• Servers support file system, printers, etc.
• The NOS is an add-on to the local OS
• The user is fully aware that there are separate
  machines in the system.
• A common communications architecture supports the
  NOS
• NSF or Windows NT are examples

7
Distributed Operating System (DOS)

• A DOS tries to make a distributed system look
  like a centralized system
• Users can transparently access all system
  resources as if they were local - no need to name
  remote sites explicitly.
• DOS must still use some kind of communications
  architecture.
• True distributed operating systems are still
  mostly experimental.

8
Review

• Centralized versus distributed architectures
• Architectural differences
• System software for distributed architectures
• Communications software (e.g TCP/IP)
• NOS (TCP/IP non-transparent resource sharing)
• DOS (transparent resource sharing)

9
The Need for Communication Protocols

• A protocol is a formal set of rules that governs
  interaction between two entities (here, processes
  or computers)
• Issues include
• agreement on data format message format
• a negotiation to make sure the receiver is ready
  to accept a message
• a routing mechanism to forward the message across
  the network and numerous other details

10
Communication Protocols

• Communication protocols are designed as layered
  systems.
• The same set of protocols exist on each machine
  communication is between peer layers on the
  communicating machines.
• Layers on the sender side append information to
  the message, the corresponding layer on the
  receiver side uses the information

11
Protocol Architecture

• A protocol architecture describes the functions
  that must be performed to support computer
  communication.
• The architecture structures the functions into a
  set of layered modules.
• The next slide shows a simplified architecture
  for accomplishing a file transfer.

12
File Transfer
13
The File Transfer Protocol

• In the previous slide, each module incorporates
  several logical functions.
• e.g., the file transfer application is concerned
  with things like passwords and specific file
  operations
• Each module provides/receives services for other
  modules in the stack.

14
TCP/IP Protocol Architecture

• TCP/IP (Transmission Control Protocol/Internet
  Protocol) was developed by DARPA to support
  networking in support of defense-related
  projects.
• Today, TCP/IP is the basic communication
  architecture for the Internet.

15
Packet Switching

• TCP/IP is an example of a packet-switching
  protocol.
• The original message is broken up into small,
  fixed-size units (packets).
• A header is incrementally appended to each packet
  by the sender.
• The receiver uses the header to interpret the
  message.

16
TCP/IP Layers

• One view of TCP/IP divides it into 5 layers, from
  the bottom (hardware dependent) to the top
  (abstractions)
• Physical layer
• Network access layer
• Internet layer (IP)
• Transport layer (TCP)
• Application layer

17
TCP/IP Layers

• Physical governs the physical interface between
  a computer and the network
• Network handles details of data exchange between
  a computer and the network. This layer is
  network dependent e.g. Ethernet versus Myrinet.

18
TCP/IP Layers

• Internet (network) layer handles routing
  (point-to-point transmission) of packets.
• Packets are routed from sender to receiver,
  possibly through multiple steps.
• Routers are special processors that connect two
  networks and switch a packet from one network to
  the next.
• At each step the network layer handles the
  transmission.

19
TCP/IP Layers

• Transport (host-to-host) Layer responsible for
  providing reliable transmission.
• Packets are numbered and transmitted when they
  are received, they are reassembled in the
  original order.
• Each packet must be acknowledged. If the sender
  fails to get an ack, the transport layer will
  re-transmit the message.
• Applications that dont want added overhead can
  use UDP instead of TCP protocol at this level.

20
TCP/IP Layers

• Application layer contains the code needed to
  support network applications.
• There must be a separate module for each
  application.
• Applications that run on TCP/IP include SMTP
  (Simple Mail Transfer Protocol), FTP, and TELNET.

21
Ports

• Messages sent from one host machine to another
  are associated with a specific process at each
  end.
• The network layer only needs to know sending and
  receiving host, to get the message to the right
  computer.
• The transport layer needs to know the process
  identity
• A port is associated with a particular process,
  so messages are actually sent from Host X, Port Y
  to Host I, Port J.

22
Sockets

• Socket concept developed at Berkeley.
• Every message has a source port and a destination
  port.
• Host IP address port value socket
  consequently, a socket is unique throughout the
  Internet
• Sockets act as communication endpoints.

23
Distributed Processing, Client/Server, and
Clusters

• Chapter 14

24
Distributed Processing

• A category of processing in which various parts
  of an application may be processed at different
  nodes in a network.
• Location of processing will ideally be determined
  by such things as load balancing and the choice
  of the most appropriate platform for a task.

25
Client-Server Computing

• Client-server processing is based on the
  following model client processes request
  services from server processes.
• Client machines are often single user systems
• Server machines support multiple users (clients)
  and provide specific services

26
Generic Client/Server Environment
27
Client/Server Computing

• Client machines are connected to servers through
  some type of communication software probably
  TCP/IP.
• Applications are divided into tasks, each task
  executes where it can be handled most
  efficiently.
• For example, the client will provide the user
  interface to the system.
• The server may do all or part of the processing.

28
Fat Client/Thin Client

• In the fat-client model, much of the processing
  is done locally on the client.
• Requires high-end PCs or workstations.
• Maintaining large numbers of client machines is
  hard upgrades, etc. must be applied locally to
  each machine.
• Thin-client model does most processing on the
  server
• Maintenance is centralized, therefore simpler
• Client machines can be much simpler

29
(No Transcript)
30
Client/server Applications

• File servers store files for a distributed
  system.
• Print servers allow multiple users to share a set
  of printers.
• Web servers provide documents and forms
• Database servers store and process data for large
  applications.
• Name servers map domain names to IP addresses.

31
Database Applications

• In business applications the database is often
  the primary computing application.
• The server is a database server
• Interaction between client and server is in the
  form of transactions
• the client makes a database request and receives
  a database response
• Server maintains the database

32
(No Transcript)
33
Cache Consistency

• Clients may cache files/data from the server in
  client caches to reduce network transmission
  time.
• Several clients may cache the same data.
• Caches are consistent if they contain exact
  copies of the remote (server-based) data.
• If one client updates a file, other copies are
  now stale out of date.
• The cache consistency problem how to maintain
  local caches in a consistent state.

34
(No Transcript)
35
Caches in a Distributed System

• Client caches and server cache are all in primary
  memory no special hardware. (On the client
  side, caching may also use disk.)
• When a client process accesses a file
• Check local cache(s)
• If not present, check server cache
• If not present, retrieve from server disk (the
  primary copy)

36
Distributed File Caches

• The advantage of client-side caching is a
  reduction in network access time, and a reduction
  of network load.
• The disadvantage is the possibility of
  inconsistency.
• Note that if one client modifies cached data the
  servers copy is stale and so are any other
  copies cached at other clients.

37
Middleware

• How do clients communicate with servers from
  different vendors with different APIs?
• One approach middleware software that glues
  together two different applications.
• Middleware becomes another layer in the
  architecture of a client/server system

38
(No Transcript)
39
Middleware

• Client/server products and communication
  architectures are not standardized.
• Ideally, developers should be able to design
  applications that use uniform methods to access
  data regardless of the platform or system that
  supplies the data.
• Middleware provides a standard programming
  interface to support this uniformity.

40
Middleware

• A set of tools that provide a uniform way to
  access system resources across all platforms
• Enable programmers to use the same method to
  access data, regardless of where it is located.
• Example middleware products that link a database
  system to a Web server.
• Users can request data from the database using
  forms displayed on a browser. The Web server can
  return dynamic Web pages based on the user's
  requests.

41
Logical View of Middleware
APIs
Platform Interfaces
42
Middleware

• There are both client and server components to
  the middleware (both client and server must be
  able to interact with this level)
• Objective provide uniform access to different
  systems.
• Examples CORBA, SOAP, DCOM
• Middleware is typically based on either message
  passing or remote procedure calls.

43
Peer to Peer (P2P) Processing

• P2P is an alternative to client/server
  processing.
• Client/server has a non-symmetric structure
  different nodes have different capabilities.
• In P2P processing every node has the capability
  of acting as a client or a server.
• Most familiar in music-sharing services, but not
  limited to that application.

44
P2P

• P2P systems are more unstructured than
  client/server.
• They distribute network load more evenly across
  the network, dont suffer from congestion around
  server nodes, etc.
• Resources from many different host machines can
  be shared

45
P2P

• Napster made the term popular, although strictly
  speaking it did not have a true P2P structure (it
  used a central server to locate resources.)
• P2P systems are more loosely structured than
  traditional C/S they include nodes that are only
  intermittently connected to the network, are not
  as reliable as managed servers, and may even be
  malicious.

46
P2P

• A drawback to P2P is the difficulty of locating
  resources (because of the lack of centralized
  servers)

47
Distributed Communication

• Message passing is the only communication
  technique for processes in distributed systems,
  since there is no shared memory.
• Remote Procedure Calls (RPC) provide an interface
  to message passing, so processes can interact
  using call/return semantics, as in ordinary
  procedure or function calls.

48
Message Passing

• Message passing was covered in Chapter 5 as a
  contrast to shared memory communication between
  processes.
• In some systems it merely provides an alternate
  communication mode (e.g. client/server operating
  systems support message passing between modules)
• In a distributed system there is no other choice.

49
Basic Message-Passing Primitives
50
Message Passing Review

• Message passing primitives
• Send (message, destination)
• Receive (message, source)
• In a network, TCP/IP protocols typically govern
  message formats.
• Messages are typically broken into smaller pieces
  (packets) which are transmitted over the network

51
Design Issues for Messages

• Reliability versus unreliability
• Reliable message passing guarantees that the
  message will be received
• Reliable message passing usually relies on a
  reliable communication protocol, such as TCP
• Unreliable doesnt (which makes it faster)
• However, since network communication is subject
  to failure, results arent guaranteed.

52
Design Issues for Messages

• Blocking versus Nonblocking
• Nonblocking (asynchronous) primitives return
  control as soon as the OS has processed the
  command
• Sender regains control when the message has been
  copied to kernel buffer (or queued for
  transmission)
• Blocking (synchronous)
• Sender blocks until message has been sent
  (unreliable) or acknowledged (reliable)
• Receiver blocks until a message is received.

53
Remote Procedure Calls (RPC)

• Allow programs on different machines to interact
  using simple procedure call/return semantics
• Widely accepted
• Standardized
• Client and server modules can be moved among
  computers and operating systems easily

54
(No Transcript)
55
Synchronous vs. Asynchronous

• Synchronous RPC
• Behaves much like a subroutine call
• Caller must wait for results before proceeding
• Asynchronous RPC
• Does not block the caller
• Enables a client execution to proceed locally in
  parallel with server invocation
• Suitable for some application (e.g., dont wait
  for a print server)

56
Cluster Computing

• Alternative to symmetric multiprocessing (SMP)
• Group of interconnected computers working
  together as a unified computing resource
• Illusion is one machine (ideally)
• Individual nodes in a cluster may, themselves, be
  multiprocessors.

57
Benefits of Clustering

• Absolute scalability can have much more
  computing power than any standalone machine
• Incremental scalability cluster size can
  increase as needs increase small clusters can
  grow.
• High availability if one node fails, the others
  can continue to process fault tolerant
• Superior price/performance cluster can be built
  more cheaply than a multiprocessor of equivalent
  power.

58
Applications

• Cluster servers
• Provide redundancy for fault tolerance
• Partition workload across several servers
• Server clusters can share large RAID disk
  clusters and/or have private disks
• Parallel programming large scientific or
  engineering applications require huge amounts of
  processing power

59
Cluster Computer Architecture

• Machines in a cluster are generally connected by
  a high-speed network which may or may not be
  connected to the outside world
• Each node runs its own OS, but also shares
  software (middleware) to support internode
  communication and interoperability.

60
Cluster Computer Architecture
61
Cluster Computing

• The middleware layer may not provide full
  transparency.
• Many parallel programming applications are
  structured using PVM or MPI (message passing
  packages) as the support structure for managing
  parallel operations.

62
Beowulf Clusters

• A Beowulf cluster can be homemade it is
  characterized by being composed of off-the-shelf
  components both hardware and OS software.
• For example, PCs running Linux

63
Beowulf Features

• Mass market commodity components
• Dedicated processors (as opposed to sharing CPU
  time with local users)
• Dedicated high-speed network
• No custom components
