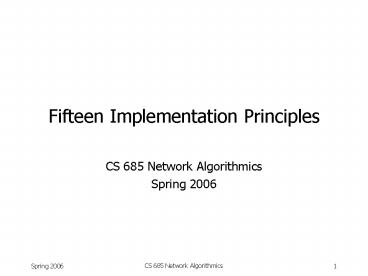

Fifteen Implementation Principles

1
Fifteen Implementation Principles

• CS 685 Network Algorithmics
• Spring 2006

2
Taxonomy of Principles

• P1-P5 System-oriented Principles
• These recognize/leverage the fact that a system
  is made up of components
• Basic idea move the problem to somebody elses
  subsystem
• P6-P10 Improve efficiency without destroying
  modularity
• Pushing the envelope of module specifications
• Basic engineering system should satisfy spec but
  not do more
• P11-P15 Local optimization techniques
• Akin to peephole optimizations in compilers
• Apply these after you have looked at the big

3
Part I Systems Principles
4
P1 Avoid Obvious Waste

• Key Concept look for ways to avoid doing
  something, or to avoid doing it multiple times
• Example copying in protocol stacks
• In the old days, copying was not a bottleneck
• But transmission processor speeds increased
  much faster than memory speeds
• Today, reading/writing from/to memory is slowest
  operation on a packet
• Zero-copy protocol stacks never copy packet
  data once it is stored in memory by the NIC
• Eventually multiple copies became a bottleneck

5
P2 Shift Computation in Time

• Key Concept Move expensive operations from where
  time is scarce to where it is more plentiful
• P2a Precompute ( shift earlier in time)
• Example computing a function by table lookup
• P2b Evaluate Lazily ( shift later in time)
• Example copy-on-write
• P2c Share Expenses ( collect things in time)
• Example garbage collection
• Examples
• initializing counter arrays lazy evaluation
  batching

6
P3 Relax (Sub)System Requirements

• Key Concept make one subsystems job easier by
  relaxing the specification (possibly at the
  expense of another subsystems job getting
  slightly harder)
• P3a Trade certainty for time ( use
  probabilistic solutions)
• P3b Trade accuracy for time ( use approximate
  solutions)
• Remember Good enough is good enough
• P3c Shift computation in space ( let someone
  else do it)
• Example DF bit in IPv4
• Purpose to help End Systems avoid fragmentation
• Why avoid?
• ease load on routers, avoid loss of APDUs

7
P4 Leverage Off-System Components

• Key Concept design bottom-up, use hardware
• P4a Exploit locality ( exploit caches)
• Note not always useful (cf. IP forwarding
  lookups)
• P4b Trade Memory for Speed
• Note this can be interpreted two ways
• Use more memory to avoid computation (cf P12)
• Use less memory to make data structures fit in
  cache
• P4c Exploit hardware features
• Examples
• Some NIC cards compute TCP checksum on the board
  (i.e. the OS/software does not need to compute it)

8
P5 Add Hardware to Improve Performance

• Key Concept Hardware is inherently parallel, can
  be very fast, and is cheap in volume consider
  adding hardware to perform operations that must
  be done often and are expensive in software
• P5a Use memory interleaving, pipelining (
  parallelism)
• P5b Use Wide-word parallelism (save memory
  accesses)
• P5c Combine SRAM, DRAM
• Examples
• DES encryption requires permuting bits,
  nonlinear mappings (some say it was designed to
  require hardware for fast implementation)
• Add-on boards for encryption/decryption at wire
  speeds
• Ephemeral State Store

9
Ephemeral State Store(Associative Memory)
Implementation
Last
k
Handle
value
Next
Hash Table (SRAM)
Handle Table (DRAM)
Value Table (DRAM)
(tag, value)
A store of size 2k bindings requires 128 (h1)k
z bits where h (hash table size / store
size) and z timestamp size
10
Part II Modularity With Efficiency

• Note read Clark Tennenhouse, Architectural
  Considerations for a New Generation of
  Protocols, Proceedings of ACM SIGCOMM 1990

11
P6 Replace inefficient general routines with
efficient specialized ones

• Key Concept General-purpose routines cannot
  leverage problem-specific knowledge that can
  improve performance
• Example
• in_pcblookup() function in BSD Unix
  general-purpose state-block retrieval for both
  TCP and UDP sockets
• Uses simple linear search
• Not adequate for large servers with 10000s of
  open sockets
• Applications have very different reference
  characteristics, so organize PCBs for different
  apps separately (Calvert Dixon '95)

12
P7 Avoid Unnecessary Generality

• Key Concept Do not include features or handle
  cases that are not needed.
• "When in doubt, leave it out"
• Example
• mbuf structure was designed to not waste memory
  for devices that produced small amounts of input
• Today memory is cheap, and most devices produce
  1000 bytes at once
• Most implementations use large monolithic
  buffers, big enough to hold an Ethernet packet
  (2K bytes or more)

13
P8 Don't be tied to reference implementations

• Key Concept
• Implementations are sometimes given (e.g. by
  manufacturers) as a way to make the specification
  of an interface precise, or show how to use a
  device
• These do not necessarily show the right way to
  think about the problemthey are chosen for
  conceptual clarity!
• Examples
• RSARef implementation of RSA cryptography
• Thread-per-layer implementations vs. upcalls

14
P9 Pass hints across interfaces

• Key Concept if the caller knows something the
  callee will have to compute, pass it (or
  something that makes it easier to compute) as an
  argument!
• "hint" something that makes the recipient's
  life easier, but may not be correct
• "tip" hint that is guaranteed to be correct
• Caveat callee must either trust caller, or
  verify (probably should do both)
• Example
• Passing addresses of device-mapped pages in from
  user processes (Text Section 4.1)

15
P10 Pass hints in protocol headers

• Key Concept If sender knows something receiver
  will have to compute, pass it in the header
• Example
• Identifying state blocks
• TCP/IP method (4-tuple) is inefficient and slow
• Better have each end give the other a handle, to
  be included in each packet handle can be index
  into array
• Include a nonce or key to validate the
  information
• Nonce stored in both header and state block

16
Part III Local Speedup Techniques
17
P11 Optimize the Expected Case

• Key Concept If 80 of the cases can be handled
  similarly, optimize for those cases
• P11a Use Caches
• A form of using state to improve performance
• Example
• TCP input "header prediction"
• If an incoming packet is in order and does what
  is expected, can process in small number of
  instructions (see code)

18
P12 Add or Exploit State to Gain Speed

• Key Concept Remember things to make it easier
  to compute them later
• P12a Compute incrementally
• Here the idea is to "accumulate" as you go,
  rather than computing all-at-once at the end
• Example
• Incremental computation of Chi-Square statistic

19
P13 Optimize Degrees of Freedom

• Key Concept Consider all the aspects of the
  problem that might be adapted to the conditions
• Example IP trie lookups, where "width" of tree
  varies in the tree

20
P14 Use special techniques for finite universes
(e.g. small integers)

• Key Concept when the domain of a function is
  small, techniques like bucket sorting, bitmaps,
  etc. become feasible.
• Example Timing wheels

21
P15 Use algorithmic techniques to create
efficient data structures

• Key Concept once P1-P14 have been applied, think
  about how to build an ingenious data structure
  that exploits what you know
• Examples
• IP forwarding lookups
• PATRICIA trees (data structure) were first
• Then many other more-efficient approaches
• Packet classification
• Given a set of patterns to match 5-tuples, and a
  5-tuple, find allthe first pattern(s) that it
  matches

22
Caveats

• These are implementation principles, not design
  principles
• But when you go to design new protocols, it is
  very helpful to know them! (E.g. SCTP uses
  receiver-chosen handles to identify state
  blocks.)
• There are other (probably better) ways to carve
  up these ideas into groups of "Principles"
• The value is in thinking about and applying them

23
Cautionary Examples

• Having web servers pre-serve embedded objects
  when an HTML object is requested
• Varghese says they tried it, found it hurt
  performance!
• Two proposed reasons
• Interaction with TCP slow-start
• Client caching
• Multiple-string matching in Snort (IDS)
• Modified Boyer-Moore matching algorithm to do
  "set matches"
• Incorporated into Snort little improvement
• Why?
• String matching was not the bottleneck!
• A large data structure was required, which no
  longer fit in cache

24
Cautionary Examples, cont.

• Process-list searching in PDP-11 Unix
• Many kernel operations involved a linear search
  through the list of processes
• Idea use doubly-linked list of processes to
  speed search, insertion, deletion
• Result would've taken about twice as long for
  typical table sizes needed 1000's of processes
  before it would pay off!

25
Cautionary Questions

• Q1 Is improvement really needed?
• Q2 Is this really the bottleneck?
• Q3 What impact will change have on rest of
  system?
• Q4 Does BoE-analysis indicate significant
  improvement?
• Q5 Is it worth adding custom hardware?
• Q6 Can protocol change be avoided?
• Q7 Do prototypes confirm the initial promise?
• Q8 Will performance gains be lost if environment
  changes?

26
CANEs Packet-Processing Model
Generic Forwarding Function
predefined slots
customizing code
(e.g. active congestion control)
outgoing channels
incoming channels
27
Experiment Configuration
Background traffic source
Active IP router
Bottleneck link (2 Mbps)
MPEG source (avg rate 725 kbps)
