Ecologix Air Handlers

1

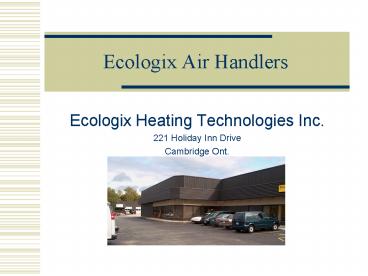

Ecologix Air Handlers

• Ecologix Heating Technologies Inc.
• 221 Holiday Inn Drive
• Cambridge Ont.

2
Air Handling Systems Installations
3
Installation Locations

• Above vs. beside W.H.
• Floor
• Ceiling
• Closet
• Utility space
• Crawl space
• Attic

4
Small Dtm High Velocity

• HIGH VELOCITY
• Sales term used by SpacePak and others.
• HiV trade name for ESP.
• More accurate terms Higher Pressure or Small
  Diameter duct system.
• Ecologix trade name is Small-Dtm for small
  diameter duct
• APPLICATIONS
• Vertical town homes.
• Custom homes w/in-floor
• Multiple suites or fire breaks.

5
Small Dtm Multi-Level Town Homes

• QWhy use Silent Duct in tall buildings?
• AStack effect- hot air rises to top floors.
• In Winter, less heating air is needed on top
  floors and more heating air needed on lower
  floors
• In Summer, more cooling air needed on top floors
  and less on lower floors

6
Small Dtm systems

• Higher pressure drives air to far branches. No
  problem getting air four floors away
• Multiple small mains easy to rebalance from
  summer to winter. Dramatically reduces homeowner
  complaints and call backs for builder

7
small Dtm vs. Competitors
8
Small Dtm Q A

• Is Small Dtm High Velocity?
• NO technical definition exists for High Velocity.
  ASHRAE mentions medium and high pressure, but no
  standard provides a definition to work from.
• Does Small Dtm meet the building code?
• YES BUTSD operates at a pressure above the
  range recognized by residential HRAI sizing
  practices. Just like SpacePak, ESP(Tempmiser) and
  Unico, the system needs to be an Engineered
  design. Follow installation instructions!

9
Small Dtm Q A

• Isnt high pressure/ High Velocity duct work
  wasteful of energy?
• YES! Pumping air up to 2 of static pressure just
  to distribute air IS wasteful. That is why
• SD operates at 1 maximum pressure
• Eco-duct modulates to lower fan speeds for most
  of the year. The duct only sees high pressure on
  the coldest days of the year, when the full
  capacity of the system is needed. (NO other high
  pressure duct system does this.)

10
Small Dtm Q A

• Can an Ecologix air handler be connected to
  existing 2 branches?
• YES! However, the factory engineers must verify
  the duct design
• Usually requires eco-duct with EC motor
• May require motor up-size
• May require supply mains up-size in basement

11
Why Choose Ecologix? Installers Perspective

• Installation Ease lower overall cost
• Includes pump, check valve, for complete
  installation.
• Multi position fan box / multi-location RA
• Fewer customer issues less hassle time on site
• Quieter always on lowest possible speed
  (eco-duct)
• Warmer air improved homeowner comfort
• Maximized domestic water capacity
• Conventional duct components lower cost

12
Why Choose Ecologix?Customer Perspective

• Very Quiet
• No nozzle hiss
• Eco-duct runs at 50 speed most of the heating
  season
• More Decorative Design Options
• Any available 4x10 grille can be used or changed
  later when rooms are redecorated
• Full Cooling Capacity
• Freeze stats lock out air conditioning when it is
  needed the most
