Quantum Entanglement

1

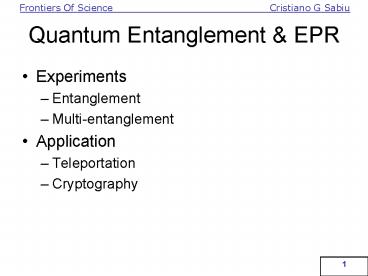

Quantum Entanglement EPR

• Experiments
• Entanglement
• Multi-entanglement
• Application
• Teleportation
• Cryptography

2
Experiments

• Entanglement
• Interactions involving quantum mechanical
  particles, conserve various quantities.
• This leads to the pair being entangled

1982- Alain Aspect and colleagues in University
of Paris demonstrated for the first time quantum
entanglement. Proving that Einstein was wrong
3
Experiments

• Multi-entanglement
• Entanglement has been confirmed in trillions
  of atoms at once. This is a so called collective
  process.
• 2001- A team led by Eugene Polzik in Denmark
  succeeded in entangling two clouds of caesium
  atoms. Previous record was four atoms!

4
Quantum Teleportation

• This is achieved through entanglement.
• It was first achieved in 1997 when Prof. Anton
  Zeilinger at the university of Vienna used
  entanglement to teleport a photon 1m across the
  lab.

Experimental setup Bob and Alice share a pair of
entangled photons. But Alice has an additional
photon in an unknown state. (eg unknown
polarisation state, u)
5
Quantum Teleportation
Bob
Alice
a
c
b
Photon a then takes on a real polarisation state,
u which is related to the initial state of
photon c.
Quantum Operation, entangles b c, thus
disentangling photon a.
Alice then communicates the results of her
operation to Bob
Result
Bob can then perform a local transformation to
recreate the state c.
a c
6
Quantum Teleportation

• Photon a acquired a definite state as soon as
  the operation was done on Alice's photons, i.e.
  faster than light. But note that this
  teleportation process requires a classical
  channel of communication (i.e. a mobile phone.)
  to inform Bob of the operation and its result.
• Therefore no faster than light teleportation,
  regardless of what you may read on the internet!

7
Quantum Cryptography
Encoding and deciphering messages based on a key.
Problems

• Bad guy can intercept the key!!
• Bad guy can determine the key using several
  messages.
• So need a unique key for each message.

Solution Quantum key distribution

• This field of endeavour exploits the fact that
  wave functions are fragile. A simple measurement
  will force a photon into a (random) definite
  state.
• This destroys the properties of entanglement.

8
Quantum Cryptography
Bob
Alice
Entangled photons
Alice checks randomly for a particular
polarisation
Bob sends photons with 0, 90, 45, -45
polarisations
Bob sends photons with 0, 90, 45, -45
polarisations
Using a classical channel of communication
Alice sends the checks to Bob NOT the results
Chosen checks
Bob sends back which are correct
Alice now can deduce the key
9
Quantum Cryptography

• What's the point?
• If the eavesdropper intercepts the message he/she
  wont know which test to perform, and they would
  incur errors!
• If any of the message was intercepted then the
  entanglement between Bob Alice's photons would
  be ruined. This would destroy the correlation in
  polarisation, and thus the eavesdropper would be
  detected!

10
Conclusions

• Einstein may have been wrong to dismiss the
  strange process of entanglement. But he was still
  its founding father!
• Entanglement is one of the weirdest consequences
  of QM.
• We have known the rules of QM for some time now
  but entanglement is a step up the ladder, we are
  now learning to use these basic rules to exploit
  QM processes for use in real and useful
  applications

11
Thank you for your time you can wake up
now!Sorry no questions cos I probably dont
know the answer.
