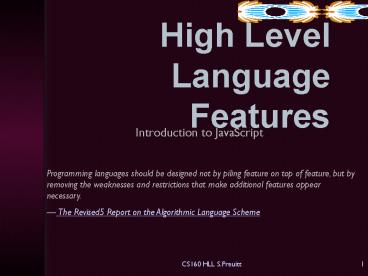

High Level Language Features

1
High Level Language Features

• Introduction to JavaScript

Programming languages should be designed not by
piling feature on top of feature, but by removing
the weaknesses and restrictions that make
additional features appear necessary. The
Revised5 Report on the Algorithmic Language
Scheme
2
Variable Declaration Initialization

• To avoid error from uninitialized data or
  unmatched data type, most HLL expect the variable
  to be declared and initialized before use.
• Example
• In C
• int num
• int x 0
• char c a

In JavaScript var num var x 0 var c a
3
Arithmetic Assignment

• Arithmetic assignment is an abbreviated form of
  an arithmetic expression such as follows
• int c 0
• c c3
• Now, c c 3 can also be written as
• c 3
• It is of the form
• variable operator expression
• How would we write c c 3?

4
Conditional operator ?

• Closely related to if/else structure
• Most HLL compilers provide this operator
• It is a ternary operator (with three operands)
• The operands, together with the conditional
  operator, form a conditional expression
• Of the form
• (True/False condition ?
• Action if true
• Action if false)
• print (grade gt 60 ? Passed Failed)
• Will print Passed if grade is input as 75.

5
? Conditional Operator Example

• In JavaScript
• var greeting
• hello ((name ! null) ? name there)
• Is the same as
• greeting hello
• if(name ! null)
• greeting name
• else
• greeting there

6
Unary Increment Decrement Operators

• If a variable is incremented (or, decremented) by
  1, the increment (decrement) operator (--) can
  be used
• c c 1 c c-1
• c 1 c - 1
• c c--
• All mean the same thing in this context of
  incrementing (decrementing) by 1.
• This is also known as post-increment
  (post-decrement) operator because the variable is
  incremented (decremented) after the current value
  of the variable is used in the expression in
  which it appears.

7
Pre increment and post increment

• Preincrement a
• Increment the current value of a and then use the
  new value
• Postincrement a
• Use the current value of a and then increment
• Predecrement --b
• decrease b by 1 and then use the new value
• Postdecrement b--
• use the current value of b and then decrease it
  by 1

8
Code Snippet what is the output?

• var i0
• var j, k
• while (i lt 5)
• document.write(i)
• j i
• document.write(j)
• k --i
• document.write(k)

• Output is
• i 1, j i is 1, k --i is 1
• i 2, j i is 2, k --i is 2
• i 3, j i is 3, k --i is 3
• i 4, j i is 4, k --i is 4
• i 5, j i is 5, k --i is 5
• i 6, j i is 6, k --i is 6

9
Code Snippet what is the output?

• var i0
• var j, k
• while (i lt 5)
• document.write(i)
• document.write(i)
• document.write(--i)

• Output is
• i 0, i 2, --i 1i 1, i 3,
  --i 2i 2, i 4, --i 3i 3, i
  5, --i 4i 4, i 6, --i 5i 5, i
  7, --i 6

10
Using increment or decrement operators

• Can only be used with a simple variable name, not
  with an expression
• Example writing something like
• (xy)
• is a syntax error in most HLL compilers.
• Preincrement and predecrement operate slightly
  faster than postincrement and postdecrement in
  most compilers like C,C.

11
Operators, Precedence,Associativity, and Type
12
Keyword function in JS

• The function statement defines a function in JS
• function functionName(arg1, arg2, , argn)
• statements
• The body of the function can contain any number
  of valid JS statements within in the curly
  brackets
• Statements are not executed when the function is
  defined, but only when they are invoked via a
  function call
• A return statement allows for returning values
  from the function to the caller

13
Some simple JS function definitions

• function welcome()
• alert(Welcome to my home page!)
• function printMsg(msg)
• document.write(msg, ltbrgt)
• function hypotenuse(x, y)
• return Math.sqrt(xx yy)

14
Switch The multi-way selection

• We can use multi-way nested if statements for
  conditional branching
• Problem If all of the branches depend on the
  value of a single variable, there is wasteful
  repeated checking
• Solution Use switch statement
• switch (expression)
• case statements
• Uses break statement to exit the switch (or a
  loop) structure.

15
Switch example in JS

• function examine_n(n)
• switch(n)
• case 1 document.write(one)
• break
• case 2 document.write(two)
• break
• case 3 document.write(three)
• break
• case 4 document.write(four)
• break
• default document.write(bad input)

• procedure examine_n(n)
• if(n 1)
• write(one)
• else if (n 2)
• write(two)
• else if (n 3)
• write(three)
• else if (n 4)
• write(four)
• else
• write(bad input)

16
for and while loops

• for (initialize test increment)
• statement
• Is equivalent to
• initialize
• while(test)
• statement
• increment

17
for and while loops in JS

• var count
• for (count 1 count lt 10 count)
• document.write(count ltBRgt)
• Is the same as
• var count 1
• while (count lt 10)
• document.write(count ltBRgt)
• count

18
The Web Browser Programming Environment

• The programming environment provided the web
  browser has three important features
• The Window object that serves as the global
  object and global execution context for
  client-side JS code
• The client-side object hierarchy
• The event-driven programming
• JS is not the only language that can be embedded
  in this web programming environment (ex.,
  VBScript, Tcl/Tk, PHP).
• Lets try to understand each of the three
  features

19
1. The Window object

• This object represents a web browser window or
  frame within that window
• Each window object defines a unique execution
  context for the client-side JS code
• To that effect, each window object has certain
  properties and methods associated with it
• Example of window object properties status,
  defaultStatus, location, name, self, top,
  history, frames
• Example of window object methods close(),
  focus(), blur(), alert(), confirm(), prompt()
• See slide 29 for JS Object Hierarchy chart

20
2. Client-side JS in Web Browser Environment

• The client-side JS where the client is
  usually understood to be a web client like a
  browser is
• When a JS interpreter is embedded in a web
  browser so that
• The scripting ability of JS interpreter along
  with the document object model defined by a web
  browser combine in a synergistic way so that
• The result is rather dynamic meaning, it
  enables executable content to be distributed over
  the web leading to the evolution of Dynamic
  HTML or DHTML.
• Aside JS was originally called LiveScript

21
3. The Event-Driven Programming Model

• Recall that in the old days, computer programs
  often ran in the batch mode viz., it read in a
  batch of data and did some computations and then
  dumped out the results
• gt virtually no interaction between user and
  machine while the computation is going on.
• Then, with time-share mode and text-based
  terminals, limited interactivity became possible
• gt program could ask for user input and the user
  could type in data that can then be used for
  continuing the computation

22
3. The Event-Driven Programming Model

• Nowadays, with graphical displays and pointing
  devices like mice, programs are generally
  event-driven viz.,
• user input can be via keystroke or mouse pointer
  called an event
• program responds to such an event via what are
  known as event-handlers
• JS has Objects have Properties (P), Methods (M)
  and Event Handlers (E) pre-defined and
  conveniently packaged for extending HTML
  capabilities

23
Server-side JS in Web Environment

• Server-side JS core JS is extended for use in
  web servers (example LiveWire by Netscape)
• Used as an alternative to CGI Scripts (Common
  Gateway Interface)
• When a web client requests a document that has
  server-side JS content, the web server executes
  the script and serves up the result to the
  client
• where the resulting document may be static or
  dynamic
• And as speed is crucial for server-side JS, it is
  usually precompiled and stored in binary form so
  that
• it can be efficiently interpreted and sent to
  the client should a request come in.

24
Embedded JS

• JS is a general purpose programming (scripting)
  language
• Its use is not restricted to web servers and web
  browsers (web clients)
• Aside Netscape made the source code for JS
  interpreter freely available, along with source
  code to its web browser (www.mozilla.org)

25
The Document Object Model (DOM)

• DOM is an evolving standard that specifies, among
  other things, how a scripting language like JS
  can access and manipulate the detailed structure
  of an HTML or XML document.
• Refer W3C site for details http//www.w3.org/DOM/
• DOM Level 0 has been the standard for a while,
  then IE4.0 implemented the emerging standard of
  DOM Level 1.
• Working group of W3C has now come up with DOM
  Level 3, following DOM Level 2
• The window object, as we saw earlier, is the
  central object in client-side JS
• Every window object has a document property that
  refers to a document object that represents the
  (typically HTML) document.

26
JS-compatible browsers

• There are currently many clients/browsers that
  support JavaScript, including
• Netscape Navigator 2.0x,
• Netscape Navigator 3.0x,
• Netscape Navigator 4.0x,
• Microsoft Internet Explorer 3.0x, and
• Microsoft Internet Explorer 4.0.
• When you write a script and embed it in your
  site, it will be interpreted by different
  interpreters on the viewers browser with unequal
  capabilities and features because
• Unlike server-side scripts which you have full
  control over their interpretation, client-side
  scripts are executed by the user's browser.

27
JS-compatible browsers

• Each browser supports different JavaScript
  features
• And, each "feature" its own bugs.
• Some bugs are platform-specific, while others are
  browser-specific.
• Some objects are supported by Navigator 3.0x,
  4.0x, and Internet Explorer 4.0, but are not
  supported by Navigator 2.0x and Internet Explorer
  3.0x.
• There are quite a few ways to deal with these
  compatibility issues including finding out which
  browser the users client browser is running and
  account for incompatibilities in your script.
• Check out http//hotwired.lycos.com/webmonkey/refe
  rence/browser_chart/ for a quick summary of
  browsers and compatibility

28
Cross-browser compatibility

• Netscape and Microsoft each had their own
  definition of Dynamic HTML in their browsers. The
  W3C DOM level 1 (supported in Mozilla and
  Netscape 6) and W3C DOM level 2 (partially
  supported in Mozilla and Netscape 6) provide for
  the first time an industry standard way of
  writing Dynamic HTML.
• Cross-Browser DHTML includes
• shared support for Cascading Style Sheets, level
  1 (CSS1)
• shared support for Cascading Style Sheets
  Positioning (CSSP)
• shared JavaScript support
• Document Object Model functionality
• event model functionality
• downloadable font resources (also known as
  Dynamic Fonts)
• full screen mode
• Anything which is browser or platform dependent
  is not cross-browser DHTML.
• To this effect, we will use HTML comment tags to
  avoid confusing non-JS compatible browsers

29
Everything in JS is an Object

• The emphasis is on the thing i.e., if it is
  not an action or a description, then it is
  probably an object
• Some commonly used JS objects (top-down) are
• window
• document
• form
• image
• Of these objects, the first and central one
  inside the window object is the document object.
• The document object has several properties and
  methods that help interaction with the user.
  Well study a few of them shortly.

30
JS Object Hierarchy

• Objects are one of the fundamental data types in
  JS
• Objects are pre-defined
• Primitive data types hold one type of value,
  whereas Objects are a compound data type and
  therefore aggregate multiple data values into
  single units to store and retrieve them
  collectively by object name
• In other words, an Object is a collection of
  properties and methods, each of which has a name
  and value associated.

31
JS Object Hierarchy
32
The Dot Operator Dot Syntax

• Used to access object properties and methods
• Written as
• objectName.propertyName
• objectName.methodName()
• As JS Objects are hierarchical, we can traverse
  down the hierarchy from top to bottom, accessing
  the properties or methods via the dot operator
  along the path
• Example
• document.write() is a method of the document
  object
• document.forms0.selector.selectedIndex is the
  selectedIndex property of the selector object of
  the first form (from form0 array) object of the
  document object

33
The document object

• document.bgColor
• corresponds to the BGCOLOR property of the
  ltBODYgt tag in HTML
• document.write()
• accesses the write method of the document object
  and allows writing output or displaying formatted
  HTML output on the current document
• and so on

Refer http//spot.pcc.edu/spreuitt/CS160/images/J
SObjChart.jpg for a detailed picture of the JS
object hierarchy
34
Communicating with user via dialog boxes

• Dialog boxes allow for displaying and receiving
  information, thus providing a simple way to
  interact with the user. There are three ways in
  which JS lets you do this
• alert() has an OK button to help user clear the
  alert dialog box
• alert(message)
• confirm() has an OK and Cancel button, or Yes
  and No in Macs. This method returns the users
  answer to the script in the form of True or False
• document.write(confirm(message))
• prompt() uses two arguments, and has two buttons
  OK and Cancel just like confirm(), but, returns
  the text entered by the user, or null, if nothing
  is entered by the user.
• document.write(promptm(message, ))
• All dialog boxes, like buttons on a web page, use
  standard parts of users OS. So, for example, an
  alert box would look different on a Macintosh
  than on a machine running Windows.

35
Where should JS be embedded?

• JS code can be hidden away in the ltHEADgt lt/HEADgt
  section of an HTML page as we will see in some
  examples
• JS functions so defined in the ltHEADgt lt/HEADgt
  section can be invoked from within the ltBODYgt
  part of the HTML document based on some event
  that triggers it, as we will see in some examples
• JS can be embedded in HTML ltBODYgt directly, in
  which case, you can define a function inside the
  ltBODYgt tag and have it displayed in the current
  document directly as seen in the next example

36
A simple JS program in web environment

• ltHTMLgt
• ltHEADgt ltTITLEgt JS FACTORIAL EXAMPLE lt/TITLEgt
• lt/HEADgt
• ltBODYgt
• ltSCRIPT LANGUAGE JavaScriptgt
• document.write(ltH2gtTable of factorialslt/H2gt)
• for (i1, fact 1 i lt 10 i, fact i)
• document.write(i ! fact)
• document.write(ltBRgt)
• lt/SCRIPTgt
• lt/BODYgt
• lt/HTMLgt
• http//spot.pcc.edu/spreuitt/CS160/JSFolder/JSFac
  torial.html

37
Event Handlers JS and HTML ltFORMgt

• JS can be executed when a particular event occurs
  in an HTML document like when a user clicks a
  button.
• A simple example
• ltHTMLgt
• ltBODYgt
• ltFORMgt
• ltINPUT TYPEbutton
• VALUEClick this button
• onClickalert(You clicked the button)gt
• lt/FORMgt
• lt/BODYgt
• lt/HTMLgt
• http//spot.pcc.edu/spreuitt/CS160/JSFolder/JSBut
  tonClick.html

38
HTML FORM ELEMENTS

• ltFORMgt element expands HTML capabilities by
  allowing for widgets
• like buttons, checkboxes, radio buttons,
  pull-down selection lists, text fields and so on
• that are useful for communicating with the user
  to get input or display some output.
• ltFORMgt elements (there can be multiple forms in
  an HTML page) are placed in the ltBODYgt of an HTML
  document and enclose all sub-elements that appear
  as part of the form.

39
HTML ltFORMgt Elements
40
JS Form Objects, Properties, Methods and Event
Handlers

• forms object in JS is a part of document
  object, meaning,
• it is one step lower in the JS object hierarchy
  from the document object
• forms is an array, meaning there can be more
  than one form in a document object
• forms can also be accessed by their name
  attribute

• Form Events
• onSubmit
• onReset
• Form Properties
• action
• encoding
• length
• method
• target
• Forms Methods
• submit()
• reset()

41
Example of HTML FORM elements

• ltHTMLgt
• ltBODYgt
• ltFORM nameExample1gt
• ltINPUT TYPEbutton
• VALUEClick this button
• onClickalert(You clicked the first
  button)gt
• ltINPUT TYPEbutton
• VALUEor this button
• onClickalert(You clicked the second
  button)gt
• ltBRgtAre you having fun yet?
• ltINPUT TYPEradio NAMEfun VALUEyesgt Yes
• ltINPUT TYPEradio NAMEfun VALUEnogt NO!
• ltINPUT TYPEradio NAMEfun VALUEmaybe
  CHECKEDgt Maybe
• ltBRgtWhy are we doing this?
• ltINPUT TYPEcheckbox NAMElearn CHECKEDgt To
  Learn
• ltINPUT TYPEcheckbox NAMEhaveTogt Because I
  have to!

42
JS Primitive Data Types

• JS allows three types of data
• Strings
• Numbers
• Boolean
• Everything is a string!
• String is a collection of all kinds of characters
  that can be represented and so, can contain
  numbers, and Booleans
• Making Numbers
• Use a built-in functions to convert input string
  to numbers explicitly

43
JS Numbers from Strings

• Even if the user enters a number in a text field
  of an HTML form, JS reads it as a string.
• To do numerical operations on this, first convert
  it to a number using one of the three ways
• Use eval() to convert the input string to numbers
• Use parseInt() to convert the input string to
  integers
• Use parseFloat() to convert the input string to
  decimal floating point

44
JS Numbers to Strings

• JS automatically converts input numbers to
  strings,
• however, you may want to do it explicitly in your
  code to display the number in a particular base
  system, say Hex, for HTML Hex color codes
• Use the method toString(base)
• Example
• function convertNum(numStr, baseStr)
• var numVal eval(numStr)
• var baseVal eval(baseStr)
• var result numVal.toString(baseVal)
• document.write(result)
• Note Base should be a number between 2 and 16
• http//spot.pcc.edu/spreuitt/CS160/JSFolder/JStoS
  tring.html

45
Summary

• There are lots of details (that we cannot go into
  due to lack of time) that make JS quite
  interesting
• There are some good references and introduction
  on the web. Try not to get bogged down by
  complicated examples on these sites and please do
  not use any of the free codes available on the
  web it is plagiarism!!
• Practice writing your own JS and youll soon see
  that you can do a lot of fun stuff
