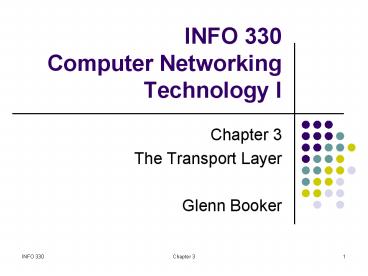

INFO 330 Computer Networking Technology I

1
INFO 330Computer Networking Technology I

• Chapter 3
• The Transport Layer
• Glenn Booker

2
Transport Layer

• The Transport Layer is between the application
  and network layers
• Well focus initially on the transport-network
  connection, and see how UDP handles it
• Then well address techniques for verifying data
  transmission, and reassembly of packets, and how
  TCP applies them
• Finally well cover congestion control techniques

3
Transport Layer

• The Transport Layer handles logical communication
  between processes
• Its the last layer not used between processes
  for routing, so its the last thing a client
  process and the first thing a server process sees
  of a packet
• By logical communication, we recognize that the
  means used to get between processes, and the
  distance covered, are irrelevant

4
Transport vs Network

• Notice we didnt say hosts in the previous
  slidethats because
• The network layer provides logical communication
  between hosts
• Mail analogy
• Lets assume cousins (processes) want to send
  letters to each other between their houses
  (hosts)
• They use their parents (transport layer) to mail
  the letters, and sort the mail when it arrives

5
Transport vs Network

• The letters travel through the postal system
  (network layer) to get from house to house
• The transport layer doesnt participate in the
  network layer activities (e.g. most parents dont
  work in the mail distribution centers)
• The transport layer protocols are localized in
  the hosts
• Routing isnt affected by anything the transport
  layer added to the messages

6
Transport vs Network

• Following the analogy, different people might
  have to pick up and sort the mail theyre like
  using different transport layer protocols
• And the transport layer protocols (parents) are
  often at the mercy of what services the network
  layer (postal system) provides
• Some services can be provided at the transport
  layer, even if the network layer doesnt (e.g.
  reliable data transfer or encryption)

7
Two Choices

• Here we choose between TCP and UDP
• In the transport layer, a packet is a segment
• In the network layer, a packet is a datagram
• The network layer is home to the Internet
  Protocol (IP)
• IP provides logical communication between hosts
• IP makes a best effort to get segments where
  they belong no guarantees of delivery, or
  delivery sequence, or delivery integrity

8
IP

• Each host has an IP address
• Common purpose of UDP and TCP is extend delivery
  of IP data to the hosts processes
• This is called transport-layer multiplexing and
  demultiplexing
• Both UDP and TCP also provide error checking
• Thats it for UDP data delivery and error
  checking!

9
TCP

• TCP also provides reliable data transfer (not
  just data delivery)
• Uses flow control, sequence numbers,
  acknowledgements, and timers to ensure data is
  delivered correctly and in order
• TCP also provides congestion control
• TCP applications share the available bandwidth
  (they watched Sesame Street!)
• UDP takes whatever it can get (greedy little
  protocol)

10
Multiplexing Demultiplexing

• At the destination host, the transport layer gets
  segments from the network layer
• Needs to deliver these segments to the correct
  process on that host
• Do so via sockets, which connect processes to
  the network
• Each socket has a unique identifier, whose
  format varies for UDP and TCP

11
Multiplexing Demultiplexing

• Demultiplexing is getting the transport layer
  segment into the correct socket
• Hence Multiplexing is taking data from various
  sockets, applying header info, breaking it into
  segments, and delivering it to the network layer
• Multiplexing and demultiplexing are used in any
  kind of network not just in the Internet
  protocols

12
Multiplexing Demultiplexing
13
Mail Analogy

• Multiplexing is when a parent collects letters
  from the cousins, and puts them into the mail
• Demultiplexing is getting the mail, and handing
  the correct mail to each cousin
• Here we need unique socket identifiers, and some
  place in the header for the socket identifier
  information

14
Segment Header

• Hence the segment header starts with the source
  and destination port numbers
• Each port number is a 16-bit (2 byte) value (0
  to 65,535)
• Well known port numbers are from 0 to 1023 (210)
• After the port numbers are other headers,
  specific to TCP or UDP, then the message

15
UDP Multiplexing

• UDP assigns a port number from 1024 to 65,535 to
  each socket, unless the developer specifies
  otherwise
• UDP identifies a socket only by destination IP
  address and destination port number
• The port numbers for source and destination are
  switched (inverted) when a reply is sent
• So a segment from port 19157 to port 46428
  generates a reply from 46428 to 19157

16
TCP Multiplexing

• TCP is messier, of course
• TCP identifies a socket by four values
• Source IP address, source port number,
  destination IP address, and destination port
  number
• Hence if UDP gets two segments with the same
  destination IP and port number, theyll both go
  to the same process
• TCP tells the segments apart via source IP/port

17
TCP Multiplexing

• So if you have two HTTP sessions going to the
  same web server and page, how can TCP tell them
  apart?
• Even though the destination IP and port (80) are
  the same, and the two sessions (processes) have
  the same source IP address, they have different
  source port numbers

18
Web Servers TCP

• Each new client connection often uses a new
  process and socket to send HTTP requests and get
  responses
• But a thread (lightweight process) can be used,
  so a process can have multiple sockets for each
  thread

19
UDP

• The most minimal transport layer has to do
  multiplexing and demultiplexing
• UDP does this and a little error checking and,
  well, um, thats about it!
• UDP was defined in RFC 768
• An app that uses UDP almost talks directly to IP
• Adds only two small data fields to the header,
  after the requisite source/destination addresses
• Theres no handshaking UDP is connectionless

20
UDP for DNS

• DNS uses UDP
• A DNS query is packaged into a segment, and is
  passed to the network layer
• The DNS app waits for a response if it doesnt
  get one soon enough (times out), it tries another
  server or reports no reply
• Hence the app must allow for the unreliability of
  UDP, by planning what to do if nothing comes back

21
UDP Advantages

• Still UDP is good when
• You want the app to have detailed control over
  what is sent across the network UDP changes it
  little
• No connection establishment delay
• No connection state data in the end hosts hence
  a server can support more UDP clients than TCP
• Small packet header overhead per segment
• TCP uses 20 bytes of header data, UDP only 8 bytes

22
UDP Apps

• Other than DNS, UDP is also used for
• Network management (SNMP)
• Routing (RIP)
• Multimedia and telephony (various protocols)
• Remote file server (NFS)
• The lack of congestion control in UDP can be a
  problem when lost of large UDP messages are being
  sent can crowd out TCP apps

23
UDP Header

• The UDP header has four two-byte fields in two
  lines
• Source port number Destination port number
• Length Checksum
• Length is the total length of the segment,
  including headers, in bytes
• The checksum is used by the receiving app to see
  if errors occurred

24
Checksum

• Noise in the transmission lines can lose bits of
  data or rearrange them in transit
• Checksums are a common method to detect errors
  (RFC 1071)
• To create a checksum
• Find the sum of the binary digits of the message
• The checksum is the 1s (ones) complement of the
  sum
• If message is uncorrupted, sum of message plus
  checksum is all ones 1111111111111

25
1s Complement?

• The 1s complement is a mirror image of a binary
  number change all the zeros to ones, and ones
  to zeros
• So the 1s complement of 00101110101 is
  11010001010
• UDP does error checking because not all lower
  layer protocols do error checking
• This provides end-to-end error checking, since
  its more efficient than every step along the way

26
UDP

• Thats it for UDP!
• The port addresses, the message length, and a
  checksum to see if it got there intact
• Now see what happens when we want reliable data
  transfer

27
Reliable Data Transfer

• Distinguish between the service model, and how
  its really implemented
• Service model From the app perspective, it just
  wants a reliable transport layer to connect
  sending and receiving processes
• Service implementation In reality, the transport
  layer has to use an unreliable network layer
  (IP), so transport has to make up for the
  unreliability below it

28
Reliable Data Transfer

• The sending process will give the transport layer
  a message rdt_send (rdt reliable data transfer)
• The transport protocol will convert to udt_send
  (udt unreliable data transfer Fig 3.8 has
  typo) and give to the network layer
• At the receiving end, the protocol gets rdt_rcv
  from the network layer,
• The protocol will convert to deliver_data and
  give it to the receiving application process

29
Reliable Data Transfer
30
Reliable Data Transfer

• Here well refer to the data as packets, rather
  than distinguish segments, etc.
• Also consider that well pretend we only have to
  send data one direction (unidirectional data
  transfer)
• Bidirectional data transfer is what really
  occurs, but the sending and receiving sides get
  switched
• Time to build a reliable data transfer protocol,
  one piece at a time

31
Reliable Data Transfer v1.0

• For the simplest case, called rdt1.0, assume the
  network is completely reliable
• Finite state machines (FSMs) for the sender and
  receiver each have one state waiting for a call
• The sending side (rdt_send) makes a packet
  (make_pkt) and sends it (udt_send)
• The receiving side (rdt_rcv) extracts data from
  the packet (extract), and delivers it to the
  receiving app (deliver_data)

32
Reliable Data Transfer v1.0

• Here a packet is the only unit of data
• No feedback to sender is needed to confirm
  receipt of data, and no control over transmission
  rate is needed

33
Reliable Data Transfer v2.0

• Now allow bit errors in transmission
• But all packets are received, in the correct
  order
• Need acknowledgements to know when a packet was
  correct (OK, 10-4) versus when it wasnt (please
  repeat) called positive and negative
  acknowledgements, respectively
• These types of messages are typical for any
  Automatic Repeat reQuest (ARQ) protocol

34
Reliable Data Transfer v2.0

• So allowing for bit errors requires three
  capabilities
• Error detection to know if a bit error occurred
• Receiver feedback, both positive (ACK) and
  negative (NAK) acknowledgements
• Retransmission of incorrect packets

35
Reliable Data Transfer v2.0
36
Reliable Data Transfer v2.0

• Sending FSM (cont.)
• The left state waits for a packet from the
  sending app, makes a packet with a checksum
  (make_pkt)
• Then the left state sends the packet (udt_send)
• It moves to the other state (waiting for ACK/NAK)
• If it gets a NAK response (errors detected), then
  it resends the packet (udt_send) until it gets it
  right
• If it gets an ACK response (no errors), then it
  goes back to the other state to wait for the next
  packet from the app

37
Reliable Data Transfer v2.0

• Notice this model does nothing until it gets the
  NAK/ACK, so its a stop-and-wait protocol
• Receiving FSM
• The receiving side uses the checksum to see if
  the packet was corrupted
• If it was ( corrupt) send a NAK response
• If it wasnt ( notcorrupt), extract and deliver
  the data, and send an ACK response
• But what if the NAK/ACK is corrupted?

38
Reliable Data Transfer v2.0

• Three possible ways to handle NAK/ACK errors
• Add another type of response to have the NAK/ACK
  repeated but what if that response got
  corrupted? Leads to long string of messages
• Add checksum data to the NAK/ACK, and data to
  recover from the error
• Resend the packet if the NAK/ACK is garbled but
  introduces possible duplicate packets

39
Reliable Data Transfer v2.1

• TCP and most reliable protocols add a sequence
  number to the data from the sender
• Since we cant lose packets yet, a one-bit
  number is adequate to tell if this is a new
  packet or a repeat of the previous one
• This gives our new model rdt version 2.1

40
Reliable Data Transfer v2.1
sender
41
Reliable Data Transfer v2.1

• Now the number of states are doubled, since we
  have to handle sequence of 0 or 1
• So in make_pkt(1, data, checksum) the 1 is the
  sequence number
• Sequence number alternates 010101 if everything
  works if a packet is corrupted, the same
  sequence number is expected two or more times
• Start at Wait for call 0 state when get
  packet, send it to network with sequence 0
• Then wait for ACK or NAK with sequence 0

42
Reliable Data Transfer v2.1

• If the packet was corrupt, or got a NAK, resend
  that packet (upper right loop)
• Otherwise wait for call with sequence 1 from app
• When call 1 is received, make and send the packet
  with sequence 1 (desired outcome)
• Then wait for a NAK/ACK with sequence 1
• If corrupt or got a NAK, resend (lower left loop)
• Otherwise go to waiting for a sequence 0 call
  from the app
• Repeat cycle

43
Reliable Data Transfer v2.1
receiver
44
Reliable Data Transfer v2.1

• The receiver side also doubles in of states
• When waiting for seq 0 state
• If the packet has sequence 0 and isnt corrupt,
  extract and deliver the data, and send an ACK
  go to wait for seq 1 state
• If the packet was corrupt, reply with a NAK
• If the packet has sequence 1 and was not corrupt
  (its out of order) send an ACK and keep waiting
  for a seq 0 packet
• Mirror the above for starting from wait for seq
  1 state

45
Reliable Data Transfer v2.2

• Could achieve the same effect without a NAK (for
  corrupt packet) if we only ACK the last
  correctly received packet
• Two ACKs for the same packet (duplicate ACKs)
  means the packet after the second ACK wasnt
  received correctly
• The NAK-free protocol is called rdt2.2

46
Reliable Data Transfer v2.2
47
Reliable Data Transfer v2.2

• Again, the send and receive FSMs are symmetric
  for sequence 0 and 1
• Sender must now check the sequence number of the
  packet being ACKd (see isACK message)
• The receiver must include the sequence number in
  the make_pkt message
• FSM on page 211 also has oncethru variable to
  help avoid duplicate ACKs

48
Reliable Data Transfer v3.0

• Now account for the possibility of lost packets
• Need to detect packet loss, and decide what to do
  about it
• The latter is easy with the tools we have (ACK,
  checksum, sequence , and retransmission), but
  need a new detection mechanism
• Many possible loss detection approaches focus
  on making the sender responsible for it

49
Reliable Data Transfer v3.0

• Sender thinks a packet lost when packet doesnt
  get to receiver, or the ACK gets lost
• Cant wait for worst case transmission time, so
  pick a reasonable time before error recovery is
  started
• Could result in duplicate packets if it was still
  on the way but rdt2.2 can handle that
• For the sender, retransmission is ultimate
  solution whether packet or ACK was lost

50
Reliable Data Transfer v3.0

• Knowing when to retransmit needs a countdown
  timer
• Count time from sending a packet to still not
  getting an ACK
• If time is exceeded, retransmit that packet
• Works the same if packet is lost or ACK is lost
• Since packet sequence numbers alternate
  0-1-0-1-etc., is called an alternate-bit protocol

51
Reliable Data Transfer v3.0
sender
52
Reliable Data Transfer v3.0

• How does the receiver FSM differ from rdt2.2?
• Notice that, even allowing for lost packets, we
  still assume only once packet is sent completely
  and correctly at a time
• But rdt3.0 still stops to wait for timeout of
  each packet fix with pipelining

53
Pipelined RDT

• Suppose we implemented rdt3.0 between NYC and LA
• Distance of 3000 miles gives RTT of about 30 ms
• If transmission rate is 1 Gbps, and packets are 1
  kB (8 kb)
• Transmission time is therefore only 8kb / 1E9 b/s
  8 microseconds
• Even if ACK messages are very small (transmission
  time about zero), the time for one packet to be
  sent and ACK is 30.008 ms

54
Pipelined RDT

• Hence were transmitting 0.008 ms out of the
  30.008 ms RTT, which equals 0.027 utilization
• How a protocol is implemented drastically affects
  its usefulness!
• It makes sense to send multiple packets and keep
  track of the ACKs for each
• Methods to do so are Go-Back-N (GBN) and
  selective repeat

55
Go-Back-N

• In this protocol, sender can send up to N packets
  without getting an ACK
• N is also called a window size, and the protocol
  is a.k.a. a sliding-window protocol
• Let base be the number of the first packet in a
  window
• The window size, N, is already defined
• Then all packets from 0 to base-1 have already
  been sent

Why a limit at all? Need for flow and
congestion control later.
56
Go-Back-N

• The window currently focuses on packets number
  base to baseN, these packets can be sent before
  their ACK is received
• Packet sequence numbers need to have a maximum
  value if k bits are in the sequence number,
  the range of sequence numbers is 0 to 2k-1
• The sequence numbers are used in a circle, so
  after 2k-1 you use 0 again, then 1, etc.

57
Go-Back-N

• In contrast, rdt3.0 only had sequence numbers 0
  and 1
• TCP has a 32-bit sequence number range for the
  bytes in a byte stream
• Now the FSMs for Go-Back-N (GBN) follow
• Sender must respond to
• Call from above (i.e. the app)
• Receipt of an ACK from any of the packets
  outstanding
• Timeout which causes all un-ACKed packets resent

58
Go-Back-N Sender
59
Go-Back-N

• The GBN receiver does
• If a packet is correct and in order, send an ACK
• Sender moves window up with each correct and in
  order packet ACKed this minimizes resending
  later
• In all other cases, throw away the packet, and
  resend ACK for the most recent correct packet
• Hence we throw away correct but out-of-order
  packets this makes receiver buffering easier

60
Go-Back-N

• GBN can be implemented in event-based
  programming events here are
• App invokes rdt_send
• Receiver protocol receives rdt_rcv
• Timer interrupts
• In contrast, consider the selective repeat (SR)
  approach for pipelining

61
Selective Repeat

• Large window size and bandwidth delay can make a
  lot of packets in the pipeline under GBN, which
  can cause a lot of retransmission when a packet
  is lost
• Selective repeat only retransmits packets
  believed to be in error so retransmission is
  on a more individual basis
• To do this, buffer out-of-order packets until
  the missing packets are filled in

62
Selective Repeat

• SR still uses a window of size N packets
• SR sender responds to
• Data from the app above it finds next sequence
  number available, and sends as soon as possible
• Timeout is kept for each packet
• ACK received from the receiver then sender marks
  off that packet, and moves the window forward
  can transmit packets inside the new window

63
Selective Repeat

• The SR receiver responds to
• Packet within the current window then send an
  ACK deliver packets at the bottom of the window,
  but buffer higher number packets (out of order)
• Packets that were previously ACKed are ACKed
  again
• Otherwise ignore the packet
• Notice the sender and receiver windows are
  generally not be the same!!

64
Selective Repeat

• Its possible that the sequence number range and
  window size could be too close, producing
  confusing signals
• To prevent this, need window size lt half of the
  sequence number range

65
Packet Reordering

• Our last assumption was that packets arrive in
  order, if at all
• What is they arrive out of order?
• Out of order packets could have sequence numbers
  outside of either window (snd or rcv)
• Handle by not allowing packets older than some
  max time
• TCP typically uses 3 minutes

66
Reliable Data Transfer Mechanisms

• Checksum, to detect bit errors in a packet
• Timer, to know when a packet or its ACK was lost
• Sequence number, to detect lost or duplicate
  packets
• Acknowledgement, to know packet got to receiver
  correctly
• Negative acknowledgement, to tell packet was
  corrupted but received
• Window, to pipeline many packets at once before
  an ACK was received for any of them

67
TCP Intro

• Now see how all this applies to TCP
• RFC 793
• Invented circa 1974 by Vint Cerf and Robert Kahn
• TCP starts with a handshake protocol, which
  defines many connection variables
• Connection only at hosts, not in between
• Routers are oblivious to whether TCP is used!
• TCP is a full duplex service data can flow both
  directions at once

68
TCP Intro

• TCP is point-to-point between a single sender
  and a single receiver
• In contrast with multipoint technologies
• TCP is client/server based
• Client needs to establish a socket to the
  servers hostname and port
• Recall default port numbers are app-specific
• Special segments are sent by client, server, and
  client to make the three-way handshake

69
TCP Intro

• Once connection exists, processes can send data
  back and forth
• Sending process sends data through socket to the
  TCP send buffer
• TCP sends data from the send buffer when it feels
  like it
• Max Segment Size (MSS) is based on the max frame
  size, or Max Transmission Unit (MTU)
• Want 1 TCP segment to eventually fit in the MTU

70
TCP Intro

• Typical MTU values are 512 1460 bytes
• MSS is the max app data that can fit in a
  segment, not the total segment size (which
  includes headers)
• TCP adds headers to the data, creating TCP
  segments
• Segments are passed to the network layer to
  become IP datagrams, and so on into the network

71
TCP Intro

• At the server side, the segment is placed in the
  receive buffer
• So a TCP connection consists of two buffers (send
  and receive), some variables, and two socket
  connections (send and receive) on the
  corresponding processes

72
TCP Segment Structure

• A TCP segment consists of header fields and a
  data field
• The data field size is limited by the MSS
• Typical header size is 20 bytes
• The header is 32 bits wide (4 bytes), so it has
  five lines at a minimum

73
TCP Segment Structure

• The header lines are
• Source and destination port numbers (16 bit ea.)
• Sequence number (32 bit)
• ACK number (32 bit)
• A bunch of little stuff (header length, URG, ACK,
  PSH, RST, SYN, and FIN bits), then the receive
  window (16 bit)
• Internet checksum, urgent data pointer (16 bit
  ea.)
• And possibly several options

74
TCP Segment Structure

• Weve seen the port numbers (16 bits each),
  sequence and ACK numbers (32 bits each)
• The bunch of little stuff includes
• Header length (4 bits)
• A flag field includes six one-bit fields ACK,
  RST, SYN, FIN, PSH, and URG
• The URG bit marks urgent data later on that line
• The receive window is used for flow control

75
TCP Segment Structure

• The checksum is used for bit error detection, as
  with UDP
• The urgent data pointer tells where the urgent
  data is located
• The options include negotiating the MSS, scaling
  the window size, or time stamping

76
TCP Sequence Numbers

• The sequence numbers are important for TCPs
  reliability
• TCP views data as unstructured but ordered stream
  of bytes
• Hence sequence numbers for a segment is the
  byte-stream number of the first byte in the
  segment
• Yes, each byte is numbered!

77
TCP Sequence Numbers

• So if the MSS is 1000 bytes, the first segment
  will be number 0, and cover bytes 0 to 999
• The second segment is number 1000, and covers
  bytes 1000-1999
• Third is number 2000, and covers 2000-2999, etc.
• Typically start sequences at random numbers on
  both sides, to avoid accidental overlap with
  previously used numbers

78
TCP Acknowledgement No.

• TCP acknowledgement numbers are weird
• The number used is the next byte number expected
  from the sender
• So if host B sends to A (!) bytes 0-535 of data,
  host A expects byte 536 to be the start of the
  next segment, so 536 is the Ack number
• This is a cumulative acknowledgement, since it
  only goes up to the first missing byte in the
  byte-stream

79
TCP Out-of-Order Segments

• What does it do when segments arrive out of
  order?
• Thats up to the TCP implementer
• TCP can either discard out of order segments, or
  keep the strays in buffer and wait for the pieces
  to get filled in
• The former is easier to implement, the latter is
  more efficient and commonly used

80
Telnet Example

• Telnet (RFC 854) is an old app for remote login
  via TCP
• Telnet interactively echoes whatever was typed to
  show it got to the other side
• Host A is the client, starts a session with Host
  B, the server
• Suppose client starts with sequence number 42,
  and server with 79

81
Telnet Example

• User types a single letter, c
• Notice how the seq and Ack numbers mirror or
  piggy back each other

82
Timeout Calculation

• TCP needs a timeout interval, as discussed in the
  rdt example, but how long?
• Longer than RTT, but how much? A week?
• Measure sample RTT for segments here and there
  (not every one)
• This SampleRTT value will fluctuate, with an
  average value called EstimatedRTT which is
  updated with each measurement (a moving average)

83
Timeout Calculation

• Naturally, EstimatedRTT is a smoother curve than
  each SampleRTT
• EstimatedRTT 0.875EstimatedRTT
  0.125SampleRTT
• The variability of RTT is measured by DevRTT,
  which is the moving average magnitude difference
  between SampleRTT and EstimatedRTTDevRTT
  0.75DevRTT 0.25
  SampleRTT-EstimatedRTT

84
Timeout Calculation

• We want the timeout interval larger than
  EstimatedRTT, but not huge use
• TimeoutInterval EstimatedRTT 4DevRTT
• This is analogous to control charts, where the
  expected value of a measurement is no more than
  the (mean 3the standard deviation) about ¼ of
  the time
• DevRTT isnt a standard deviation, but the idea
  is similar

85
Timeout Calculation

• Notice this means that the timeout interval is
  constantly being calculated, and to do so
  requires frequent measurement of SampleRTT to
  find current values for
• Estimated RTT, DevRTT, and TimeoutInterval

86
Reliable Data Transfer

• IP is not a reliable datagram service
• It doesnt guarantee delivery, or in order, or
  intact delivery
• In theory we saw that separate timers for each
  segment would be nice in reality TCP uses one
  retransmission timer for several segments (RFC
  2988)
• For the next example, assume Host A is sending a
  big file to Host B

87
Simplified TCP

• Here the sender responds to three events
• Receive data from application
• Then it makes segments of the data, each with a
  sequence number, and passes them to the IP layer
• Starts timer
• Timer times out
• Then it re-sends the segment that timed out
• ACK was received
• Compares the received ACK value with SendBase,
  the last byte number successfully received
• Restart timer if any un-ACK segments left

88
Simplified TCP

• Even this version of TCP can successfully handle
  lost ACKs by ignoring duplicate segments (Fig
  3.34, p. 242)
• If a segment times out, later segments dont get
  re-sent (Fig 3.35, p. 243)
• A lost ACK can still be deduced to not be a lost
  segment (Fig 3.36, p. 244)

89
Doubling Timeout

• After a timeout event, many TCP implementations
  double the timeout interval
• This helps with congestion control, since timeout
  is often due to congestion, and retransmitting
  often makes it worse!

90
Fast Retransmit

• Waiting for the timeout can be too slow
• Might know to retransmit sooner if get duplicate
  ACKs
• An ACK for a given byte number means a gap was
  noted in the segment sequence (since there are
  no negative NAKs)
• Getting three duplicate ACKs typically forces a
  fast retransmit of the segment after that value

91
Go-Back-N vs. Selective Repeat?

• TCP partly looks like Go-Back-N (GBN)
• Tracks last sequence number transmitted but not
  ACKed (SendBase) and sequence number of next byte
  to send (NextSeqNum)
• TCP partly looks like Selective Repeat (SR)
• Often buffers out-of-order segments to limit the
  range of segments retransmitted
• TCP can use selective acknowledgment (RFC 2018)
  to specify which segments are out of order

92
Flow Control

• TCP connection hosts maintain a receive buffer,
  for bytes received correctly and in order
• Apps might not read from the buffer for a while,
  so it can overflow
• Flow control focuses on preventing overflow of
  the receive buffer
• So it also depends on how fast the receiving app
  is reading the data!

93
Flow Control

• Hence the sender in TCP maintains a receive
  window (RcvWindow) variable how much room is
  left in the receive buffer
• The receive buffer has size RcvBuffer
• The last byte number read by the receiving app is
  LastByteRead
• The last byte put in the receive buffer is
  LastByteRcvd
• RcvWindow RcvBuffer (LastByteRcvd
  LastByteRead)

94
Flow Control

• So the amount of room in RcvWindow varies with
  time, and is returned to the sender in the
  receive window field of every segment (see slide
  73)
• The sender also keeps track of LastByteSent and
  LastByteAcked the difference between them is the
  amount of data between sender and receiver
• Keep that difference less than the RcvWindow to
  make sure the receive buffer isnt overflowed
• LastByteSent LastByteAcked lt RcvWindow

95
Flow Control

• If the RcvWindow goes to zero, the sender cant
  send more data to the receiver ever!
• To prevent this, TCP makes the sender transmit
  one byte messages when RcvWindow is zero, so that
  the receiver can communicate when the buffer is
  no longer full

96
UDP Flow Control

• There aint none (sic!)
• UDP adds newly arrived segments to a buffer in
  front of the receiving socket
• If the buffer gets full, segments are dropped
• Bye-bye data!

97
TCP Connection Management

• Now look at the TCP handshake in detail
• Important since many security threats exploit it
• Recall the client process wants to establish a
  connection with a server process
• Step 1 client sends segment with code SYN1 and
  an initial sequence number (client_isn) to the
  server
• Choosing a random client_isn is key for security

98
TCP Connection Management

• Step 2 Server allocates variables needed for
  the connection, and sends a connection-granted
  segment, SYNACK, to the client
• This SYNACK segment has SYN1, the ack field is
  set to client_isn1, and the server chooses its
  initial sequence number (server_isn)
• Step 3 Client gets SYNACK segment, and
  allocates its buffers and variables
• Client sends segment with ack value server_isn1,
  and SYN0

99
TCP Connection Management

• The SYN bit stays 0 while the connection is open
• Why is a three-way handshake used?
• Why isnt two-way enough?
• Now look at closing the connection
• Either client or server can close the connection

100
TCP Connection Management

• One host, lets say the client, sends a segment
  with the FIN bit set to 1
• The server acknowledges this with a return
  segment, then sends a separate shutdown segment
  (also with FIN1)
• Client acknowledges the shutdown from the server,
  and resources in both hosts are deallocated

101
TCP State Cycle

• Another way to view the history of a TCP
  connection is through its state changes
• The connection starts Closed
• After the handshake is completed its Established
• Then the processes communicate
• Sending or receiving a FIN1 starts the closing
  process, until both sides get back to Closed
• Whoever sent a FIN waits some period (30-120 s)
  after ACKing the other hosts FIN before closing
  their connection

102
Stray Segments

• Receiving a segment with SYN trying to open an
  unknown or closed port results in
• Server sends a reset message RST1, meaning go
  away, that port isnt open
• Similarly, a UDP packet with unknown socket
  results in sending a special ICMP datagram (see
  next chapter)
• Nmap is a good tool for scanning for TCP or UDP
  ports left open on a server

103
Congestion Control

• Now address congestion control issues
• Congestion is a traffic jam in the middle of the
  network somewhere
• Most common cause is too many sources sending
  data too fast into the network
• Lets look at increasingly complex scenarios
• Suppose two hosts (A and B) send data across a
  single router to hosts C and D
• Host A sends only to host D B sends only to C

104
Congestion Control

• Assume
• Hosts A and B send data at a steady rate lin
  bytes/sec each, with no retransmission
• The router has capacity of C bytes/sec, and has
  infinite buffer space for excess packets
• The throughput for data received at C and D is
  lout bytes/sec
• Each link will get up to half of the router
  capacity, and can throughput data no faster

105
Congestion Control

• The delay between hosts (A-D or B-C) becomes
  infinite, as the send rate exceeds router
  capacity, and the buffer stays full

106
Congestion Control

• Hence as a network reaches its capacity, the
  queuing delays become very large!
• Now for scenario 2
• Allow retransmission of data, and make the router
  buffer finite in size, and router rate is R
  bytes/sec
• Now send rate for hosts A and B is the offered
  load, lin bytes/sec (equal to a steady rate
  plus the retransmission rate)

107
Congestion Control

• Throughput depends on how packet retransmission
  is handled
• Case a. below assumes no packet loss ever, and
  hence no retransmission

108
Congestion Control

• Case b. assumes only retransmission when a packet
  is really lost
• At max throughput, each link gets 0.333R
  bytes/sec of new data, and 0.166R bytes/sec of
  retransmissions
• Case c. assumes that retransmissions may be done
  for delayed packets, hence there can be duplicate
  packets delivered to the receiver
• Data shown assumes each packet gets delivered
  twice, hence max rate is R/4 instead of the ideal
  R/2

109
Congestion Control

• Key lessons from cases b and c are
• A congested network forces retransmissions for
  packets lost due to buffer overflow, which adds
  to the congestion
• A congested network can waste its bandwidth by
  sending duplicate packets which werent lost in
  the first place
• Now lets make it a really messy problem

110
Congestion Control

• Scenario 3 has four hosts again, but now four
  routers (R1 to R4)
• Hosts A and B only connect to C and D,
  respectively, but across opposite routes, e.g.
• Host A ? R1 ? R2 ? Host C
• Host C ? R3 ? R4 ? Host A
• Host B ? R2 ? R3 ? Host D
• Host D ? R4 ? R1 ? Host B

111
Congestion Control
112
Congestion Control

• Assume all hosts transmit at rate lin bytes/sec,
  and all routers have capacity C bytes/sec
• With little traffic being transmitted, the data
  rate received at each host, lout bytes/sec, is
  about the same as lin
• With lots of traffic, consider one router, R2

113
Congestion Control

• Router R2 could have traffic from R1 at rate C
  bytes/sec
• But it also gets traffic from B toward D also
  competing for buffer space
• Hence B-D traffic could overwhelm R2, and cut off
  traffic on the A-C path, forcing everyones
  output to zero

114
Congestion Control

• So the work done by a router like R1 to forward a
  packet is wasted when a later router (R2) drops
  that packet
• So the lesson is dropping a packet wastes the
  transmission capacity of every upstream link that
  packet saw
• So what are our approaches for dealing with
  congestion?

115
Congestion Control Approaches

• Either the network provides explicit support for
  congestion control, or it doesnt
• End-to-end congestion control is when the network
  doesnt provide explicit support
• Presence of congestion is inferred from packet
  loss, delays, etc.
• Since TCP uses IP, this is our only option right
  now

116
Congestion Control Approaches

• Network-assisted congestion control is when
  network components (e.g. routers) provide
  congestion feedback explicitly
• IBM SNA, DECnet, and ATM use this, and proposals
  for improving TCP/IP have been made
• Network equipment may provide various levels of
  feedback
• Send a choke packet to tell sender theyre full
• Flag existing packets to indicate congestion
• Tell what transmission rate the router can
  support at the moment

117
ATM ABR Congestion Control

• ATM Available Bit-Rate (ABR) is one method of
  network-assisted congestion control
• It uses a combination of virtual circuits (VC)
  and resource management (RM) cells (packets) to
  convey congestion information along the VC
• Data cells (packets) contain a congestion bit to
  prompt sending a RM cell back to the sender
• Other bits convey whether the congestion is mild
  (dont increase traffic) or severe (back off) or
  tell the max rate supported along the circuit

118
TCP Congestion Control

• As noted, TCP uses end-to-end congestion control,
  since IP provides no congestion feedback to the
  end systems
• In TCP, each sender limits its send rate based
  on its perceived amount of congestion
• Each side of a TCP connection has a send buffer,
  receive buffer, and several variables
• Each side also has a congestion window variable,
  CongWin

119
TCP Congestion Control

• The max send rate for a sender is the minimum of
  CongWin and the RcvWindow
• LastByteSent LastByteAcked lt min(CongWin,
  RcvWindow)
• Assume for the moment that the RcvWindow is
  large, so we can focus on CongWin
• If loss and transmission delay are small,
  CongWin bytes of data can be sent every RTT,
  for a send rate of CongWin/RTT

120
TCP Congestion Control

• Now address how to detect congestion
• Call a loss event when a timeout occurs or
  three duplicate ACKs are received
• Congestion causes loss events in the network
• If theres no congestion, lots of happy ACKs tell
  TCP to increase CongWin quickly, and hence
  transmission rate
• Conversely, slow ACK receipt slows CongWin
  increase

121
TCP Congestion Control

• TCP is self-clocking, since it measures its own
  feedback (ACK receipt) to determine changes in
  CongWin
• Now look at how TCP defines its congestion
  control algorithm in three major parts
• Additive-increase, multiplicative-decrease
• Slow start
• Reaction to timeout events

122
Additive-increase, Multiplicative-decrease

• When a loss event occurs, CongWin is halved
  unless it approaches 1.0 MSS, a process called
  multiplicative-decrease
• When theres no perceived congestion, TCP
  increases CongWin slowly, adding 1 MSS each RTT
  this is additive-increase
• Collectively they are the AIMD algorithm

Recall MSS maximum segment size
123
AIMD Algorithm

• Over a long TCP connection, when theres little
  congestion, AIMD will result in slow rises in
  CongWin, followed by a cut in half when a loss
  event occurs, followed by another slow rise,
  etc., producing a grumpy sawtooth wave

124
Slow Start

• The initial send rate is typically 1 MSS/RTT,
  which is really slow
• To avoid a really long ramp up to a fast rate, an
  exponential increase in CongWin is used until the
  first loss event occurs
• CongWin doubles every RTT during slow start
• Then the AIMD algorithm takes over

125
Reaction to Timeout

• Timeouts are not handled the same as triple
  duplicate ACKs
• Triple duplicate ACKs are followed by halve
  CongWin, then use AIMD approach
• But true timeout events are handled differently
• The TCP sender returns to slow start, and if no
  problems occur, ramps up to half of the CongWin
  value before the timeout occurred
• A variable Threshold stores the 0.5CongWin value
  when a loss event occurs

126
Reaction to Timeout

• Once CongWin gets back to the Threshold value, it
  is allowed to increase linearly per AIMD
• So after a triple duplicate ACK, CongWin recovers
  faster (called a fast recovery, oddly enough)
  than after a timeout
• Why do this? Because the triple duplicate ACK
  proves that several other packets got there
  successfully, even if one was lost
• A timeout is a more severe congestion indicator,
  hence the slower recovery of CongWin

127
TCP Tahoe Reno

• TCP Tahoe follows the timeout recovery pattern
  after any loss event
• Go back to CongWin 1 MSS, ramp up exponentially
  until reach Threshold, then follow AIMD
• TCP Reno introduced the fast recovery from
  triple duplicate ACK
• After loss event, cut CongWin in half, and resume
  linear increase until next loss event repeat

128
TCP Tahoe Reno
129
TCP Throughput

• If the sawtooth pattern continues, with a loss
  event occurring at the same congestion window
  size consistently, then the average throughput
  (rate) is
• Average throughput 0.75W/RTTwhere W is the
  CongWin when loss event occurs

130
TCP Future

• TCP will keep changing to meet the needs of the
  Internet
• Obviously, many critical Internet apps depend on
  TCP, so there are always changes being proposed
• See RFC Index for current ideas
• For example, many want to support very high data
  rates (e.g. 10 Gbps)

131
TCP Future

• In order to support that rate, the congestion
  window would have to be 83,333 segments
• And not lose any of them!
• If we have the loss rate (L) and MSS, we can
  derive
• Average throughput 1.22MSS/(RTTsqrt(L))
• For 10 Gbps throughput, we need L about 2x10-10,
  or lose one segment in five billion!

132
Fairness

• If a router has multiple connections competing
  for bandwidth, is it fair in sharing?
• If two TCP connections of equal MSS and RTT are
  sharing a router, and both are primarily in AIMD
  mode, the throughput for each connection will
  tend to balance fairly, with cyclical changes in
  throughput due to changes in CongWin after packet
  drops

133
Fairness

• More realistically, unequal connections are less
  fair
• Lower RTT gets more bandwidth (CongWin increases
  faster)
• UDP traffic can force out the more polite TCP
  traffic
• Multiple TCP connections from a single host
  (e.g. from downloading many parts of a Web page
  at once) get more bandwidth

134
Are We Done Yet?

• So weve covered transport layer protocols from
  the terribly simple UDP to a seemingly exhaustive
  study of TCP
• Key features along the way include
  multiplexing/demultiplexing, error detection,
  acknowledgements, timers, retransmissions,
  sequence numbers, connection management, flow
  control, end-to-end congestion control
• So much for the edge of the Internet next is
  the network layer, to start looking at the core
