Title: STAR TAP Technical Advisory Committee IU NOC


1

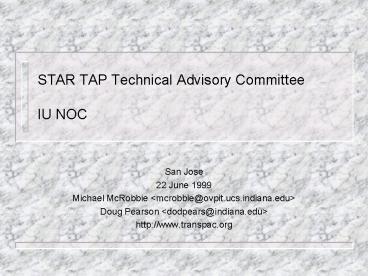

STAR TAP Technical Advisory CommitteeIU NOC
  • San Jose
  • 22 June 1999
  • Michael McRobbie ltmcrobbie_at_ovpit.ucs.indiana.edugt
  • Doug Pearson ltdodpears_at_indiana.edugt
  • http//www.transpac.org

2
NOCs
  • Current
  • TransPAC operations/engineering
  • Abilene operations/engineering
  • IU networks operations/engineering
  • Developing
  • STAR TAP operations
  • Eurolink operations

3
Standard Operations Procedures
  • 24x7 operation
  • network monitoring
  • routing maintenance and problem isolation
  • problem reporting and referral
  • escalation
  • testing
  • notification
  • emergency communications
  • service level measurement and reporting
  • record keeping
  • change management
  • security management
  • ongoing training

4
Tools - Current
  • standards, e.g. ping, traceroute, ...
  • MRTG
  • accounts on far-end hosts
  • mping
  • pathchar
  • OC3mon (NLANR system)
  • Surveyor at APAN exchange points

5
Tools - Development
  • management station to be installed at STAR TAP
  • http//www.accumatics.com
  • dual boot
  • Accumatics OC3mon via LS1010 VC snoop
  • custom performance/measurements environment
  • mping, ttcp, pathchar, traceroute server, treno,
    netperf...
  • Linux 5.2, kernel 2.2.9

6
Tools - Development
  • TACACS access control to routers and switches
  • rights controls for NOC, local and peer network
    engineers
  • logs configuration changes

7
Tools - Development
  • configuration management tools
  • archiving of router/switch configurations
  • automated differences report of router/switch
    configurations

8
Tools - Development
  • command proxy for routers and switches
  • web-based mechanism to submit a query to a router
    or switch and view the query results
  • length of request string limited
  • number of queries per device per unit time
    limited
  • limited to only certain commands
  • the mechanism logs into the target device using a
    non-enabled username/password, sets term length
    to zero, executes the command and displays the
    result

9
Tools - Development
  • network traffic/errors map
  • collect SNMP-based stats of utilization and
    interface errors
  • display in gracphical map
  • colors according to utilization
  • errors as a logarithmic scale hash mark, with
    dampened decay
  • time-based playback of graphs

10
(No Transcript)
11
(No Transcript)
12
  • BGP reporting tool
  • multicast monitoring

13
TransPAC Management Committee
  • APAN
  • Australia
  • Robin Stanton
  • Markus Buchhorn
  • Japan
  • Shigeki Goto (Co-Chair)
  • Kazunori Konishi
  • Korea
  • Yong-Jin Park
  • Kyungpyo Hong
  • Singapore
  • Francis Lee
  • Tham Chen Khong
  • APAN Chair
  • Kilnam Chon
  • Tokyo XP
  • Akira Kato
  • Management Liaison
  • Hiromasa Kaneko
  • United States
  • Indiana University
  • Michael McRobbie (Co-Chair)
  • Doug Pearson
  • Steve Wallace
  • Jim Williams
  • Rick McMullen
  • Dennis Gannon
  • Karen Adams
  • replacement for Allen Robel
  • ATT
  • To be determined
  • STAR TAP
  • Linda Winkler
  • Management Liaison
  • Steve Goldstein

14
Asia-Pacific Advanced Network (APAN)
  • An international consortium established in June
    1997 to promote advanced research in networking
    technologies and the development of
    high-performance broadband applications and
    infrastructure in the Asia-Pacific region.
  • Four primary members Australia, Japan, Korea and
    Singapore.
  • Associate and other members Malaysia, Hong Kong,
    Indonesia, Thailand and Philippines.

15
(No Transcript)
16
TransPAC Network
  • IPv4, native IPv6 and ATM services based on a
    73Mbps VBR-nrt ATM connection from the APAN Tokyo
    exchange point to the STAR TAP in Chicago.
  • The original 35Mbps service was upgraded to
    73Mbps in March of 1999.
  • Multicast is supported (although some problems)
  • The underlying ATM service is provided by ATT
    and Kokusai Denshin Denwa Co., Ltd.

17
TransPAC Utilization
GREEN Input Transmission Rate BLUE
Output Transmission Rate DARK
GREEN Maximal 5 Minute Incoming
Traffic MAGENTA Maximal 5 Minute Outgoing
Traffic
18
Peering
  • APAN
  • vBNS
  • NREN
  • ESnet
  • Abilene

19
NOC
  • integration of activities with Abilene NOC
  • will be assuming role of STAR TAP NOC
  • will be assuming role of Eurolink NOC

20
(No Transcript)
21
Applications
  • Telemicroscopy
  • Research Center for Ultra High Voltage Electron
    Microscopy (UHVEM), Osaka University and,
  • University of California, San Diego National
    Center for Microscopy and Imaging Research
  • NPACI articles
  • Volume 2, Issue 14 Japanese and U.S. Scientists
    Succeed in Trans-Pacific Operation of Ultra High
    Voltage Electron Microscope
  • http//www.npaci.edu/online/cgi-bin/display.cgi/on
    line/v2.14/telemicroscopy.html
  • Volume 3, Issue 10 Seeing Submicron Structures
    from 10,000 Kilometers Trans-Pacific Microscopy
    Enabled by International Advanced Networks
  • http//www.npaci.edu/online/cgi-bin/display.cgi/on
    line/v3.10/telemicroscopy.html

22
Activities
  • iGrid - SuperComputing98, Orlando, Florida, Nov
    7-13, 1998
  • An international collaborative project to
    demonstrate next-generation network-based
    research and education applications that depend
    on emerging services such as resource control and
    reservation, new protocols, and high bandwidth
    global grids.
  • http//www.transpac.org/documents/981111_igridapps
    .pdf
  • http//www.transpac.org/documents/980217_igrid.pdf

23
Activities
  • GOIN99
  • Demonstrations of earth observation applications
    for the Global Observation Information Network
    (GOIN) 1999 Plenary and Workshops in Honolulu
    during the week of March 22-26, 1999.

24
(No Transcript)
25
Activities
  • I2 QBone http//www.internet2.edu/qos/qbone
  • an interdomain testbed for differentiated
    services (DiffServ) that seeks to provide the
    higher-education community with end-to-end
    services in support of emerging advanced
    networked applications.
  • lead and follow IETF DiffServ standards work
  • 13 QBone projects
  • 4 international, 3 US backbone, 6 GigaPoP and 10
    campus
  • APAN / TransPAC are members of a Joint Project
    organized by the International Center for
    Advanced Internet Research (iCAIR)
    http//www.transpac.org/documents/QBone-proposal.p
    df

26
Activities
  • I2 QBone - iCAIR Joint Proposal Participants
  • APAN - Asia Pacific Advanced Network
  • CTIT - Centre for Telematics and Information
    Tech., U of Twente
  • Electronic Visualization Laboratory, University
    of Illinois, Chicago
  • IBM Thomas Watson Research Center
  • iCAIR/Northwestern University
  • Indiana University
  • KDD - Kokusai Denshin Denwa Co. Ltd.
  • Korea Telecom
  • MREN - Metropolitan Research and Education
    Network
  • Nanyang Technological University
  • National University of Singapore
  • SingAREN
  • STARTAP
  • SURFnet
  • TransPAC

27
Activities
  • iCAIR Joint Proposal based on
  • streaming digital video - I2 DVN
  • persistent infrastructure to provide high-quality
    digital video services in the Internet2 community
  • live and stored content
  • IBM VideoCharger technology
  • multicast
  • MPEG1 and MPEG2 at data rates up to 8 Mbps
  • directory services
  • large file systems
  • caching and replication
  • requirement for QoS
  • teleImmersion
  • based on prior STAR TAP TeleImmersion Experiments
    between EVL and National University of Singapore

28
Activities
  • I2 Digital Video Network
  • organized by iCAIR
  • establish a national, higher education video
    network service to provide capabilities to
    support scalable and easy-to-use applications to
    deliver live or stored streaming and interactive
    high-quality digital video
  • initial application is multicast streamed MPEG1/2
    using Videocharger technology
  • KDD and Indiana University to install video
    servers
  • http//www.i2dvn.org

29
User Services
  • Contacts
  • JP Hiroyuki Okano lthokano_at_tokyo.jst.go.jpgt
  • AU Markus Buchhorn ltmarkus_at_acsys.anu.edu.augt
  • KR Prof Yong-Jin Park ltpark_at_hyuee.hanyang.ac.krgt
  • SG Dr. Francis Lee ltebslee_at_ntu.edu.sggt
  • US Dr. Donald F. McMullen ltmcmullen_at_indiana.edu
    gt

30
Testbeds
  • Cache
  • Hyunchul Kim of KAIST testing data transfer
    performance as first step of Large Object
    Caching/Replication project
  • Multicast / MBone
  • finalize configurations for multicast during
    IWS99
  • IPv6
  • WIDE / vBNS and WIDE / ESnet peering up via
    distinct TransPAC ATM PVC

31
Whats Coming Up?
  • IU HPNAP program
  • QoS testbed
  • International participation in I2 DSI
  • IU DLI2 proposal... Waseda Univ. as satellite
    site
