157212 Week 2 Lecture 1

1

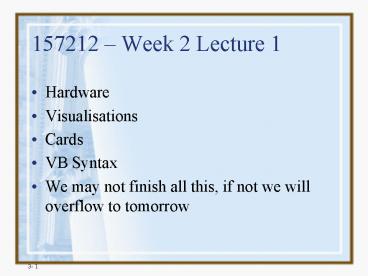

157212 Week 2 Lecture 1

• Hardware
• Visualisations
• Cards
• VB Syntax
• We may not finish all this, if not we will
  overflow to tomorrow

2
Hardware

• How much/what do we need to know about hardware?
• Dynamic memory (RAM)
• Lost on close
• Used for all our exercises
• Bits and Bytes
• CS-type knowledge
• Not needed for us at this level

3
Visualisations

• Different ways to visualise an application
• Diagramatically
• Pseudocode
• Code
• Or, most often, a combination

4
Reaction time - Rethink
Exit or cancel?
Get the user ready?
Instructions?
Your reaction time is 0.29s
Architecture?
Language?
Eliminate navigation?
5
What is pseudocode?

• Pseudocode consists of short, English phrases
  used to explain specific tasks within a program's
  algorithm.
• Pseudocode should not include keywords in any
  specific computer languages. It should be written
  as a list of consecutive phrases.
• You should not use flowcharting symbols but you
  can draw arrows to show looping processes.
• Indentation can be used to show the logic in
  pseudocode as well.
• One programmer should be able to take another
  programmer's pseudocode and generate a program
  based on that pseudocode.

6
Why is pseudocode useful?

• The programming process is a complicated one.
• You must first understand the program
  specifications, then you need to organise your
  thoughts and create the program.
• This is a difficult task when the program is
  non-trivial.
• You must break the main tasks that must be
  accomplished into smaller ones in order to be
  able to eventually write fully developed code.
• Writing pseudocode WILL save you time later
  during the construction testing phase of a
  program's development
• Do Not just jump onto the PC and start to code
  think first!

7
How do I write pseudocode?

• First, you may want to make a list of the main
  tasks that must be accomplished on a piece of
  paper.
• Then, focus on each of those tasks. Generally,
  you should try to break each main task down into
  very small tasks that can each be explained with
  a short phrase.
• There may eventually be a one-to-one correlation
  between the lines of pseudocode and the lines of
  the actual VB code that you write after you have
  finished pseudocoding.

8
Pseudocode Example

• Original Program Specification
• Write a program that obtains two integer numbers
  from the user. It will print out the sum of those
  numbers.
• Pseudocode
• Prompt the user to enter the first integer
• Obtain user's first integer input
• Prompt the user to enter a second integer
• Obtain user's second integer input
• Add first integer and second integer
• Store the result in another variable
• Display an output prompt that explains the answer
  as the sum and displays the result

9
Observations about the Pseudocode Example

• It is not necessary in pseudocode to mention the
  need to declare variables. It is wise however to
  show the initialization of variables.
• You can use variable names in pseudocode but it
  is not necessary to be that specific

10
Observations Contd.

• Overall, remember that the purpose of pseudocode
  is to help the programmer efficiently write code.
• Therefore, you must honestly attempt to add
  enough detail and analysis to the pseudocode
• Sometimes in the professional programming world,
  the people who write pseudocode are not the same
  people that write the actual code for a program
• In fact, sometimes the person who writes the
  pseudocode does not know what programming
  language will be used to eventually write the
  program.

11
Visualisation in Actual Code

• As a beginner, you will not be able to do this
• However, by the end of the course you will find
  that you will visualise the code for everyday
  events and systems How sad will you be then?

12
Cards

• Pick a card, any card
• Look at it, memorise it
• Put it back in the pack
• I will use my powers to tell you the card that
  you picked

13
Everything is a system

• Original Program Specification
• Write a program that allows the user to pick a
  card value from a list of possible values. It
  will present the user with a prediction of the
  chosen value.
• Pseudocode
• Prompt the user to memorise a single value from a
  list of possible values
• Obtain user's input as verification
• Generate a random selection from the list of
  possible values
• Display selection
• Ask user for verification that guess was
  correct
• How did you memorise the card value?

14
Variables, Constants and Calculations

• Programming In
• Visual Basic.NET

15
Variables Constants

• Variable
• Memory locations that hold data that can be
  changed during project execution
• Ex hours_worked
• Named Constant
• Memory locations that hold data that cannot be
  changed during project execution
• Ex GST_rate

16
Constants

• Named
• User defined
• Intrinsic
• System defined within Visual Studio

17
Declaration

• Variables and Named Constants must bedeclared
  before being used in code
• When you declare a Variable or Named Constant VB
• Reserves an area of memory
• Assigns it a name called an Identifier
• Declaration statements are coded either
• Beginning of a procedure
• General Declarations of a module

18
Declaration Statements

• DIM used to declare Variables
• CONST used to declare Named Constants
• Declaration includes
• Name, follow Naming Convention Rules
• Data Type
• Required Value for Constants
• Optional Initial Value for Variables

19
Data Types (p 97 Table 3.1)

• Boolean
• Byte (0 to 255)
• Char
• Date
• String
• Decimal
• Object

• Short (-32,768 to 32,767)
• Integer (-2,147,483,648 to 2,147,483,647)
• Long (larger whole numbers)
• Single (floating point accuracy to 6 digits)
• Double (floating point accuracy to 14 points)

20
Data Types Memory Usage

• Boolean 2 bytes
• Byte 1 byte
• Char 2 bytes
• Date 8 bytes
• String varies
• Decimal 16 bytes
• Object 4 bytes

• Short 2 bytes
• Integer 4 bytes
• Long 8 bytes
• Single 4 bytes
• Double 8 bytes

21
Data Types Prefixes

• Boolean bln
• Byte byt
• Char chr
• Date dat
• String str
• Decimal dec
• Object depends on type of object

• Short sht
• Integer int
• Long lng
• Single sng
• Double dbl

22
Declaration Examples
Dim strName, strSSN As String Dim intAge As
Short Dim decPayRate As Decimal 8.25 Dim
datHireDate As Date Dim blnInsured As
Boolean Dim lngPopulation As Long Const
decDISCOUNT_RATE As Decimal .15
Note Constants are named using all uppercase
letters EXCEPT the prefix.
23
Type-Declaration Characters

• Append single character to the end of the
  Constant's Value to indicate the Data Type

• Short S
• Integer I
• Long L

• Decimal D
• Single F
• Double R

24
Variables Scope Lifetime

• Global/Public (use sparingly and cautiously)
• Available to all modules and procedures of
  Project
• Initialized at start of Project
• Module/Private (Form)
• Available to one module and all procedures within
  that module
• Initialized 1st time the Form is loaded
• Local
• Available only to the procedure it is declared in
• Initialized every time the Procedure runs
• Block
• Available only to the block of code inside a
  procedure it is declared in
• Initialized every time the Procedure runs

25
Scope Declaring Naming

• Global/Public g prefix
• Declare in General Declarations as Public
• Dim gstrName as String
• Module/Private m prefix
• Declare in Modules General Declarations as
  Private
• Dim mstrName as String
• Local no prefix required
• Declare in Event Procedures
• Dim strName as String

26
Declaring Module Level Variables Example
27
Calculations

• Calculations can be performed using properties of
  certain objects, variables, constants, and
  numeric literals
• Do Not use Strings in calculations
• Values from Text property of Text Boxes
• Are Strings, even if they contain numeric data
• Must be converted to a Numeric Data Type

28
Conversion Functions

• Functions perform an action and return a value
• Expression to operate on is called the Argument
• Conversion Functions convert arguments into a
  numeric value of the correct data type
• Conversion Functions on Text Boxes fail if user
  enters nonnumeric data or leaves the Text Box
  blank

29
Conversion Functions (cont.)
Function Convert To CInt Integer CDec Decimal
CStr String
CInt rounds to the nearest Even Number
30
Conversion Examples(also review examples p 113)
intQuantity CInt(txtQuantity.Text) decPrice CD
ec(txtPrice.Text) Converting to
String strValue resultdecimal.ToString()
Function Name
Argument To Be Acted Upon
31
Conversion Examples(Parse method p106)
intQuantity Me.Integer.Parse(txtQuantity.Text) d
ecPrice Me.Decimal.Parse(txtPrice.Text) intWhole
Number CInt(decFractionalValue) decDollars CDe
c(intDollars) strValue CStr(decValue)
Function Name
Argument To Be Acted Upon
32
Mathematical Operators
Operator Operation Addition Subtraction
Multiplication / Division \ Integer
Division Mod Modulus (division's
remainder) Exponentiation
33
Mathematical Order of Operations

• Computers solve math formulas based on a specific
  order 1st, then left to right
• 1. Parentheses
• 2. Exponentiation
• 3. Multiplication Division
• 4. Integer Division
• 5. Modulus
• 6. Addition Subtraction

34
Mathematical Examples

• Note the use of parentheses to control

342 11 Multiply then add (34)2
14 Parentheses control add then multiply 8/42
4 Same level, left to right divide then multiply
35
Option Explicit

• On by default - should be left on
• If turned off
• Variables can be used without first being
  declared
• They will be defined by VB as data type Object
• To turn off
• Code Option Explicit Off or Option Explicit in
  General Declarations
• Set in Project Properties dialog box

36
Option Strict

• Off by default - should be turned on
• If turned on
• VB becomes strongly typed language
• Will not allow implicit conversions from a wider
  data type to a narrower one or between String and
  numeric data types
• To turn on
• Code Option Strict On in General Declarations
• Set in Project Properties dialog box

37
FormatCurrency Function

• General Form
• FormatCurrency(NumericExpression)
• Returns a string of characters formatted as
  dollars and cents
• Includes a Dollar Sign, commas, and 2 decimal
  places by default
• Value returned is a String and can no longer be
  used in calculations

38
FormatNumber Function

• General Form
• FormatNumber(NumericExpression , Decimal Places
  , Leading Digit , Use Parentheses for
  Negative Numbers , Grouping for Digits )
• Formats with commas and specified number of
  decimal places (2 by default)

Line Continuation not included on this slide
39
FormatPercent Function

• General Form
• FormatPercent(NumericExpression, Decimal
  Places, Leading Digit, Use Parentheses for
  Negative Numbers, Grouping for Digits )
• Returns a string of characters formatted as a
  percent
• Multiplies the argument by 100, adds a percent
  sign and rounds to 2 decimal places by default

Line Continuation not included on this slide
40
FormatDateTime Function

• General Form
• FormatDateTime(Expression , Named Format )
• Expression can be
• String that holds a date or time
• Date type variable

41
Named Formats - FormatDateTime Function
42
Handling Exceptions

• Exceptions occur when user enters
  unexpected/invalid data and program code does not
  anticipate this possibility, such as
• User enters nonnumeric data in Text Box and code
  attempts to run a Numeric Conversion Function
• User enters data that results in division by zero

43
Try/Catch Blocks

• Used to catch and handle exceptions referred to
  as error trapping or handling
• Enclose statements that might cause an error
  within Try/Catch Block
• If an error occurs control is transferred to the
  Catch Block
• Include a Finally statement to indicate code that
  should execute last whether or not an exception
  occurred

44
Try Block - General Form
Try statements that may cause error Catch
VariableName as ExceptionType statements for
action when an exception occurs Finally statemen
ts that always execute before exit of Try
block End Try
See p 125 for list of common Exception Classes
45
Try Block - Example 1Catches All Exceptions
Try intQuantityCInt(txtQuantity.Text) lblQuanti
ty.TextCStr(intQuantity) Catch lblMessage.Text"
Error in input data." End Try
46
Try Block - Example 2Catches Specific Exception
Try intQuantityCInt(txtQuantity.Text) lblQuanti
ty.TextCStr(intQuantity) Catch MyErr as
InvalidCastException lblMessage.Text"Error in
input data." End Try
Conversion exception, usually caused by
nonnumeric or blank data
47
Try Block - Example 3Catches Multiple Specific
Exceptions
Try statements that may cause errors Catch MyErr
as InvalidCastException error messages and
statements for nonnumeric data Catch MyErr as
ArithmeticException error messages and
statements for calculation problems Catch MyErr
as Exception error messages and statements for
any other exception End Try
48
MessageBox Object

• Use Show Method of MessageBox to display special
  type of window
• Arguments of Show method
• Message to display
• Optional Title Bar Caption
• Optional Button(s)
• Optional Icon

49
MessageBox Syntax

• The MessageBox is an Overloaded Method
• Signatures correspond to the Argument list
• There are multiple Signatures to choose from
• Arguments must be included to exactly match one
  of the predefined Signatures

MessageBox.Show (TextMessage, TitlebarText, _
MessageBoxButtons, MesssageBoxIcon)
50
MessageBoxButtons Constants

• OK
• OKCancel
• RetryCancel
• YesNo
• YesNoCancel
• AbortRetryIgnore

51
MessageBoxIcon Constants

• Asterisk
• Error
• Exclamation
• Hand
• Information

• None
• Question
• Stop
• Warning

52
Counting Accumulating Sums

• Must use Module/Form level variables since
  Local/Event level variables reset to 0 each time
  the procedure is called
• Summing
• mdecOrderTotal mdecOrderTotal decItemPrice
• Counting
• mintNumItems mintNumItems 1
• mintNumItems mintNumItems
• Averaging
• mdecAveSale mdecOrderTotal / mintNumItems

53
Lets look at..

• Reaction time example pseudocode
• Pseudocode _for_Reaction_Time.doc

54
The End

• Friday - Decisions and Conditions
• Questions?
