IA304 Building Web Applications with EAServer

1

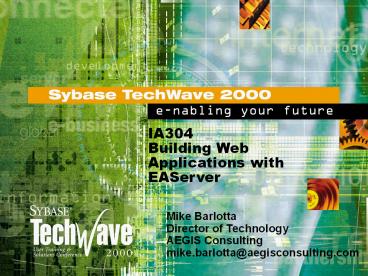

IA304Building Web Applications with EAServer
Mike Barlotta Director of Technology AEGIS
Consulting mike.barlotta_at_aegisconsulting.com
2
Todays Agenda

• Web Applications
• What is EAServer?
• PowerDynamo development
• Web and Jaguar CTS
• Sybase in Action
• Q A

3
The Internet is not the Web

• Internet
• Global TCP/IP network
• World Wide Web (WWW)
• service available over the Internet
• HTTP
• Stateless network protocol runs over TCP/IP
• HTML, XML

4
What is the Web

• World Wide Web (WWW) cont.
• Web server
• responds to HTTP requests
• retrieves documents and resources
• Web browser
• requests documents and resources from Web server
• interprets HTML, XML

5
History of the Web

• Al Gore is not the father of the Internet that
  distinction belongs to DARPA engineers.
• Tim Berners-Lee invented the Web in 1990
  writing the first Web server and browser.
• Marc Andreesen exposed the Web to the masses with
  Mosaic the first GUI Web browser in 1993.
• The rest is history...

6
Static vs Dynamic Web Site
Static Web Site

• HTML page content is same for each request
• Change to content requires HTML page edit
• No user interaction
• No access to live data
• Web Site

HTTP
Web Browser
Web Server
7
Static vs Dynamic Web Site cont.
Dynamic Web Site

• HTML pages dynamically generated for each request
• Content changes based on data, user login, etc.
• Allows user interaction
• Access to data real-time
• Web Application

HTTP
Web Server
Web Browser
DBMS
Dynamic Page Server
8
Dynamic Web Sites

• Web server
• responds to HTTP requests and retrieves resources
• Expand Web server capabilities by providing a
  gateway between it and external programs
• Common Gateway Interface (CGI)
• uses standard I/O
• new process for each request
• slow and inefficient

9
Dynamic Web Sites cont.

• NSAPI, ISAPI
• Web Server API
• runs in-process, making it faster than CGI
• Java Servlets

C
Perl
Python
CGI, NSAPI, ISAPI

• Business processing
• Data access
• Transactions
• HTML generation

Web server
10
Todays Agenda

• Web Applications
• What is EAServer?
• PowerDynamo development
• Web and Jaguar CTS
• Sybase in Action
• Q A

11
What is EAServer?

• EAServer Jaguar CTS PowerDynamo
• Jaguar CTS
• Component Transaction Server
• PowerDynamo
• Dynamic Web Page Server

12
EAServer Development Tools

• Jaguar CTS
• PowerBuilder
• PowerJ, Java IDE
• PowerDynamo
• PowerSite
• Sybase Central
• HTML editors

Jaguar CTS
PowerDynamo
13
Jaguar CTS
Component Application Server component-centric
development

• CORBA/IIOP
• Multiple languages
• Interoperability between components
• Share transactions between
• components

Jaguar CTS
Power Builder
COM
C/C
Java

• Java/ CORBA
• Servlets
• EJB

• Visual Basic
• Delphi
• Visual C

14
What is PowerDynamo?

• Dynamic Page Server
• Page-centric development
• Utlra-thin clients (HTML only)
• Serves dynamic content
• Not a Web server
• Not a component server
• PowerDynamo requires a
• Web Server to deliver Web resources

15
PowerDynamo Interfaces

• CGI, ISAPI, NSAPI
• interface between PowerDynamo and the Web server

CGI, NSAPI, ISAPI
Web server
PowerDynamo
16
Managing PowerDynamo Web site

• Web Site resources
• HTML, XML documents
• Images, Multi-media etc.
• Templates, Scripts
• Web Site resources management
• Database system
• File system

PowerDynamo
17
PowerDynamo Web Site overview
Web Browser
1. Request Dynamo page
7. Return HTML page
Web Server
6. Return dynamic HTML page
2. Pass Request to Dynamo
PowerDynamo

• Database Connection
• Caching
• Page Caching
• Script Interpreter

4. Execute Template, Script
3. Retrieve Template, Script
5. Access Data
Web Site
Application Data
18
EAServer Review

• Building Applications
• Jaguar CTS
• Component Transaction Server
• CORBA compliant components accessible over IIOP
• PowerDynamo
• Dynamic Page Server
• Application accessible only from Web
• Jaguar CTS PowerDynamo
• Application built with reusable components
  accessible from multiple clients and Web

19
Sybase supports the Enterprise Architecture
Web Server
HTTP
PowerDynamo
RDBMS
Browser
IIOP
DirectConnect
IIOP
CORBA Client
COM/ IIOP
JaguarCTS
COM Client
DB/2
AS/400
20
Todays Agenda

• Web Applications
• What is EAServer?
• PowerDynamo development
• Web and Jaguar CTS
• Sybase in Action
• Q A

21
Sample Application
ASA application database Jaguar Database
Connection Cache Jaguar Components AutoNet
package PowerDynamo Web site PowerDynamo pages
22
Creating the Dynamo Web Site
1. Create an ASA database for Web site 2. Create
an ODBC profile 3. Create Connection Profile
23
URL Mapping for Dynamo site

• 4. Connect to Web site database
• connect through Sybase Central
• provide name for root folder
• import system files
• 5. Add a mapping

24
Importing existing resources
6. Create an images folder 7. Import images 8.
Create a scripts folder 9. Import scripts
25
Sample Application

• ASA application database
• Jaguar Database Connection Cache
• Jaguar Components
• AutoNet package
• PowerDynamo Web site
• PowerDynamo pages

26
PowerDynamo Building Blocks

• Templates
• HTML, XML, graphics etc.
• DynaScript
• Dynamo tags
• Scripts
• contain DynaScript
• Extendable
• Database connections
• Components

ltHTMLgt lt!--SCRIPT ... --gt lt/HTMLgt
DBMS
Application Server
27
DynaScript

• Based on ECMAscript
• JavaScript syntax
• extended to support database-driven content
• case-sensitive
• object-oriented
• provides way to declare object types and derive
  new classes from an existing class.
• Interpreted

28
Embedding DynaScript

• DynaScript is placed in SCRIPT tags
• Embedded within HTML comment tags
• lt!--SCRIPT
• // script goes here
• --gt
• pre-defined objects
• document object
• session object
• java object

29
Building Dynamo Script - code
lt!--SCRIPT function getTodayDate() myDate
new Date() iMonth myDate.getMonth()
iDate myDate.getDate() iYear
myDate.getFullYear() switch (iMonth)
case 0 sMonth "January"
break case 1 sMonth "February"
break ... case 11 sMonth
"December" break
CurrentDate sMonth " " iDate ", "
iYear return CurrentDate --gt
Saved as getdate.ssc
30
document object

• represents a document in your Web site.
• methods properties to access document
• write and writeln methods used to generate
  dynamic HTML.
• redirect property used to direct current page to
  a new URL.
• value property used to access page parameters.

31
Building Dynamo Template - code
ltHTMLgtltHEADgtltTITLEgtAutoNetlt/TITLEgtlt/HEADgt ltBODY
topMargin0 leftMargin0gt ltPgtnbsplt/PgtltPgtnbsplt/
Pgt ltTABLE aligncenter border0gt ... ltTRgt
ltTD colspan3gt ltA HREF""gtltIMG
src"images/autonet_big.jpg" border0gtlt/Agt
lt/TDgt lt/TRgt ltTRgt
ltTDgtnbsplt/TDgt ltTD alignright
colspan2gtltFONT facearial size2gt
Today's date is lt!--SCRIPT
import scripts/getdate.ssc
document.writeln(getTodayDate()) --gt
lt/TDgt lt/TRgt lt/TABLEgt lt/BODYgt lt/HTMLgt
Saved as welcome.stm
32
Relative addressing in scripts

• Can use relative addressing to specify a path
  relative to the current directory.
• import scripts/getdate.ssc
• import /autonet/scripts/getdate.ssc
• Current directory is one specified in the URL
  that called the page.
• http//localhost/autonet/welcome.stm

33
Relative addressing cont.

• The use of ../ in a directory path specifies the
  directory back one level.
• The use of in a directory path specifies the
  root folder.
• import /scripts/getdate.ssc
• Going back further than root folder causes an
  error.

34
Passing data to a Dynamo Page

• Uniform Resource Locator (URL)
• http//SERVER_HOST/POWERDYNAMO_MAPPING/PATH/RESOUR
  CE
• Information is passed through a URL
• ? Seperates location and resource information in
  the URL from the data
• data passed as namevalue pairs
• additional data seperated by
• http//localhost/autonet/page.stm?arg1value1arg2
  value2arg3value3

35
Passing data to a Dynamo Page

• Anchor tags and document.redirect
• data passed back is specified directly in the URL
• HTML FORMS
• data passed to URL specified in ACTION property
• data automatically appended to URL when submitted
• METHOD property (GET vs. POST)
• INPUT tags (text, password, hidden, checkbox,
  radio)
• SELECT
• TEXTAREA

36
Anchor tag - code
lt!--SCRIPT // Get Page Parameter - Type ID passed
in ... // Create a Dynamic HyperLink document.wri
teln(ltA HREFAuto_By_Type.stm?type_id) docume
nt.writeln(myTypeID) document.writeln(gt) docu
ment.writeln(Last Auto Typelt/Agt) ... --gt gener
ates ltA HREFAuto_By_Type.stm?type_id100gtLast
Auto Typelt/Agt When user clicks on the link the
URL passes page parameter type_id100 to
Auto_By_Type.stm
37
document.redirect - code
// Get page parameters UserID
document.value.userid PWD document.value.passw
ord // Validate Logon if (UserID PWD)
... document.redirect"logonok.stm"
exit else ... Url
AutoNetError.stm?error_messageInvalid Logon
attempt. document.redirectUrl exit
38
HTML FORM - code
ltFORM action"validatelogon.ssc"
methodpostgt ltTABLEgt ltTRgt ltTD
alignrightgtUser ID lt/TDgt ltTD
alignleftgt ltINPUT nameuseridgtlt/TDgt lt/TRgt lt
TRgt ltTD alignrightgtPassword lt/TDgt ltTD
alignleftgt ltINPUT namepassword
typepasswordgtlt/TDgt lt/TRgt ltTRgt ltTD
alignmiddle colSpan2gt ltINPUT value"Log on"
nameLogon typesubmitgtlt/TDgt lt/TRgt lt/TABLEgt lt/F
ORMgt
39
Getting Page Parameters in PowerDynamo

• Direct access in HTML page
• can use value of page parameter without SCRIPT
• prefix page parameter with in HTML
• ltH1gtpage_paramlt/H1gt
• In SCRIPT through document.value
• if (exists(document.value.userid))
• UserID document.value.userid
• else
• UserID ""

40
Getting Page Parameters - code
// Get page parameters if (exists(document.value.
userid)) UserID document.value.userid
else UserID "" ... // Validate
Logon if (UserID PWD) // Store values in
Session session.UserIDUserID
session.PWDPWD // Clear potential
logon error message session.lasterror""
// Redirect User to page
document.redirect"logonok.stm" ...
41
session object

• HTTP is stateless.
• no information is stored between requests by the
  client.
• Session object
• one session object for each Web client.
• used to maintain information about a session for
  a given Web client as they navigate the Web site.
• is accessible from all templates scripts.

42
session object cont.

• Session duration is determined by PD.
• default is 5 minutes
• after idle time expires session is removed
• Properties are defined by pages
• session.UserID Mike
• Implemented using a cookie.

43
Accessing session data - code
ltHTMLgt ltBODYgt ltH1gtltIMG src"images/autonet_big.jpg
"gtlt/H1gt ltH1gtnbspnbspnbspnbspnbspnbspn
bsp nbsp Welcome to AutoNet, lt!--SCRIPT if
(exists(session.UserID)) document.writeln(sess
ion.UserID) else session.lasterror"Plea
se login..." document.redirect"logon.stm"
exit --gt lt/H1gt lt/BODYgt lt/HTMLgt
44
Enhancing the Dynamo Site

• Turn off Directory browsing
• autoexec.ssc under system folder
• // Remove this line to turn off directory
  browsing
• //site.OnEvent('Directory','Get','','','contview
  .ssc')
• Setup default document
• autoexec.ssc under system folder
• // Add this line to call script
• site.OnEvent('Directory','Get','','',/default.ssc
  ')
• redirect request to the first document
• lt!--SCRIPT
• // default.ssc
• document.redirect"/autonet/Welcome.stm"
• --gt

45
Todays Agenda

• Web Applications
• What is EAServer?
• PowerDynamo development
• Web and Jaguar CTS
• Sybase in Action
• Q A

46
Accessing Jaguar CTS from the Web

• Java Applet
• Robust client interface
• Stateful IIOP connection to Jaguar CTS
• Requires Java-enabled browser on client
• Java sandbox limits capabilities on Internet
• Java Servlet
• Ultra-thin client
• HTML generated in Java code

47
Accessing Jaguar CTS from the Web cont.

• Dynamic Page Server
• Ultra-thin client
• PowerDynamo
• Microsoft ASP
• Cold Fusion
• Java Server Pages
• available in Jaguar CTS 3.6 and PowerJ 3.6
• uses Java Servlets

48
PowerDynamo and Jaguar CTS
Web Browser
Access to Jaguar components 1. ActiveX 2. Java
3. MASP 4. COMPONENT tag
HTTP
Web Server
CGI, ISAPI, NSAPI
PowerDynamo
ActiveX
Java
MASP
COM
ODBC, Open Client
JagProxy.dll
IIOP
IIOP
Jaguar CTS
49
Setup PowerDynamo to use Java

• 1. Configure PD to use Sun VM
• 2. PATH
• Java Bin
• D\Program Files\Sybase\Shared\Sun\jdk117\bin

50
Setup PowerDynamo to use Java cont.

• 3. CLASSPATH
• Java Lib classes.zip
• D\Program Files\Sybase\Shared\Sun\jdk117\lib\clas
  ses.zip
• Java Stubs base path
• JAGUAR\html\classes
• PD on separate machine from Jaguar CTS
• Install JagClient.exe on PD machine
• Put path to JagClient.zip in CLASSPATH

51
Accessing Jaguar CTS - Java

• Access via CORBA/ IIOP
• Jaguar uses IDL to describe components and
  generate stubs.
• Java stubs
• Allow PD scripts to access Jaguar components
  through java object.
• Generation of stubs required for new components
  and when IDL is changed.
• Jaguar component does not have to be written in
  Java.

52
Accessing Jaguar CTS - Java cont.
PowerDynamo
ltHTMLgt lt!--SCRIPT ... JagObj.myFunc() --gt lt/HTMLgt
Jaguar CTS
java
Java stub
Jaguar component
53
Accessing Jaguar CTS - Java cont.

• 1. Create Java stubs for components
• 2. Compile Java stubs
• 3. Stop and Start PowerDynamo
• Flush PowerDynamo cache
• Done by stopping and starting Web server

54
java object

• Allows access to Java classes within PowerDynamo
  scripts.
• No properties
• Methods
• CreateComponent Access Jaguar component through
  Java using CORBA naming services.
• CreateObject Instantiates a Java class object.
• CallStaticMethod Calls a static Java method.

55
java.CreateComponent
ltHTMLgt lt!--SCRIPT ... java.CreateComponent JagObj.
myFunc() --gt lt/HTMLgt
PowerDynamo
Jaguar CTS
java
Jaguar component
Java VM
.class file
Java stub
56
java.CreateObject
ltHTMLgt lt!--SCRIPT java.CreateObject() JavaObj.my
Func() --gt lt/HTMLgt
PowerDynamo
java
Java VM
.class file
Java Class
57
java.CallStaticMethod
ltHTMLgt lt!--SCRIPT ... java.CallStaticMethod --gt lt/
HTMLgt
PowerDynamo
java
Java VM
.class file myFunc()
58
Accessing a Jaguar Component -code
// Create Jaguar component JagServer
iiop//localhost9000 JagAuto
java.CreateComponent(AutoNet/auto, JagServer,
, ) // check if object is OK if (JagAuto
null) // Error document.writeln(site.GetEr
rorInfo()) else // Perform Processing
...
59
Centralizing the Jaguar server location
// JagUtils.ssc function getJagObject(component_c
lass) var JagLoginUser"" var
JagLoginPwd"" return getJagObjectLogin(comp
onent_class, JagLoginUser, JagLoginPwd) functi
on getJagObjectLogin(component_class,
JagLoginUser, JagLoginPwd) var
JagServer"iiop//localhost9000" JagObject
java.CreateComponent(component_class,
JagServer, JagLoginUser, JagLoginPwd) return
JagObject
60
Accessing a Jaguar Component - code
import scripts/JagUtils.ssc // Create Jaguar
component JagAuto getJagObject(AutoNet/auto)
// check if object is OK if (JagAuto null)
// Error document.writeln(site.GetErrorInfo()
) else // Perform Processing ...
61
Calling methods on Jaguar component

• Call methods using DynaScript syntax
• convert any variables to proper CORBA-Java
  data-types before calling method
• import scripts/JagUtils.ssc
• // Create Jaguar component
• JagAuto getJagObject(AutoNet/auto)
• // check if object is OK
• if (JagAuto ! null)
• rc JagAuto.myFunc()

62
Passing arguments by reference

• Java cannot pass simple data types by reference
• Java can pass objects by reference
• CORBA IDL provides mechanism (Holder)
• CORBA inout parameter is same as by reference
• Holder object used to pass inout parameters
• Holder object described with IDL and generated by
  Jaguar CTS automatically

63
Passing arguments by reference cont.

• CORBA inout parameter is actually different data
  type in Java

Java data type (in parameter)
Jaguar/CORBA data type
Java data type (inout, out parameter)
java.lang.String
string
org.omg.CORBA.StringHolder
64
Passing arguments by reference cont.
Holder class for String final public class
StringHolder public String value public
StringHolder() public StringHolder(String
initial_value) value initial_value
65
Passing arguments by reference cont.
Holder class example // declare String
variable var Msg // Create
Holder MsgHolder java.CreateObject(org.omg.COR
BA.StringHolder,Msg) // Call Jaguar
method-pass string by reference rc
JagComp.myFunc(MsgHolder)
66
CORBA Holder
PowerDynamo
Jaguar CTS
java
String Mike
Jaguar component
Java VM
StringHolder value
.class file
Mike
Mike
.class file
Java stub
67
CORBA Holder cont.
PowerDynamo
Jaguar CTS
java
String Angela
Jaguar component
Java VM
StringHolder value
.class file
Angela
Angela
.class file
Java stub
68
Getting value out of the Holder

• PowerDynamo cannot access properties of Java
  class via dot notation unless they have get and
  set methods.
• Use Dave Wolfs JavaWrappers.ssc file
• import JavaWrappers.ssc
• ...
• // Call Jaguar method-pass string by reference
• rc JagComp.myFunc(MsgHolder)
• // Get a JavaHelper to access the Holder class
• jHelper new JavaFieldHelper(MsgHolder)
• // Get the value out of the Holder
• Msg jHelper.getString("value")

69
Handling a structure

• Structure described in IDL as a data type and the
  Java class is generated automatically by Jaguar
  CTS
• Structure
• Cannot have structure with more than 22 elements.
• Need to initialize elements before creating
  structure
• Cannot access elements using dot notation - use
  JavaWrappers.ssc

Java data type (in parameter)
Jaguar/CORBA data type
Java data type (inout, out parameter)
str_auto
str_auto
str_autoHolder
70
Handling a structure - code 1
// Initialize Auto Structure elements
AutoName"" AutoMakerID0
AutoMakerName"" AutoTypeID0
AutoTypeName"" AutoPicture""
AutoDesc"" MSRP"" AutoYear""
...
71
Handling a structure - code 2
... // Create Auto Structure str_auto
java.CreateObject("AutoNet/str_auto",
parseInt(AutoID), AutoName, parseInt(AutoMakerID),
AutoMakerName, parseInt(AutoTypeID),
AutoTypeName, AutoDesc, AutoPicture, MSRP,
AutoYear ) // determine if object is OK if
(str_auto null) document.writeln(site.GetErr
orInfo()) // Create Auto Structure
Holder str_autoHolder java.CreateObject("AutoNet
/str_autoHolder", str_auto) if (str_autoHolder
null) document.writeln(site.GetErrorInfo())
...
72
Handling a structure - code 3
// Get Auto Info rc JagAuto.getauto(AutoID,
str_autoHolder) if (rc 1) // Get Data from
Auto Structure // Get Auto Structure from
Holder str_autoHolder_jHelper new
JavaFieldHelper(str_autoHolder) str_auto
str_autoHolder_jHelper.getObject("value")
// Get values out of Auto
Structure str_auto_jHelper new
JavaFieldHelper(str_auto) AutoName
str_auto_jHelper.getString("name") AutoMakerID
str_auto_jHelper.getInt("auto_maker_name") .
.. AutoYear str_auto_jHelper.getString("year")
...
73
Handling a ResultSet

• Useful for passing multiple instances of data
• Need to convert to/from CORBA result set and JDBC
  result set
• Work with JDBC result set same as in Java
• com.sybase.CORBA.jdbc11.SQL
• com.sybase.CORBA.jdbc11.IDL

Java data type (in parameter)
Jaguar/CORBA data type
Java data type (inout, out parameter)
TabularResults.ResultSet
TabularResultsResultSet
TabularResults.ResultSetHolder
74
Handling a ResultSet - code
// Get resultset from Jaguar rs
JagAutoColor.getlistbyauto(AutoID) // Convert
IDL ResultSet to java.sql.ResultSet jQuery
java.CallStaticMethod("com.sybase.CORBA.jdbc11.SQL
", "getResultSet", rs) // Dynamically create
SELECT (dropdownlist) document.writeln("ltSELECT
NAMEauto_color_idgt") // Loop through the
rows while (jQuery.next()) // Get
ColumnValues autocolor jQuery.getString("col
or") autocolorID jQuery.getInt("auto_color_
id") document.writeln('ltOPTION
VALUE"' autocolorID '"gt')
document.writeln(autocolor)
document.writeln("lt/OPTIONgt") // end while
loop document.writeln("lt/SELECTgt")
75
PowerDynamo ResultSet file

• PowerDynamo includes a script to handle Result
  Sets
• javaqry.ssc located in system/utils folder
• import /system/utils/javaqry.ssc
• // Get resultset from Jaguar
• rs JagAutoColor.getlistbyauto(AutoID)
• // get JavaQuery class
• jQuery new JavaQuery(rs)
• // move pointer to first row
• jQuery.moveNext()
• ...

76
Handling an array

• PowerDynamo cannot use Java array indexes
• use java.lang.reflect.Array class
• CORBA IDL and arrays
• sequence is unbounded 1 dimensional array of any
  IDL defined type.
• sequence maps to a Java array
• sequence IDL data type generated automatically by
  Jaguar
• Passing an inout parameter requires a Holder

77
Handling an array - code
... // PowerDynamo Array PDArray new
Array PDArray0 "Test1" // Java Array -
CORBA sequence // 1. Create datatype for
array JavaString_Class java.CallStaticMethod("ja
va.lang.Class", "forName", "java.lang.String")
// 2. Create array JavaArray
java.CallStaticMethod("java.lang.reflect.Array",
"newInstance", JavaString_Class, 2) // 3.
Populate Java array from PD array for (var
i0iltPDArray.lengthi) java.CallStaticMethod
("java.lang.reflect.Array", "set", JavaArray, i,
PDArrayi) // 4. Call Jaguar Component
method x JagData.sendarray(JavaArray)
78
Sample Application AutoNet

• ASA application database
• Jaguar Database Connection Cache
• Jaguar Components
• AutoNet package
• PowerDynamo Web site
• PowerDynamo pages

79
Sybase in Action Sites using EAServer
www.vactionoutlet.com
www.france98.com
www. eappraiseit.com
www.nsga.com
www.sybaseopen.com
80
Q A
