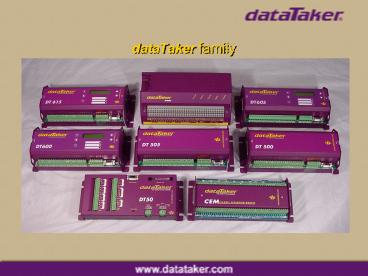

dataTaker family

1
dataTaker family
2
Data logger - a general view
3
The dataTaker DT50/500/600 Range
4
General featuresdataTaker DT50/500/600

• Stand alone data acquisition and data logging
• Suitable for fixed position and portable
  applications
• Extensive signal conditioning and sensor support
• Flexible channel sampling and functions
• Up to 25Hz sampling rate
• Real-time calculations and data manipulation
• Acquired data returned real-time and/or logged
• Alarms monitoring, direct or indirect actions

5
General featuresdataTaker DT50/500/600

• RS232 host communications port, to 9600 baud
• Real time clock
• Flash firmware. Upgrade over serial link or
  memory card Series 3 only. Earlier logger
  firmware upgrade by ROM change.

6
Data memorydataTaker DT50/500/600

• Memory
• All SRAM technology memory
• Internal memory 166,530 readings (Series 3)
• Memory cards (PCMCIA) 1,392,300 readings
  (4Mbyte, Series 3 only)
• Series 1 models require PCMCIA adaptor
• Stack or circular buffer storage modes
• Data stored in compressed binary format

7
PoweringdataTaker DT50/500/600

• Powered from 9 18 VAC, 11 24 VDC source
• Powered from mains via an adaptor
• Low power consumption
• Intelligent low power mode for battery operation
• Internal battery (except DT50)
• lead acid
• used for backup or as primary power source
• automatically recharged from external power

8
Display keypaddataTaker DT50/500/600

• Display/Keypad (optional on some models)
• 2 line by 16 character, alphanumeric display
• view current readings, alarm states, logger
  status
• user definable function keys

9
ChannelsdataTaker DT50/500/600

• Analog channels
• number of channels depends on model
• ADC 15 bit plus sign, resolve to 1 microvolt
• 25 samples per second sampling
• Signal types and sensors supported
• Fundamental - voltage, frequency
• Derived - temperature, strain, bridges,
  current
• User defined - user calibrations, calculations

10
ChannelsdataTaker DT50/500/600

• Digital channels
• Inputs - digital state and counting (10Hz, 65535
  counts)
• Outputs - TTL/CMOS, Open collector
• High speed counter channels 1KHz, 65535 counts

11
dataTaker DT50
12
dataTaker DT50

• 5 differential / 10 single ended analog input
  channels
• Solid state analog multiplexer, /- 3.2 VDC range
• ADC 15 bit sign, 1 microvolt, 25 samples/sec
• 5 digital channels
• Inputs as digital state, TTL and contact closure
• Inputs as counting, 10Hz, 65535 counts
• Outputs as TTL Open collector, 30VDC 200mA

13
dataTaker DT50

• 3 high speed counters, 1KHz, 65535 counts
• Internal memory battery backed, 13,650 readings
• Memory card 1 Mbyte PCMCIA, 343,000 readings
• External backup battery - not physically in
  logger chassis
• Optional external display keypad
• Cannot be expanded

14
dataTaker DT500/505/515
15
dataTaker DT600/605/615
16
dataTaker DT500/600 series

• 6 loggers in the series
• dataTaker DT500
• dataTaker DT505
• dataTaker DT600
• dataTaker DT605
• GeoLogger DT515
• GeoLogger DT615

17
dataTaker DT500/600 series

• 10 differential / 30 single ended analog input
  channels
• DT500 DT600
• Solid state analog multiplexer, /- 3.2 VDC range
• DT505, DT605, DT515, DT615
• Relay analog multiplexer, /- 100 VDC range
• ADC 15 bit sign, 1 microvolt, 25 samples/sec
• 4 digital channels
• Inputs as digital state, TTL and contact closure
• Inputs as counting, 10Hz, 65535 counts
• Outputs as TTL Open collector, 30VDC 200mA

18
dataTaker DT500/600 series

• 3 high speed counters, 1KHz, 65535 counts
• Internal memory battery backed, 13,650 readings
• Memory card 1 Mbyte PCMCIA, 343,000 readings
• DT600, DT605, DT615 Integral display keypad
• DT500, DT505, DT515 Optional external display
  keypad
• Optional channel expansion using 1 or 2 CEMs
• Internal 1.2Ahr backup battery

19
AccessoriesdataTaker DT50/500/600

• Channel Expansion Module
• 10 differential / 30 single ended analog inputs
• Relay multiplexer
• 20 digital state inputs
• 10 digital state outputs
• 5 as open collector
• 5 as changeover relay
• Up to 2 modules per data logger
• Not supported by dataTaker DT50

20
AccessoriesdataTaker DT50/500/600

• Memory Cards
• PC-Card/PCMCIA technology
• Personal Computer Memory Card International
  Association
• 4 Mbyte, store 1,392,300 readings
• Stack or Circular buffer (overwrite) data storage
  modes
• Can be removed or exchanged during data capture
  without data loss (data buffered in internal
  memory)
• Provide
• memory expansion
• data transfer

21
AccessoriesdataTaker DT50/500/600

• Memory Card Reader
• Reads data from memory cards (PCMCIA)
• Transfers data at up to 115,200 baud as a binary
  image to a computer via the RS232 port
• Host software converts image to ASCII data file

22
AccessoriesdataTaker DT50/500/600

• Modem Manager
• Stores alarm messages from data loggers, and
  delivers these to a host computer, SMS, fax or
  pager
• Supports PSTN, GSM, CDMA, radio and satellite
  modems
• Manages powering of the
• telemetry system
• Leaves data logger freeto continue data
  captureand alarm monitoring

23
AccessoriesdataTaker DT50/500/600

• Enclosures
• Portable enclosure - IP67
• Industrial enclosures
• 3 sizes, IP55
• Panel Mount Display/Keypad
• for DT50, DT500, DT505, DT515
• surface mount, flush mount, enclosure door mount

24
The dataTaker DT800
25
The dataTaker DT800
26
General featuresdataTaker DT800

• Standalone data acquisition and data logging
• Suitable for fixed position and portable
  applications
• Extensive signal conditioning and sensor support
• Flexible channel sampling and functions
• Up to 100 kHz sampling rate
• Real-time calculations and data manipulation
• Alarms monitoring, direct or indirect actions
• Acquired data returned real-time and/or logged

27
General featuresdataTaker DT800

• 50MHz PowerPC with communications co-processor
• Operating system in 2Mbyte FLASH, is user
  upgradeable
• Real time clock/calendar, lithium backed

28
Data memorydataTaker DT800

• Memory
• Internal memory 2Mbyte SRAM, lithium backed
• Memory cards (PCMCIA) 32 Gbyte, ATA FLASH,
  non-volatile
• Data is stored in a DOS compatible file system -
  memory cards can be read directly in a computer
  PC Card slot
• Data stored as ASCII text in a fixed format
• Data storage is approx 50,000 readings per Mbyte
• Stack and circular buffer (overwrite) modes

29
CommunicationsdataTaker DT800

• Serial Comms Port
• RS232 to 115K baud
• XON/XOFF and hardware flow control
• modem support for dial in/dial out
• Ethernet Port
• 10BaseT topography, 10Mbit/sec
• UDP and TCP/IP protocols

30
PoweringdataTaker DT800

• Powered from any 1128 VDC source
• Powered from mains via an adaptor
• Low power consumption
• Intelligent low power mode for battery operation
• Internal battery, lead acid
• used for backup or as primary power source
• automatically recharged from external power
• System protection battery, lithium
• protects program, data log, alarm log and
  realtime clock/calendar

31
ChannelsdataTaker DT800

• 12 analog channels, 4 terminals per channel
• 24 unshared (differential) inputs
• or 42 shared (single ended) inputs
• 16 digital channels
• 8 channels input/output and counting
• 8 channels input and counting
• 1 serial data channel
• 1 analog output channel

32
ChannelsdataTaker DT800
33
ChannelsdataTaker DT800

• Analog channels support
• AC voltage, DC voltage range 13V
• AC current, DC current range depends on shunt
• resistance range 0 - 100KOhm
• frequency range 0 - 20KHz
• temperature sensors
• thermocouples, RTDs (platinum, nickel,
  copper)thermistors, solid state temperature
  sensors
• bridges, strain gauges
• Sufficient flexibility to support almost any
  sensor

34
ChannelsdataTaker DT800

• Digital channels
• 8 channels input/output and counting
• 8 channels input and counting
• Digital channels support
• Inputs - digital state and counting (32 bit
  counters)
• Outputs - TTL/CMOS, Open collector

35
ChannelsdataTaker DT800

• 1 serial data channel
• RS232, RS422, RS485 and SDI-12 modes
• read serial data in from intelligent sensors,
  barcode scanners, keypads, PLCs, etc
• send serial text to printers, display panels,
  PLCs, other data loggers, intelligent devices,
  etc
• 1 analog output channel
• output voltage range 10VDC to 10VDC _at_ 20mA
• resolution 12 bit or 10mV
• retransmit data to indicators, controllers, PLCs
• proportional control of analog actuators

36
AccessoriesdataTaker DT800

• Memory Cards
• PC Card/PCMCIA standard, ATA FLASH technology
• 50,000 data points stored/Mbyte
• Can be removed or exchanged duringdata capture
  without data loss(data buffered in internal
  memory)
• Provide
• memory expansion
• data transfer
• program transfer

37
AccessoriesdataTaker DT800

• Memory Card Reader
• Read data from memory
• cards directly into a
• computer
• USB or parallel port
• Use with desktopPCs, Windows
• OS. 98, 2000, XP
• Notebooks usuallyhave a PC Card slot

38
AccessoriesdataTaker DT800

• Enclosures
• Portable enclosurecarry case, IP67
• Wall mounting industrialenclosures, IP65

39
Comparison Chart
40
User interface

• Simple English like commands in ASCII
• Data in printable ASCII text format
• Compatible with all computers and terminals
• Compatible with many applications programs
• Compatible with all languages - VBasic, C,
  Delphi, LabVIEW

41
Host software

• Data Acquisition
• DeTransfer for Windows 98, 2000, XP
• DePlot (OLE client to DeTransfer)
• DeLoad
• DeLogger 4 and DeLogger Pro 4
• Any Terminal Emulator / Comms Package
• Analysis and Presentation
• DeLogger 4 and DeLogger Pro 4
• Spreadsheets - Excel
• Databases - Access etc.
• Purpose Written - Visual Basic, C, LabVIEW

42
Radio modems

• Spread spectrum transceivers, 915 - 928 MHz
• 1200 - 115,200 baud, up to 15 km line of sight

1. Point to point
2. Point to multipoint, where host
modem communicates with all or nominated remotes
43
Radio modems
3. Repeater mode where longer distance required,
or line of sight not possible
44
GSM modems

• Program logger and retrieve data via cellular
  phone network
• SMS messaging from data logger to cell phone of
  alarms, data, status, etc.
• SMS messaging to logger for current readings,
  status, etc.

45
Notes
