1

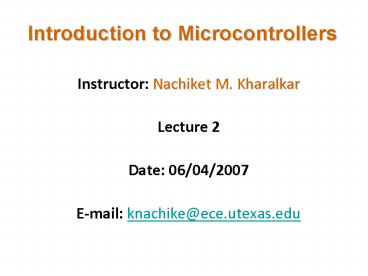

Introduction to Microcontrollers
  • Instructor Nachiket M. Kharalkar
  •
  • Lecture 2
  • Date 06/04/2007
  • E-mail knachike_at_ece.utexas.edu
  •

2
Todays Agenda
  • Things to buy
  • Recap
  • Arithmetic operations
  • Promotion, Ceiling Floor
  • Overflow, drop-out, truncation roundoff
  • 9S12C32 architecture
  • Few basic assembly language instructions

3
Things to buy
  • Simple digital multi-meter
  • Wire strippers

4
Recap
Store 03E8 in big and little/small endian format
Freescale Store MSB first
Intel Store LSB first
Store 12345678
5
Number formats in TExaS
  • h 8-bit unsigned hexadecimal
  • h 8-bit signed hexadecimal (h and -h are the
    same format)
  • d 8-bit unsigned decimal
  • d 8-bit signed decimal (d and -d are the same
    format)
  • b 8-bit unsigned binary
  • b 8-bit signed binary (b and -b are the same
    format)
  • 2d two unsigned decimal numbers
  • H 16-bit unsigned hexadecimal
  • H 16-bit signed hexadecimal (H and -H are the
    same format)
  • D 16-bit unsigned decimal
  • D 16-bit signed decimal (D and -D are the same
    format)
  • B 16-bit unsigned binary
  • B 16-bit signed binary (B and -B are the same
    format)

6
MC9S12C32 16-Bit Microcontroller
  • 16-bit HCS12 CPU
  • Multiplexed External Bus
  • 32K byte Flash EEPROM
  • 2.0K byte RAM
  • 8-channel Analog-to-Digital Converter, 10-bit
    resolution
  • 1M bit per second, CAN 2.0 A, B software
    compatible module
  • 8 channel 16-bit timer module
  • 6-channel 8-bit Pulse Width Modulator

7
9S12C32 registers
8
Condition code register (CC or CCR)
C set after an unsigned add if the answer is
wrong V set a signed add if the answer is wrong
Why do we care about these bits?
9
Unsigned number wheel
22464
9664
C bit Set
C bit Cleared
The carry bit, C, is set after an unsigned
addition or subtraction when the result is
incorrect.
10
Trick
Whenever you directly add 2 unsigned 8-bit
numbers and the answer is more than 255, C bit is
SET. The final answer is obtained by subtracting
256 from the direct addition. For example 255
5 260, C 1 and the actual answer is 260-256
4
11
Unsigned number wheel
32-64
160-64
C bit Cleared
C bit Set
The carry bit, C, is normally set when we cross
over from 255 to 0 while adding or cross over
from 0 to 255 while subtracting.
12
Trick
Whenever you directly subtract 2 unsigned 8-bit
numbers and the answer is negative, C bit is SET.
The final answer is obtained by adding 256 to the
direct subtraction. For example 5 - 255
-250, C 1 and the actual answer is -250256 6
13
Signed number wheel
9664
-3264
V bit Cleared
V bit Set
The overflow bit, V, is set after a signed
addition or subtraction when the result is
incorrect.
14
Signed number wheel
-96-64
32-64
V bit Cleared
V bit Set
The overflow bit, V, is normally set when we
cross over from 127 to -128 while adding or cross
over from -128 to 127 while subtracting.
15
Addition summary
  • Let the result R be the result of the addition
    AB.
  • N bit is set
  • if unsigned result is above 127 or
  • if signed result is negative.
  • N R7
  • Z bit is set if result is zero
  • V bit is set after a signed addition if result is
    incorrect
  • V
  • C bit is set after an unsigned addition if result
    is incorrect
  • C

16
Subtraction summary
  • Let the result R be the result of the addition
    A-B.
  • N bit is set
  • if unsigned result is above 127 or
  • if signed result is negative.
  • N R7
  • Z bit is set if result is zero
  • V bit is set after a signed subtraction if result
    is incorrect
  • V
  • C bit is set after an unsigned subtraction if
    result is incorrect
  • C

17
P1
When you perform (32 129) in an 8-bit system
what is the status of the NZVC bits? Answer
159 NZVC 1011
18
Unsigned promotion
  • Promotion involves increasing the precision of
    the input numbers, and performing the operation
    at that higher precision
  • decimal 8-bit 16-bit
  • 224 1110,0000 0000,0000,1110,0000
  • 64 0100,0000 0000,0000,0100,0000
  • 288 0010,0000 0000,0001,0010,0000

19
Unsigned ceiling floor
20
Signed promotion
To promote a signed number, we duplicate the sign
bit decimal 8-bit 16-bit
-96 1010,0000 1111,1111,1010,0000 -
64 -0100,0000 -0000,0000,0100,0000 -160
0110,0000 1111,1111,0110,0000
21
Signed ceiling floor
22
Common errors
  • Overflow result exceeds the range of number
    system
  • promotion and ceiling/floor.
  • Drop-out occurs after an integer right shift or a
    divide
  • intermediate result looses the information
  • divide last when performing multiple calculations
  • 100(N/51) ? (100N)/51

23
Common errors
  • Roundoff is the error that occurs as a result of
    an arithmetic operation. discarding the least
    significant bits of the product
  • multiplication of two 64-bit mantissas yields a
    128-bit product.
  • Roundoff during addition and subtraction
  • two n-bit numbers are added the result is n1
    bits
  • Truncation is the error that when a number is
    converted from one format to another.
  • For example when a real number is converted to a
    short real format

24
  • Architecture defines how the various computer
    components are connected.
  • The 6812 has a von Neumann architecture (I/O
    devices are connected to the processor in a
    manner similar to memory).

25
The term von Neumann architecture (memory mapped
I/O) refers to a computer design model that uses
a single storage structure to hold both
instructions and data.
26
In an Isolated I/O system, the control bus
signals that activate the I/O are separate from
those that activate the memory devices
27
9S12C32
28
http//www.technologicalarts.com/myfiles/jpeg/9s12
29
4 basic components of a 6812 processor
30
Bus interface unit (BIU)
  • The bus interface unit (BIU)
  • reads data from the bus during a read cycle,
  • writes data onto the bus during a write cycle.
  • always drives the address bus and the control
    signals
  • effective address register (EAR) contains the
    data address

31
Control unit (CU)
  • The control unit (CU)
  • orchestrates the sequence of operations
  • issues commands to ALU, BIU
  • instruction register (IR) contains the op code

32
Registers
  • The registers
  • high-speed storage devices located in the
    processor
  • do not have addresses like regular memory
  • specific functions explicitly defined by the
    instruction
  • Accumulators contain data (A, B, D)
  • Index registers contain addresses (X, Y)
  • Program counter (PC) points to instruction to
    execute next
  • Stack pointer (SP) points to the top element on
    the stack
  • context switch when calling and returning from a
    function
  • pass parameters
  • save temporary information
  • implement local variables
  • Condition code register (CCR) the status of the
    previous operation

33
6812 has 6 registers
34
Condition code register (CCR)
35
Arithmetic logic unit (ALU)
  • The arithmetic logic unit (ALU)
  • Arithmetic operations
  • Addition
  • Subtraction
  • Multiplication
  • Division
  • Logic operations
  • And
  • Or
  • Exclusive or
  • Shift

36
Memory map of 9S12C32
37
Basic 8-bit load instructions
  • The 8-bit load instructions
  • ldaa w RegAw
  • ldaa U RegAU
  • ldab w RegBw
  • ldab U RegBU
  • Condition code bits are set
  • N result is negative NR7
  • Z result is zero
  • V signed overflow V0

38
Basic 8-bit store instructions
  • The 8-bit store instructions
  • staa U URegA
  • stab U URegB
  • Condition code bits are set
  • N result is negative NR7
  • Z result is zero
  • V signed overflow V0

39
8-bit addition
  • These instructions work for both signed and
    unsigned data.
  • adda w RegARegAw
  • adda U RegARegAU
  • addb w RegBRegBw
  • addb U RegBRegBU
  • Condition code bits are set after RXM,
  • N result is negative NR7
  • Z result is zero
  • V signed overflow
  • VX7M7not(R7)not(X7)not(M7)R7
  • C unsigned overflow
  • CX7M7M7not(R7)not(R7)X7

40
8-bit subtraction
  • These instructions work for both signed and
    unsigned data.
  • cmpa w RegA-w
  • cmpa U RegA-U
  • cmpb w RegB-w
  • cmpb U RegB-U
  • suba w RegARegA-w
  • suba U RegARegA-U
  • subb w RegBRegB-w
  • subb U RegBRegB-U
  • tsta RegA-0
  • tstb RegB-0
  • Condition code bits are set after RX-M
  • N result is negative NR7
  • Z result is zero
  • V signed overflow
  • VX7not(M7)not(R7)not(X7)M7R7
  • C unsigned overflow
