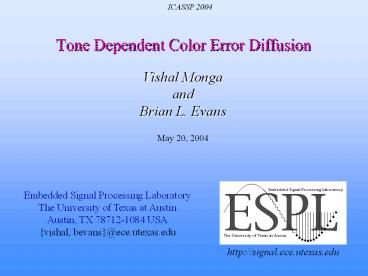

Tone Dependent Color Error Diffusion
ICASSP 2004
Vishal Monga and Brian L. Evans
May 20, 2004
Embedded Signal Processing LaboratoryThe
University of Texas at AustinAustin, TX
78712-1084 USA vishal, bevans_at_ece.utexas.edu
2
Outline

• Introduction
• High Quality Halftoning Methods
• Error Diffusion
• Direct Binary Search (DBS)
• Grayscale Tone Dependent Error Diffusion
• Different error filter for each input gray-level
• DBS halftone(s) used for filter design
• Color Tone Dependent Error Diffusion
• Perceptual Model
• Error Filter Design
• Conclusion Future Work

3
Introduction
Digital Halftoning Examples
Direct Binary Search
4
Grayscale Error Diffusion Halftoning
Background

• 2- D sigma delta modulation Anastassiou, 1989
• Shape quantization noise into high freq.
• Several Enhancements
• Variable thresholds, weights and scan paths

Error Diffusion
current pixel
weights
Spectrum
5
Direct Binary SearchAnaloui, Allebach 1992
Background
- Computationally too expensive for real-time
applications e.g. printing - Used in screen
design - Practical upper bound for achievable
halftone quality
6
Tone Dependent Error DiffusionLi Allebach,
2002
Grayscale TDED

• Train error diffusionweights and
  thresholdmodulation

Highlights and shadows (0-20, 235-255)
FFT
Graylevel patch x
Halftone pattern for graylevel x
FFT
7
Tone Dependent Color Error Diffusion
Color TDED

• Extension of TDED to color
• Goal e.g. for RGB images obtain optimal (in
  visual quality) error filters with filter weights
  dependent on input RGB triplet (or 3-tuple)
• Applying grayscale TDED independently to the 3
  (or 4) color channels ignores the correlation
  amongst them
• Processing channel-separable or vectorized
• Error filters for each color channel (e.g. R, G,
  B)
• Matrix valued error filters Damera-Venkata,
  Evans 2001
• Design of error filter key to quality
• Take human visual system (HVS) response into
  account

8
Color HVS Model
Perceptual Model Poirson, Wandell 1997

• Separate image into channels/visual pathways
• Pixel based transformation of RGB ? Linearized
  CIELab
• Spatial filtering based on HVS characteristics
  color space

9
Linearized CIELab Color Space
Color TDED

• Linearize CIELab space about D65 white point
  Flohr, Kolpatzik, R.Balasubramanian, Carrara,
  Bouman, Allebach, 1993
• Yy 116 Y/Yn 116 L 116
  f (Y/Yn) 116
• Cx 200X/Xn Y/Yn a 200
  f(X/Xn ) f(Y/Yn )
• Cz 500 Y/Yn Z/Zn b 500
  f(Y/Yn ) f(Z/Zn )
• where
• f(x) 7.787x 16/116 0 x lt
  0.008856
• f(x) x1/3
  0.008856 x 1
• Color Transformation
• sRGB ? CIEXYZ ? YyCx Cz
• sRGB? CIEXYZ obtained from http//white.stanford.e
  du/brian/scielab/

10
HVS Filtering
Color TDED

• Filter chrominance channels more aggressively
• Luminance frequency response Näsänen and
  Sullivan, 1984
• L average luminance of display
• weighted radial spatial frequency
• Chrominance frequency response Kolpatzik and
  Bouman, 1992
• Chrominance response allows more low frequency
  chromatic error not to be perceived vs. luminance
  response

11
Tone Dependent Color Error Diffusion
Color TDED

• Design Issues
• (256)3 possible input RGB tuples
• Criterion for error filter design
• Solution
• Design error filters along the diagonal line of
  the color cube i.e. (R,G,B) (0,0,0) (1,1,1)
  (255,255,255)
• 256 error filters for each of the 3 color planes
• Color screens are designed in this manner
• Train error filters to minimize the visually
  weighted squared error between the magnitude
  spectra of a constant RGB image and its
  halftone pattern

12
Perceptual Error Metric
Color TDED
13
Perceptual Error Metric
Color TDED

• Find error filters that minimize TSE subject to
  diffusion and non-negativity constraints, m
  r, g, b a ? (0, 255)

(Floyd-Steinberg)
14
Results
Color TDED
(a) Original Color Ramp Image
(b) Floyd-Steinberg Error Diffusion
15
Color TDED
Results
(c) Separable application of grayscale TDED
(d) Color TDED
Halftone in (c) courtsey Prof. J. P. Allebach
and T. Chang at Purdue University
16
Color TDED
Results

• Halftone Detail
• Blue section of the color ramp

Floyd-Steinberg
Grayscale TDED
Color TDED
17
Color TDED
Conclusion Future Work

• Color TDED
• Worms and other directional artifacts removed
• False textures eliminated
• Visibility of halftone-pattern minimized (HVS
  model)
• More accurate color rendering (than separable
  application)
• Future Work
• Incorporate Color DBS in error filter design to
  enhance homogenity of halftone textures
• Design visually optimum matrix valued filters

18
Back Up Slides
19
Original House Image
20
Floyd Steinberg Halftone
21
Color TDED Halftone
22
Floyd Steinberg Yy component
23
Floyd Steinberg Cx component
24
TDED Yy component
25
TDED Cx component
26
Color TDED
HVS Filtering contd

• Role of frequency weighting
• weighting by a function of angular spatial
• frequency Sullivan, Ray, Miller 1991

where p (u2v2)1/2 and
w symmetry parameter
reduces contrast sensitivity at odd multiples of
45 degrees
equivalent to dumping the luminance error
across the diagonals where the eye is least
sensitive.
