Measuring LAI in Kalahari Woodlands and Savannas Field Protocols and Results

1

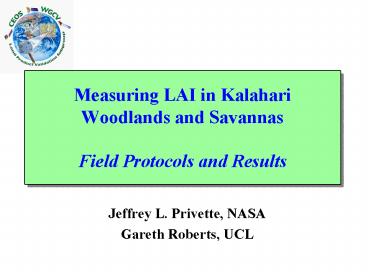

Measuring LAI in Kalahari Woodlands and
SavannasField Protocols and Results

• Jeffrey L. Privette, NASA
• Gareth Roberts, UCL

2
Mongu Tower Kataba Local Forest
SAVE sites
3
(No Transcript)
4
Mongu Off-tower Measurements
Transects (3 750 m) LAI-2000 (LAI) TRAC
( cover, LAI) Thermal IR (Temp.) Hem.
Photo. ( cover) Soil 1 Heat Flux Plate 8
Soil Moisture TDRs 8 Thermistors
(Temp.) Surface 1 Surface IR (Temp.)
Sunphotometer
5
TRAC Transects at Mongu
IKONOS NDVI 4 m/pixel
ETM NDVI 30 m/pixel
Kataba Forest Border
750 m
6
Zoom View of Raw TRAC Data
25 m
Max. PPFD
Gap
Crown
7
TRAC Data Quality Check
Transect B at Mongu, Zambia June, Aug.,
Sept, and Nov. 2000
8
Correlation of TRAC LAI and ETM NDVI on Transect
1
9
IKONOS NDVI vs. Gap Fraction
10
MODIS LAI Over Mongu
From Wet Season (April) through Dry Season
(October)
11
Field and MODIS Green LAI Comparison
Mean Error - 0.07 Std. Dev. 0.23
12
Kalahari Transect Field CampaignMarch 2000
13
50 m





14
MODIS LAI Test Sites on IGBP Kalahari Transect
Courtesy Y. Tian
15
MODIS LAI Assessment Along the Kalahari Transect
16
Estimating Canopy Cover with TRAC
17
Canopy Variability with Precipitation Along KT
18
Kriging Estimate
19
Kriging Error
