Climbing the RFID Learning Curve RFID World Sydney Aug 46, 2004

1

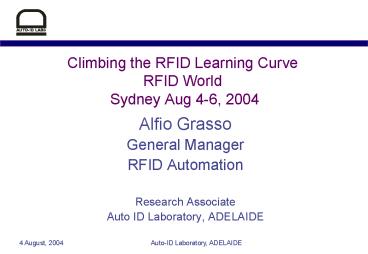

Climbing the RFID Learning CurveRFID World
Sydney Aug 4-6, 2004

• Alfio Grasso
• General Manager
• RFID Automation
• Research Associate
• Auto ID Laboratory, ADELAIDE

2
Overview

• Brief RFID history
• RF regulations
• RFID in Australia
• RFID implementation plan
• Assessment criteria
• Data issues
• Human issues
• Champion

3
Brief RFID History

• RFID used in WWII friend or foe
• Commercial application in Automatic Data Capture
• Early RFID applications in closed loop
  applications
• Vehicle toll
• Asset management
• Time and Attendance
• AutoID Center, formation and EPC (2000)
• Gillette purchase (2003)
• Walmart mandate (2003)

4
RF Regulations

• Regulators
• Classify RFID as Industrial, Scientific and
  Medical use
• ISM bands
• 125-134 kHz (ISO 18000-2)
• 13.56 MHz or HF (ISO 18000-3)
• 433 MHz (ISO 18000-7)
• 860 to 960 MHz or UHF (ISO 18000-6)
• 2.45 GHz (ISO 18000-4)
• 5.8 GHz (no ISO standard)

5
EPCGlobal

• 13.56 MHz
• HF Class 1
• UHF
• UHF Class 0
• UHF Class 1
• UHF Class 1 Generation 2
• Common world UHF usage
• 902 to 928 US
• 865 to 868 Europe (proposed)
• 956 to 960 Japan (test)
• 918 to 926 Australia

6
RFID in Australia closed loop

• Vehicle Identification
• Passenger and commercial vehicles
• Rail
• Passenger, Sugar, Minerals, Steel
• Waste Management
• Domestic and Industrial
• Access Control
• Time and Attendance, Vehicle
• Manufacturing
• Library

7
Electronic Toll Collection
8
Extended Read Range
9
Vehicle ID, Sugar Industry
Photos courtesy of Mirrabooka Systems
10
Steel Production
11
Hot-Axle Detection and RFID
Photo courtesy of Sugar Research Institute
12
Location ID
13
Location ID
14
Industrial Waste Management
15
Domestic Waste Management
16
Manufacturing
Photo taken at Hendersons Automotive Technologies
Pty Ltd
17
Library
Photos courtesy of the National Library Board
Singapore
18
Warehouse Management
Photo taken at Carlton United Beverages
19
Photo taken at Carlton United Beverages
20
Implementation Plan

• The need, mandate compliance, ROI
• Define your RFID implementation
• Compliance
• Reduce Inventory
• Stock Visibility
• Reduce Costs
• Increase asset utilisation
• Reduce shrinkage
• Reduce/eliminate shipping errors

21

• Investigate world standards ISO or EPC
• Choose frequency of operation
• 13.56 HF or UHF
• Extensive pilot or test plan
• Develop assessment criteria for solution providers

22

• Evaluate Solution Providers
• Tag Manufacturers
• Reader Manufactures
• IT infrastructure
• Installation
• Commissioning
• Maintenance
• Upgrades

23

• IT System impacts
• Interface to existing system, or new system!
• Accuracy of that data
• Accumulation of much more data
• Decision processes with that data, making the
  data USEFUL!

24

• RFID issues in your environment
• RF Interference
• LAN, Other RFID Readers, EMI, Bluetooth, 802.11
• Metal
• Moisture
• Allow time for experimentation
• Expansion
• Duplication

25

• RFID Design
• Hardware Systems
• Fixed or portable RFID readers?
• Business processes
• Simulation?

26

• Equipment Supply
• Development
• Manufacture lead times
• Engineering work and preparation
• Deployment of infrastructure
• Readers and Antennas
• IT Systems
• Ancillary equipment

27

• Tags
• Supply
• Initialisation (EPC code and data)
• Database update
• Installation
• Verification
• Training
• Employees, Managers, IT development

28

• Integration into IT systems
• Database design
• Scalability
• New/Existing
• Interim period
• Exceptions, when no tag applied!
• Evaluation of performance
• Fine adjustments
• Upgrade path

29

• Other partners
• Suppliers
• Customers
• Competitors
• Finally Rollout
• Duplicate (other sites, divisions)
• Expand (RFID applications)
• Leverage (RFID infrastructure)

30
Assessment Criteria

• Range of Hardware
• Tags, Readers, Volume, Vendors, Standards,
  Frequency, Host platforms, Ancillary equipment,
  Upgrades, Expansion
• Range of IT Solutions
• Integration into legacy systems
• Privacy
• Expansion
• Services
• Global or Local
• Site Inspection, Design, Installation,
  Commissioning, Maintenance
• Partner networks (hardware, middleware)

31

• Relevant experience in your industry
• Testing
• ISO 18047-X Conformance Test Methods
• ISO 18046 Performance Test Methods
• Vendor test Facility
• Testing your products in your installation(s)
• Development/Customisation
• Tags and Readers, ancillary sensors
• Packaging, Cost, IP issues
• Maintenance

32
Reader Issues

• Reader location is important, but local
• Antenna
• Tunnel/Portal (multiple antennas)
• Circular Vs Linear
• Host Interface, online
• Remote restart
• Alarm/alerts/Heartbeat
• Self diagnostic tests
• Upgrades

33
Location Location Location

• Tag location will be crucial for performance
• Want global use for product/tag life
• Optimal location for RF Tag may not be the same
  as the location for a human readable tag/label
• Consider composition of the object
• If lots of metal, then look for gaps!
• Metal surface can be used to extend the read
  range ?/4
• Life time environmental exposure

34

• Consider a change to the process flow
• How package is handled, stored and pallet stacked
• Change packaging to be RFID friendly
• Test tag after application
• Metal, moisture, damage

35
Data

• RFID data
• Once installed, no real additional cost to read a
  tag
• Sensor data
• Temperature, Weight, etc
• Savants filters/concentrators
• RFID enabled enterprise applications
• Database maintenance
• Legacy data
• Accuracy of data
• Exchange data with partners
• Vendors and Customers
• UCCnet Global Registry
• Scalable

36
Human Issues

• Privacy
• Establish a privacy committee
• Consider all users, employees, contractors,
  customers, vendors, supply chain personnel
• Employees
• Explanation
• Efficiency, bottom line benefits
• Training

37
Champion

• Approval from the TOP
• Realistic Expectations
• Start small but think big
• Small enable fine adjustments (experiment)
• Big so as to leverage RFID throughout the
  business
• Dont oversell
• External/Internal expertise
• Partner with both suppliers and customers
• Possible change to business processes
• Other infrastructure
• Sensors, EAS, anti-counterfeit, engineering
• Periodic assessment

38
Web

• Subscribe to online publications
• Journals, Newsletters, Manufacturers, Industry
  Associations
• Favourites
• Http//www.rfidjournal.com/
• http//www.hightechaid.com/
• http//www.abiresearch.com/reports/RFID.html
• http//www.rfidtalk.com
• Other sources
• http//members.surfbest.net/eaglesnest/rfid_mfg.ht
  m

39
RFID Solution Providers (alphabetical order)

• Alien Technologies
• www.alientechnology.com
• AMSKAN Ltd
• http//www.amskan.com.au/
• Applied Wireless Indentifications (AWID)
• www.awid.com
• Connecterra
• www.connecterra.com
• Consultancy Services International
• bw_at_2-csi.com

40

• Datanet
• www.data.net.au
• EM Microelectronic
• www.emmicroelectronic.com
• Feig Electronic
• www.feig.de
• High Tech Aid
• www.hightechaid.com
• IBM
• http//www.ibm.com

41

• Impinj
• www.impinj.com
• Integral RFID
• www.integralRFID.com
• Infineon Technologies AG
• www.infineon.com
• Interlogic
• www.interlogic.co.nz
• Intermec
• http//www.intermec.com

42

• Magellan Technology
• www.magtech.com.au
• MeadWestvaco Intelligent Systems
• www.meadwestvaco.com
• Mirrabooka Systems
• gary_at_mirrabook.com
• QED Systems
• www.qed.org
• Radio Terminal Systems
• www.radterm.com.au

43

• RedPrairie
• http//redprairie.com/
• RFID Automation
• rfidautomation.org
• RF Code
• http//www.rfcode.com/
• RFIP Solutions
• turner.c_at_virgin.net
• Scanology
• www.scanology.nl

44

• Texas Instruments
• http//www.ti.com/tiris/
• ThingMagic
• www.thingmagic.com
• Tyco/Sensormatic
• http//www.sensormatic.com/home.asp
• UPM Rafsec
• www.rafsec.com
• webMethods
• www.webmethods.com

45
Conclusion

• RFID Automatic Data Capture
• RFID is about management
• Lots of RFID experience in Australia
• Plan
• Educate users
• employees, customers, suppliers

46
Start Today!
47
Further Information

• Alfio Grasso
• General Manager
• RFID Automation
• Auto ID Laboratory, Adelaide
• University of Adelaide
• Web www.rfidautomation.org
• Email alf_at_rfidautomation.org
• Ph [phone]
• Mob [phone]

48
