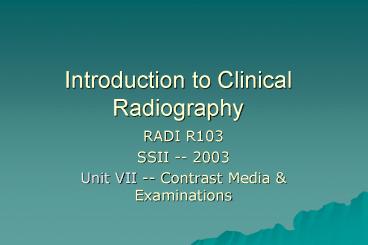

  • RADI R103
  • SSII -- 2003
  • Unit VII -- Contrast Media Examinations

Contrast Media
  • Definitions
  • "contrast"
  • exhibit noticeable differences when compared
  • "radiographic contrast"
  • visible differences between densities on an image
  • "subject contrast"
  • difference in the transmission of x rays due to
    the tissues in the body part

Subject Contrast Definitions
  • radiolucent
  • tissues that x rays easily penetrate
  • appear dark gray to black on the image
  • radiopaque
  • tissues that x rays do not penetrate easily
  • appear light gray to white on the image

Subject Contrast Chart
Very radiolucent Moderately radiolucent Intermediate Moderately radiopaque Very radiopaque
Black Dark grays Gray Light gray White (clear)
Gasses Air Fatty tissue Muscle Cartilage Blood Cholesterol stones Uric Acid Stones Bone Calcium stones Metals
Contrast Media"
  • substance placed in the body to provide added
    contrast when subject contrast is low
  • increases the radiographic contrast between the
    area containing the CM areas not containing CM

With CM
Without CM
Contrast Media Properties
  • able to show organ better
  • physiologically inert
  • no permanent alteration of organ
  • non toxic
  • able to be eliminated / excreted

Types of Contrast Media
  • Negative
  • allows x rays to penetrate organ more easily
  • organ becomes radiolucent (darker)
  • gasses

Negative CM
Types of Contrast Media (cont.)
  • Positive
  • contrast substance absorbs x rays
  • organ become radiopaque (lighter)
  • most common media
  • barium
  • iodine

Positive CM
  • used almost solely in GI tract
  • used to coat the walls of hollow organs or to
    completely fill the organ
  • body cannot metabolize BaSO4
  • contraindications
  • perforations of GI tract
  • proximal to an obstructed bowel
  • precautions
  • adequate hydration post examination

  • numerous brands on market but each prepared for
    specific use(s)
  • ionic (less costly more prone to patient
  • non-ionic (expensive less prone to reactions)
  • major problem -- allergic reactions
  • not predictable
  • minor or major
  • emergency preparedness

Iodine (cont.)
  • Precautions
  • right patient
  • right type, dose administration
  • allergic history vital signs
  • Contraindications (DO NOT USE)
  • hypersensitivity to iodine
  • heart or renal failure
  • liver disease

Fluoroscopic Equipment
  • Perform dynamic exams
  • "see action as it occurs"
  • Similar to a TV in that no permanent image is
    made unless additional equipment is used
  • Uses a fluorescent screen to project an image as
    x rays pass through a part
  • real time viewing

Typical Fluoro Unit
  • 1. X-ray tube under tabletop
  • 2. Image viewing device above table
  • projection vs. position

Fluoro Unit (cont.)
  • conventional -- "cartoon"
  • fluoro screen only
  • image intensifier (II)
  • screen image viewed after going through
    electrical amplification
  • dynamic image seen on monitor

Fluorocopic unit Table in tilt position
Fluoro Unit (cont.)
  • 3. Image recording
  • static image
  • "spot film" device (cassettes)
  • "spot film" camera (70mm, 105 mm, etc.)
  • dynamic image
  • cine camera (16mm, 35mm, etc.)
  • VCR from TV camera

Radiation Protection in Fluoro
  • high exposure area
  • personnel protection
  • time, distance, shielding
  • patient protection
  • exposure timers for warning
  • specialist performs fluoro
  • equipment maintenance

Radiographer's Tasks
  • Prepare room patient for exam
  • Assist fluoroscopist
  • contrast media administration
  • patient instructions positions
  • Change spot films (or other methods of recording
  • Take scout overhead films
  • Scout pre-CM radiographs
  • Overhead radiographs made after CM administered

Exams of the GI tract
  • Antegrade studies
  • (with the normal flow)
  • esophagus, stomach, small bowel
  • contrast
  • barium
  • barium air
  • oral iodine solution

BaSO4 Only
BaSO4 Air
GI Studies (cont.)
  • Retrograde studies
  • (against the flow)
  • colon
  • contrast
  • barium
  • barium air

BaSO4 Only
BaSO4 Air
Exams of the Urinary System
  • Non fluoroscopic
  • Antegrade studies
  • intravenous pyelogram (IVP)
  • contrast media
  • iodine compound injected into bloodstream
  • Timed set of exposures
