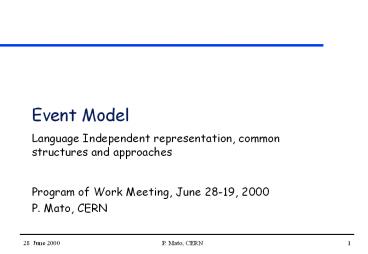

Event Model

• Language Independent representation, common
  structures and approaches

Program of Work Meeting, June 28-19, 2000 P.
Mato, CERN
2
Event Model What is it?

• For us LHCb the Event Model is the structure of
  the transient event data and their relationships
  that is made available to the Algorithms.
• It is intentional to limit the behavior of the
  data objects to the bear minimum (separation
  between data and algorithms)
• The organization of the transient data store
  follows a tree of data objects (file system like)
• Identification (name and type)
• Navigability
• Focus from now on the specific structure of the
  nodes

3
Event Model Definition Past practices

• ALEPH Data Definition Language, DDL
  files(ADAMO)
• LHCb SICb DDF files
• Code generation
• Fortran statement functions
• Documentation generation

OBJECT NAME ATMC ! MC tracks
bank FANOUT AXRE AUTHOR
A.Tsaregorodtsev VERSION 0 PARTITIONS 10 !
each partition corresponds to a pile-up member
NOBJECTS 500 ! initial number of
objects PARAMETERS 14 ! number of parameters
per object without ID and refs ( Type may be
F - float, I-integer, B-bit pattern, H-Hollerith
) Name Type Min Max Accuracy XV F
-500. 500. 0.01 ! X vertex position YV
F -500. 500. 0.01 ! Y vertex position ZV
F -100. 2000. 0.01 ! Z vertex position PX
F -5000. 5000. 0.01 ! X component of the
momentum PY F -5000. 5000. 0.01 ! Y
component of the momentum PZ F -5000.
5000. 0.01 ! Z component of the momentum E
F 0. 5000. 0.01 ! Energy NT I
0. 1000. 1.0 ! MC track number NV I
0. 1000. 1.0 ! MC vertex number IPRT I
0. 200. 1.0 ! particle ID NPTR I 0.
1000. 1.0 ! MC track number for the parent
track IBOS I 0. 1. 1.0 !
Oscillation flag for the B-particle IFLH B
0. 0. 1.0 ! Flavor history code HEL
F -1. 1. 0.0001 ! Helicity REFERENCE
13 Reference banks xxHT AVMC VRPR WDRW .
END OBJECT
SUBSCHEMA X1glb 'Trigger Level1 Global
Section' AUTHOR 'B.Rensch' REVIEWER 'U.N.
Known' VERSION '1.0' DATE 'January on
the 13th year of KohlEra' DEFINE ATTRIBUTE
Date INTE 0,99999999 Time INTE
0,99999999 Nam8 CHA8 END
ATTRIBUTE DEFINE ESET TrigType
'Available TrigTypes ID0 if NOT
defined/available' SIZE 20,20
(TrigType CHA8 'Name of TrigType',
Title CH32 'Short
Explanation/Usage', LstMod
CH32 'Date of last Modification') Info
'Some general information for Trigger_Setup'
SIZE 1,1 (FillStatus INTE
'.gt.0Ok X1TT,X1TH,X1CA filled',
DaqStatus INTE 'To avoid
calamities--gtX1mist', TrigType
CHA8 'Current TrigType', Activity
CHA8 'Current Activity', FillNr
INTE 'Current FillNumber',
RunNr INTE 'Current RunNumber',
GBXperSEC INTE 'GBX per second',
SDnam(12) CHA8 'SDnames known by
Trigger', TrigMnem(32) CHA8
'Mnemonic of TriggerBits', BitDetU(32)
BITP 'Bit i on if SDnam(i) used',
X1wtchNode CH32 'AMSaddr of X1wtch',
AutoDisab INTE 'AutoDisable by
X1_DAQcntrl', HowSetup INTE
'Fork SetupTasks 0VAX/1FIC',
Reserve(30) INTE 'One never
knows..........') END ESET END SUBSCHEMA
4
Event Model Definition Current practices

• LHCb
• Using handcrafted C class definitions following
  some rules (inheritance from some base class,
  factory declaration, relationships with
  smartpointers, )
• Independent of the storage/interactivity/networkin
  g technology
• CMS
• Using Objectivity DDL language (very close to
  C). Special Objectivity data definition
  constructs (VArray, ooRef,)
• ATLAS
• For the time being as LHCb
• ALICE
• Entirely base on ROOT and CINT. They claim not to
  distinguish data from algorithms.

5
Current Problems

• Handcrafting C class definitions with some
  rules is error prone
• Header files are very long and difficult to
  understand
• For example MCVertex.h has 200 lines for only 4
  data members
• By hand Converters are a maintenance problem
• Persistency
• Language conversions
• No interactive manipulation of Event objects

6
Is a DDL a solution?

• We could describe the Event Model with a language
  independent DDL
• From a single source we could generated
• C header files,
• Other language header files
• Data dictionaries (RTTI)
• What about the object methods?

.h
.java
DDL
User
Cnv .cpp
Data Dictionary
7
Data Definition Languages

• IDL (Interface Definition Language) (OSF, OMG)
• Used to define interfaces (CORBA, DCOM) in
  distributed applications.
• ODL (Object Definition Language) (ODMG)
• Language for describing database schemas.
• The Objectivity DDL (Data Definition Language) is
  a variation based on C syntax
• Both IDL ODL are C-like languages with emphasis
  on interface(functionality) or database(storage
  and relations)
• None of them are directly usable

8
Defining the Data Model with C Classes

• ROOT CINT
• The C header files are pre-processed by CINT
• Streamers methods generated (persistency)
• Runtime Type Information (RTTI) generated
  (interactivity)
• Limitations with the C features (references,
  templates,)
• Using Debug Information (by Expresso)
• Typically, compiles are able to generate debug
  information that can be used to provide RTTI
  functionality
• No limitation with the C features
• Strong dependency with compilers and platforms

9
For what do we want a DDL?

• Object Persistency automation
• Code generation streamers (ROOT), converters
  (GAUDI)
• Data Dictionary or RTTI generic converters,
  simple schema evolution.
• Interactivity
• Interfacing scripting or GUI with Data Model
• Data browsing capabilities
• Distributed Computing
• Support for distributed applications
• Exchanging serialized Event Data objects with the
  network
• Language Mixing
• Object interaction across language boundaries
• Conversion of objects from one language to
  another language (code generation)

10
Do we need to impose any limitations?

• Not every data model can be expressed by all
  languages
• If we what to keep the door open to language
  interoperability or language replacement we need
  to put some restrictions.
• Is it a good idea to have many ways to implement
  relationships, links to Monte Calo data, etc.?
• Simplifications and uniformity are always welcome
• These limitations have been introduced in the
  past (Fortran era) and experiments have
  succeeded to produce good physics !
• Should not be a problem

11
Proposal

• Start a serious investigating the possibilities
  that exist as data definition languages
• IDL like
• C (using a C parser)
• Build a prototype with current event model to
  generate code in various languages, and
  converters (to java?)
